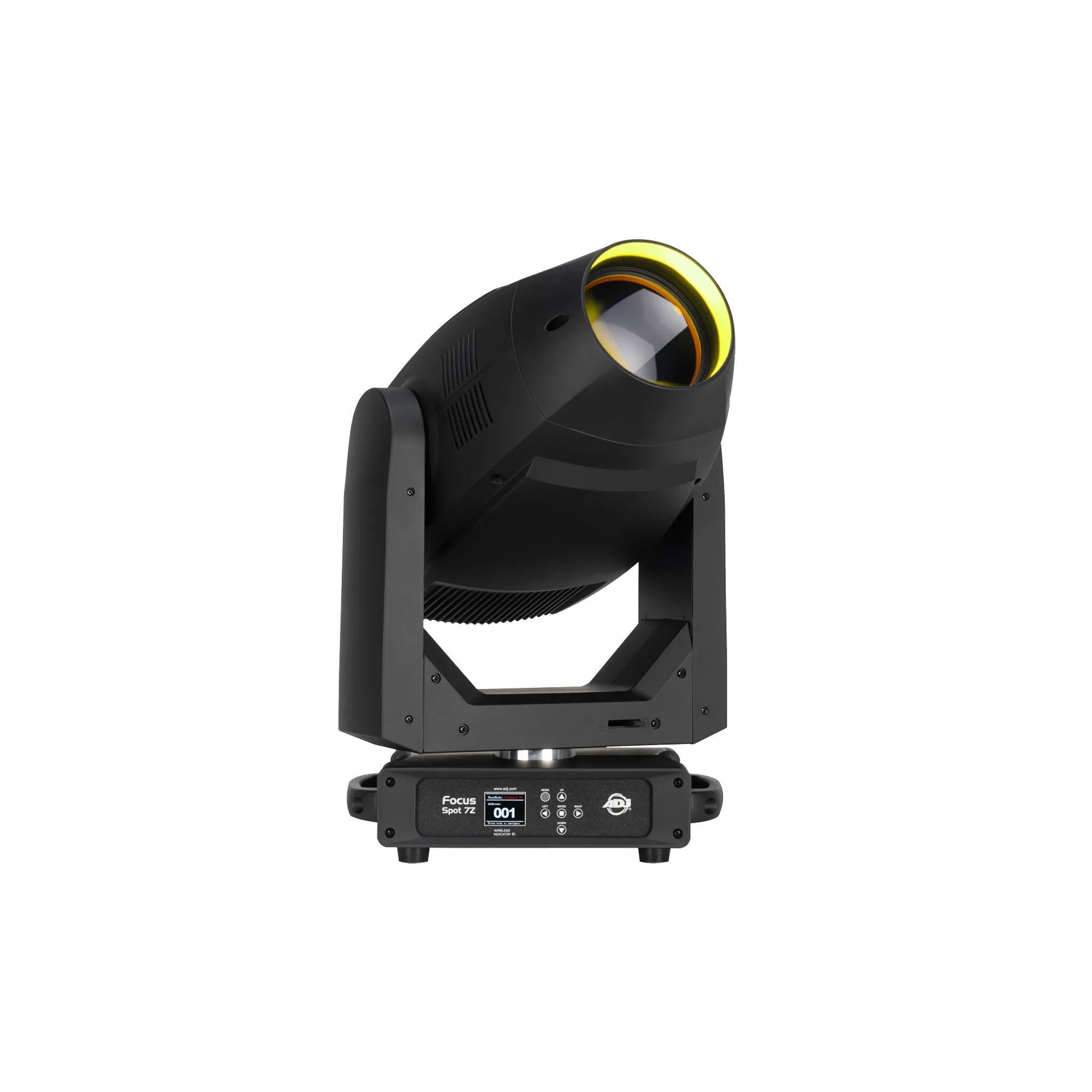

ADJ Focus Spot 7Z Moving Head
090899
The ADJ Focus Spot 7Z is powered by a 420W LED light engine, offering an impressive output of 20,000 Lumens. The ADJ Focus Spot 7Z is a powerful and feature-packed moving head spot luminaire capable of producing beam, spot and wash effects.
2-YEAR WARRANTY
The ADJ Focus Spot 7Z is powered by a 420W LED light engine, offering an impressive output of 20,000 Lumens. The ADJ Focus Spot 7Z is a powerful and feature-packed moving head spot luminaire capable of producing beam, spot and wash effects. It has an extensive collection of integrated beam-shaping tools provide lighting designers with immense creative potential. These include full CMY + CTO color mixing; an animation wheel; motorized zoom (6° ~ 48°), focus and iris; as well as twin GOBO wheels, rotating prisms and frost filters. The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).
Specifications
Source:
- 420W White LED Engine
- 20,000 Hour Average LED Life
Photometric Data:
- 20,000 Hour Average LED Life
Photometric Data:
- 20,000 Total Lumens
- 8,000K, >73CRI (without CRI Filter)
- 7,700K >85CRI (with CRI Filter)
- 56,513 LUX @16.4’ (5m) (6° Beam)
- 1,585 LUX @16.4’ (5m) (48° Beam)
Effects:
- 8,000K, >73CRI (without CRI Filter)
- 7,700K >85CRI (with CRI Filter)
- 56,513 LUX @16.4’ (5m) (6° Beam)
- 1,585 LUX @16.4’ (5m) (48° Beam)
Effects:
- 4-Facet Circular & 6-Facet Linear Rotating Prisms
- 2 Frost Filters (Light & Heavy)
- Animation Wheel (Rotatable and Indexable)
- Motorized Zoom (6° ~ 48°)
- Motorized Focus
- Motorized Iris
- Electronic Dimming & Strobe (1-20Hz)
Color:
- 2 Frost Filters (Light & Heavy)
- Animation Wheel (Rotatable and Indexable)
- Motorized Zoom (6° ~ 48°)
- Motorized Focus
- Motorized Iris
- Electronic Dimming & Strobe (1-20Hz)
Color:
- Full CMY color mixing
- Variable CTO (2,700K to 8,000K)
- Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
- CMY and Color Wheel preset macros
Gobos:
- Variable CTO (2,700K to 8,000K)
- Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
- CMY and Color Wheel preset macros
Gobos:
(2) Gobo Wheels
- #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
- #2 - (7) Interchangeable Rotating-Indexing Glass Gobos
Control / Connections:
- #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
- #2 - (7) Interchangeable Rotating-Indexing Glass Gobos
Control / Connections:
- (3) DMX Channel Modes (30 / 34 / 45)
- DMX512, ArtNet and sACN protocols
- WiFly EXR Wireless DMX
- RDM (Remote Device Management) compliant
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- 5-pin XLR DMX In/Out
- Locking In/Out power connections
Pan / Tilt:
- DMX512, ArtNet and sACN protocols
- WiFly EXR Wireless DMX
- RDM (Remote Device Management) compliant
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- 5-pin XLR DMX In/Out
- Locking In/Out power connections
Pan / Tilt:
- Pan: 540-degrees
- Tilt: 270-degrees
- Pan & Tilt Locks
Dimensions & weight:
- Tilt: 270-degrees
- Pan & Tilt Locks
Dimensions & weight:
- Dimensions: (LxWxH) 374 x 234 x 630mm
- Weight: 51.7 lbs. (23.45kg)
Electrical & Thermal:
- Weight: 51.7 lbs. (23.45kg)
Electrical & Thermal:
- AC 100-240V - 50/60Hz
- Max Power Consumption: 524W
- Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
- Max housing temperature: 136°F (58°C)
Technical data:
- Max Power Consumption: 524W
- Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
- Max housing temperature: 136°F (58°C)
Technical data:
- DB Rating @ 3ft.: 49dB
- BTU: 0.53
- BTU/H: 1,909.60
Approvals & Ratings:
- BTU: 0.53
- BTU/H: 1,909.60
Approvals & Ratings:
- CE | ETL (Pending)
- IP20
Included accessories:
- IP20
Included accessories:
- Locking Power cable
- 180mm Omega brackets (x2)
- 180mm Omega brackets (x2)
- Category
- Moving Head
- Colour
- Black
New
- MPN
- Focus Spot 7Z
