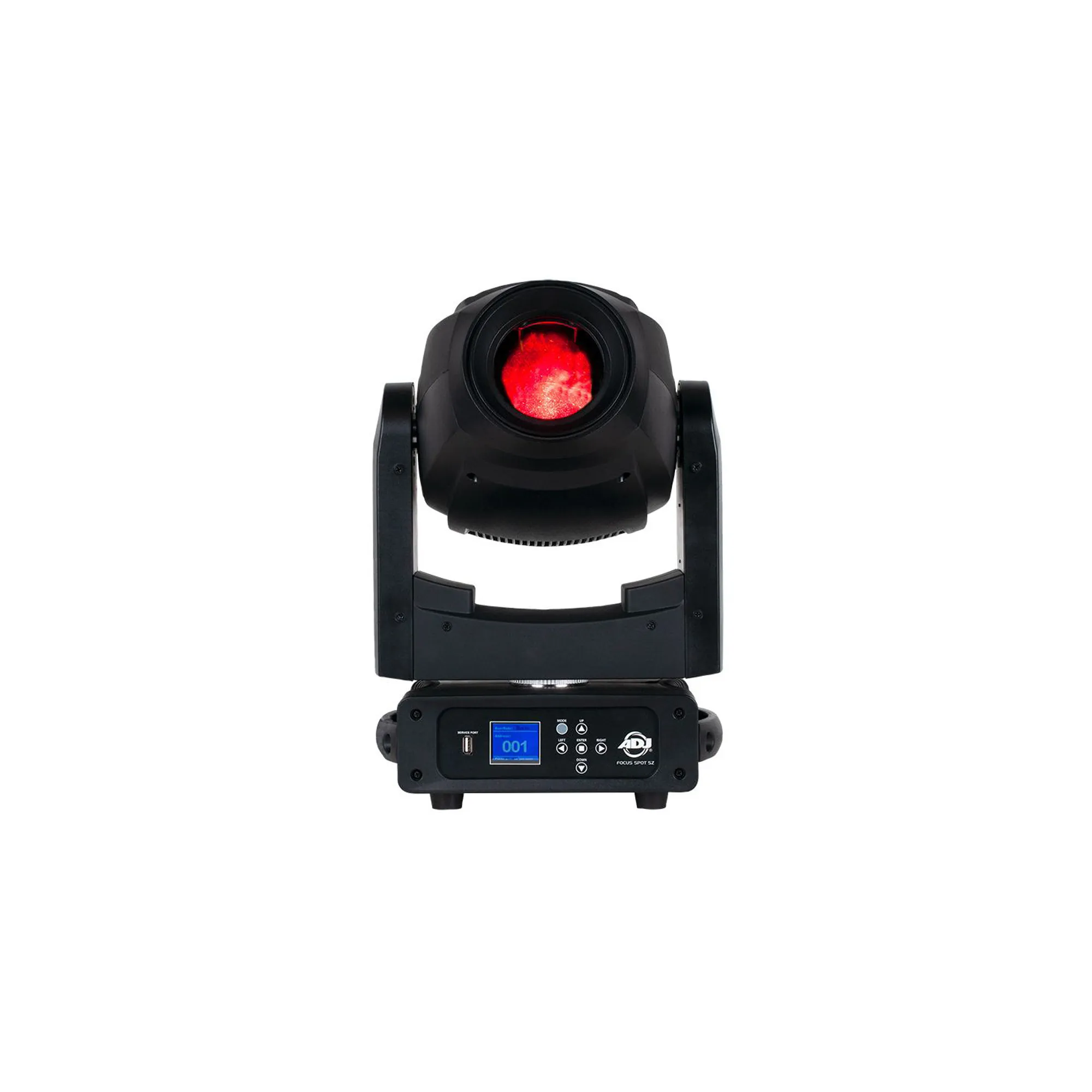

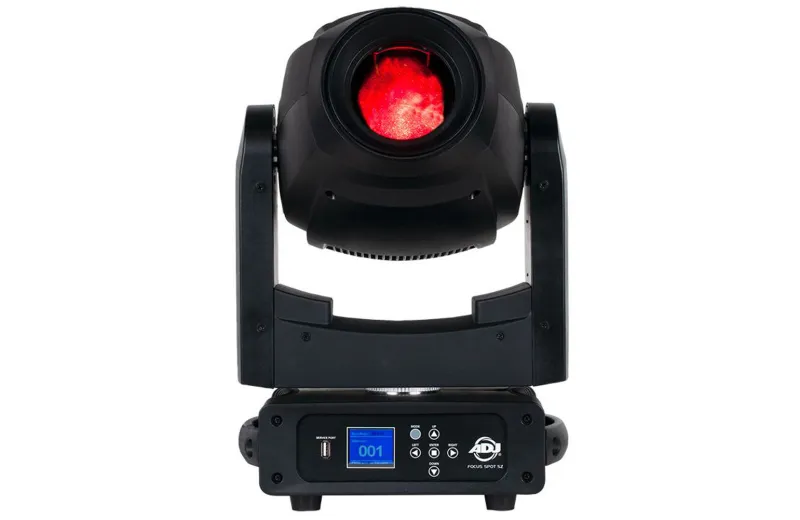

ADJ FOCUS SPOT 5Z
090616
ADJ Focus Spot 5Z, powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom) two Frost filters(heavy frost and light frost), 2 prism effects, 2 color wheels (each with 8 colors) and a GOBO wheel with 7 GOBOs + open.
2-YEAR WARRANTY
ADJ Focus Spot 5Z, powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom) two Frost filters(heavy frost and light frost), 2 prism effects, 2 color wheels (each with 8 colors) and a GOBO wheel with 7 GOBOs + open. The Focus Spot 5Z has Locking Power In and Out connectors to daisy chain the power, as well as Locking 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes and 6 different dimming curves
Specifications
Source
- Source: Cool White LED Engine
- Individual LED wattage : 200W
- Average lifetime: approximately 50,000 hrs
Optics
- Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
- Motorized Focus
- Rotating 5-facet Linear & rotating 6-facet Circular Prism
- Heavy frost for wash effect & Light frost that creates lightly blurred edges for GOBO and Prism FX
Control
- 2 operational modes : Program Mode or DMX control
- 3 DMX Channel Modes: 16/18/22 Channels
- RDM compatible (Remote Device management)
- Internal Programs with built-In DMX Recorder
- 16bit dimming 0-100%
- 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
- Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
- Various strobe effects
- 6-button Color display
- Battery inside, allowing to access the fixture Menu without power connection
- 16bit Pan: 540 & 630 degrees
- 16 bit Tilt: 270 degrees
- 3 Fan settings : Auto, High and Low Noise
Colors
- 2 separate color wheels each with 7 dichroic colors + white (includes CTO, CTB and UV filters)
Gobos
- 1 gobo wheel with 6 aluminum GOBOs + open
- All gobos removable, rotatable and indexable
- Gobo Shake Effect
- Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Construction
- White Plastic housing
- 2 cooling fans

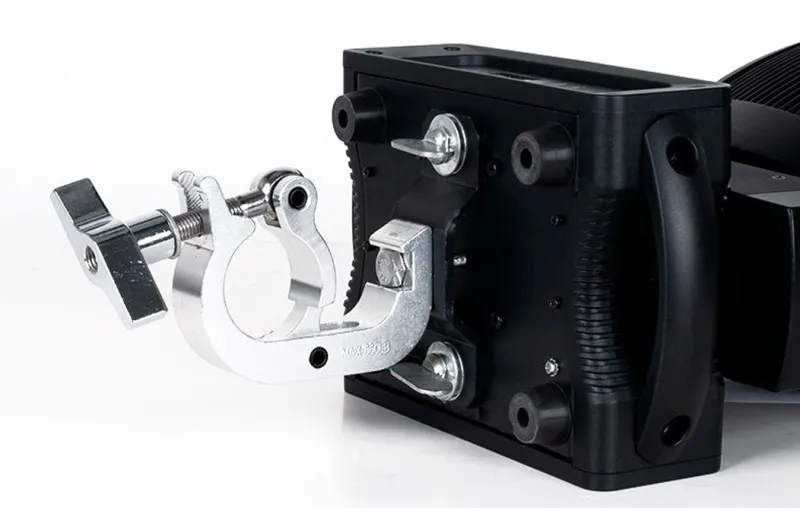

- Omega bracket with quick locks
Electrical
- Multivoltage : 100-240V 50/60Hz
- Power Draw : 256W
Connections
- Locking 5-pin DMX In/Out
- Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
- USB firmware update port
Dimensions & Weight:
- Dimensions: 457 x 279 x 182mm
- Weight: 10 kg.
New
- MPN
- Focus Spot 5Z
