ADJ FOCUS BEAM LED
090569
The ADJ Focus Beam LED is an 80W LED Moving Head with a sharp 2.5-degree beam, motorized focus, two prims wheels and a built-in frost filter for wash effects.
2-YEAR WARRANTY
The ADJ Focus Beam LED is an 80W LED Moving Head with a sharp 2.5-degree beam, motorized focus, two prims wheels and a built-in frost filter for wash effects. The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect. There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.
Specifications
Source
- Source: Cool White LED Engine
- Individual LED wattage : 80W
- Average lifetime: approximately 50,000 hrs
- Color Temperature: 7400K
- Lux: 24470lux@10m
- Individual LED wattage : 80W
- Average lifetime: approximately 50,000 hrs
- Color Temperature: 7400K
- Lux: 24470lux@10m
Optics
- Beam Angle: 2.5 degrees
- Motorized Focus
- Rotating 6-facet Linear & rotating 8-facet Circular prism with overlay
- Linear Frost
- Motorized Focus
- Rotating 6-facet Linear & rotating 8-facet Circular prism with overlay
- Linear Frost
Control
- DMX-512 Protocol
- 2 DMX Channel Modes: 16 & 18 Channels
- RDM compatible (Remote Device management)
- 16bit dimming 0-100%
- 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
- Adjustable Gamma Brightness : 1.0 / 2.0 / 2.2 / 2.4 / 2.6 or 2.8
- Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
- Various strobe effects
- 6-button Color display
- 16bit Pan: 540 & 630 degrees
- 16 bit Tilt: 270 degrees
- 3 Fan settings : Auto, High and Low Noise
- 2 DMX Channel Modes: 16 & 18 Channels
- RDM compatible (Remote Device management)
- 16bit dimming 0-100%
- 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- 4 Dimming Curves : Linear / Square / Inverse Square / S-Curve
- Adjustable Gamma Brightness : 1.0 / 2.0 / 2.2 / 2.4 / 2.6 or 2.8
- Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation
- Various strobe effects
- 6-button Color display
- 16bit Pan: 540 & 630 degrees
- 16 bit Tilt: 270 degrees
- 3 Fan settings : Auto, High and Low Noise
Colors
- 1 color wheels with 13 dichroic colors + white (includes CTO)
Gobos
- 1 Gobo wheel with 14 fixed Gobos + open
- Gobo Shake Effect
- Gobo Shake Effect
Construction
- Plastic housing

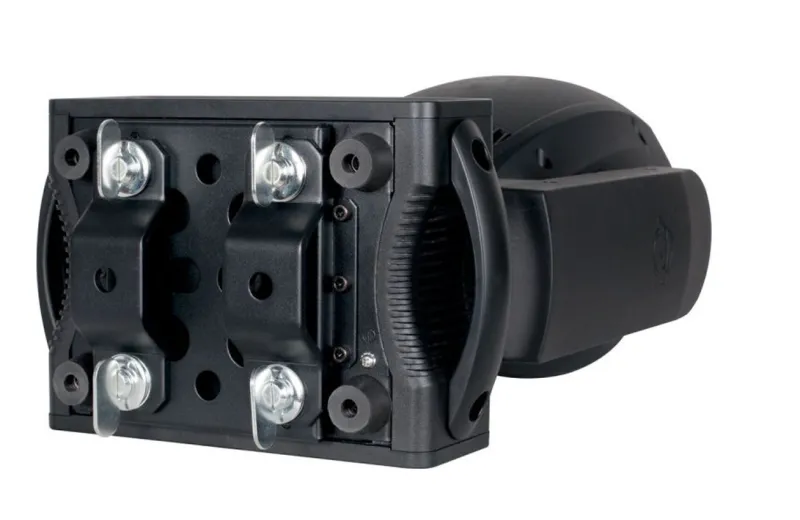

- Omega bracket with quick locks
- Omega bracket with quick locks
Electrical
- Multivoltage : 100-240V 50/60Hz
- Power Draw : 136W
- Power Draw : 136W
Connections
- Locking 3-pin DMX In/Out
- Locking Power In/Out
- USB firmware update port
- Locking Power In/Out
- USB firmware update port
Dimensions & Weight:
- Dimensions: 278,61 x 191,8 x 447,3mm
- Weight: 12,25 kg.
- Weight: 12,25 kg.
New
- MPN
- Focus Beam LED
