ADJ Hydro Beam X12
090709

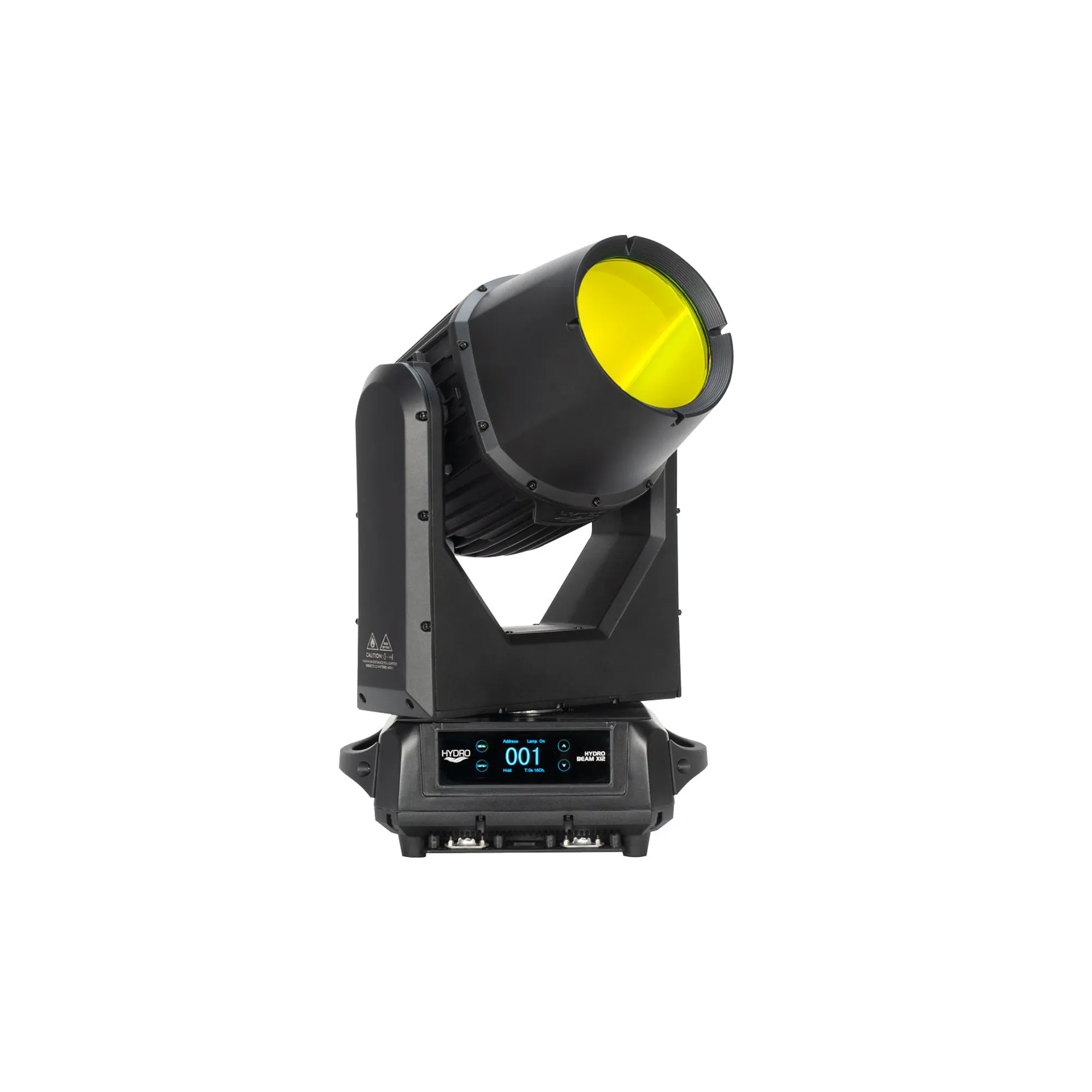

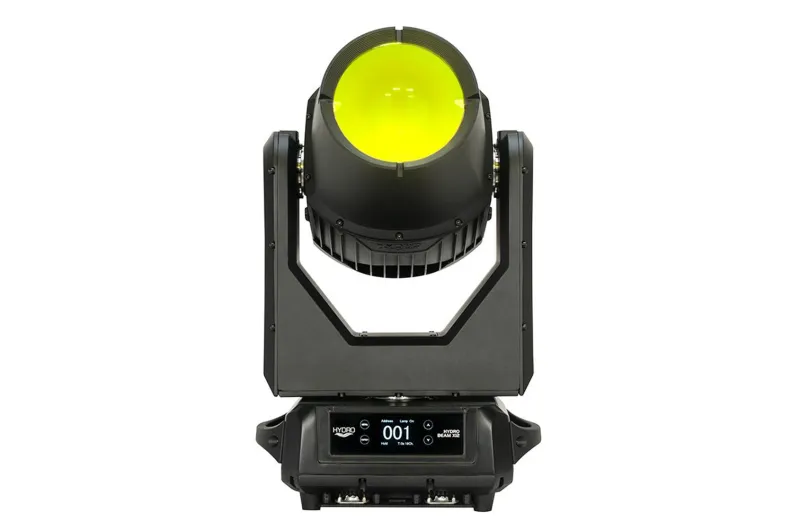

The ADJ Hydro Beam X12 is powered by a 260W Philips® Platinum 12R LL MSD Discharge Lamp, it creates an intense narrow beam of light ideal for generating aerial effects.
2-YEAR WARRANTY

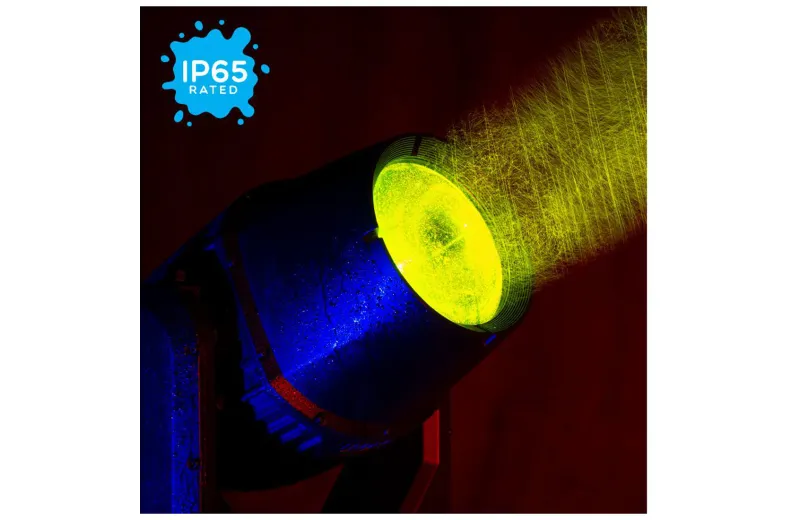

The ADJ Hydro Beam X12 is powered by a 260W Philips® Platinum 12R LL MSD Discharge Lamp, it creates an intense narrow beam of light ideal for generating aerial effects. Its features include 14 colors + white, 16 GOBOs + open, motorized focus, two rotating prisms and a Frost Filter. Designed for both indoor and outdoor use, the Hydro Beam X12 has a robust construction and an IP65-rating. Its durable casing protects it from dust, sand, moisture, and liquids, making it ideal for use in all situations.
Specifications:
Source:
- 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
- Color temperature: 7800K
- LUX: 522,000 @10M
Optics:
- Color temperature: 7800K
- LUX: 522,000 @10M
Optics:
- 2° beam angle
- High quality, optical glass lens
- 16 bit Motorized Focus
- 2 Rotating prisms: 6-facet Linear and 24-facet Circular, overlayable
- Frost Filter to create wash effect
Control:
- High quality, optical glass lens
- 16 bit Motorized Focus
- 2 Rotating prisms: 6-facet Linear and 24-facet Circular, overlayable
- Frost Filter to create wash effect
Control:
- DMX 512
- RDM
- WiFLY EXR Wireless DMX built-in (Up to 30M line of sight)
- 2 DMX Channel Modes: 14/18 Channels
- 5 Dimmer Curves
- 0-100% smooth dimming
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- Various strobe effects with speed control
- USB firmware update port
Color Wheel:
- RDM
- WiFLY EXR Wireless DMX built-in (Up to 30M line of sight)
- 2 DMX Channel Modes: 14/18 Channels
- 5 Dimmer Curves
- 0-100% smooth dimming
- Pan: 540 degrees (plus 16-bit fine pan)
- Tilt: 270 degrees (plus 16-bit fine tilt)
- Various strobe effects with speed control
- USB firmware update port
Color Wheel:
- 14 dichroic colors + white [Includes CTO (3200K), CTB (6000K) & UV]
- Split Colors
- Bidirectional color wheel scrolling
GOBO Wheel:
- Split Colors
- Bidirectional color wheel scrolling
GOBO Wheel:
- 16 static GOBOs + open (4 GOBOs are beam reducers)
- GOBO Shake Effect
- Bidirectional gobo wheel scrolling
Construction:
- GOBO Shake Effect
- Bidirectional gobo wheel scrolling
Construction:
- Metal casting body
- IP65 rating
- Color LCD display with 4-button function menu
- Omega Brackets for hanging included
Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 422W (@230V)
Connections:
- IP65 rating
- Color LCD display with 4-button function menu
- Omega Brackets for hanging included
Electrical:
- Multi-voltage operation: 100-240V, 50/60Hz
- Max power consumption: 422W (@230V)
Connections:
- DMX Connections: 5-pin DMX In/Out
- Power Connections: IP65 rated power locking In/Out connections
Dimensions & Weight:
- Power Connections: IP65 rated power locking In/Out connections
Dimensions & Weight:
- Dimensions: (LxWxH) 356 x 240 x 615.8mm
- Weight: 21.8 kg.
- Light source
- 12R
- Colour temperature
- 7800 K
- DMX
- Yes
- DMX Channels
- 14/18 Channels
- Colour
- Black
- Length (mm)
- 356
- Height (mm)
- 615.8
- Weight (kg)
- 21.8
- Protection class
- IP65
New
- EAN13
- 810087370138
- MPN
- Hydro Beam X12
