ADJ VIZI BEAM 12RX
090615

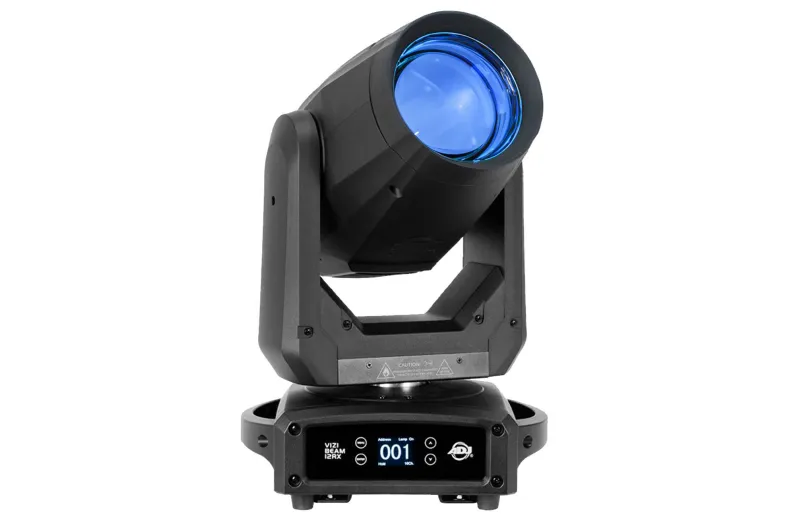

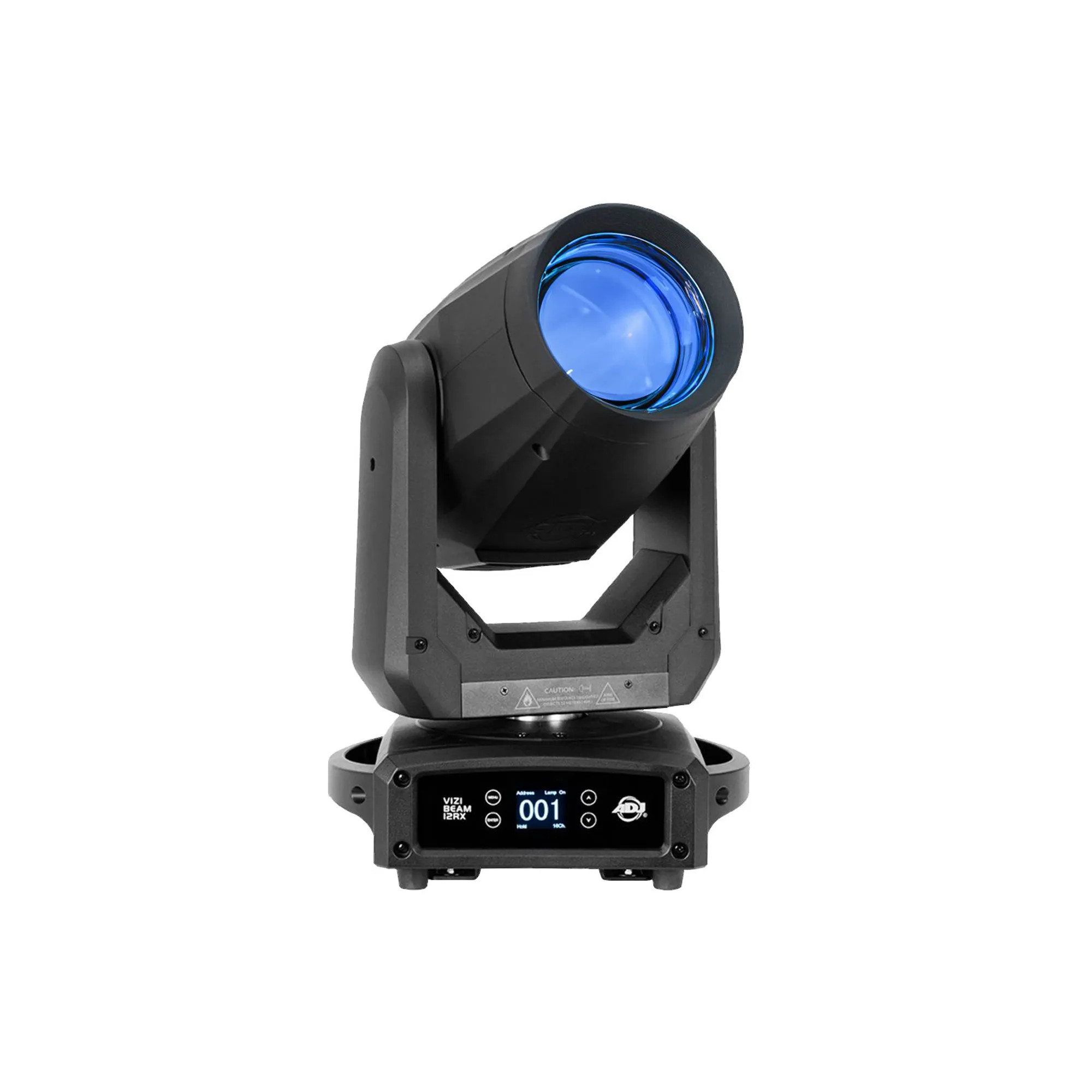

The ADJ Vizi Beam 12RX is the next generation beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). Includes: 2 Prism FX, Frost Filter, Motorized Focus and a razor sharp 2-degree beam angle.
2-YEAR WARRANTY
The ADJ Vizi Beam 12RX is the next generation beam moving head powered by the brilliant 260W Philips® Platinum 12R LL MSD Discharge Lamp (6,000 hr.). Includes: 2 Prism FX, Frost Filter, Motorized Focus and a razor sharp 2-degree beam angle. It comes with 14 colors + open (including UV, CTO & CTB, with color indexing), 16 fixed GOBOs + open (with GOBO indexing), and a frost filter for wash effects. To create breathtaking aerial effects, the Vizi Beam 12RX is fitted with two prism wheels - a 6 facet liner prism and a 24-facet circular prism. The Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.
Specifications:
Source
- Philips Platinum 12R Long Life Discharge
- Lamp Wattage: 260W
- Average Lifetime: 6,000 hrs
- Color Temperature : 7500K
- CRI: 74
- Lux: 70,000 lux @20m
- Lamp Wattage: 260W
- Average Lifetime: 6,000 hrs
- Color Temperature : 7500K
- CRI: 74
- Lux: 70,000 lux @20m
Optics
- Beam Angle: 0.8°
- Field Angle: 1.8°
- High Quality Glass Lens
- 24-facet rotating circular prism
- 6-facet rotating linear prism
- Linear Frost filter
- Motorized 16bit Focus
- Field Angle: 1.8°
- High Quality Glass Lens
- 24-facet rotating circular prism
- 6-facet rotating linear prism
- Linear Frost filter
- Motorized 16bit Focus
Control
- 2 operational Modes: Internal Programs or DMX Control
- 2 DMX Channel Modes: 14 or 16 Channels
- RDM compatible (Remote Device management)
- 16bit Pan 540°
- 16bit Tilt 270°
- Various strobe effects
- Display: Color display with 4-button function menu
- 2 DMX Channel Modes: 14 or 16 Channels
- RDM compatible (Remote Device management)
- 16bit Pan 540°
- 16bit Tilt 270°
- Various strobe effects
- Display: Color display with 4-button function menu
Colors
- 1 Color Wheel with 11 colors + CTO + CTB + UV + White
- Split Colors
- Split Colors
Gobos
- 1 metal Gobo Wheel with 12 static Gobos + 4 beam reducers + Open
Construction
- PVC molding
- Includes omega brackets
- Includes omega brackets
Electrical
- Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
- Power consumption: 371W
- Power consumption: 371W

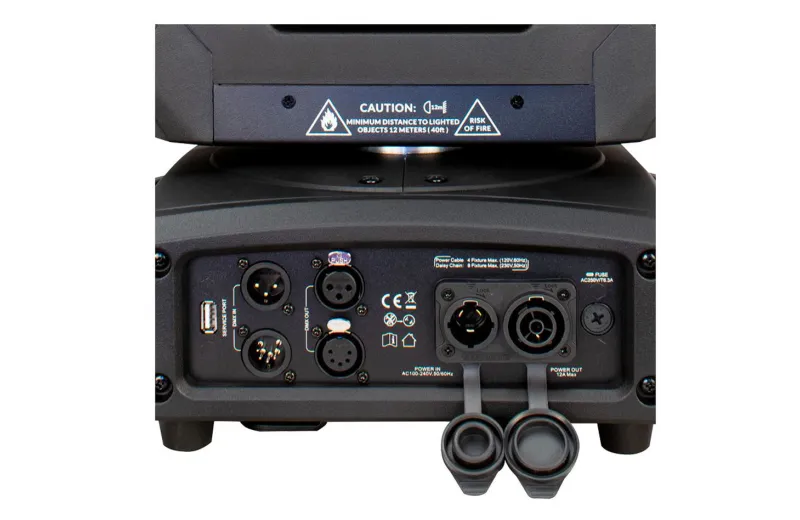

Connections
- 3 & 5-pin Locking DMX In/Out connections
- IP65 Locking Power In/Out connections
- USB Service Port for software updates
- IP65 Locking Power In/Out connections
- USB Service Port for software updates
Dimensions & Weight
- Dimension: 350 ? 343.5 ? 565mm
- Weight: 18 kg.
- Weight: 18 kg.
New
- MPN
- Vizi Beam 12RX
