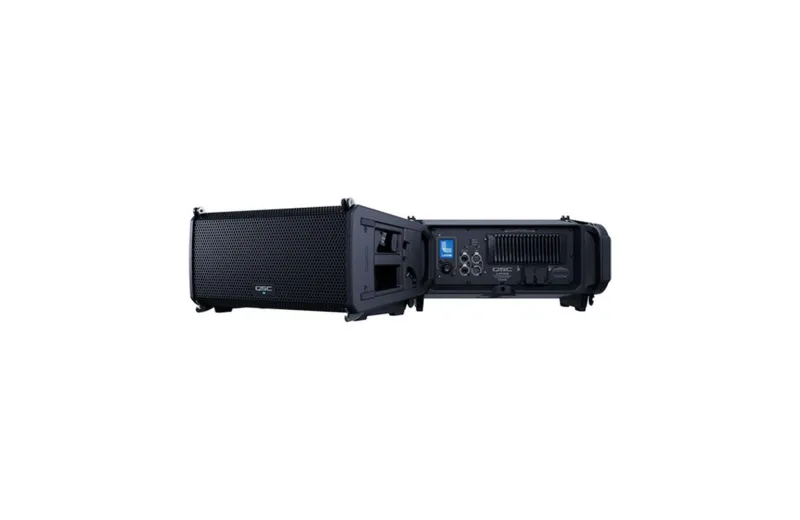

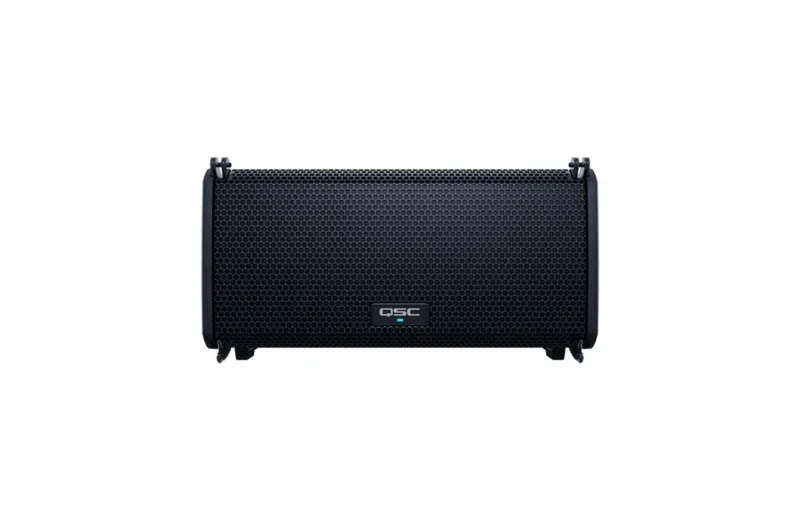

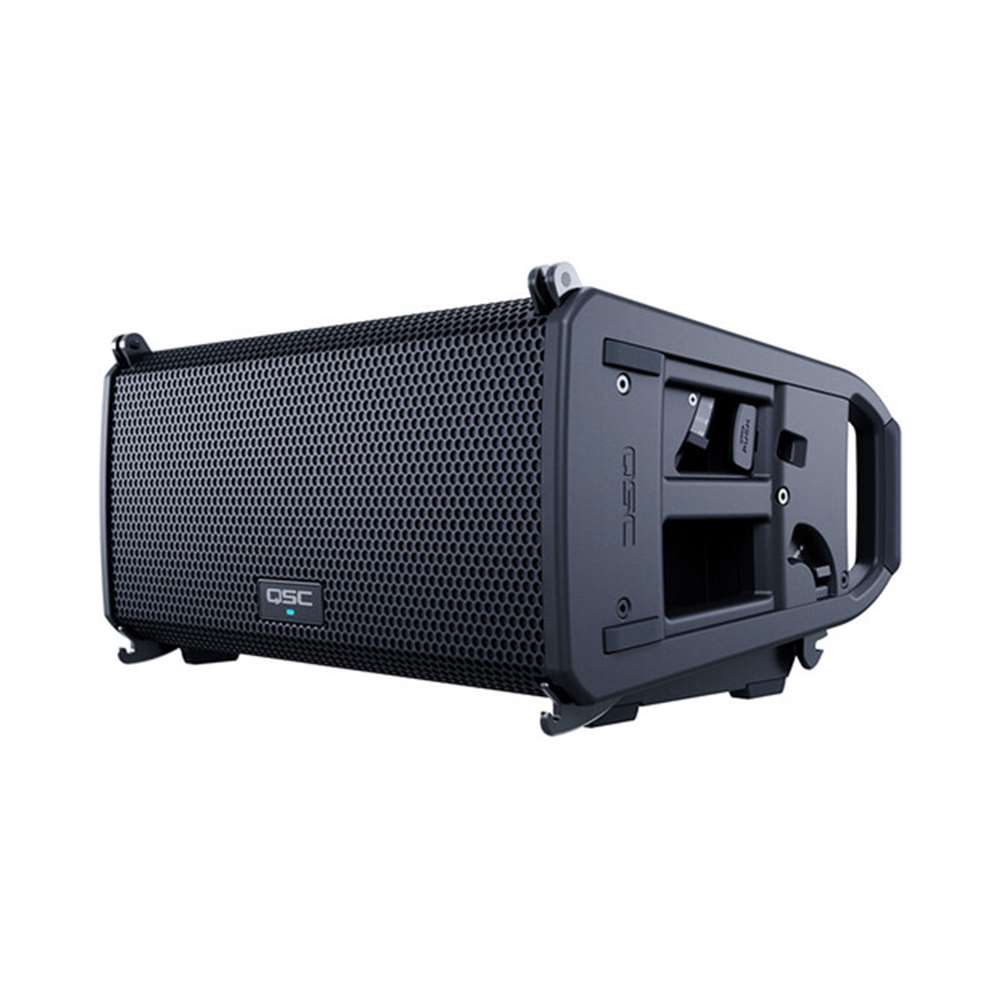

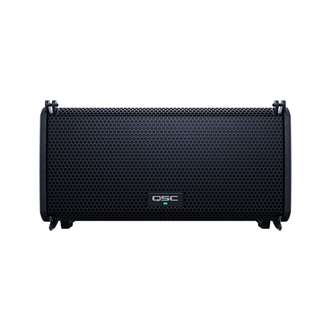

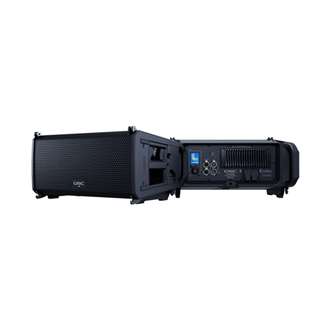

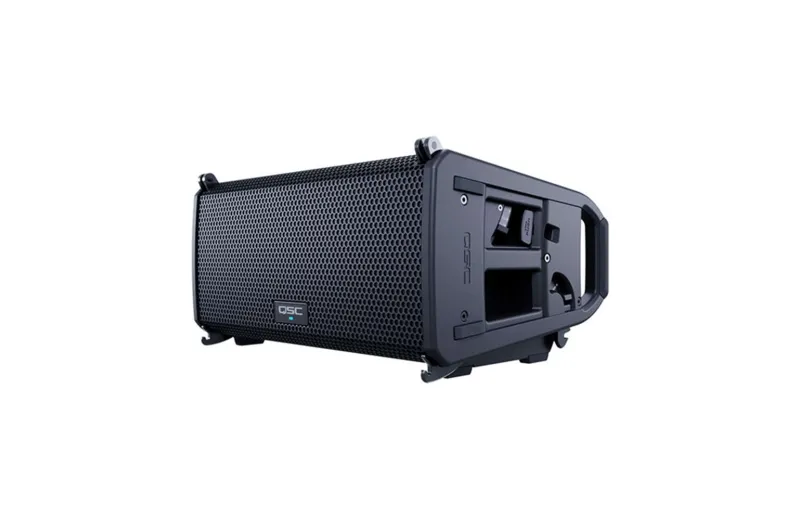

QSC LA108, a two-way, active line array, 8-inch loudspeaker with up to 1300W Peak Class D amplifier, Max SPL 134dB Peak, frequency response 62Hz-20kHz at -6dB, 57Hz-20kHz at -10dB frequency range with Power Factor Correction technology and extremely low AC consumption.
L Class represents the next-generation of advanced, intelligent, active loudspeakers for mobile and fixed entertainment applications. Comes with technologies such us:
Innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage and exceptional throw.

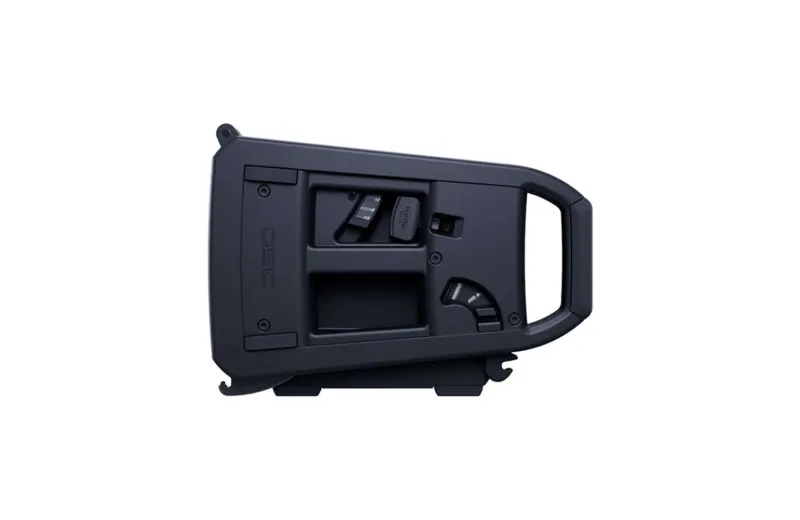

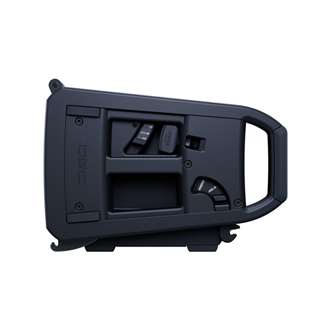

Intuitive, single operator QSC RapidDeploy™ rigging technology with short, medium and long-throw options, guarantees fast deployment without tools or additional hardware.
Onboard QSC AWARE™ (Automatic Wireless Array Recognition) system intelligence communicates essential setup information to the user via any loudspeakers Rear User Interface (RUI) or QSC SysNav™ App.
QSC SysNav™ (System Navigator) App allows the user to easily design, configure, control, monitor and apply signal processing to individual loudspeakers, full arrays or groupings of both. The AIM (Array Installation Modeling) prediction tool lets the user visualize array coverage by positioning virtual loudspeakers and arrays in a scaled, graphical model of a venue or installation space.
L Class series includes includes digital audio-over-IP (Dante®) for interoperability with other audio equipment and seamless control and monitoring integration into the Q-SYS Ecosystem via Q-SYS Inventory Extensions. Acoustic Linear Phase (ALP) design provides complementary coherence between QSC loudspeakers deployed in the same audio system delivering a uniform listening experience across the entire venue.

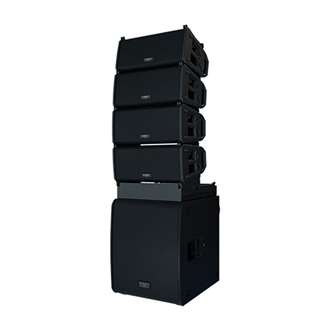

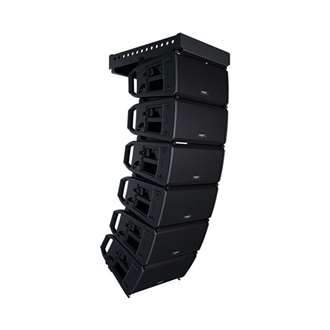

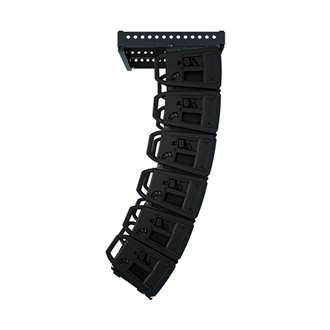

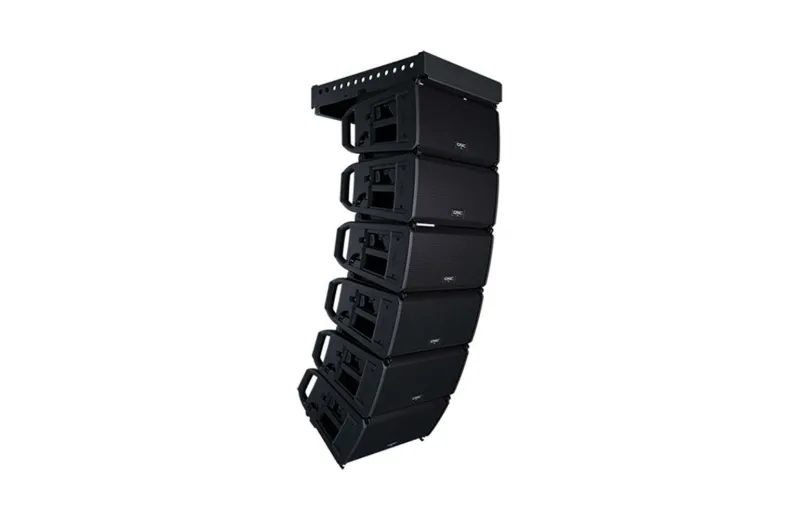

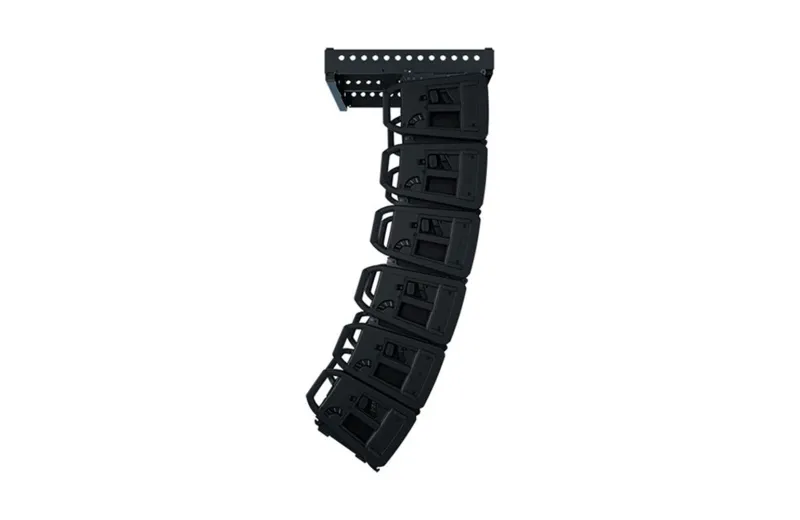

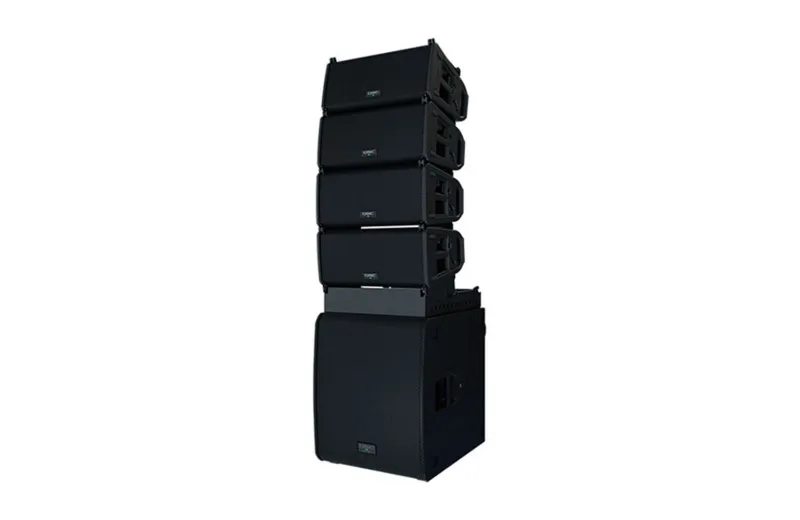

Flown (up to six units with array frame), ground- stacked (up to four LA108/three LA112 over a single LS118 subwoofer) or loudspeaker stand/pole mounting (up to three LA108/two LA112) deployment options.
Complemented by LS118, networked, single 18-inch active subwoofer
Specifications
- Type: Two-way active line array loudspeaker
- Amplifier (peak) : Class D LF 1000W / HF 300W
- LF transducer: 203 mm (8-inch), cone
- HF transducer: 44 mm (1.75-inch), compression driver with Polyimide diaphragm
- Nominal Coverage Angle (horizontal & vertical): 100° x 15°
- Frequency Response (-6 dB): 62Hz - 20kHz
- Frequency Range (-10 dB): 57Hz - 20kHz
- Max Rated SPL (Peak): 134dB
- Display: 2.4 inches Full Color 240 χ 320 pixels

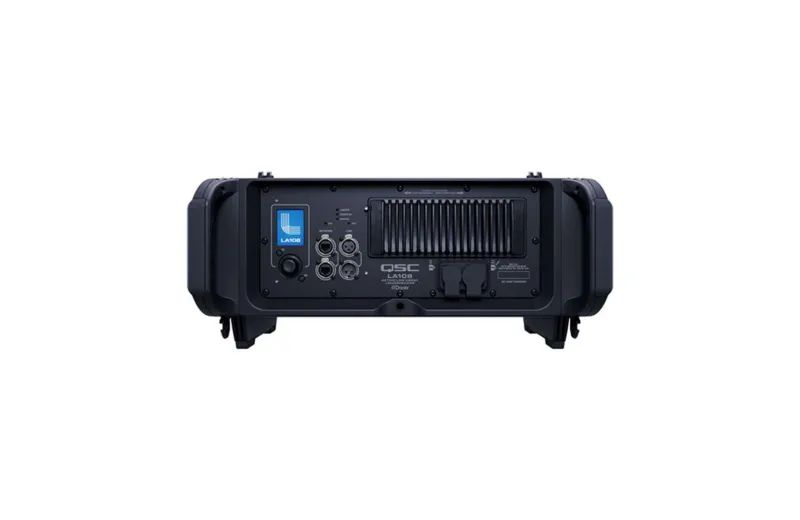

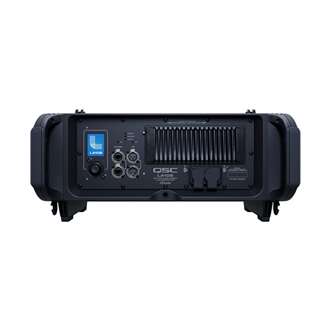

- Connections: XLR Female (Analog In), XLR Male (Analog Thru), 2 x RJ45 EtherCON (Dante® and QSC SysNav™ In/Thru, 2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
- Material: Impact resistant ABS
- Grille: 18 Ga
- Dimensions (HxWxD): 272 x 519 x 374mm
- Weight: 13.7kg
