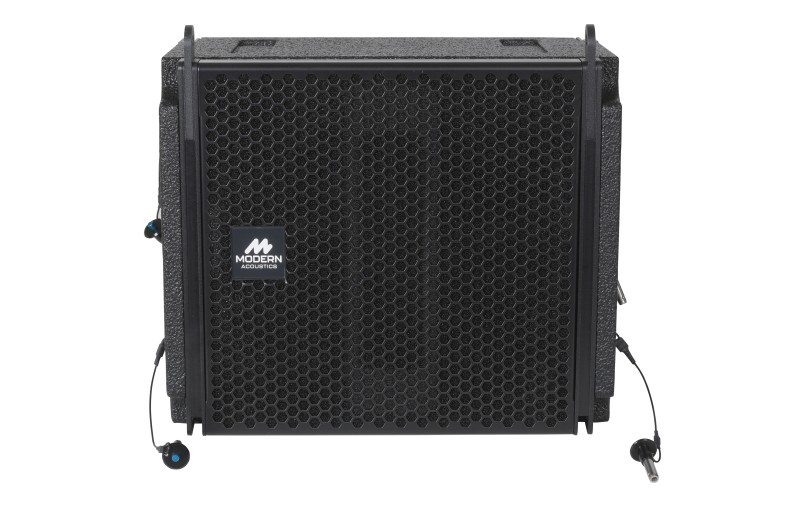

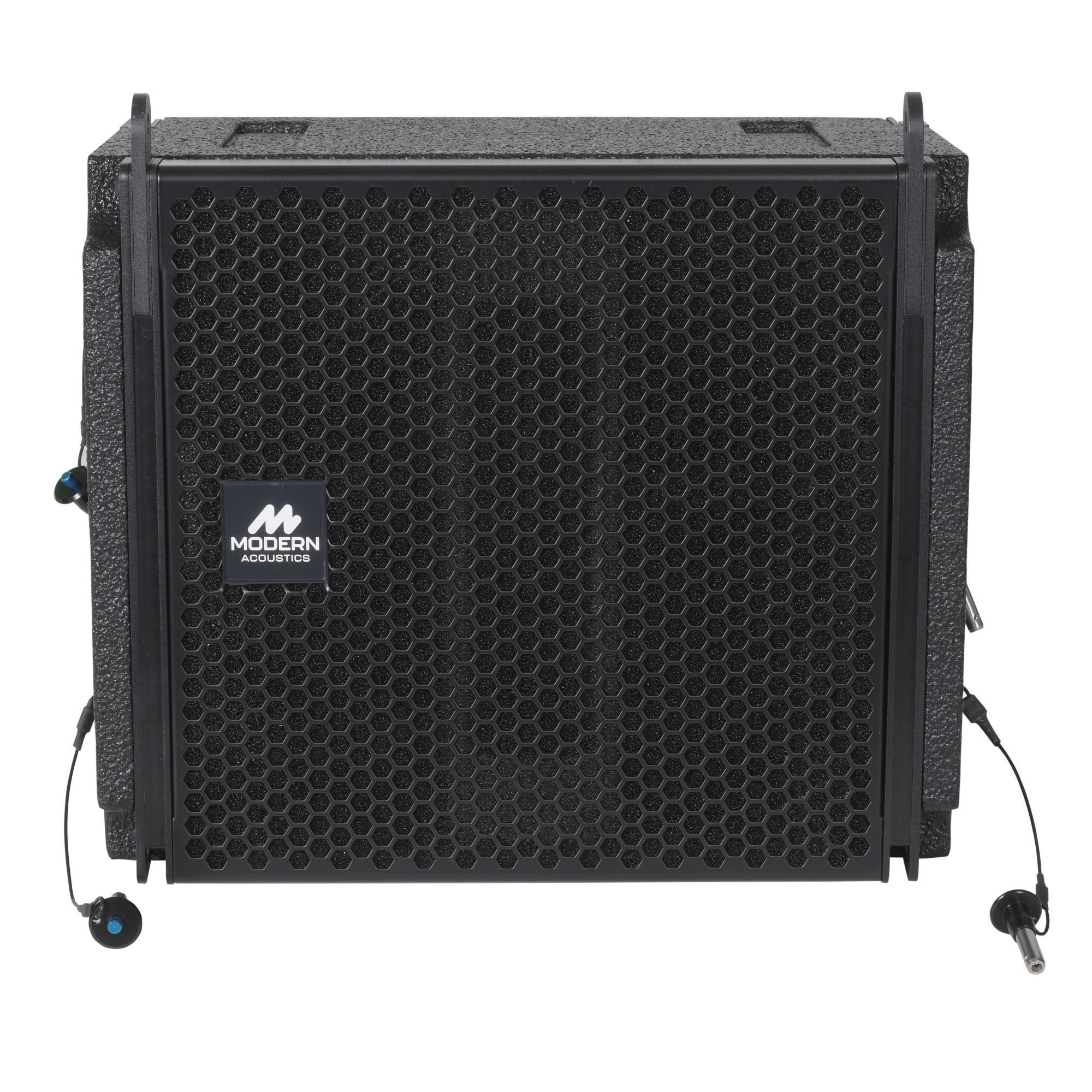

Modern Acoustics LA-100 Passive Line Array Speaker

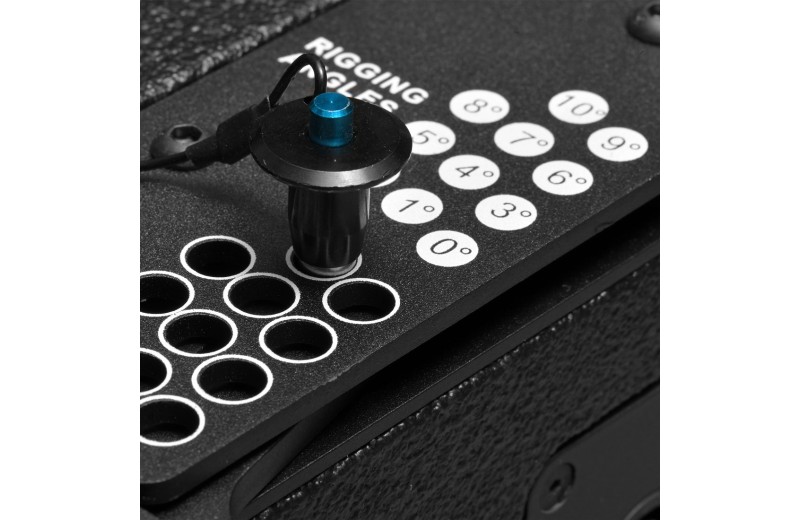

The LA-100 from Modern Acoustics is the new coaxial 10 passive line array speaker and is characterized by its excellent sound. Nominal coverage is 10° vertically and 100° horizontally. It is made of durable Baltic birch and polyurethane paint. It is characterized by its low weight, compact construction and small footprint. It can be placed suspended, on the subwoofers L150sub & L300sub (stacked) with the possibility of tilting 0°-10°, as well as on a tripod type base. It is ideal for clubs, entertainment centers and rental use both indoors and outdoors. It can develop particularly high intensities and use minimal time for its installation.

• Coaxial woofer 10( die cast ) with compression HF driver 3 for clear sound with clear high frequency reproduction
• Frequency response: 80 Hz - 18kHz (-3sB) 60 Hz - 20kHz (-10dB)
• Nominal coverage: 100° (H) x 10°(V)
• Rated Power: HF/LF: 80W/350W (AES)
• Sensitivity: 112dB
• Impedance: HF/LF: 16/16Ω
• Max SPL: HF: 131dB SPL peak
• Max SPL: LF: 121 dB SPL peak
• Drivers: LF: 1 x 10 woofer (75mm voice coil)
• Drivers: HF: 1 x 3 compression driver

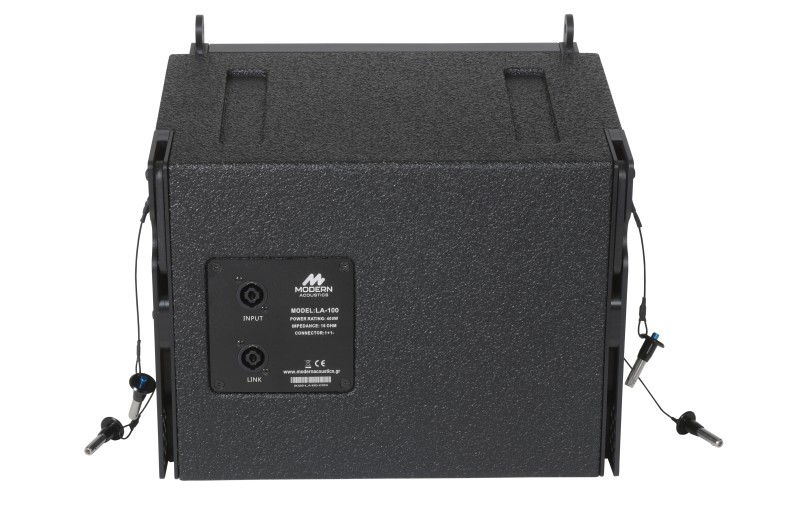

• Connectors: 2 x NL4
• Dimensions (HxWxD): 332 x 360 x 260
• Weight: 13kg
