ADJ Wifly EXR QA12Bar IP
090072

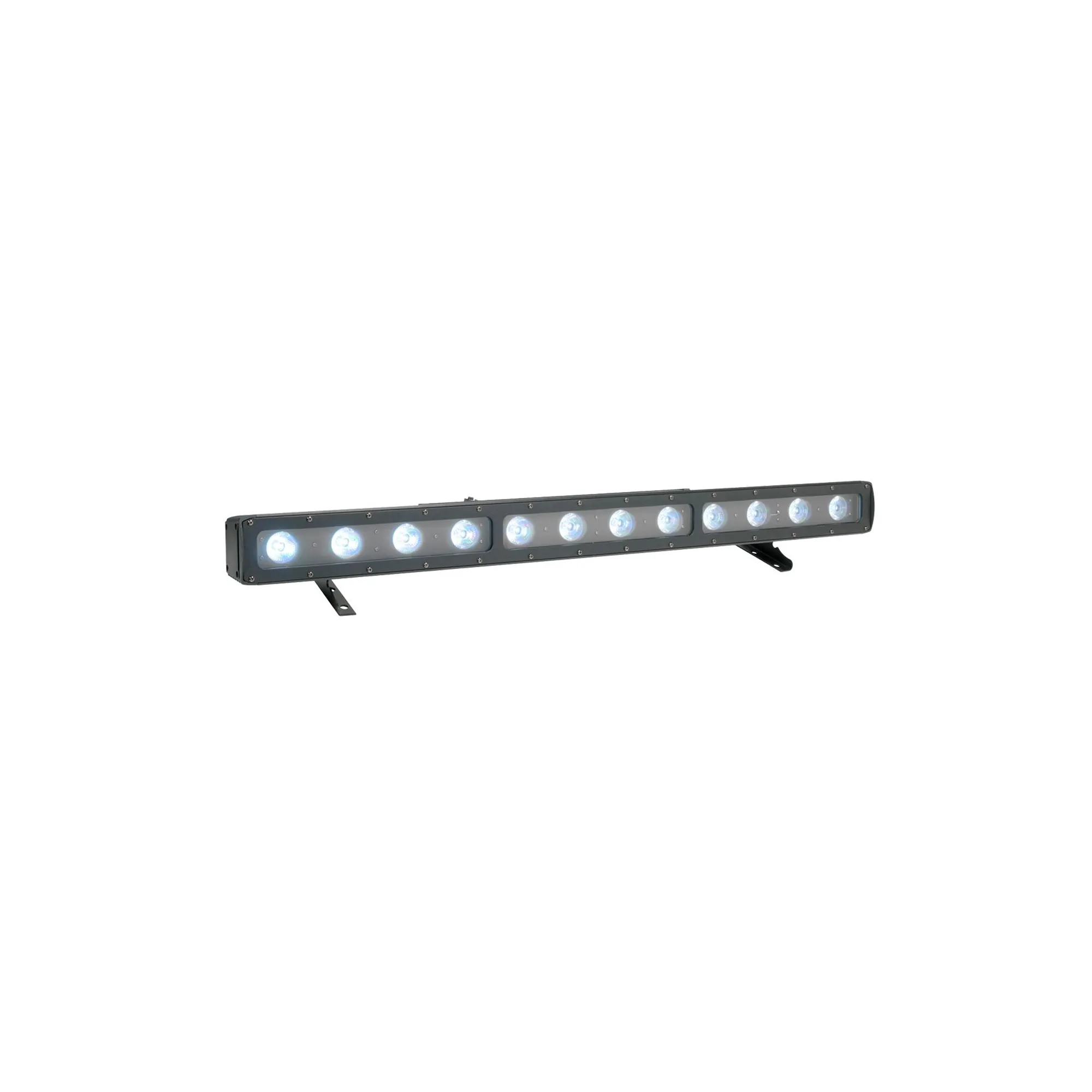

The AmericanDJ WiFLY EXR QA12BAR IP is a 1-meter LED linear fixture made of robust metal and is IP65 outdoor rated.
2-YEAR WARRANTY
It features 12 Quad RGBA LEDs of 5W each, built-in WiFly EXR wireless DMX transmission up to 760M, 3 Zone RGBA control, built in programs, adjustable brackets/feet and IP65 rated DMX and Power In/Outs. It is also compatible with the wireless RF remote control RFC from ADJ.
Source
- 12 RGBA QUAD LEDs
- Individual LED Wattage: 5W
- Average LED lifetime: 50,000 hrs
- LED Refresh Rate 1kHz for flicker free operation
- 12 RGBA QUAD LEDs
- Individual LED Wattage: 5W
- Average LED lifetime: 50,000 hrs
- LED Refresh Rate 1kHz for flicker free operation
Optics
- Beam Angle : 25 degrees
- Beam Angle : 25 degrees
Control
- 6 Operational modes: Static Color, RGBA Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
- 7 DMX Channel modes: 4, 6, 7, 8, 9, 12 or 14 channels
- 3 Zone RGBA control
- 16 Color Change Modes
- 16 Color Fade Modes
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- Built-In WiFly EXR wireless DMX
- 4-button DMX menu display on rear panel
- 6 Operational modes: Static Color, RGBA Dimmer Mode, Color Change, Color Fade, Auto Run (Program Run) and DMX Control
- 7 DMX Channel modes: 4, 6, 7, 8, 9, 12 or 14 channels
- 3 Zone RGBA control
- 16 Color Change Modes
- 16 Color Fade Modes
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- Built-In WiFly EXR wireless DMX
- 4-button DMX menu display on rear panel
Colors
- RGBA Color Mixing
- 63 built-in Color Presets
- RGBA Color Mixing
- 63 built-in Color Presets
Construction
- Aluminium Metal Housing
- IP65 Rating
- 2 adjustable brackets/feet
- Aluminium Metal Housing
- IP65 Rating
- 2 adjustable brackets/feet
Electrical
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Power Draw: 75W total (All LEDs @ Full On)
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Power Draw: 75W total (All LEDs @ Full On)

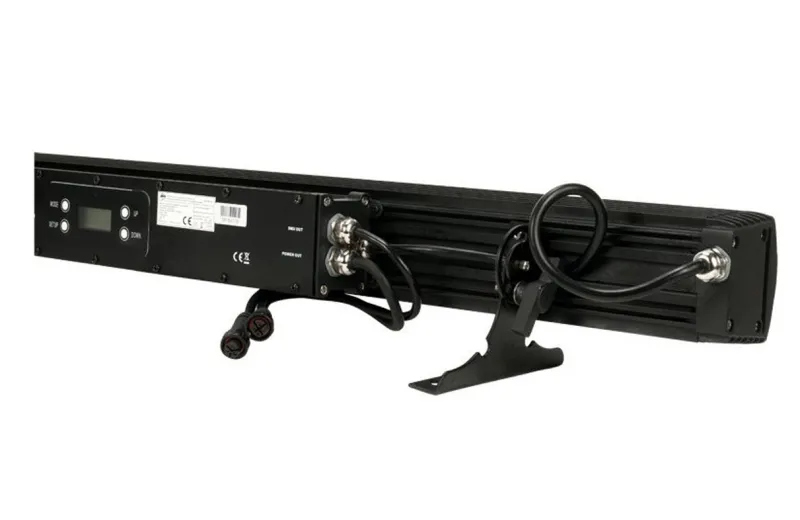

Connections
- 4-pin proprietary IP65 Power In/Out connections
- 3-pin proprietary IP65 DMX In/Out connections
- 4-pin proprietary IP65 Power In/Out connections
- 3-pin proprietary IP65 DMX In/Out connections
Dimensions & Weight
- Dimensions (LxWxH): 1029 x 140 x 152mm
- Weight: 6,4kg
- Dimensions (LxWxH): 1029 x 140 x 152mm
- Weight: 6,4kg
- Width (mm)
- 140
- Length (mm)
- 1029
- Height (mm)
- 152
New
- EAN13
- 819730014276
- MPN
- Wifly EXR QA12Bar IP
