091017

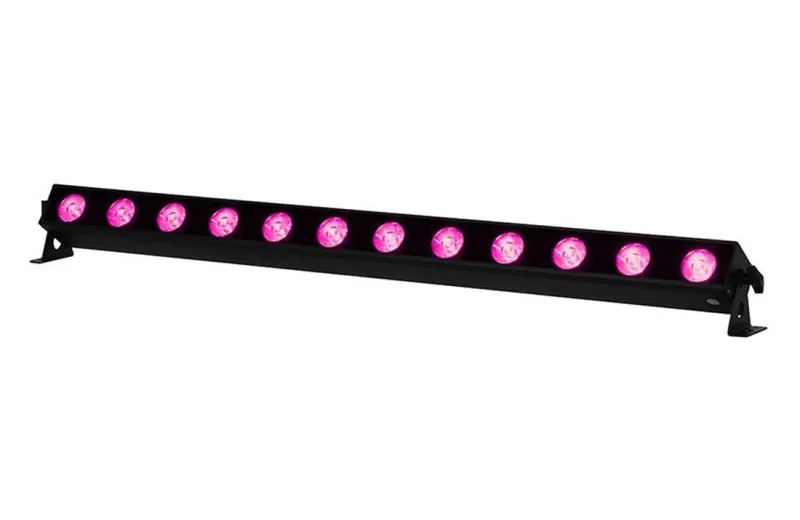

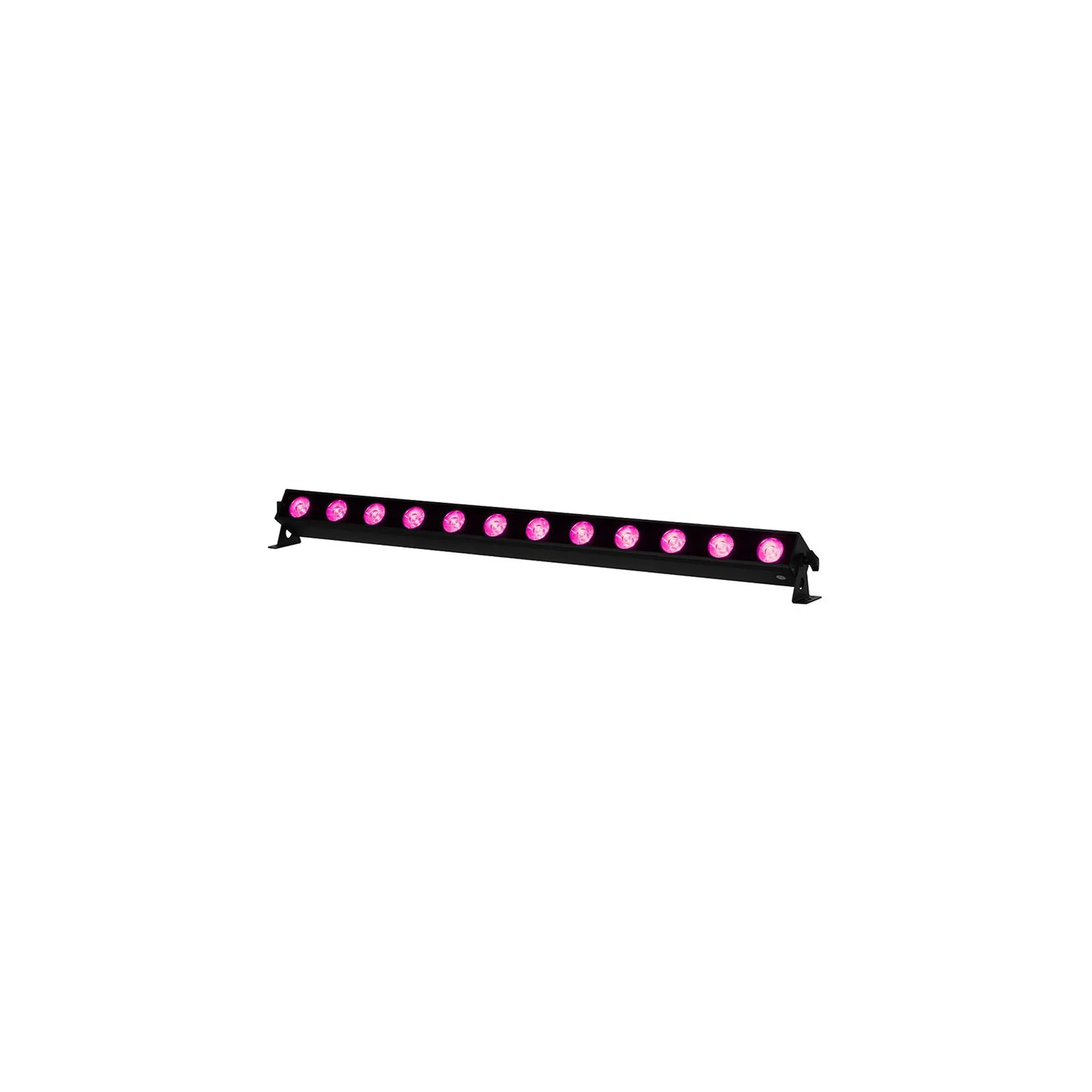

ADJ UBL12H, is a professional-grade lime-infused 1-meter HEX LED linear fixture. Powered by twelve ultra-bright 20-Watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV).
€349.00
Tax included 15
On request - Usually in 3-4 weeks

Payment options
With credit card
€29.08 x 12 interest free installments

Credit module tbi bank 1.0.13

ADJ UBL12H, is a professional-grade lime-infused 1-meter HEX LED linear fixture. Powered by twelve ultra-bright 20-Watt HEX LEDs (Red, Green, Blue, Amber, Lime, and UV).

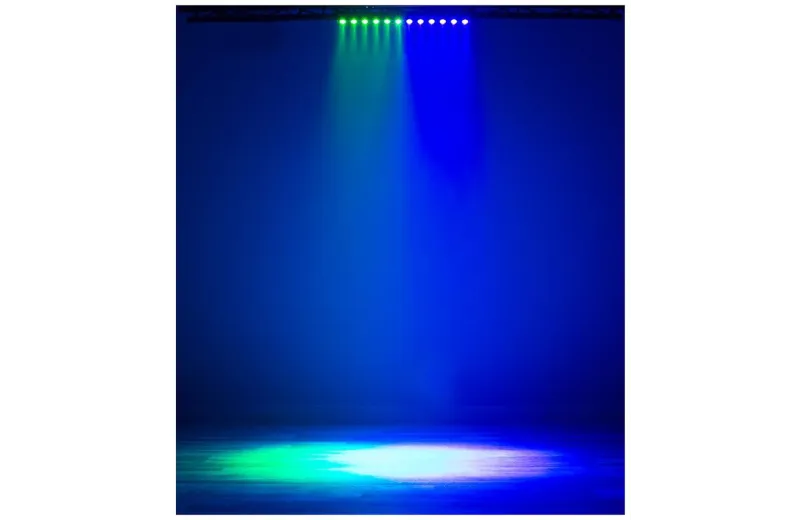

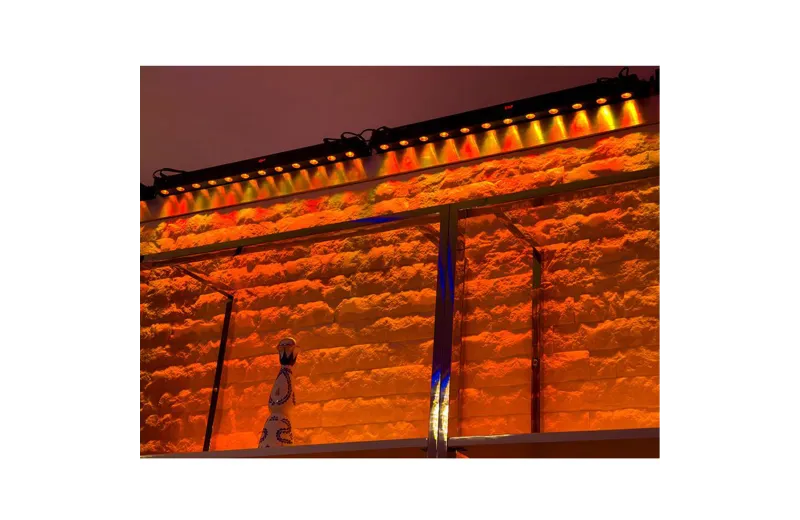

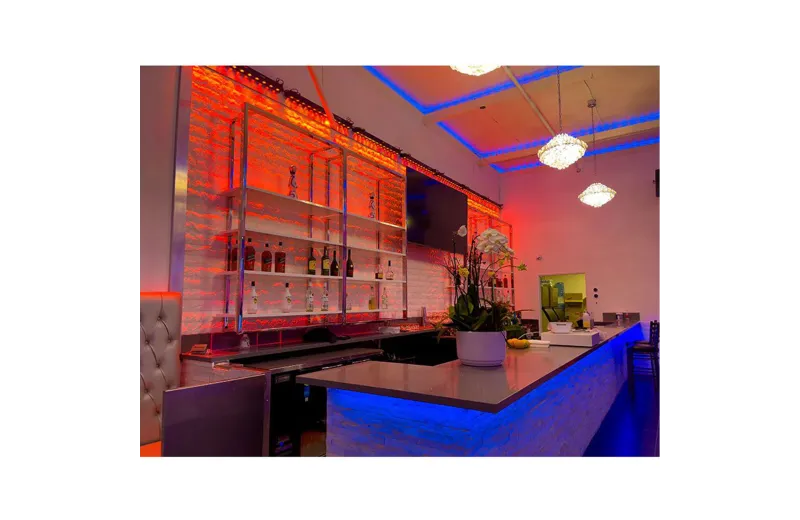

The UBL12H takes linear wash lighting to the next level with its high CRI output and linear color temperature control, ranging from 2,300K to 9,900K. The added lime chip enhances color indexing, ensuring a superior visual experience with a CRI exceeding 90. This fixture empowers lighting designers and event producers to craft captivating displays on walls, floors, and ceilings.

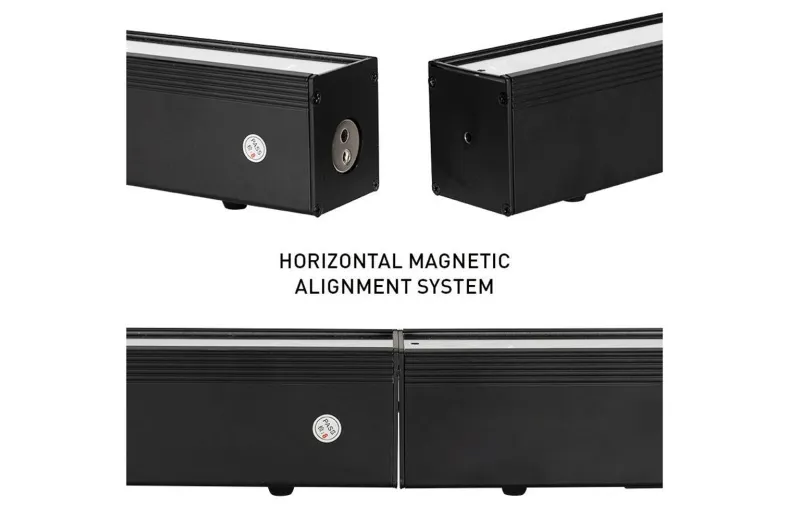

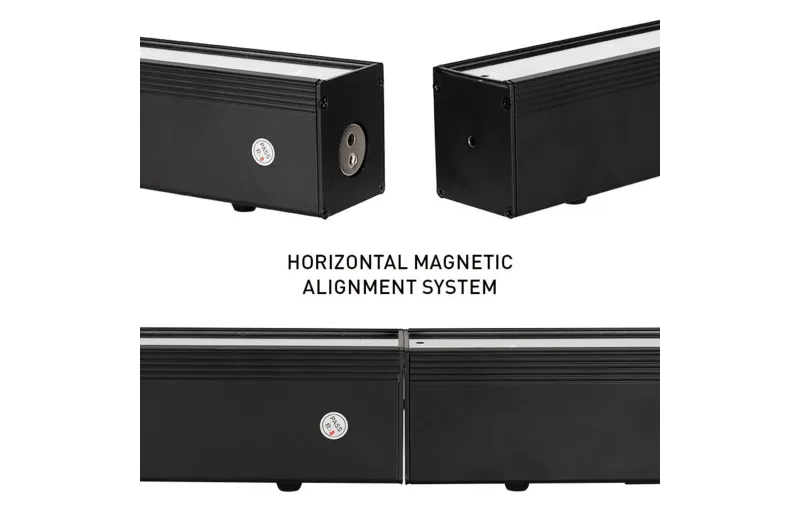

Featuring a 17° beam angle and a pixel pitch of 85.5mm, the UBL12H offers smooth RGBAL+UV color mixing and a unique Horizontal Magnetic Alignment feature allows for seamless color output across multiple fixtures.

Specifications

Light Source

  • 12 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
  • Long Life LEDs (Rated at approximately 50,000 hrs.)

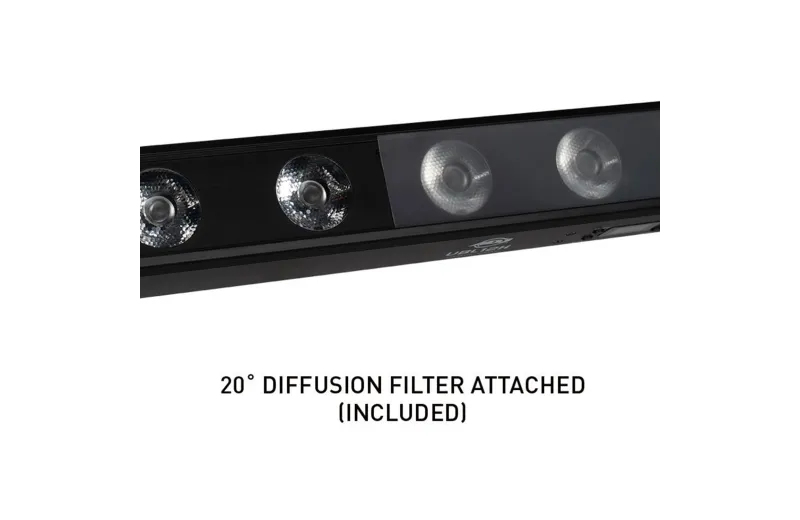

  • 17° beam angle (20° with Diffusion Filter)
  • CRI >90
  • Pixel Pitch: 85.5mm

Control

  • Linear Color Temperature Control (2,300K to 9,900K)
  • OLED Display with 4-buttons
  • 7 DMX Channel Modes: 6, 11, 13, 16, 36, 43, & 46 Channels
  • 6 Groups x2 RGBAL+UV LED pixels controllable via DMX in 36, 43 & 46 channel modes
  • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
  • LED Refresh Rate: 1.9KHz
  • 64 built-in Color Macros
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
  • Built-In Microphone for sound trigger
  • LED pulse and strobe effect
  • Electronic Dimming: 0-100%

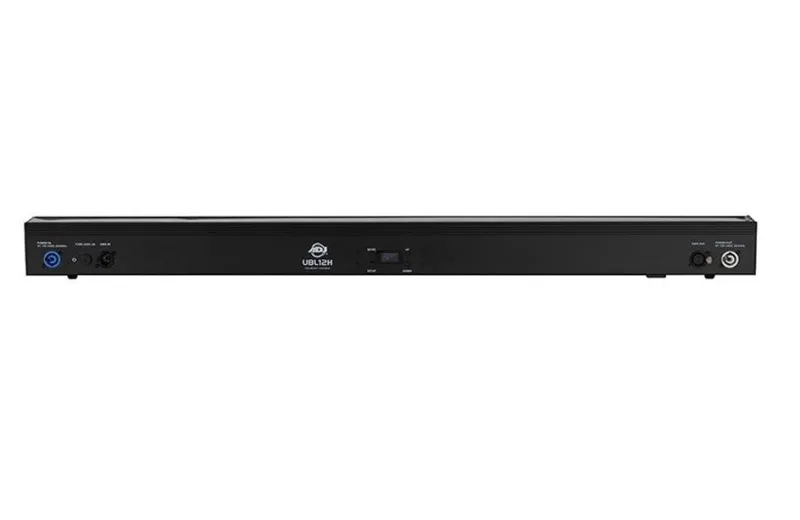

Connections

  • Linkable: DMX via 5-pin XLR cable
  • Indoor Locking power In/Out to daisy chain power

Electrical

  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 61W
  • Daisy-chain power link (Up to 17 UBL12H’s can be linked @120V and up to 32 UBL12H’s can be linked @230V)

Dimensions/Weight

  • Dimensions (LxWxH): 75 x 1082 x 106.7mm)
  • Weight: 3.4kg.

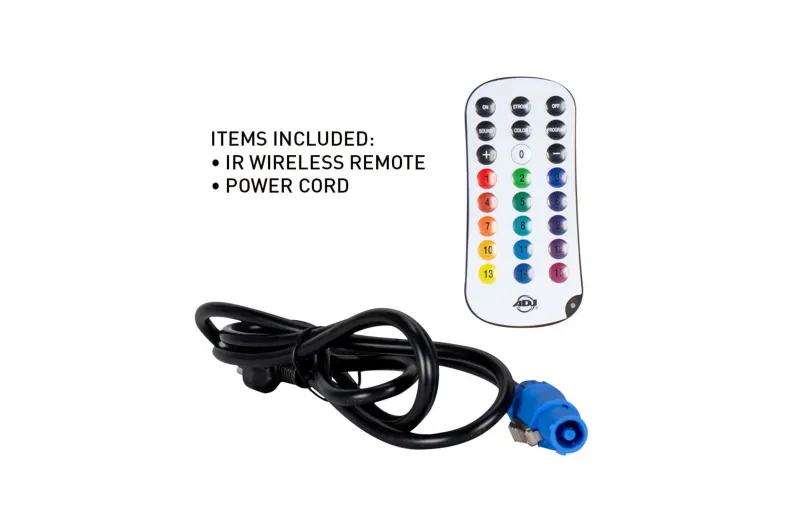

Wireless remote control
Yes
Category
Led Bar
Colour
Black
Width (mm)
1082
Length (mm)
75
Height (mm)
106.7
Weight (kg)
3.4
Protection class
IP20
New
EAN13
1081008737193
MPN
UBL12H
