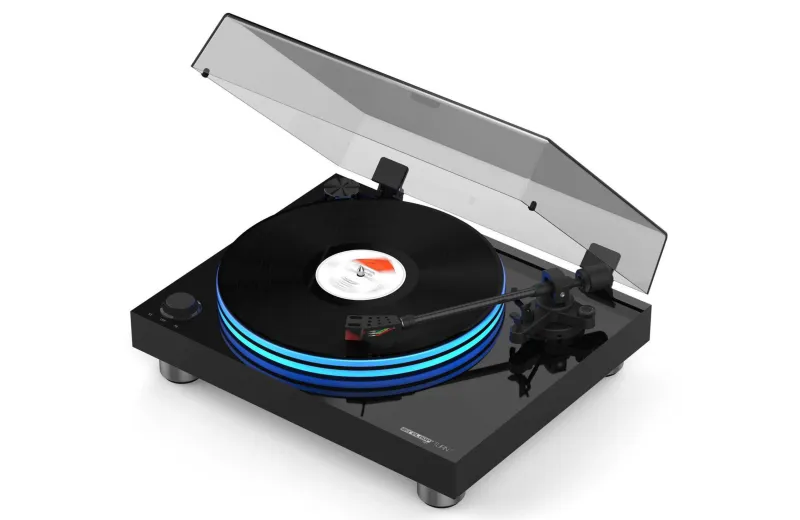

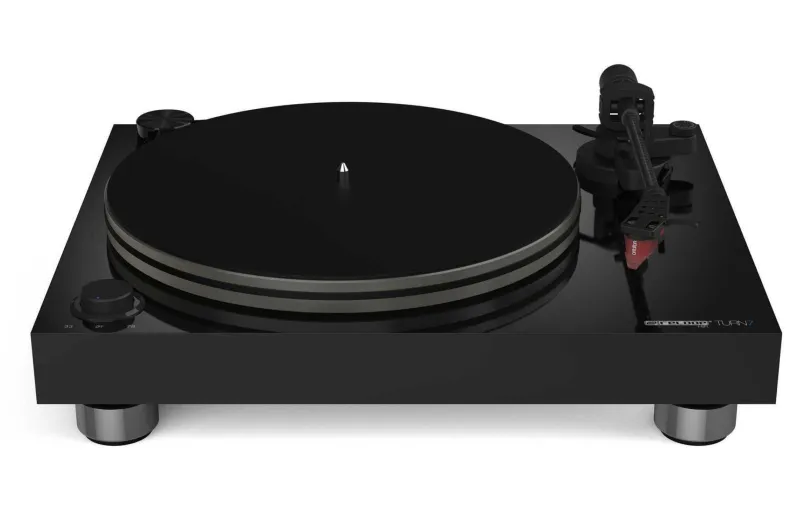

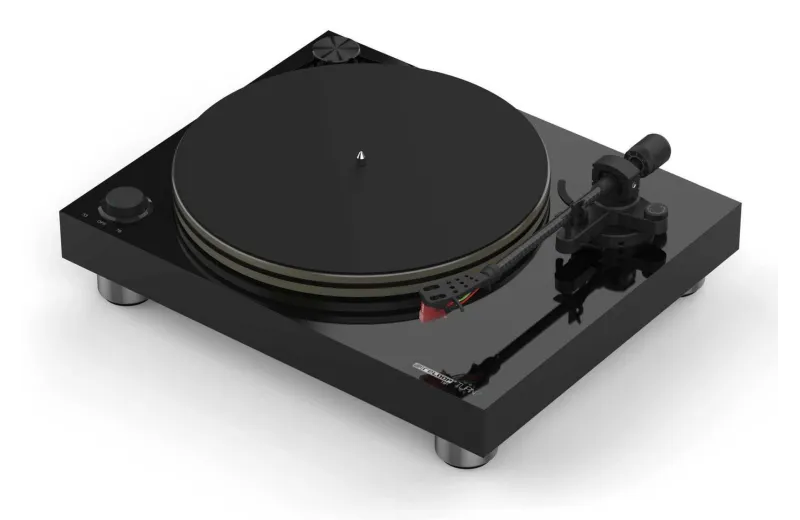

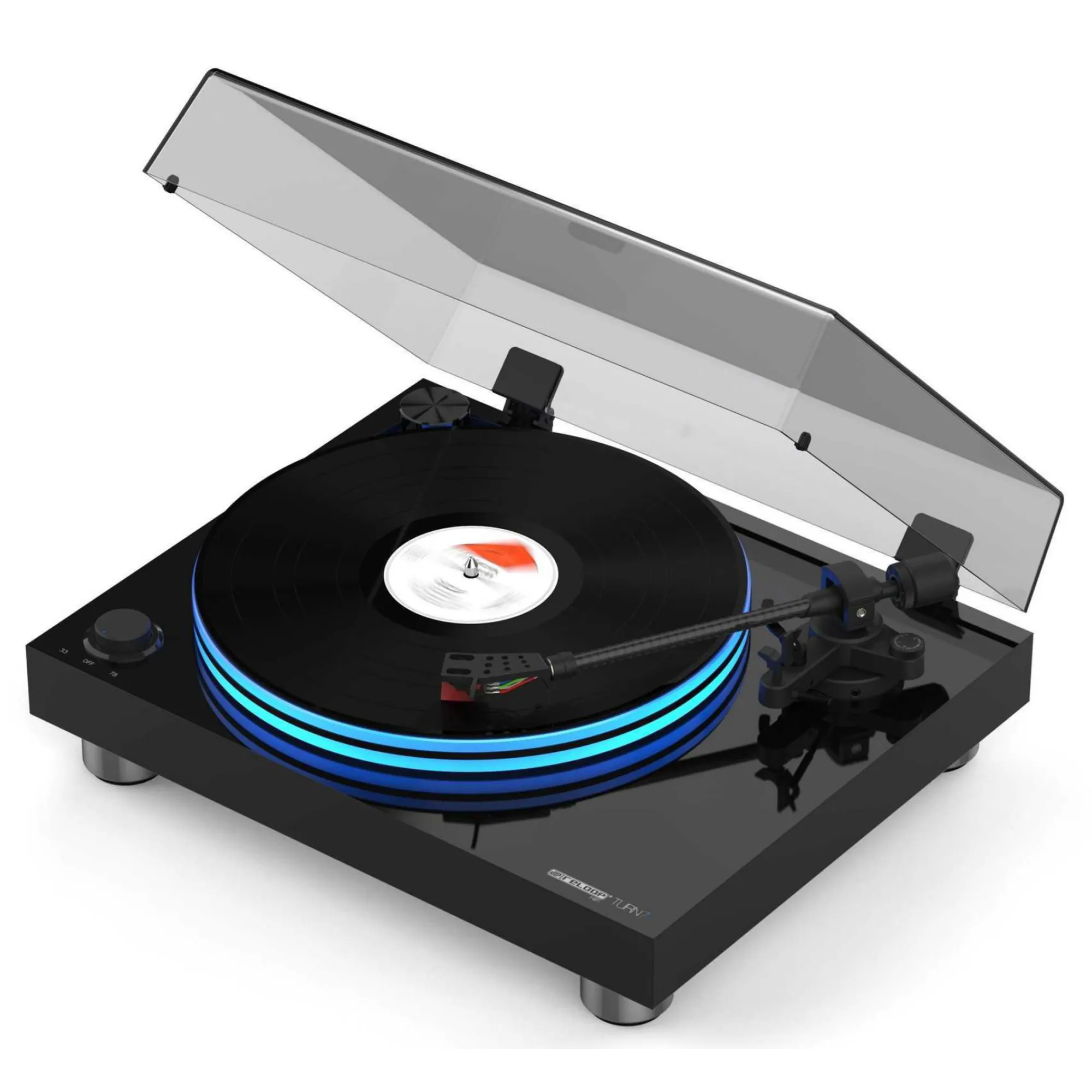

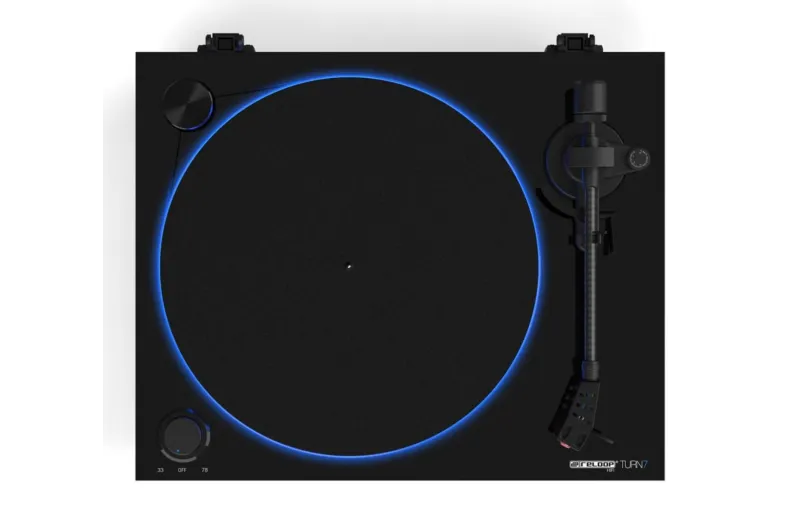

Reloop Turn 7 is a belt-driven high-end HiFi turntable with uncompromising design. The acrylic platter with LED lighting and the external drive belt make the Turn 7 an absolute eye-catcher.
A decentralised, low-vibration DC motor drives the Turn 7. The integral flat belt runs gracefully along the turntable exterior, ensuring smooth operation and a sophisticated appearance.
The start/stop rotary switch allows you to select between the turntables two speeds (33 and 45 RPM). The acrylic platter is 20 mm thick, weighs 1.7 kg, and has outstanding evenness thanks to precision manufacturing. It also has excellent antistatic characteristics. As a result, crystal-clear audio is possible without using a platter mat.
The high-quality carbon tone arm has exceptional acoustic properties. The turntables authentic sound is brought out to its full potential by effectively cancelling out vibrations. The turntable comes with the Ortofon 2M Red cartridge system pre-installed.

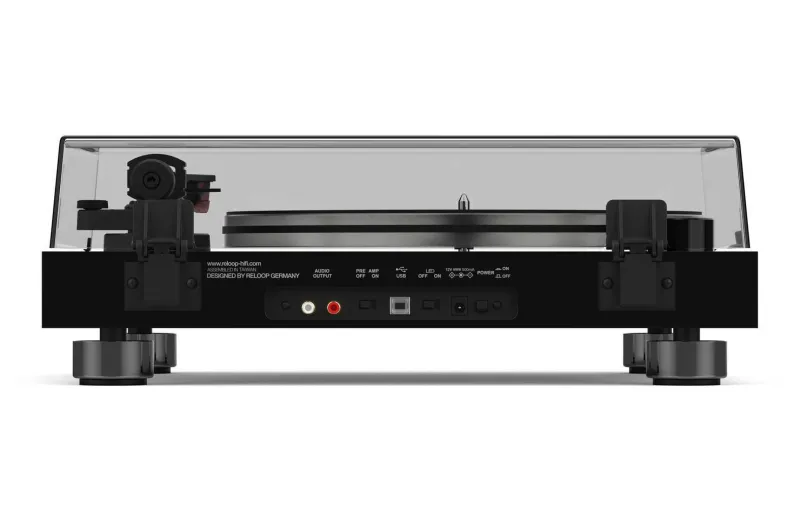

In addition to its high-quality pre amplifier, the Turn 7 also features versatile switching between line and phono signals. The gold-plated corrosion-resistant RCA connectors ensure the best possible signal transmission. The built-in USB output allows you to digitise vinyl records.
The sturdy MDF wooden plinth and height-adjustable isolator feet with aluminium surround provide effective decoupling for the turntable. The high-gloss piano lacquer is a classy contrast to the timeless minimalism while emphasising the Turn 7s superior quality. One of the unique features of the Turn 7 is the optional, blue platter illumination. Inconspicuously placed beneath the platter, multiple LEDs with a diffuser cover sets the mood and creates a warm and inviting ambience.
Turntable Section
Type of turntable: Belt-Driven manual Turntable System with USB Interface
Drive: Belt drive
Motor: DC Motor
Rotation speeds: 33 1/3, 45 RPM
Starting Torque: //
Start-up time / rpm change: //
Wow and Flutter: 0,2% WRMS
S/N Ratio: >45dB or higher
Breaking System: Manually
Turntable Platter: Acrylic glass
300 mm diameter
Weight About 1.7 kg
Tonearm Section
Type: Straight Tonearm
Effective Length: 223.6 mm
Effective Tonearm Mass: 18.5g
Overhang: 18.61 mm
Tracking Error Angle: ±1.5°
VTA Adjustment Range: - 2 ~ 4 mm
Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)
Anti-Skating Range: 0 - 4 g
Cartridge
Ortofon 2M Red
Output voltage at 1000 Hz, 5 cm/sec.: 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.6 - 2.0 g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 24.7°
Internal impedance, DC resistance: 1.3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7.2 g
General
Terminals: 1x PHONO/LINE Out, Build in Phono Stage (Pre Amp)
Power Supply: 12 V 1A DC
Power consumption: 12W
Dimensions: 420(W) x 356(D) x 148(H) mm
Weight: 8.2 kg
