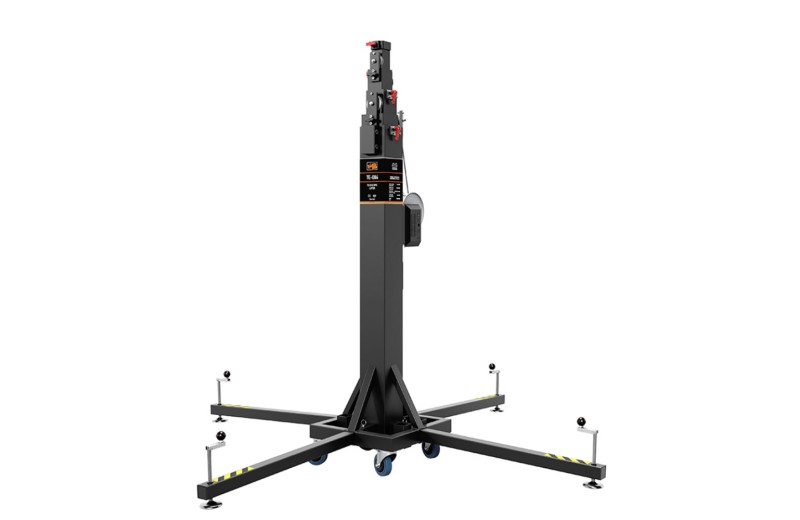

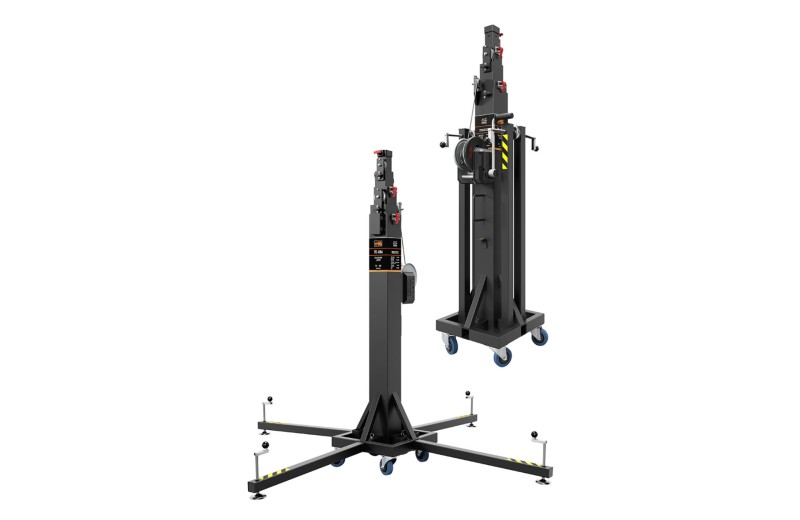

VMB TE-086, professional top-loading telescopic tower lift designed for the vertical lifting of truss systems and lighting equipment, with a maximum load capacity of 300 kg, a maximum height of 6.5 metres, five telescopic sections and the automatic ALS safety system.
It features a robust construction made from DIN 2394 steel profiles and a black epoxy powder-coated finish, providing increased durability for indoor and outdoor applications.
Lifting is carried out using an AL-KO winch rated at 900 kg and equipped with an automatic load-holding brake. The system uses a torsion-resistant, 6 mm steel wire rope, guided through grooved steel pulleys with ball bearings.
The patented ALS (Automatic Lock Security) system automatically locks each telescopic section at preset positions. This mechanically secures the load without relying exclusively on the wire rope, providing additional protection even in the unlikely event of cable failure.

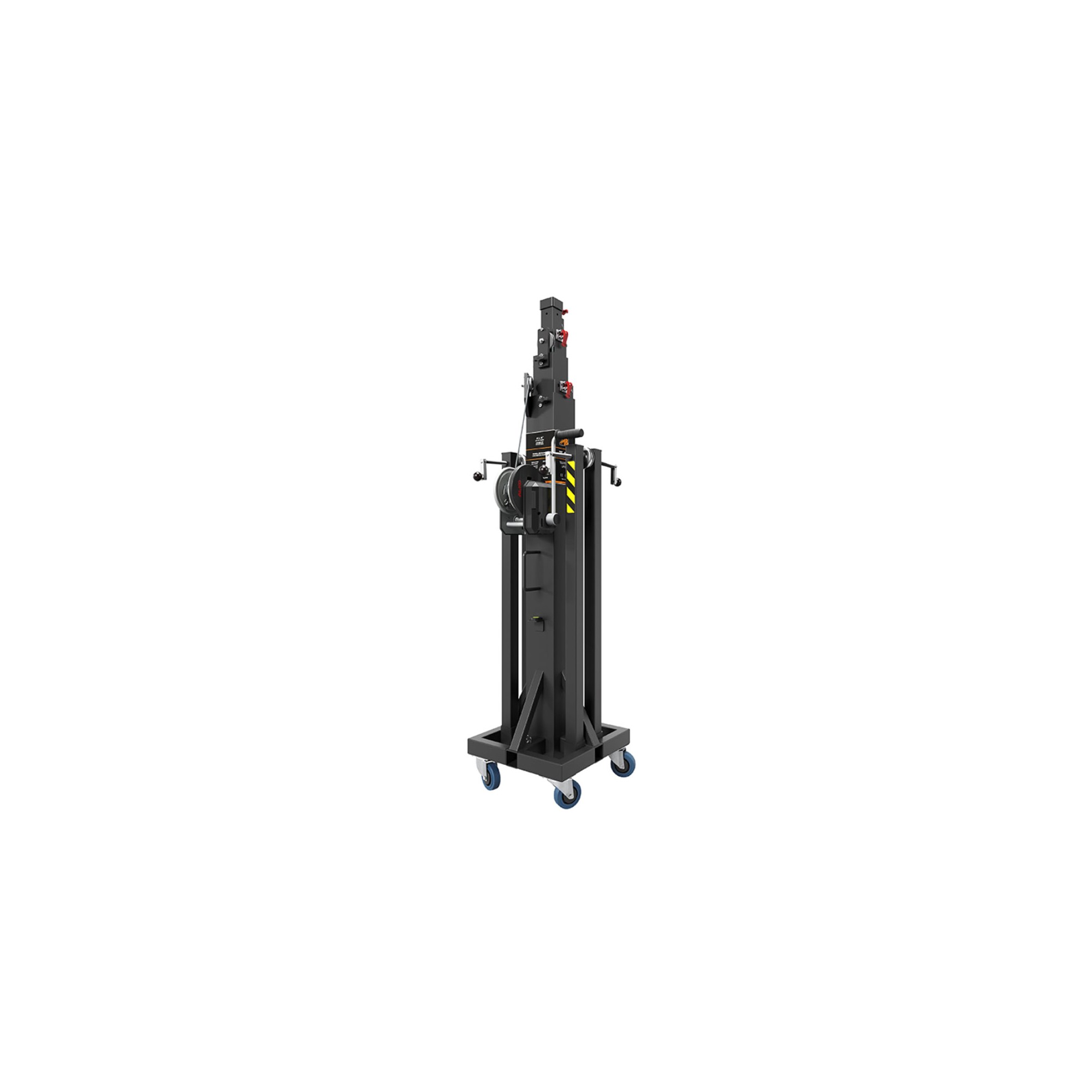

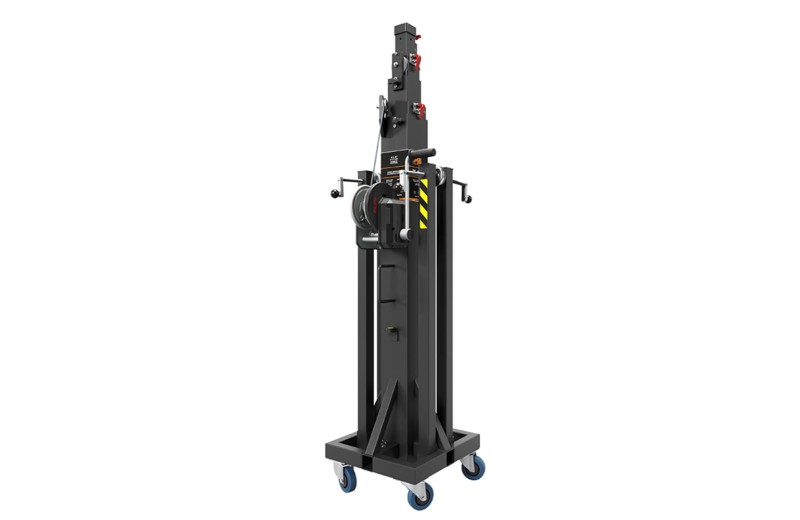

The removable outriggers feature independently adjustable stabilisers with non-slip rubber pads, while the integrated spirit level assists with correct vertical alignment during setup. When not in use, the outriggers can be stored on the tower, while four 360° swivel castors make transportation easier.
The tower is intended exclusively for the vertical lifting of loads and must not be used to lift people.
Technical Specifications
Type: Top-loading telescopic tower lift
Maximum load: 300 kg
Minimum load: 25 kg
Maximum height: 6.5 m
Folded height: 1.87 m
Operating footprint: 1.85 x 1.85 m
Transport dimensions: 0.47 x 0.47 x 1.87 m
Telescopic sections: 5
Winch: AL-KO, rated at 900 kg, with automatic brake
Wire rope: DIN 3060 steel, 6 mm diameter, torsion-resistant
Safety system: ALS (Automatic Lock Security)
Construction material: DIN 2394 steel profiles
Finish: Black epoxy powder coating
Adapter: O 50 mm, PSU-086
Transport castors: 4 x 360° swivel castors
Certifications: BGV-C1 and CE
Weight: 129 kg
