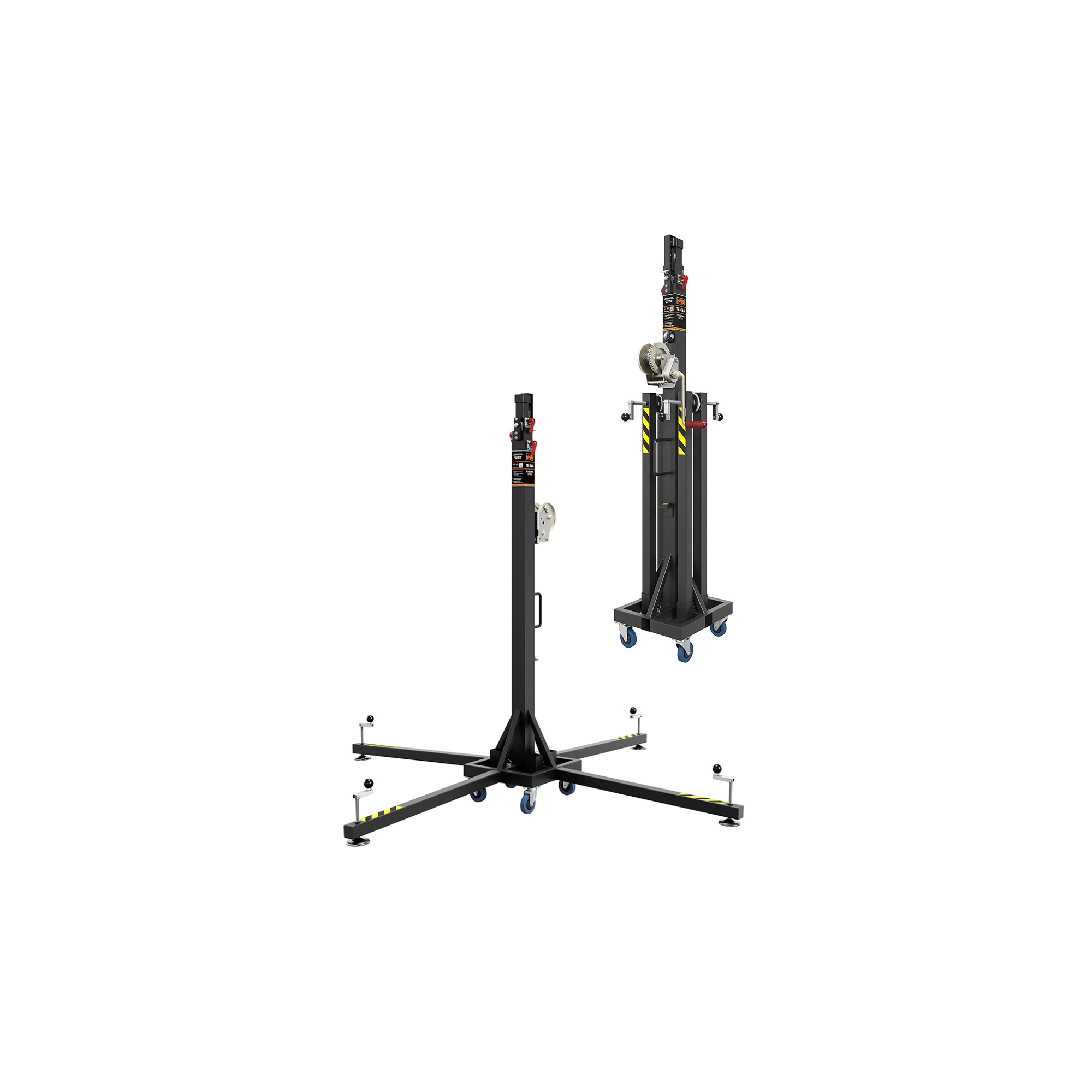

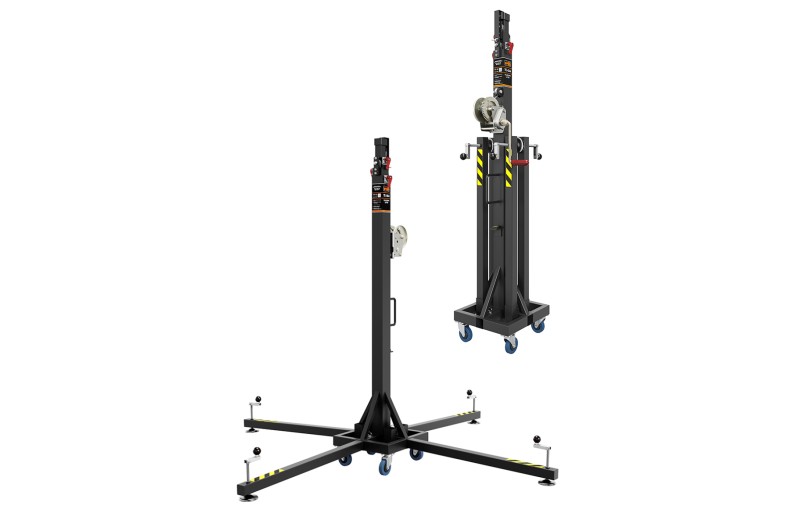

VMB TE-064B is a telescopic lifter capable of lifting loads of up to 150 kg to a maximum height of 5.35 m. It is a reliable solution for lighting, audio, and rigging applications where fast setup, robust construction, and serious safety are essential.
Lifting is carried out an AL-KO winch with automatic brake, guided by pulleys and a galvanized steel cable, ensuring smooth and controlled operation.
It features the patented ALS (Auto Lock Security) system, which automatically locks at intermediate heights so that the load does not rely solely on the steel cable for its safety. The compact steel base, outrigger sockets, adjustable stabilizers with non-slip rubber bases, four heavy-duty 360-degree castors, and built-in spirit level make the TE-064 practical to transport, easy to set up, and stable in operation.
Specifications
Type: Top-loading telescopic lifter Maximum height: 5.35 m Maximum load: 150 kg Safety system: ALS Auto Lock Security Working area: 1.43 x 1.43 m Closed height: 1.72 m Winch: 450 kg AL-KO with automatic brake Adaptor: 35 mm (PSU-06 / PSA-01) Masts: 4 high-quality steel masts Finish: Black epoxy powder coating Cable: Galvanized steel cable Base: Compact steel base with outrigger sockets Stabilization: Swivel levellers with non-slip rubber bases Wheels: 4 heavy-duty 360-degree castors Level indicator: Built-in spirit level Weight: 41 kg
The TE-076 lifting tower consists of five steel profiles with antirust protection, painted with cured polyester dust cover and is capable of lifting 220kg to 6.5m.
This lifter is very light and easy to transport with 2 wheels incorporated on the base. It is capable of lifting 125kg to a height of 5m. It is designed for small size set ups; Discos, orchestras, conferences, weddings, or any kind of indoor event where light, truss or sound are lifted.
