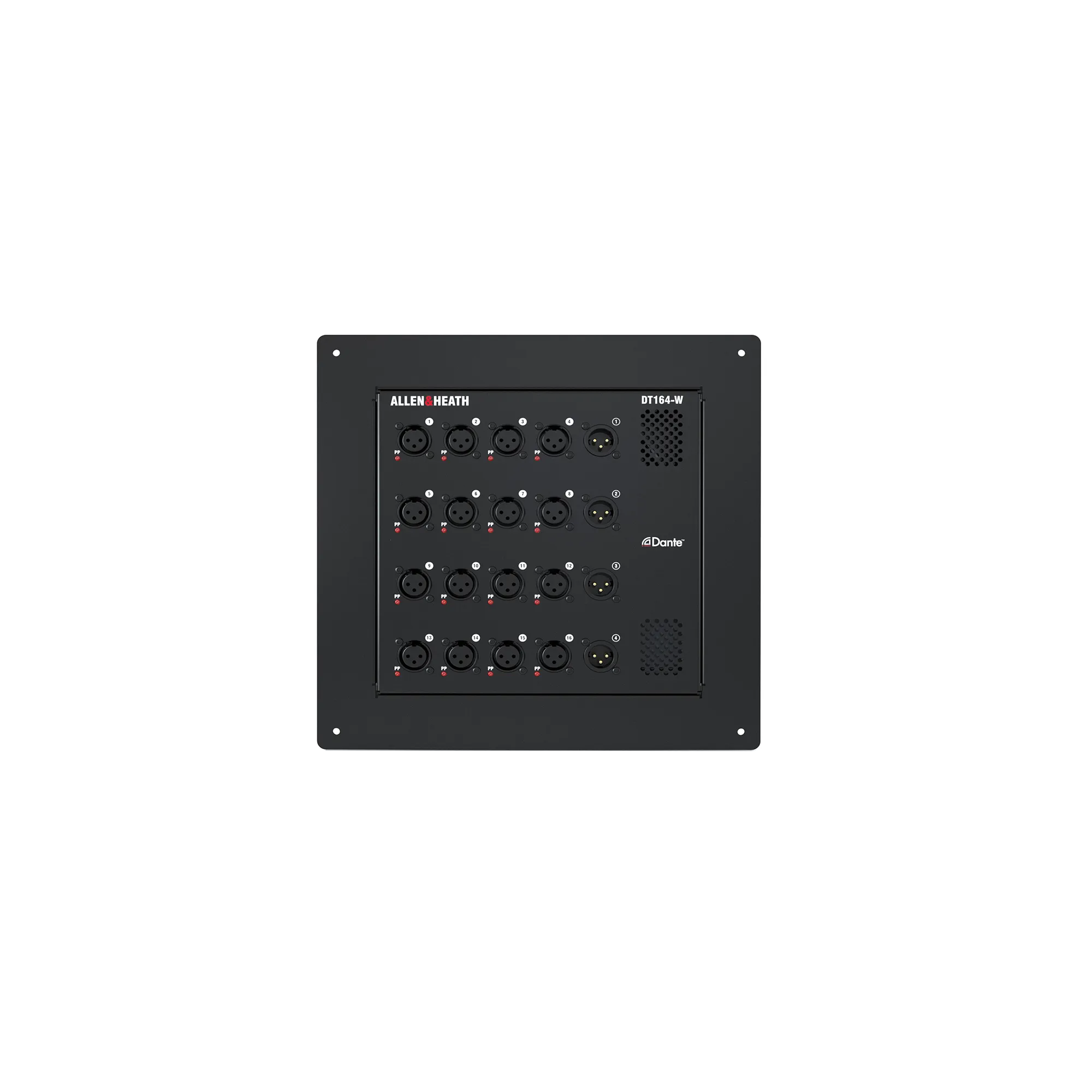

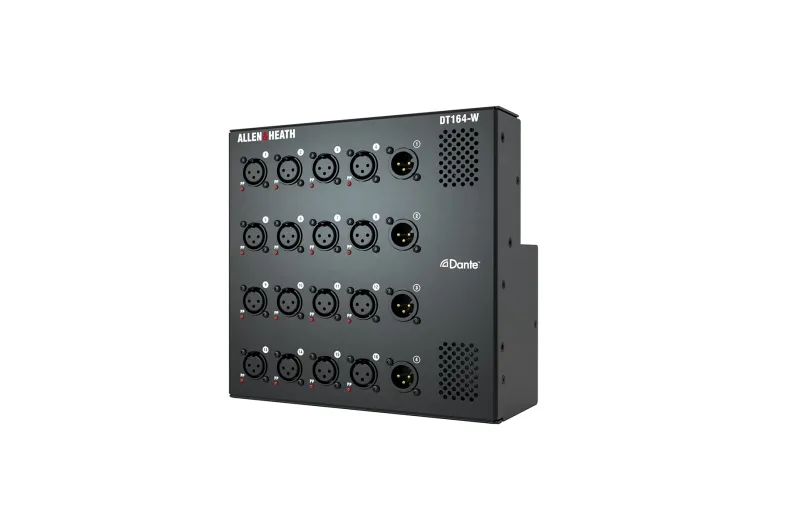

ALLEN & HEATH DT164-W
144.882
The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation.
2-YEAR WARRANTY
- Dante audio expander, 96kHz / 48kHz
- Wall mount or dip trap installation
- 16 mic preamps on XLR with Phantom Power status LEDs
- 4 XLR Line Outs
- Primary and Secondary Dante ports with locking EtherCon
- Redundant or Switched mode
- Direct preamp control from dLive and SQ
- 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
- DC power can be used as redundant power supply
- Fits in a standard 12”x12” NEMA box
- Compatible with ACE Backstage 174SLBK stage pocket system
- AES67 compatible
- Dante Domain Manager ready
- Compatible with
- AVANTIS
SQ SERIES
dLIVE
New
- MPN
- DT164-W
