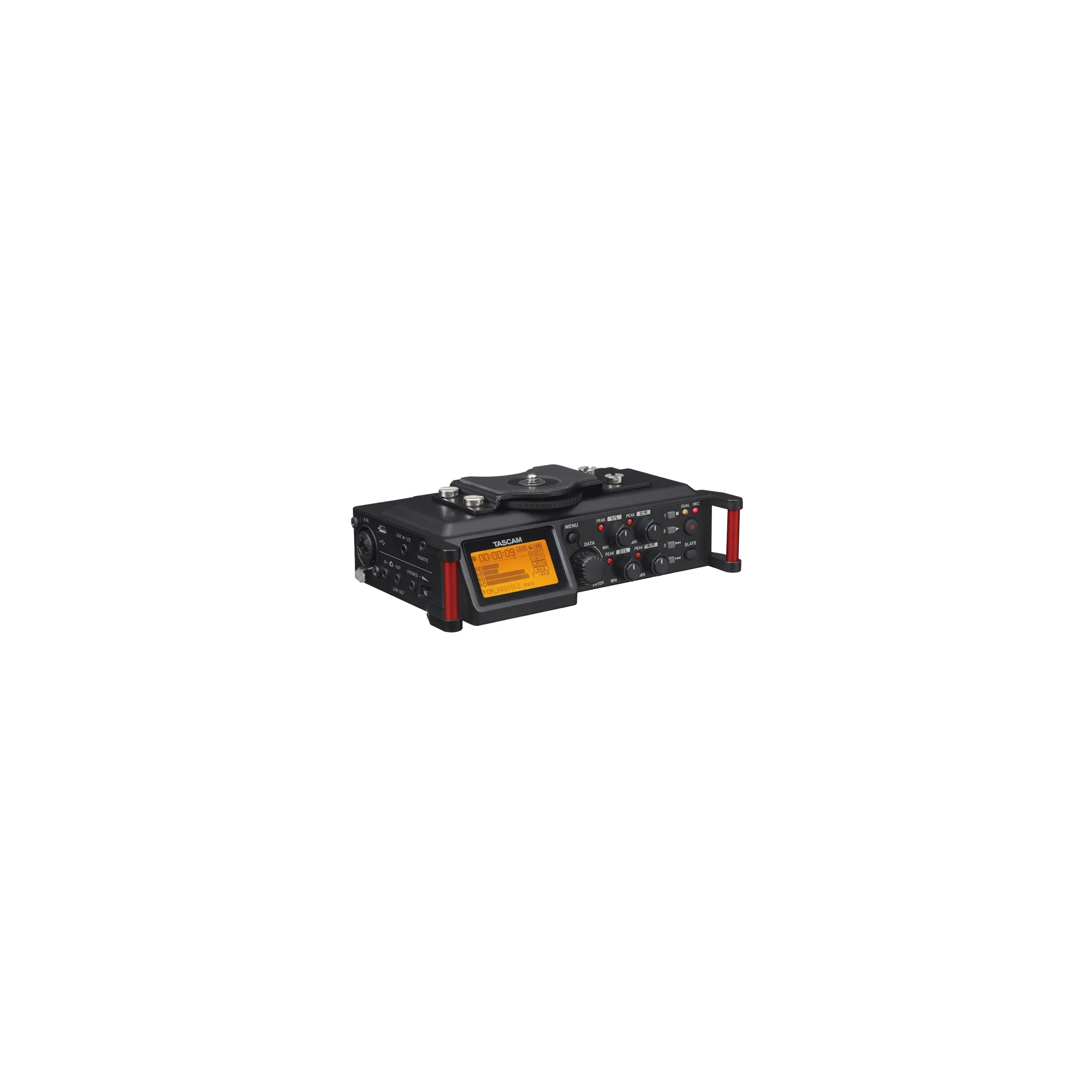

The DR-70D is a compact audio recorder that allows the aspiring DSLR user to create audio recordings in very high quality in parallel to their film or video shots. The recorder can be mounted directly between a tripod and the camera or on top of the camera, resulting in a compact package.
With its two built-in microphones, the DR-70D is instantly ready for use in standard situations. In addition, it provides four XLR/TRS combo jacks which can be used to record four channels of audio with excellent sound quality using professional microphones. Thanks to a camera output the recorder’s stereo signal can be recorded also on the camera to ease subsequent editing of the material in combination with the slate tone function of the recorder. On the other hand you can use the camera input to monitor the audio of the camera using the recorder.
Features of the DR-70D include overload-resistant, great-sounding preamps with switchable low-cut filter and limiter, handling of microphone signals in mid/side format, 24- or 48-volts phantom power for condenser mics, as well as many common and not so common functions that facilitate capturing, monitoring and subsequent processing of the audio tracks.
Specifications
- Portable 4-Channel Audio Recorder for Digital SLR Cameras (DSLR Camera)
- Up to 24 Bit / 96 kHz
- Stereo or 4-track recording on SD / SDHC card
- WAV and BWF recording format
- Individually adjustable recording level for tracks 1-4
- 4 Audio tracks mixable to stereo signal
- Switchable impact sound filter
- 2 Built-in microphones
- 4 Combined XLR / jack microphone / line inputs with switchable 24 / 48 V phantom power
- 3.5mm Mini Jack Stereo Camera In and Out / Line Out Jack
- Headphone output: 3.5 mm jack stereo
- USB 2.0
- Micro-jack socket 2.5 mm for optional remote control
- Power supply: 4 x AA batteries, USB or AC adapter (Tascam PS-P520E - not included)
- Power source automatically switches from external to internal if required (with display message)
- Dimensions: 169 x 55 x 107 mm
- Weight: 530 g
