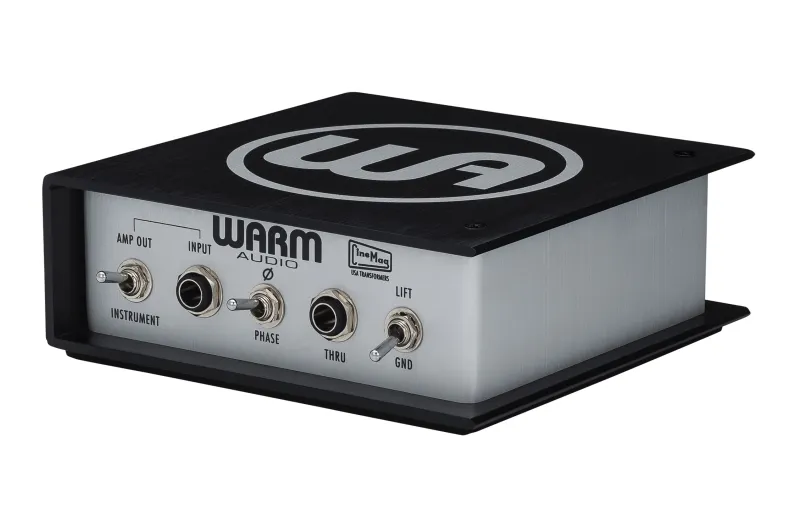

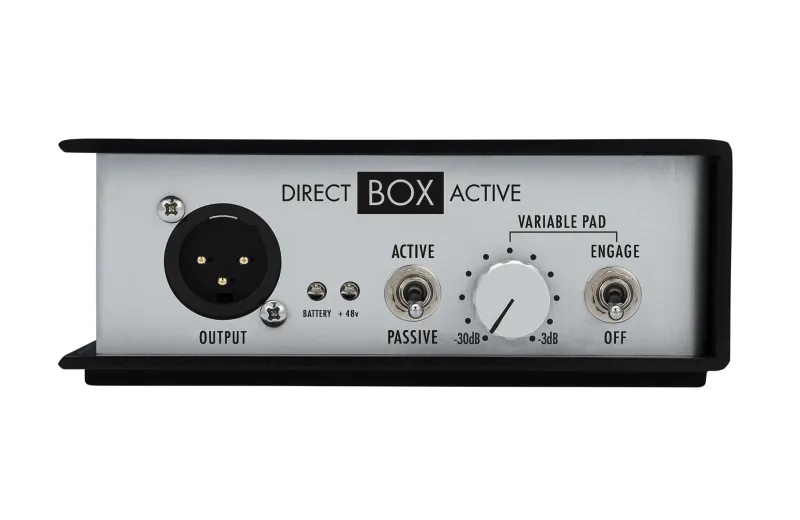

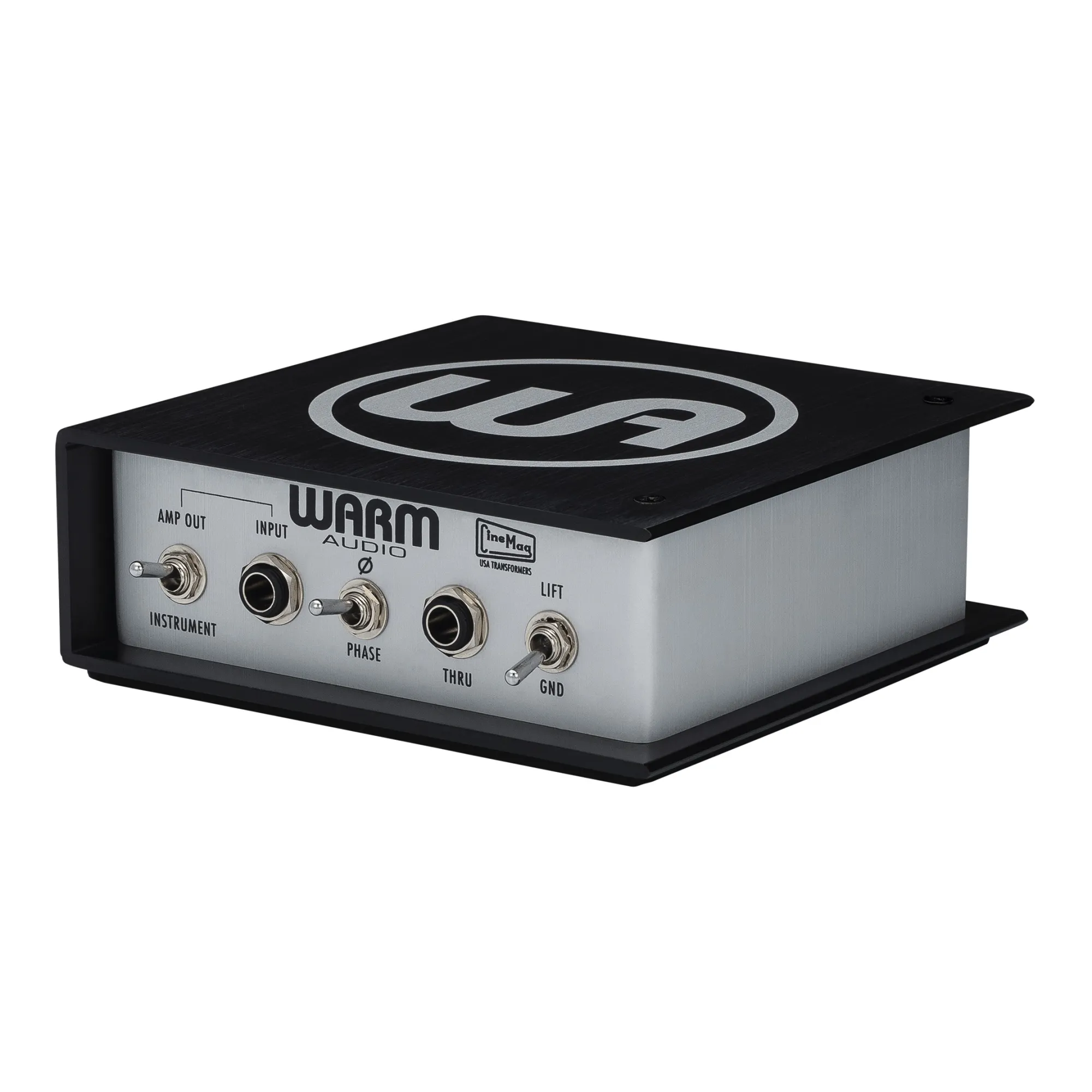

If you play guitar, bass, keyboards, or any other stringed instrument, youll need a DI Box that wont compromise your instruments tone and will clean up your signal, just like the Active Direct Box from Warm Audio!

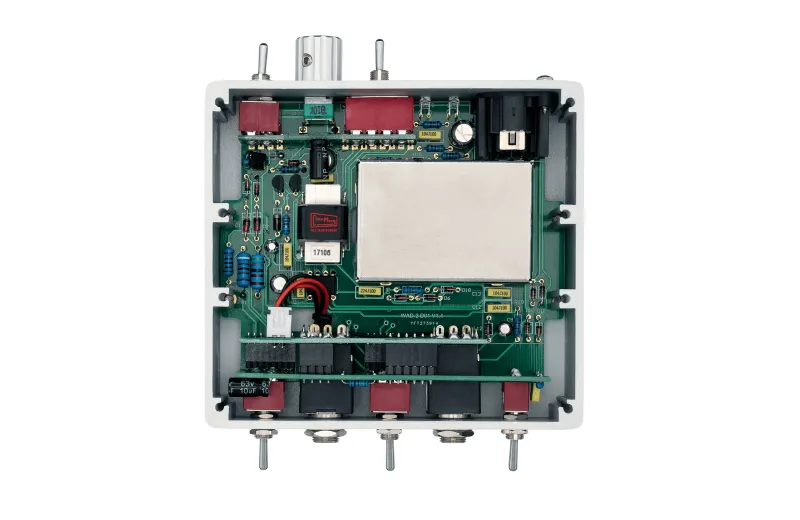

Built on the basis of the world-renowned Cinemag USA Transformer topology, just like other legendary DI Boxes around the world. Constructed with discrete state-of-the-art components in a rigid aluminum chassis, it includes switches, knobs, and connectors designed to withstand heavy use on stage, on the road, or in the studio.
New Technology in DI Boxes
Warm Audios DI units offer the flexibility of having a built-in pad pot that reduces the input signal throughout the range from -3dB to -30dB, which will easily enhance any source.
Warm Audios Direct Boxes offer a Thru output that passes the input connector. This is an input that allows you to send your instrument signal to a second output in the live mix or a recording unit. Warm Audios DI Boxes can also receive a recorded Line signal and send it to another Line input, while simultaneously sending the signal to the DIs XLR microphone output.
Connect electronic instruments, such as guitar, bass, keyboards, or drums, directly to a PA system or recording device. In simple terms, a DI converts high impedance, unbalanced signals into low impedance, balanced output signals. This way, instrument signals are now converted to the appropriate voltage level for your PA or recording system - which significantly reduces or eliminates connections that could cause noise and distortion.
Passive or Active?
- The Active Direct Box is ideal for instruments with passive pickup devices, such as acoustic instruments. The Active Direct Box can also operate in Passive mode.
- The Passive Direct Box is best for balancing the signal of instruments with active electronics, but still performs exceptionally well on passive inputs, producing a frequency range that exceeds the bandwidth of most passive DIs on the market.
Active Specifications
- Power: 48V PHANTOM or two 9V batteries
- USA-made Cinemag transformer
- Ideal solution for connecting your instrument to any preamp
- Gold-plated connectors and high-quality electronics throughout the signal path
- High-quality aluminum chassis
- PAD: Variable from -3 to -30dB
- Balanced output: 600 OHMS, MIC LEVEL
- Input: 1 Mega OHMS
- Output THD: 0.01% from 20Hz to 100Hz. Less than 0.004% from 100Hz to 20KHz
- Freq Response: 20Hz to 70KHz ±0.5dB
