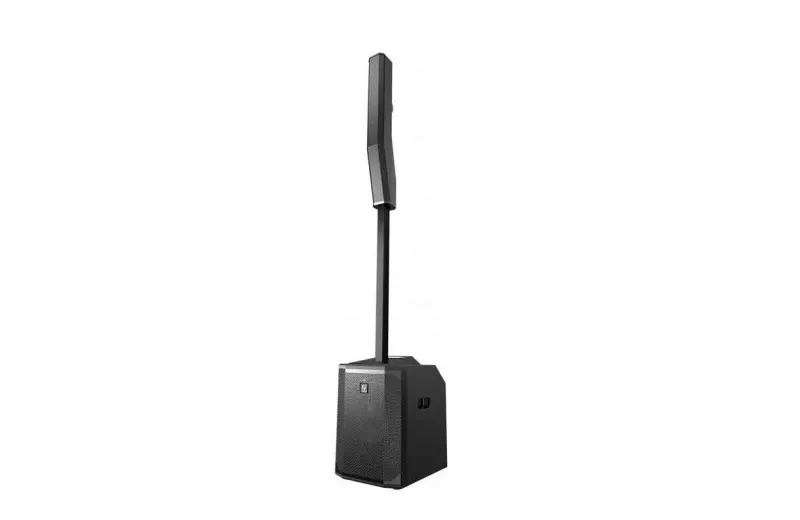

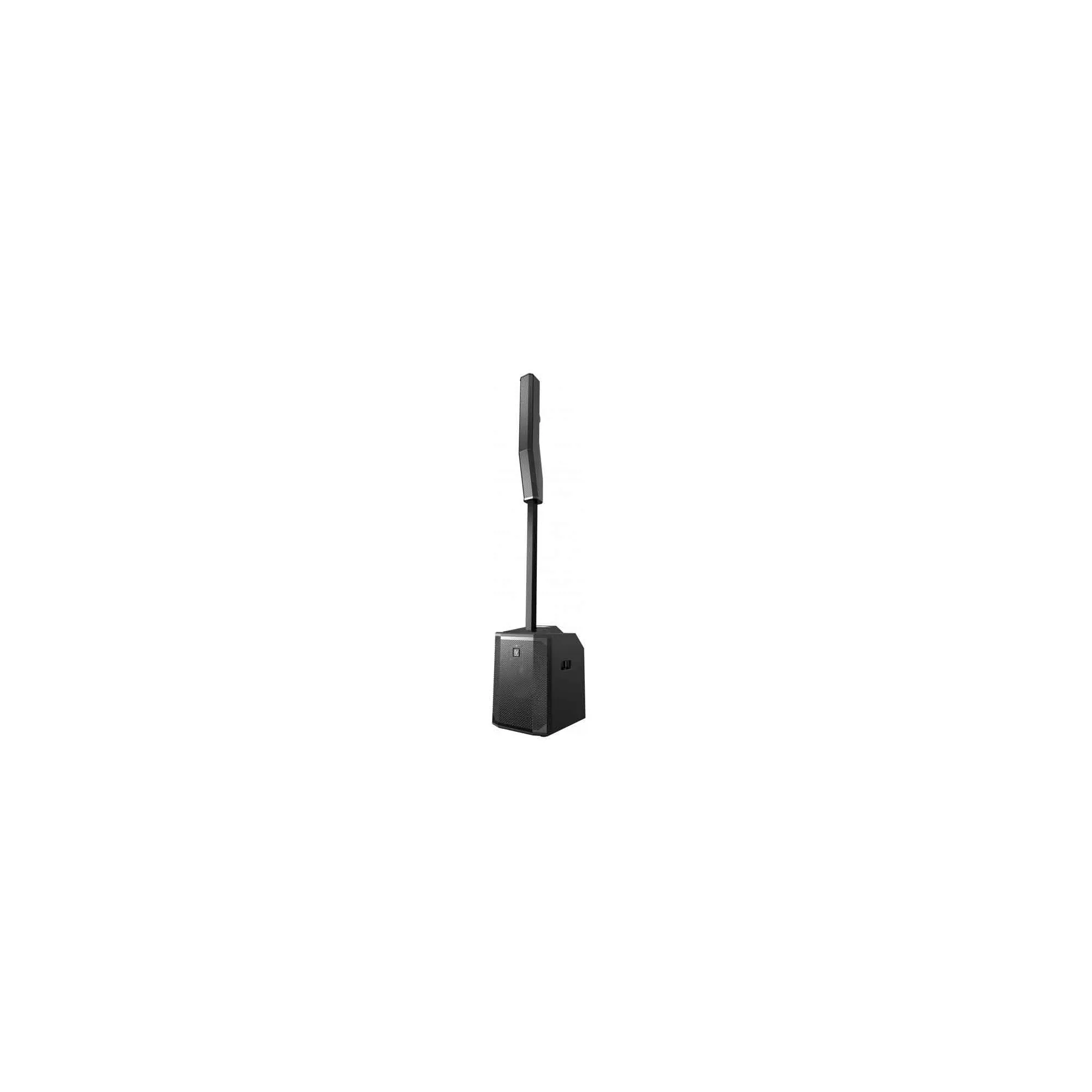

Electro-voice Evolve 50 Active Loudspeaker - Black

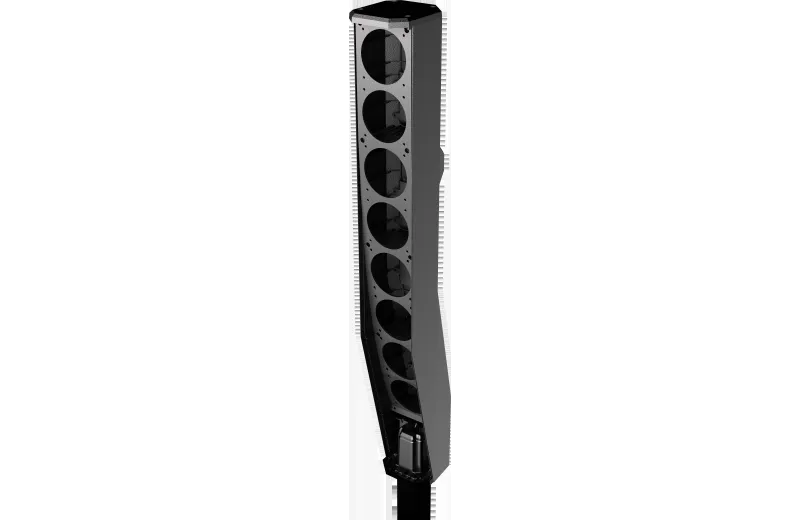

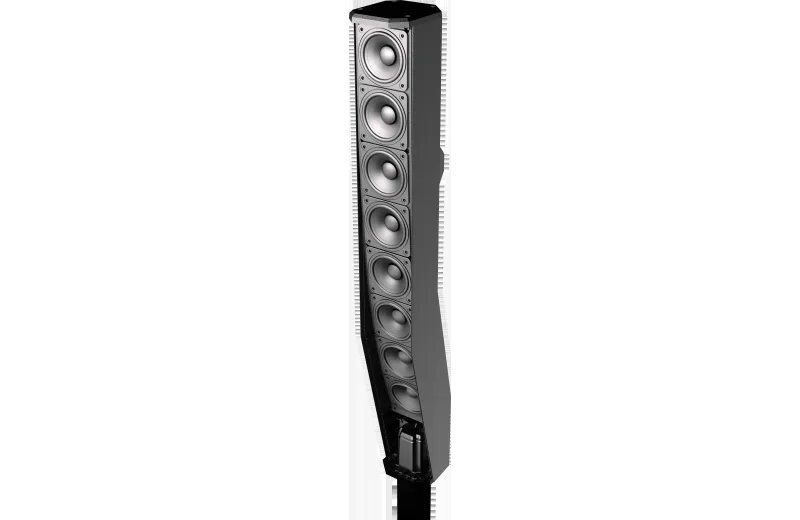

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components. Eight 3.5/" neodymium drivers in the column array coupled with the 12/" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag. The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

Specifications:

• Frequency response (-3 dB): 43Hz-20KHz

• Frequency range (-10 dB): 37Hz-20KHz

• Maximum SPL :127dB

• Coverage (HxV): 120° x 40°

• Amplifier rating: 1000W

• LF channel rating: 500W

• HF channel rating: 500W

• Crossover frequency: 200Hz

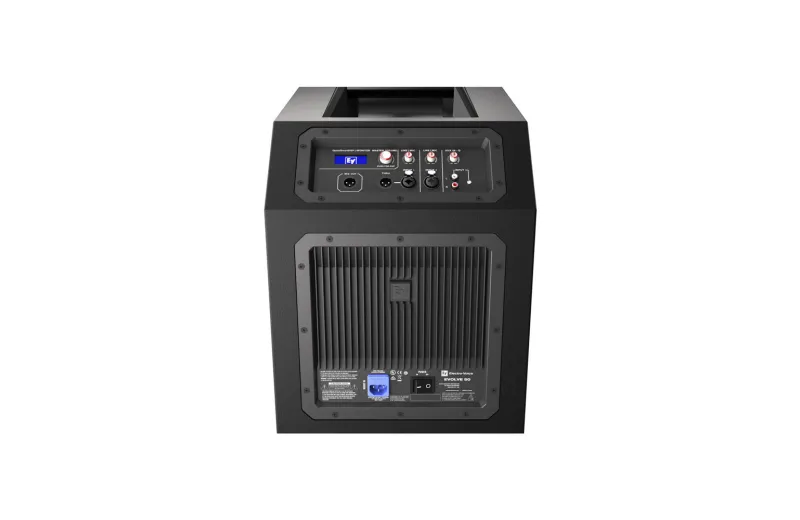

• Connectors: 2 x XLR/TRS Combo Jack Input

• 1 x 3.5mm Input

• 1 x Stereo RCA Input

• 1 x Wireless Bluetooth® Audio Input

• 1 x XLR THRU Output

• 1 x XLR MIX OUT Output

• Enclosure Sub: 15mm plywood

• Column: Composite

• Pole: Aluminum

• Grille Steel with black or white powder coat

• Color: Black

• Dimensions (HxWxD): mm (in) Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)

• Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)

• Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)

• Net weight Sub: 44.66 lb (20.3kg)

• Column: 10.34 lb (4.7kg)

• Pole: 2.75lb (1.25kg)

• Sub cover: 0.9lb (0.4kg)

• Bag for column and pole: 1.87 (0.85kg)

• Shipping weight Sub box: 50.71 lb (23 kg)

• Column box: 18.30lb (8.3kg)

• Power consumption3 100-240 V AC, 50-60 Hz, 1.5-0.6 A
