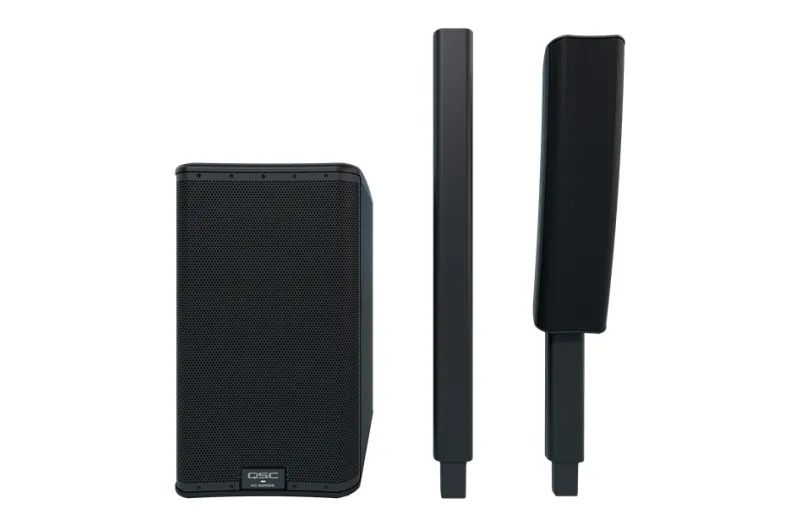

QSC KC12, active 3-Way column loudspeaker system featuring a 12-inch (305mm) subwoofer, two high-excursion 4-inch (102 mm) midrange drivers and 1-inch (25.4 mm) HF compression driver combined with the proprietary QSC LEAF™ waveguide, energy-efficient Class D amplification featuring 3000 W of total peak power with Power Factor Correction and extremely low AC consumption, frequency response 45Hz - 18.5kHz at -6dB, frequency range 40Hz - 20kHz at -10dB and Max Rated SPL (Peak) 132dB.
KC12 features innovative QSC LEAF™ (Length-Equalized Acoustic Flare) waveguide provides defined, uniform coverage (145° H x 35° V) and excellent throw.
Two combo XLR inputs (Mic/Line/Hi-Z and Mic/Line/+48 V), with independent, assignable Factory Presets for each input, perfect for small events where two microphones are needed for different use. Multi-function digital display for control and selection of loudspeaker functions including Global Parametric EQ, Subwoofer level, Presets and Scenes, Bluetooth® configuration, Delay (200 ms) or Reverb. Bluetooth Audio featuring True Wireless Stereo (TWS), which ensures low-latency pairing between music source and both left and right loudspeakers, simultaneously.
Specifications
Configuration: Active 3-Way Column Loudspeaker System
Amplification (Peak): Class D, 3000 W (KC12S Subwoofer 2000 W, KC12T Midrange/High Frequencies 1000 W)
LF transducer: 305 mm (12-inch), cone
MF tranduser: 2 x 102 mm (4-inch), cone
HF transducer: 25.4 mm (1-inch), compression driver
Nominal Coverage Angle: 145 degrees H x 18.5 degrees V
Frequency response (-6dB): 45Hz - 18.5kHz
Frequency range (-10dB): 40Hz - 20kHz
Max Rated SPL (Peak): 132dB @ 1m
Display: Monochrome LCD Display 45 x 25.4 mm (1.75 x 1 inch)
Connectors: 2 ? locking XLR/F ? inch combo (Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V), 2 ? XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP), 1 ? 3.5 mm TRS (Stereo Input), 1 x
USB-C (5V 3A Output for charging mobile devices/Firmware Update)
Enclosure Materials: Impact resistant ABS, 12 mm birch plywood and powder-coated aluminum
Grille: KC12T: 21 Gauge / KC12S: 18 Gauge
Maximum system height: 2270mm
Minimum system height: 1463mm (without KC-SP32)
Dimensions KC 12T (ΥxΠxΒ): 890 ? 141 ? 158mm
Dimensions KC SP32 (ΥxΠxΒ): 881 ? 74 ? 46mm
Dimensions KC 12S (ΥxΠxΒ): 655 ? 357 ? 455mm
Weight: 27.3kg (tall deployment)
Weight KC 12T: 4kg
Weight KC SP32: 1.3kg
Weight KC 12S: 22kg
Color: Black
Specifications
Bluetooth
Yes
Category
PA Column Speaker
HF Driver Size (Inches)
1
Woofer Size (Inches)
4
Number of Woofers
2
Power W Peak
3000
Loudspeaker usage
Professional
Way
3
Inputs
2x locking XLR/F 1/4 inch combo(Mic/Line with assignable Hi-Z and Mic/Line with assignable +48 V) 1x3.5 mm TRS(Stereo I
Frequency Response
45 Hz - 18.5 kHz (-6 dB)
Maximum SPL (dB)
132 peak
Horizontal Coverage (°)
145
Vertical Coverage (°)
35
Outputs
2 x XLR/M (1 x Loop-thru / 1 x Assignable Mix Output Post-DSP)
