Muxlab MonoPro XLR(f) 500026

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Muxlab MonoPro XLR(f) 500026
Muxlab MonoPro XLR(f) 500026
Code :
125.001
39.00 €
Available for immediate dispatch
Available in store
BOX NOW
Delivery

Add to wishlist
Compare

Description

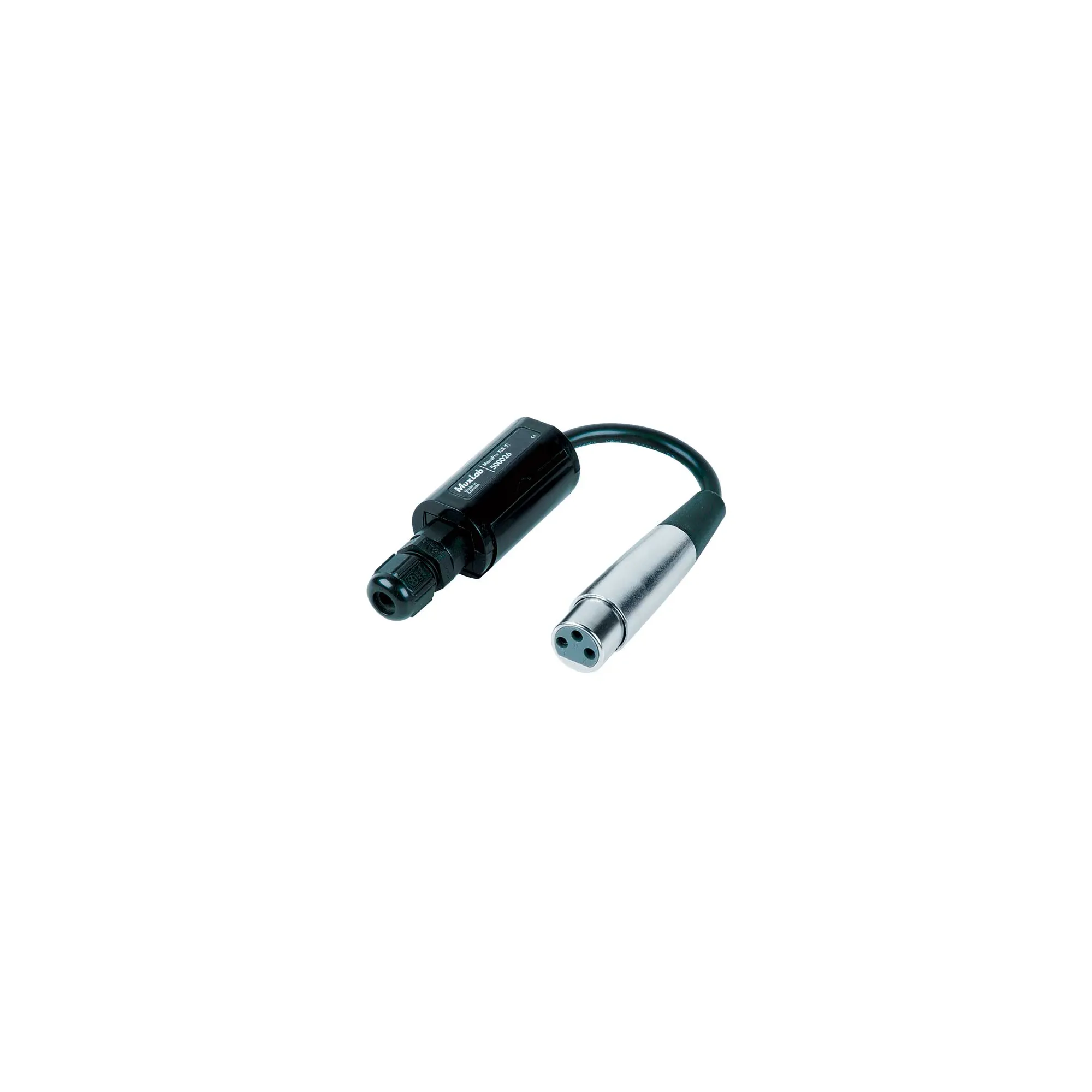

Muxlab MonoPro XLR, F, female connector baluns allow a standard AES analog or digital XLR audio channel to be extended via single Cat5e/6 cable within a professional audio environment. Active microphones are supported (requiring the ground pin connnected at both ends). Stereo signals can be extended up to distances of 5,000ft / 1.5km, or digital audio signals up to a distance of 1,400ft / 426m.

Specifications

  • Line level audio up to distances of 5,000ft / 1.5km via single Cat5e/6
  • Digital audio up to distances of 1,400ft / 426m via single Cat5e/6
  • Impedance: output 600 ohm / input 600 – 20k ohm (analog audio); 110 ohm (digital audio)
  • Sample rate: up to 96kHz
  • Cat5e/6 cable terminates inside the balun
  • Locking metal XLR3 male / female connectors with cable strain relief
  • Optional terminal for ground / shield
  • Dimensions: 47mm x 25mm diameter plus 127mm XLR3 lead
  • Weight: 0.075kg
