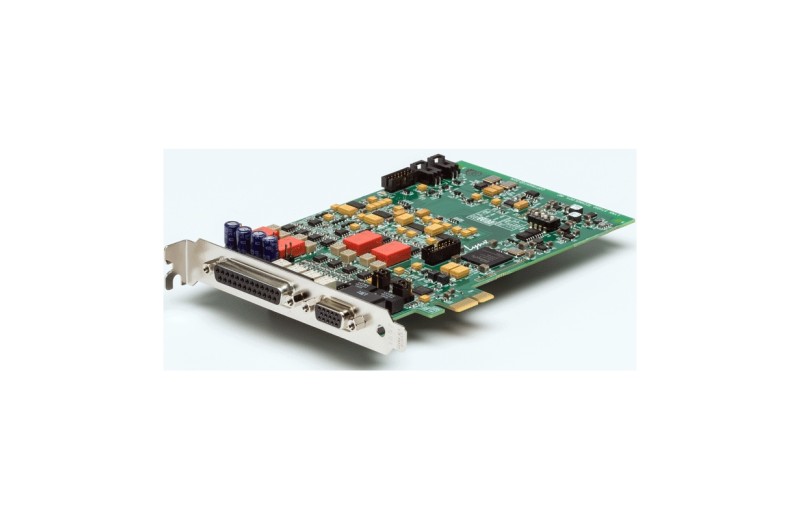

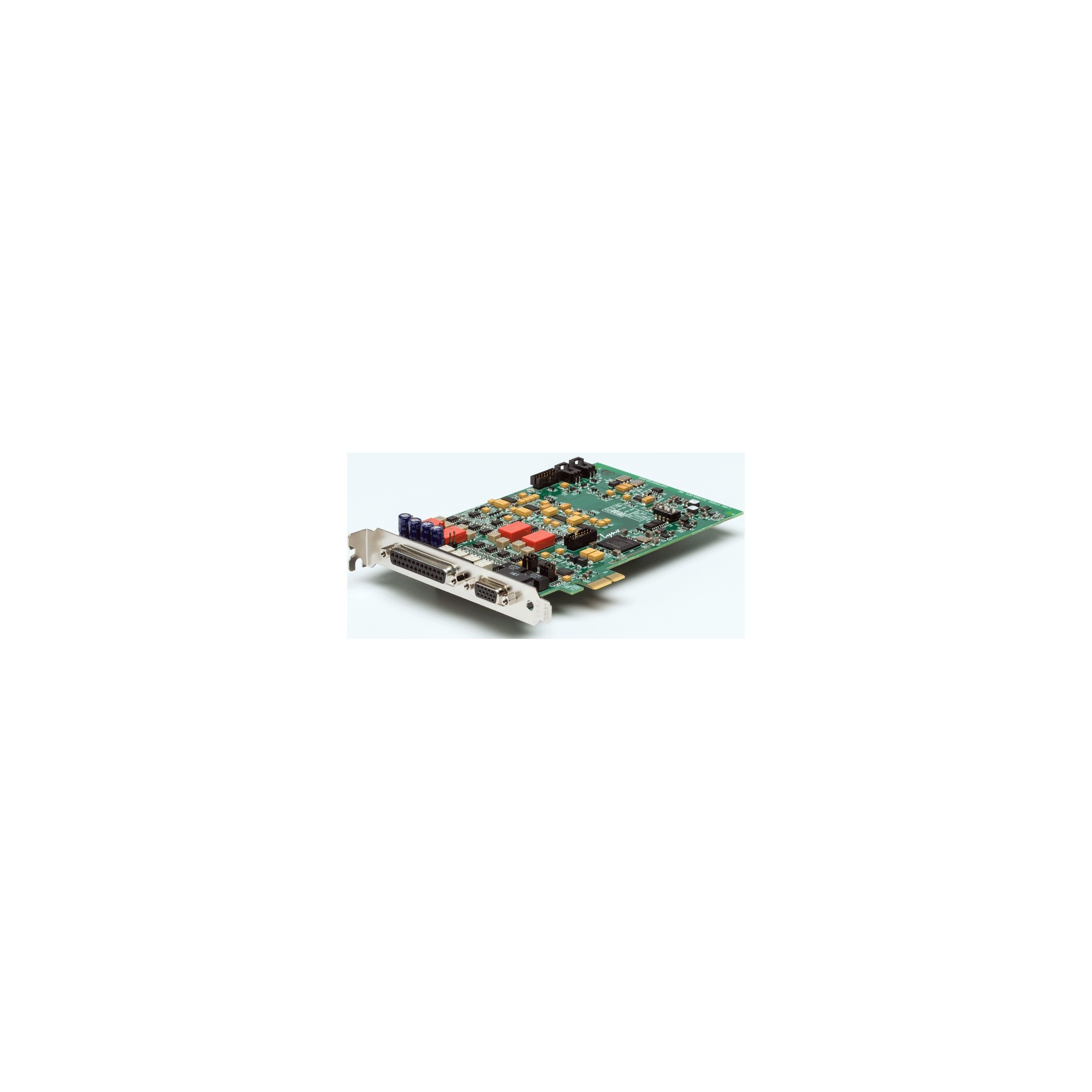

Lynx E44

The E44 is a modern PCI Express audio card equipped with four analogue and four digital inputs and outputs. It incorporates high-end A/D and D/A converters and carefully selected components, ensuring outstanding sound quality and reliable performance during continuous operation.

It is ideal for demanding applications such as classical music recording and digitisation, acoustic measurements, broadcast installations, and professional recording studios.

TECHNICAL SPECIFICATIONS
Sample rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
4 analogue inputs and outputs
4 digital inputs and outputs via AES3 and S/PDIF
SynchroLock sample clock generator for precise synchronisation
FPGA-based hardware mixing
Frequency response: 20 Hz–20 kHz, ±0.05 dB
Dynamic range: 117 dB, A-weighted
Channel crosstalk: below ?128 dB
V2 DMA Engine for low-latency performance
Adjustable trim levels for the analogue inputs
Switchable automatic output muting
Compatible with PC and Mac
Supports Mac OS X and Windows 7/8
Thunderbolt-ready when used with a suitable chassis or adapter
Includes the Lynx Mixer application
Designed and manufactured in the USA

The E44 delivers the exceptional sound quality and stability required for demanding studio installations, live recordings, and other professional audio applications.

With Lynxs high-performance A/D and D/A converters and the companys proven reputation for reliability, this audio card is designed to satisfy producers and audio engineers seeking flawless sound quality combined with uninterrupted operation.

PLEASE NOTE

The card does not include any cables. Please refer to the related products section to select the appropriate cables for your connections.
