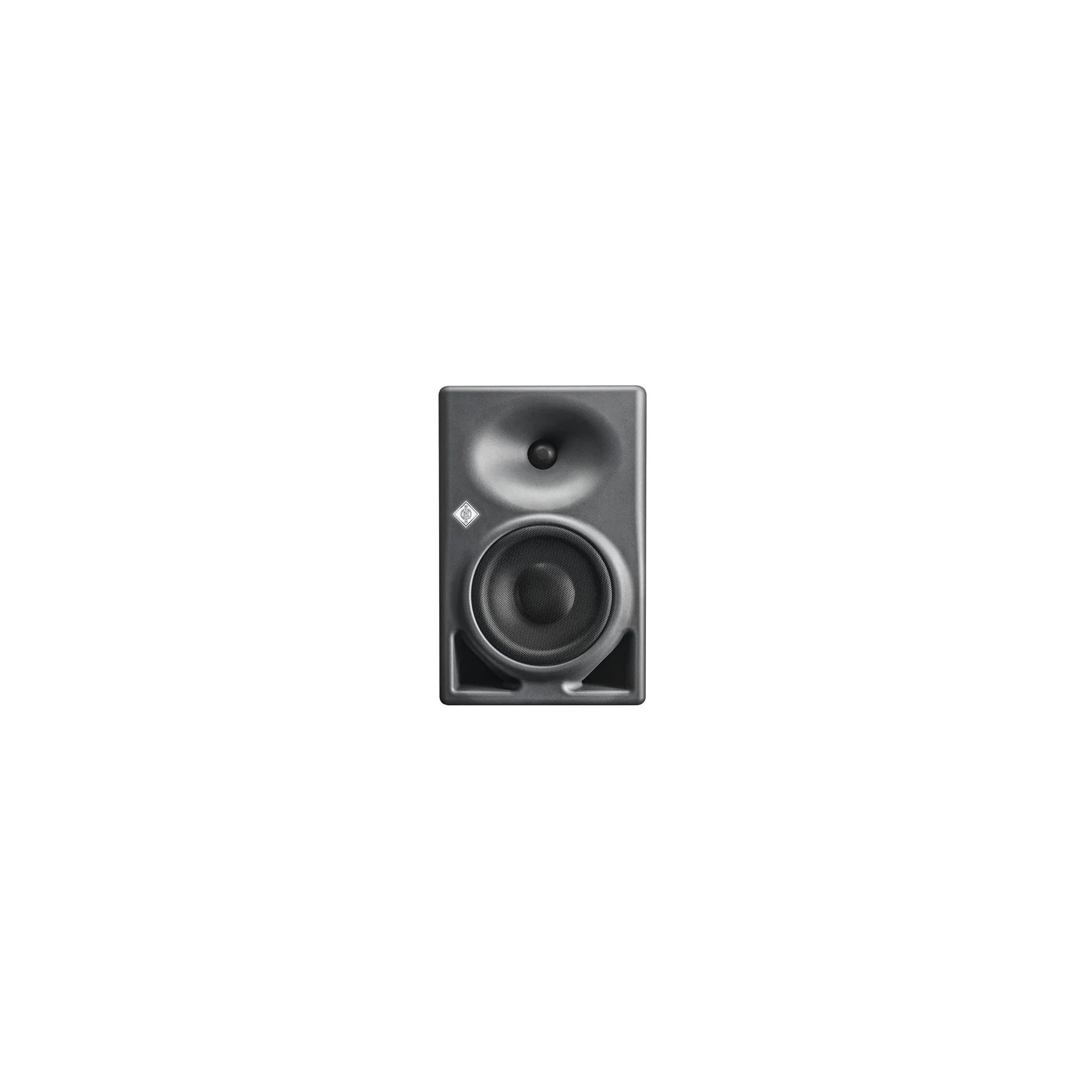

Neumann Kh-150-Aes67 Powered Studio Monitor Speaker (Unit)

• Linear frequency and phase response for accurate critical listening reference
• Deep low end down to 39 Hz with high SPL capability of 118.7 dB
• DSP engine for enhanced performance and automatic room alignment
• Extremely accurate imaging thanks to exceptionally low tolerances of ±0.8 dB
• Analog (XLR) and digital (RCA) inputs with optional AES67 connectivity
• Combinable with other KH series speakers for immersive and surround setups

Technical Specifications:

• Free-field frequency response ±3 dB: 39 Hz - 20.4 kHz
• Self-noise <20 dB(A) SPL at 10 cm
• Max. SPL: 118.7 dB (3% THD at 1 m, average 100 Hz - 6 kHz)
• Principle: Bassreflex with front-facing ports

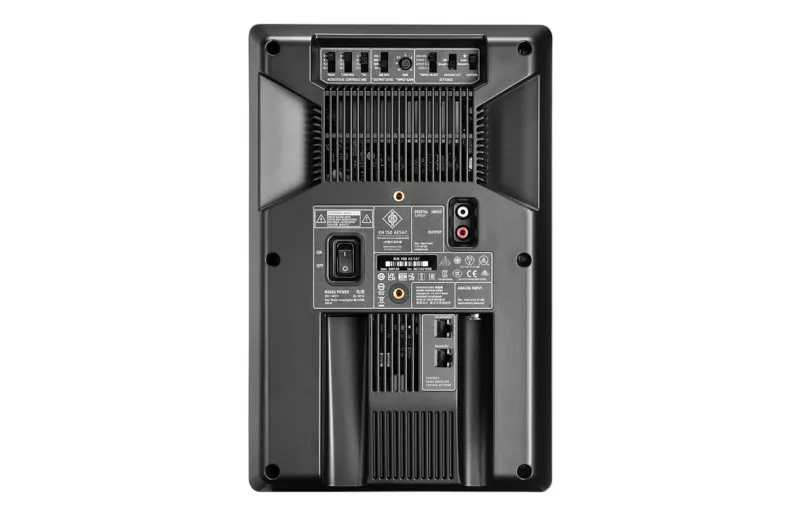

• Analog input: XLR electronically balanced (24k Ohms)
• Digital inputs: RCA (75 Ω) S/PDIF, AES67 via Ethernet on selected models

Controls and Settings:

• Input gain control: 0 dB to -15 dB
• Output levels: 94, 100, 108, 114 dB SPL
• Bass equalization: 0, -2, -4, -6 dB
• Low-Mid equalization: 0, -2, -4, -6 dB
• Treble equalization: +1, 0, -1, -2 dB
• Control: Local or network-based
• Crossover frequency: 1.7 kHz
• FIR phase correction: Linear phase (105 Hz - 16 kHz, ±45°)

Protection and Amplifiers:

• Independent soft clip, peak, and thermal limiters for woofer and tweeter
• Woofer excursion limiter and thermal limiter for electronics
• Woofer amplifier output: 145 W (THD+N 10%)
• Tweeter amplifier output: 100 W (THD+N 10%)

Drivers:

• Woofer: 165 mm (6.5) with protective metal grille
• Tweeter: 25 mm (1) with protective metal grille

Dimensions and Weight:

• Dimensions: 345 x 225 x 273 mm (H x W x D)
• Weight: 8.0 kg

The Neumann KH 150 AES67 is a self-powered studio monitor delivering professional-grade accuracy for mastering, post-production, mixing, and content creation. With exceptionally tight tolerances and advanced DSP technology, it provides reliable critical listening reference and exceptional performance in professional audio production environments.
