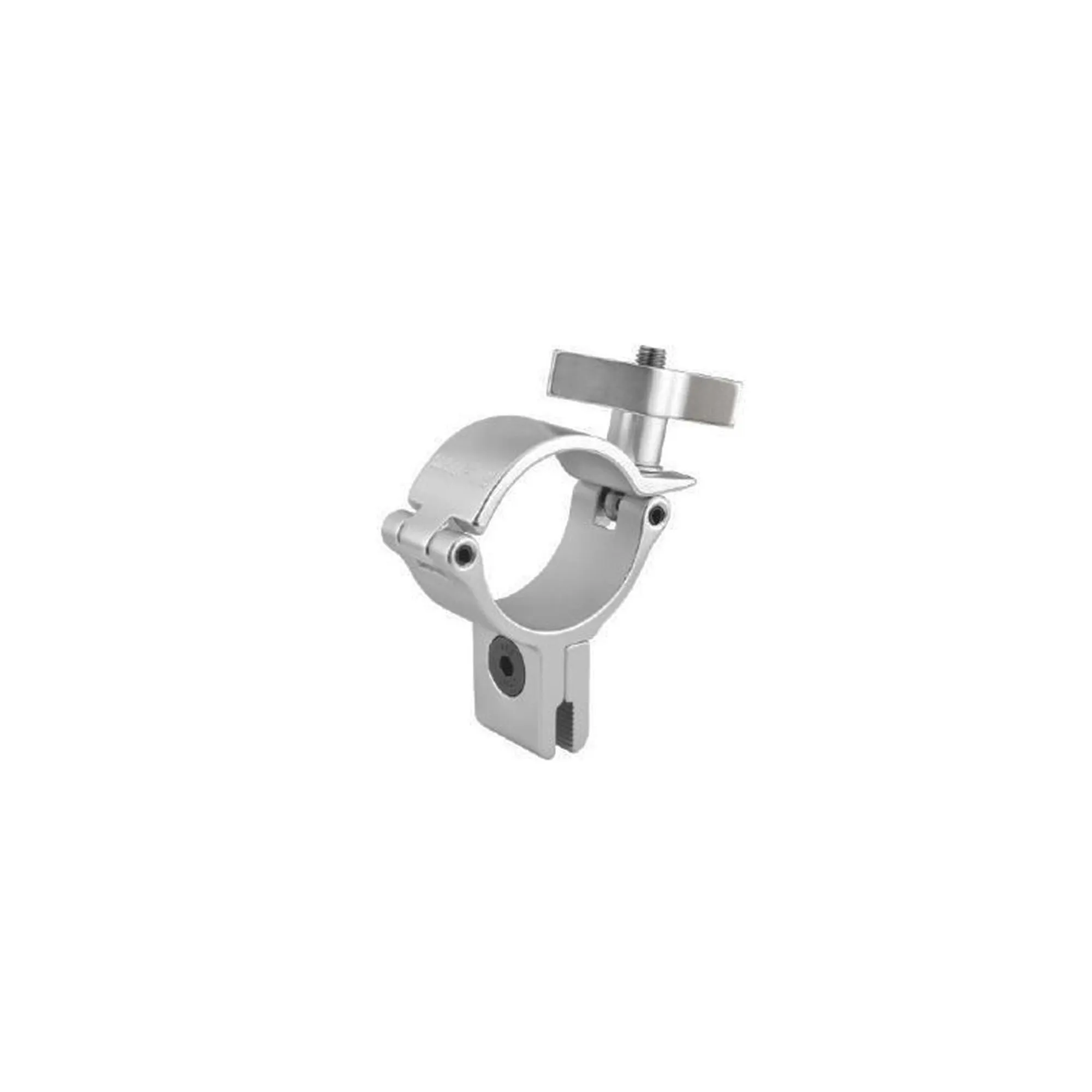

Duratruss DT Mini 360 Quick Panel Clamp

Name: Duratruss DT Mini 360 Quick Panel Clamp
Brand: Duratruss
SKU: 096216
Price: 10 EUR
Availability: InStock

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ

2 YEAR WARRANTY

Code :

096216

10.00 €

Available for immediate dispatch

Available in store

Add to wishlist

Compare

Description

Duratruss DT Mini 360 Quick Panel Clamp 100kg, clamp with washer and butterfly nut for trawl pipe with diameter 48mm to 51mm and maximum load 100kg. It has M8 Hexagon panel mounting screw and the material is 6061 T6 aluminium. It is ideal for fixing glass or plastic panels to a trawl system.

Specificatons:

Maximum load: 100kg
Construction material: Aluminium 6061 T6
Panel thickness: 5mm-10mm
Dimensions: 91 x 30mm (without the butterfly nut)
Weight: 0.290kg
Color: Silver

Specifications

Category: Truss Accessories
Weight (kg): 0.290
Warranty: 2 years
Colour: Silver
EAN13: 640282018357
MPN: DT Mini 360 Quick Panel C
