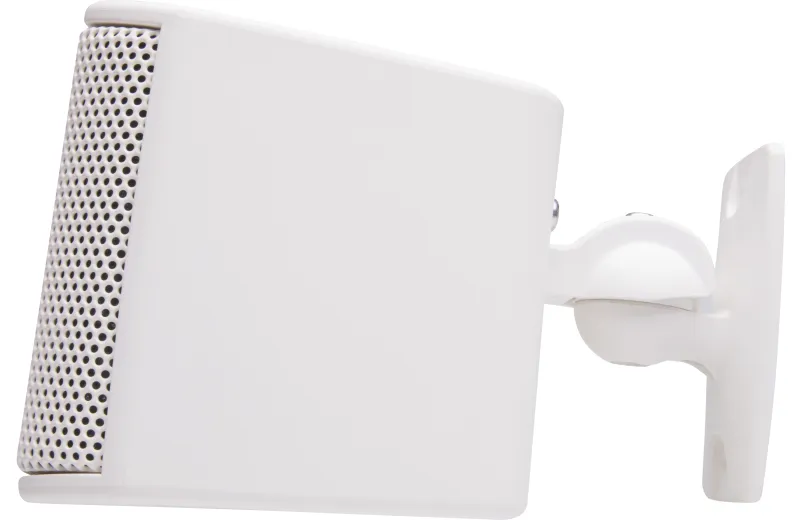

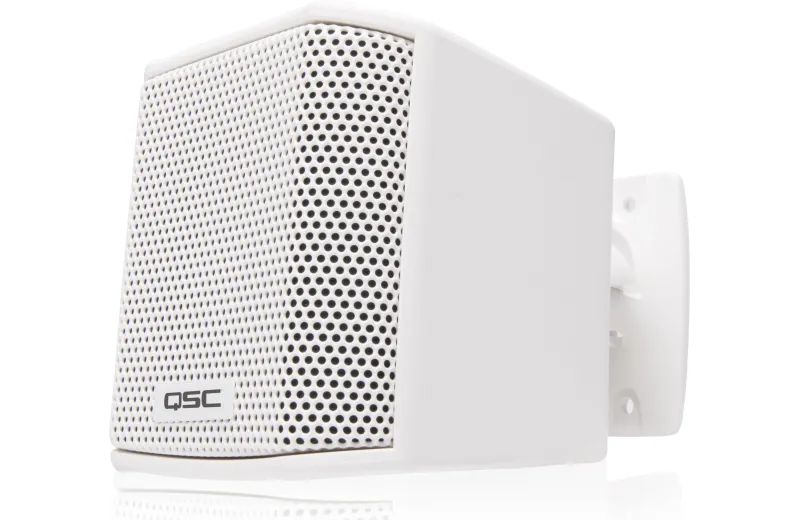

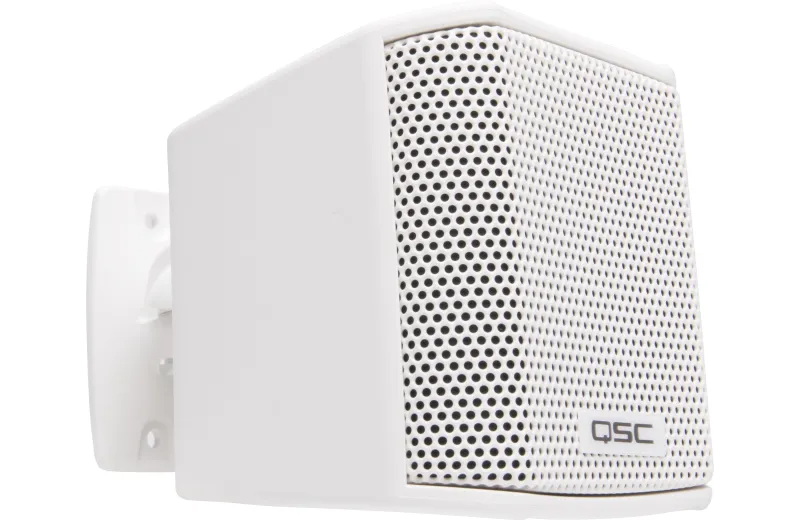

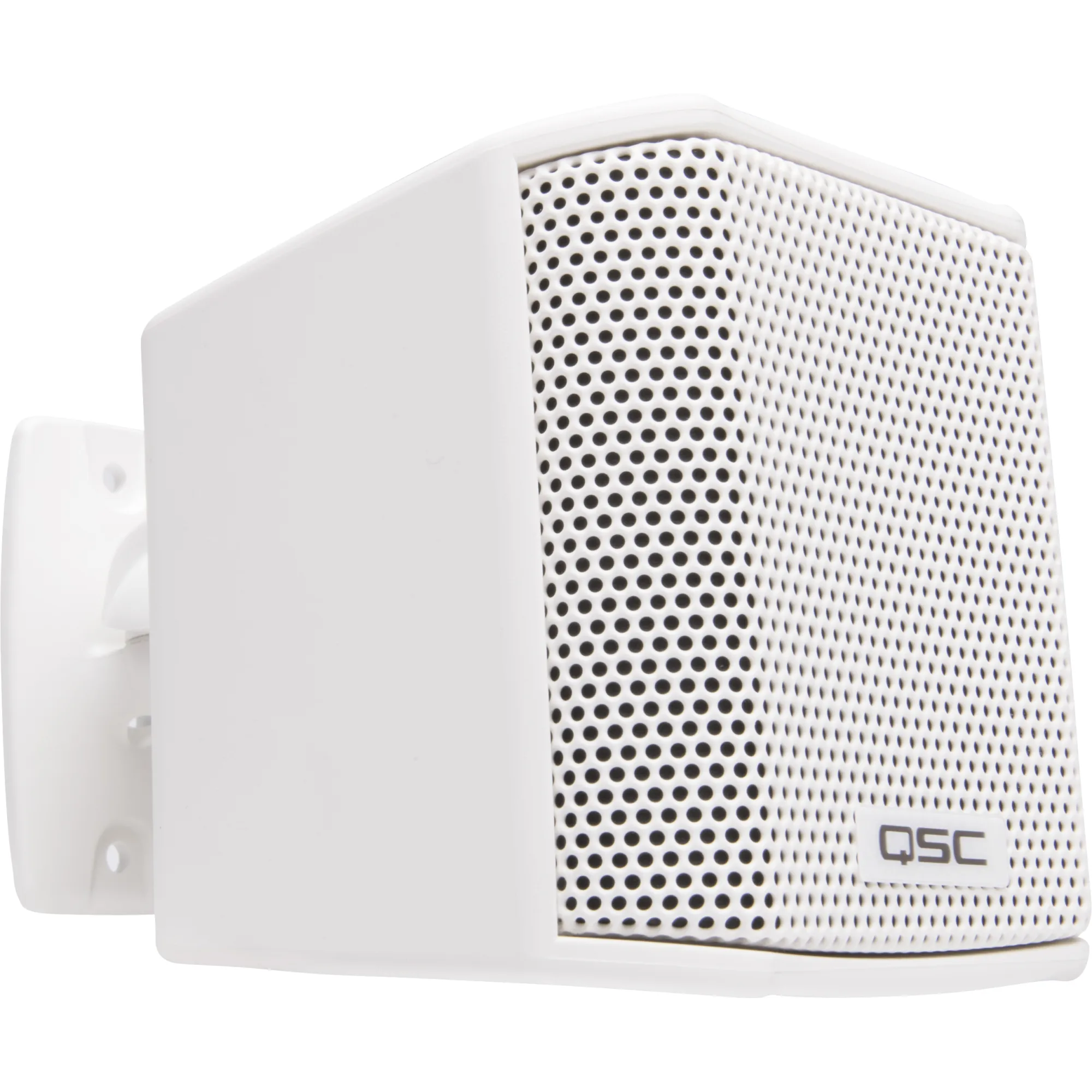

QSC AD-S.SAT Passive Loudspeaker - White

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2+1 YEAR WARRANTY
QSC AD-S.SAT Passive Loudspeaker - White
QSC AD-S.SAT Passive Loudspeaker - White
QSC AD-S.SAT Passive Loudspeaker - White
QSC AD-S.SAT Passive Loudspeaker - White
QSC AD-S.SAT Passive Loudspeaker - White
QSC AD-S.SAT Passive Loudspeaker - White
Code :
010225
126.48 €
Available for immediate dispatch
Available in store

Add to wishlist
Compare
Close
Έως 12 δόσεις των 10.54 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 42.16 € με 0% επιτόκιο με την Klarna
4 δόσεις των 32.62 € με 0% επιτόκιο με την tbi bank
DATASHEET

MANUAL

Description

QSC AD-S.SAT, passive 2.75-inch loudspeaker, with recommended amplification up to 25W, frequency range of 150Hz – 20kHz, sensitivity of 82dB, and maximum SPL of 90dB continuous / 96dB peak.

The AD-S.SAT is part of the AcousticDesign™ Series SUB/SAT loudspeaker solution, which is ideally suited for background music applications that require depth and clarity even at lower volume settings. The AcousticDesign Series SUB/SAT loudspeakers are specifically designed to be mix-and-match capable; meaning any combination of satellites may be paired with any subwoofer in the AD Series SUB/SAT line.

Specifications

  • HF transducer: 2.75-inch (70 mm) weather treated paper cone woofer
  • Effective frequency range: 150 Hz – 20 kHz
  • Rated noise power / voltage 6: 25 W / 20 V (rms)
  • Sensitivity [dB] (rated @ 1 W, 1 m): 82
  • Coverage (-6 dB) [°]: 170 Conical
  • Directivity factor: TBD
  • Directivity index [dB]: TBD
  • Maximum SPL [dB]: (rated, 1 m (continuous / peak): 90 / 96
  • Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
  • Transformer taps / impedance Bypass: 16 Ω
  • Connector: 2-pole Euroblock
  • Enclosure material :ABS
  • Grille material:Aluminum
  • Ingress protection: IP-34
  • Operating environment: Designed for indoor use
  • Operating temperature range: -4 to 122° F (-20 to 50° C)
  • Net weight: 0.95 lb (433 g)
  • Product dimensions including wall bracket (H x W x D): 3.6 x 3.5 x 5.4-inch (92.5 x 89 x 136mm)

Specifications

Category
Passive loudspeaker
HF Driver Size (Inches)
2.75
Impedance (Ohm)
16
Way
1
Frequency Response
150Hz - 20kHz
Sensitivity (dB)
82
Maximum SPL (dB)
96
Enclosure material
ABS
IP Protection
IP34
Width (mm)
89
Height (mm)
92.5
Depth (mm)
136
Weight (kg)
0.43
Colour
White
EAN13
684284075918
MPN
AD-S.SAT WHT
