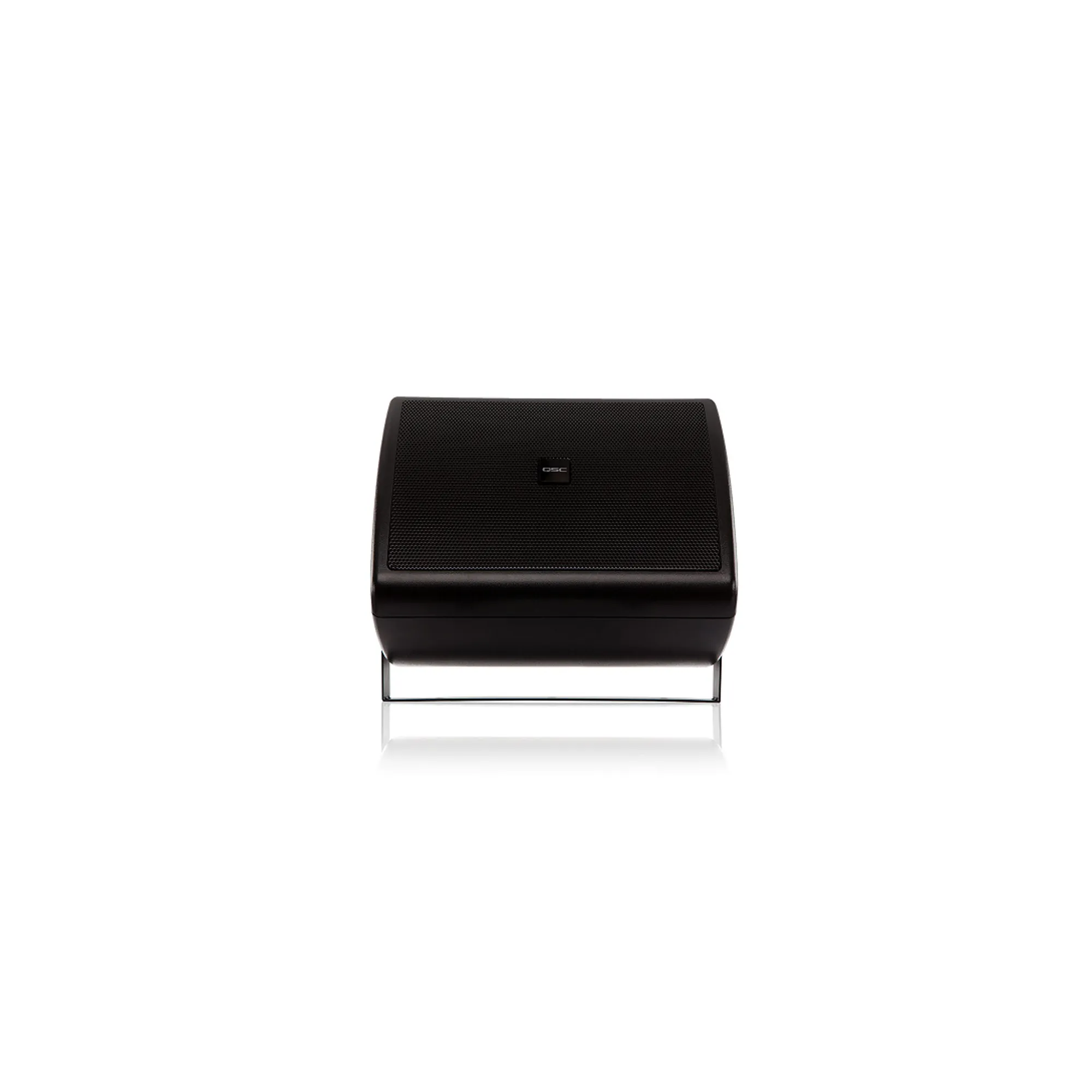

QSC AC-S4T Passive Loudspeaker - Black
12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
3 YEAR WARRANTY
Code :
010266
163.68 €
On request
Description
QSC AC-S4T, 4.5-inch 2-way, 130° conical passive speaker with recommended amplification up to 32W/8Ω, 100V with 16, 8, 4, 2W transformer taps, frequency range of 70Hz – 20kHz, sensitivity of 85dB, and maximum SPL of 97dB continuous / 103dB peak.
It belongs to the AcousticCoverage Series and meets the needs for background sound by offering a 130-degree coverage angle, thereby reducing the number of loudspeakers required per space. The AC-S4T can be tuned via QSC Intrinsic Correction™ when used with the Q-SYS™ platform and CXD series amplifiers, providing a complete and integrated solution.
Τεχνικά Χαρακτηριστικά
- LF transducer: 114 mm (4.5-inch) Polypropylene woofer with 25 mm (1-inch) voice coil
- HF transducer: 25 mm (1-inch) Aluminium dome tweeter with 25 mm (1-inch) voice coil
- Effective frequency range: 70 Hz–20 kHz
- Rated noise power / voltage: 16 watts / 11.3 volts rms
- Broad-band sensitivity: 85 dB SPL
- Coverage angle (-6 dB): 130° conical (500 Hz–5 kHz)
- Directivity factor (Q): 6
- Directivity Index: 8dB
- Maximum continuous SPL4: 97dB
- Maximum peak SPL4: 103dB
- Rated impedance: 8ohms
- Recommended amplifier power: 32 watts into 8 ohms
- Transformer taps 100V: 16, 8, 4, 2 watts / 8 ohm bypass
- Input connector type: Euroblock connector with parallel output
- Enclosure material :UV treated, high impact ABS polymer
- Grille material: Powder coated steel
- Yoke material: Powder coated steel with brass inserts
- Designed for indoor use
- Product Dimensions (HxWxD): 9.1 x 6.3 x 5.9 inches
- Product Dimensions (HxWxD): 230 ? 160 ? 150mm
- Net Weight: 5.3 lb / 2.4 kg
Specifications
- Category
- Passive loudspeaker
- Tweeter Size (Inches)
- 1
- Woofer Size (Inches)
- 4
- Number of Woofers
- 1
- Power W Peak
- 16
- Impedance (Ohm)
- 8
- Loudspeaker usage
- Professional
- Frequency Response
- 70Hz – 20kHz
- Inputs
- Euroblock connector with parallel output
- Maximum SPL (dB)
- 103
- Transformer (100V)
- Yes
- Power tappings @ 100V (W)
- 16 / 8 / 4 / 2 / 8Ω bypass
- Enclosure material
- ABS
- IP Protection
- IP44
- Width (mm)
- 160
- Height (mm)
- 230
- Depth (mm)
- 150
- Weight (kg)
- 2.4
- Colour
- Black
- EAN13
- 684284066848
- MPN
- AC-S4T-BK
