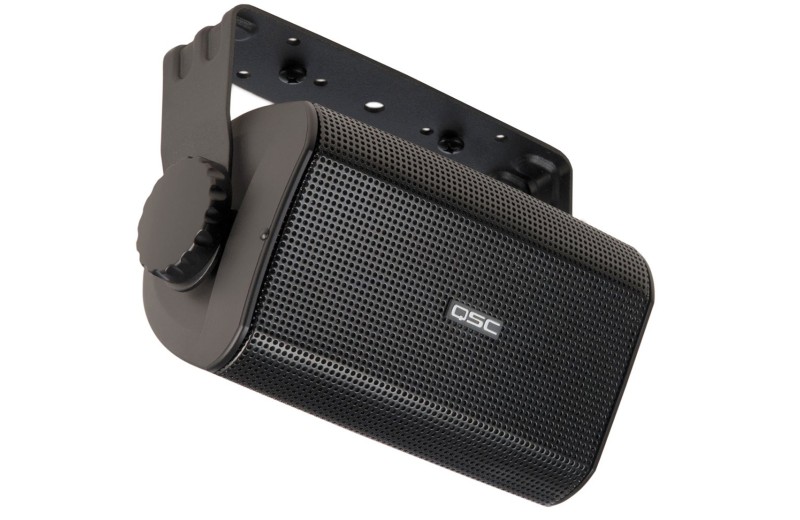

QSC AD-S32T-BK Wall mount speaker 3" Black
010107

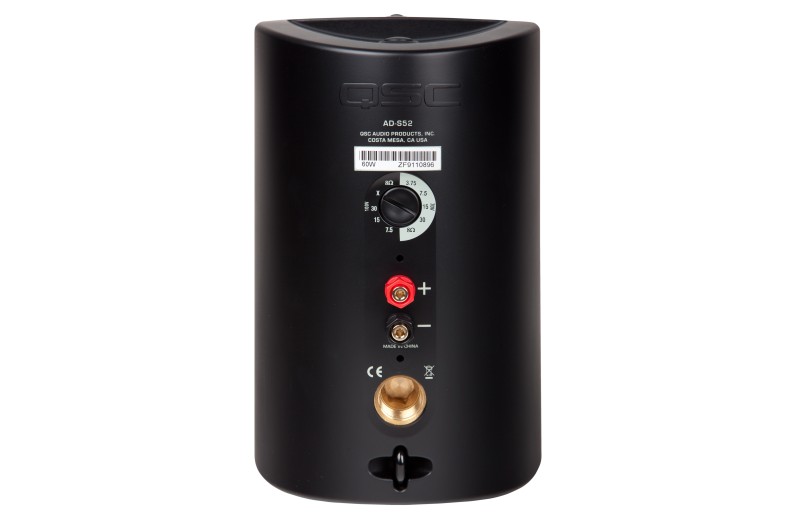

Two way speaker, power 30W RMS, 8Ω, with 3 "polypropylene woofer and 0.75" titanium tweeter. Dispersion 100 ° H x 100 ° V, sensitivity 85dB / W / m, 99dB max SPL cont., Frequency response 73Hz-20kHz (-6dB). It is connected with a bare cable (terminal with screws) and has transformers with 30, 15, 7.5, 3.8W @ 70V and 30, 15, 7.5W @ 100V receivers.
3-YEAR WARRANTY
QSC passive two-way speaker AD-S32T-BK with attractive and compact design.
An included ball mount assembly can be attached to a variety of surfaces or structures. In addition to attaching to the rear of the cabinet, the ball mount can be attached to the top of the cabinet for mounting to an overhead structure or to the bottom of the cabinet to provide a shelf stand.

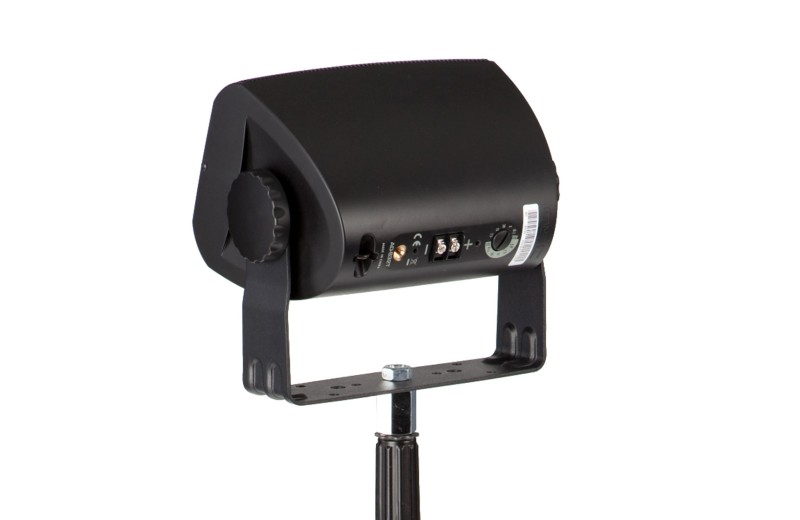

Also included in the system is an aluminum yoke mount. This mount further enhances the AD-S32T mounting options for either vertical or horizontal installation.
- Category
- Passive loudspeaker
- Way
- 2
- Woofer Size (Inches)
- 3
- Number of Woofers
- 1
- Power W RMS
- 30
- Power W Peak
- 120
- Impedance (Ohm)
- 8
- Transformer (100V)
- Yes
- Power tappings @ 100V (W)
- 30 / 15 / 7,5 / 8Ω bypass
- Sensitivity (dB)
- 85
- Maximum SPL (dB)
- 99
- Horizontal Coverage (°)
- 100
- Vertical Coverage (°)
- 100
- Frequency Response
- 73Hz - 20kHz
- Bluetooth
- No
- Enclosure material
- ABS
- Colour
- Black
- Width (mm)
- 123
- Height (mm)
- 202
- Depth (mm)
- 140
- Weight (kg)
- 1.8
New
- MPN
- AD-S32T-BK
