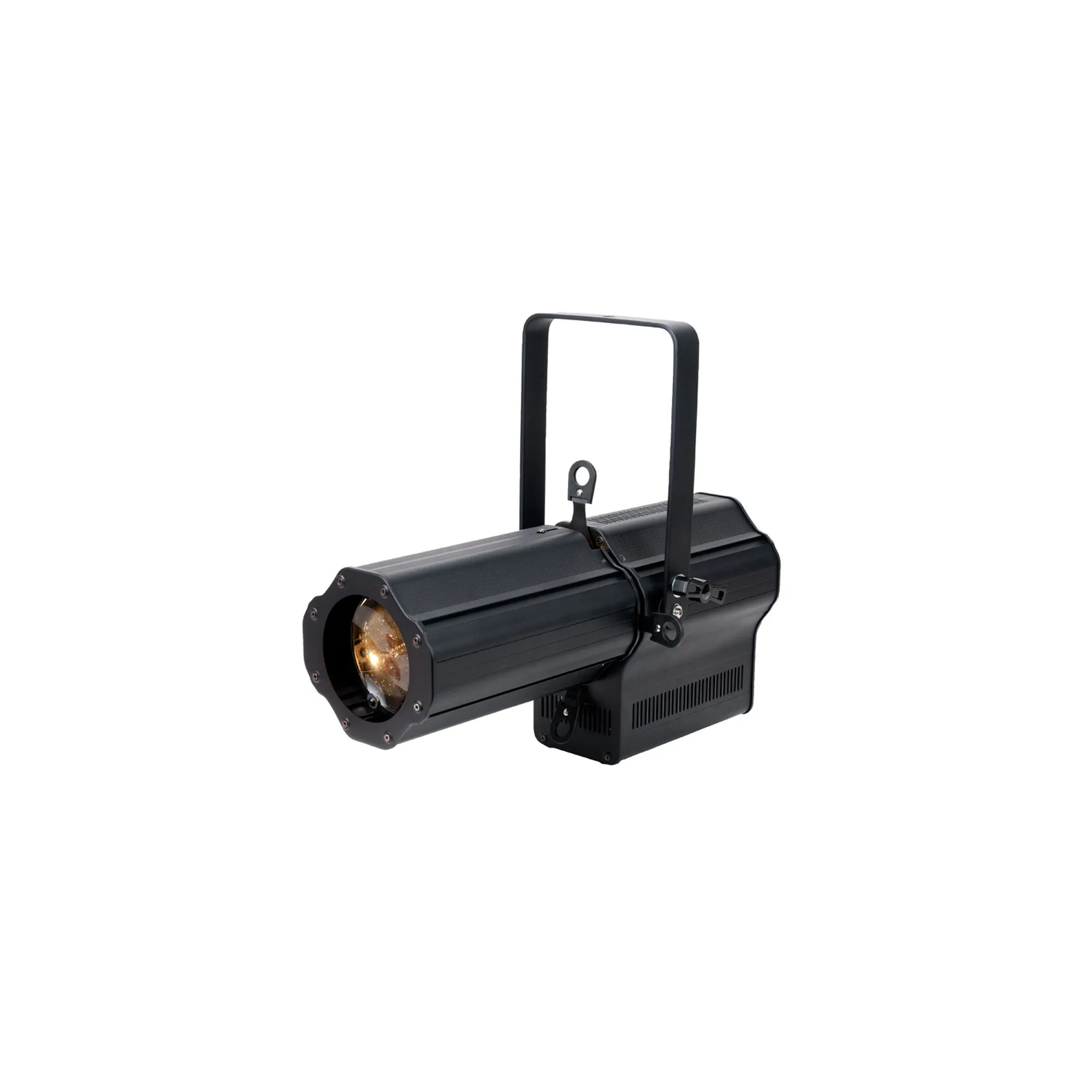

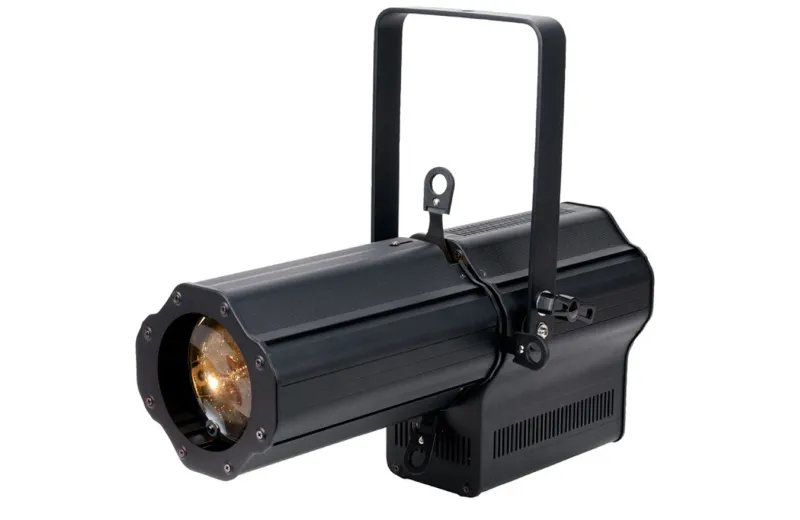

ADJ Encore Profile 1000 WW
090245
The American Dj Encore Profile 1000 WW is a 120W led cob LED WW, controlled by DMX
2-YEAR WARRANTY
The American Dj Encore Profile 1000 WW is a 120W led cob LED WW, controlled by DMX
Light Source:
• 672 x 0.3W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
• 116 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 5500-7000K
• 50,000 Hour Average LED Life
• 672 x 0.3W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
• 116 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 5500-7000K
• 50,000 Hour Average LED Life
Features:
• 32 x RGB LED zones
• 16 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
• 32 x RGB LED zones
• 16 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros
Control:
• Control Protocol: DMX
• 11 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• Adjustable LED Refresh Rates (900~25kHz)
• With Wired Digital Communication Network
• Display: LCD display with 4-button touch menu
• Control Protocol: DMX
• 11 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 42, 64, 112 and 126 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• Adjustable LED Refresh Rates (900~25kHz)
• With Wired Digital Communication Network
• Display: LCD display with 4-button touch menu
Connections:
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Power locking power in/out
• Connect fixtures seamlessly using included metal bracket attachment
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Power locking power in/out
• Connect fixtures seamlessly using included metal bracket attachment
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 340W
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 340W
Dimensions / Weight:
• Length: 4.1” (104mm)
• Width: 39.4” (1000mm)
• Height: 4.4” (111mm)
• Weight: 8.8 lbs. (3.99kg)
• Length: 4.1” (104mm)
• Width: 39.4” (1000mm)
• Height: 4.4” (111mm)
• Weight: 8.8 lbs. (3.99kg)
What’s Included:
• 1x power locking to Edison power cable (U.S.)
• 1x power locking to Edison power cable (U.S.)
- Colour
- Black
New
- EAN13
- 819730017932
- MPN
- Encore Profile 1000 WW
