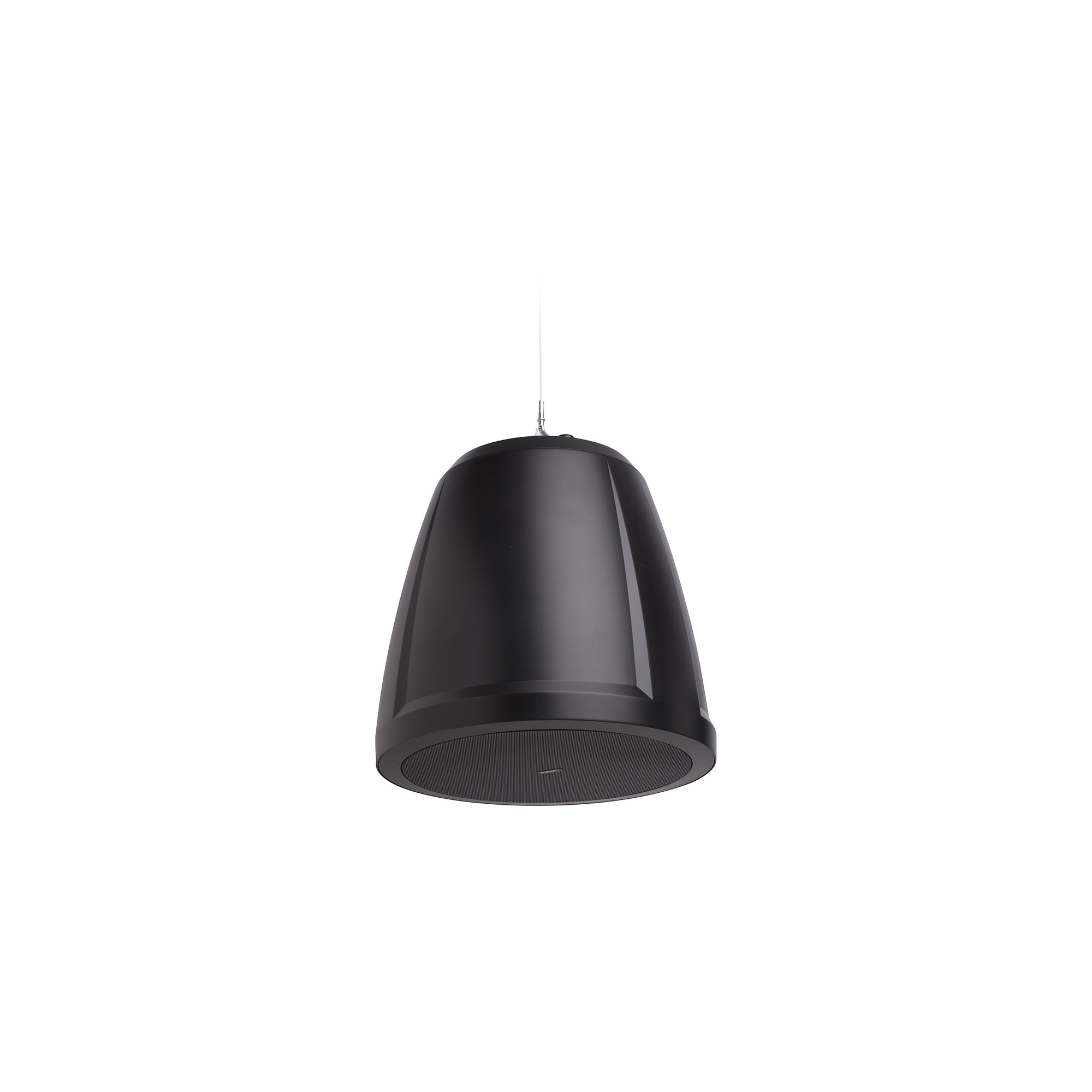

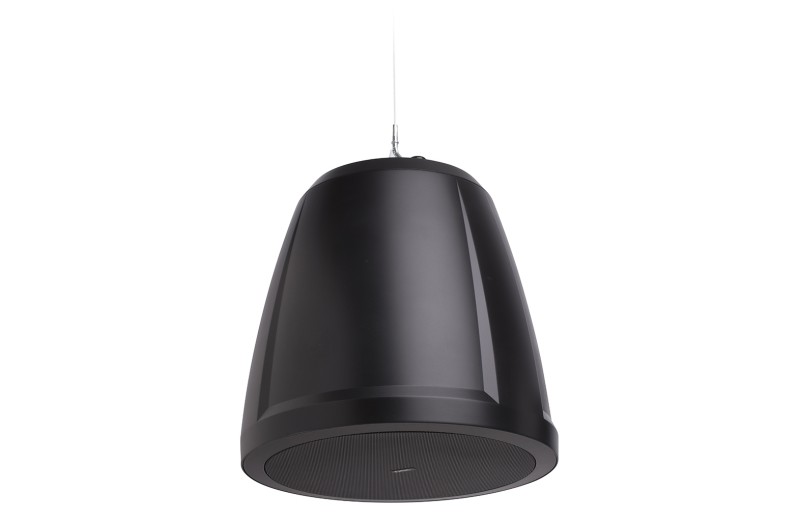

QSC AD-P.SUB Black

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2+1 YEAR WARRANTY
QSC AD-P.SUB Black
QSC AD-P.SUB Black
Code :
010230
570.40 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 47.53 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 190.13 € με 0% επιτόκιο με την Klarna
4 δόσεις των 142.60 € με 0% επιτόκιο με την TBI bank
MANUAL

Description



Χαρακτηριστικά:



  • LF transducer: 6.5/" (165 mm) dual voice-coil weather treated paper cone woofer
  • Effective frequency range 55Hz – 150 Hz
  • Rated noise power / voltage 100 W / 20 V (rms)
  • Sensitivity [dB]: (rated @ 1 W, 1 m) 86
  • Coverage (-6 dB): Omni
  • Maximum SPL [dB]: (continuous / peak) 100 / 106
  • Recommended amplifier: 100 W
  • Transformer taps / impedance:
    Bypass:4 Ω
    100 W (70 V); NA (100 V) Tap: 50 Ω
    50 W (70 V); 100 W (100 V) Tap: 100 Ω
    25 W (70 V); 50 W (100 V) Tap: 200 Ω
    12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
  • Connectors: Mono input: Hi-Z mono input: 4-pole Euroblock with thru output,  Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites
  • Enclosure material: ABS
  • Grille material: Powder coated steel
  • Ingress protection: IP-34
  • Operating environment: Designed for indoor use
  • Operating temperature range: -4 to 122° F (-20 to 50° C)
  • Βάρος: 7.5 kg
  • Διαβάσεις: O 4.3 x 4.5mm
  • Λειτουργεί και σε συνδυασμό με το AD P SAT

Specifications

Category
Ceiling Speaker
Woofer Size (Inches)
6
Power W RMS / Continuous
100
Impedance (Ohm)
4
Sensitivity (dB)
86
Maximum SPL (dB)
106
Transformer (100V)
Yes
Power tappings @ 100V (W)
100 / 50 / 25
Enclosure material
ABS
Outer Diameter (mm)
340
IP Protection
IP34
Height (mm)
254
Weight (kg)
8.7
Colour
Black
EAN13
684284075888
MPN
AD-P.SUB
