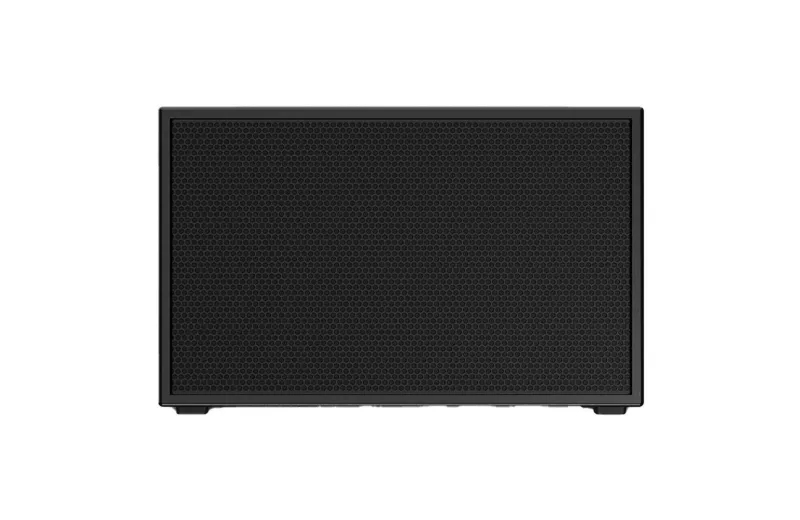

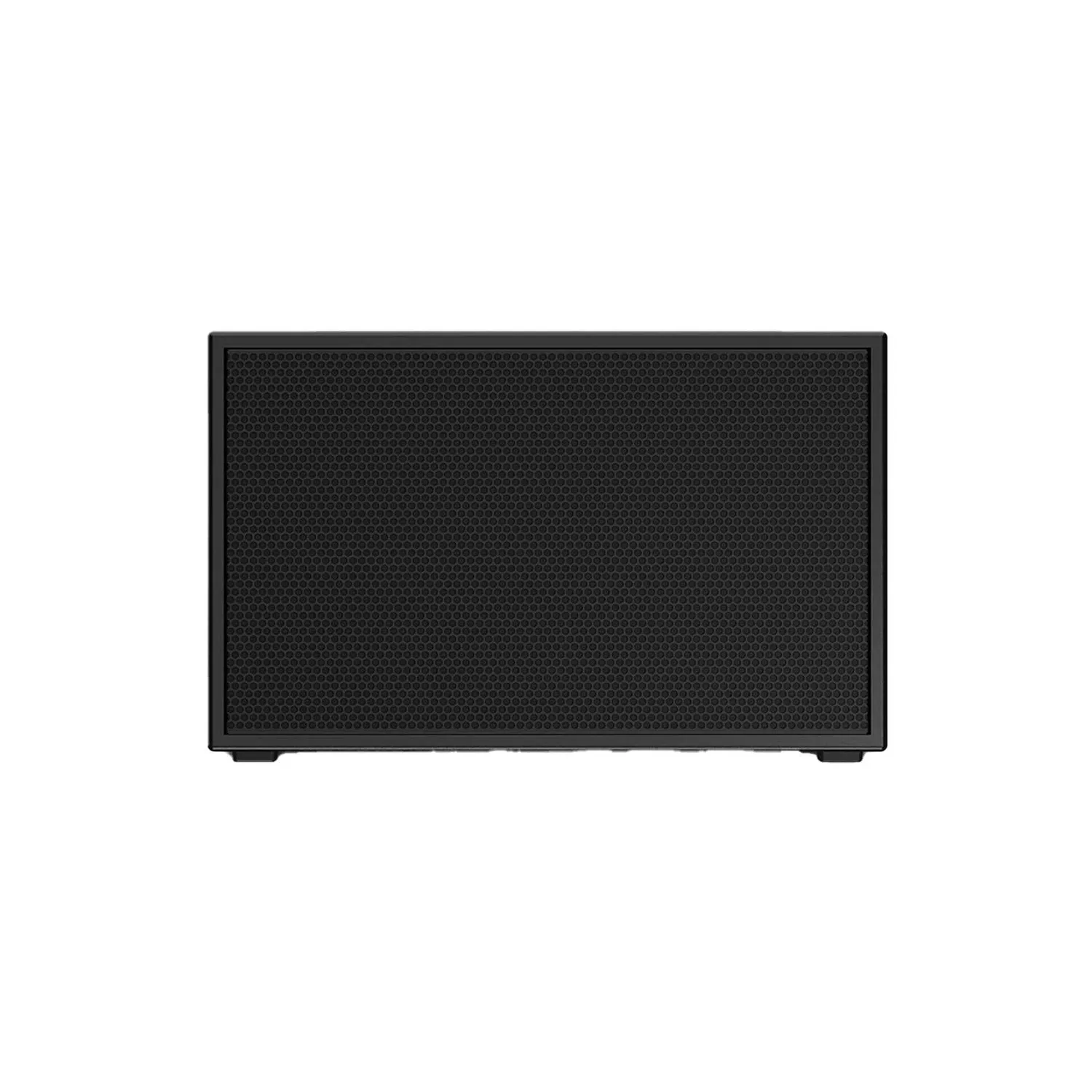

Q-SYS PL-SUB18 18" Passive Installation Subwoofer

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
3 YEAR WARRANTY
Q-SYS PL-SUB18 18" Passive Installation Subwoofer
Q-SYS PL-SUB18 18" Passive Installation Subwoofer
Code :
010055
2,976.00 €
Tax included
On request - Usually in 3-4 weeks
Κάντο τώρα δικό σου από 248.00 € / μήνα μέσω πιστωτικής κάρτας.

DATASHEET

Description

Q-SYS PL-SUB18,  passive installation subwoofer that features an 18-in transducer, οmnidirectional or cardioid radiation, selectable in Q-SYS (requires deployment of two or more subwoofers), with up to 750W @ 8Ω continous power and 1500W @ 8Ω rated power, 38Hz - 82Hz at -3dB system bandwidth and 97dB system sensitivity. Features a weatherized enclosure (IP54 rating), making them a perfect choice for indoor or protected outdoor applications.

Its compact form factor is suitable for a broad range of applications from entertainment and to corporate auditoriums or higher ed lecture halls. Features, integrated rigging hardware for secure ground stacking or flying and is also flyable with the PL-LA12 line array (requires PL-LA12-AF array frame)

Pairing them with the Q-SYS Platform, including Q-SYS processing and network amplifiers extends a number of unique benefits from custom loudspeaker voicings (Intrinsic Correction™) and protection safeguards to advanced telemetry, helping to speed up deployment and deliver a more holistic system operation experience.

Specifications

  • Type: Passive subwoofer with bass reflex enclosure
  • System power rating: 77 Vrms, continous power 750W @ 8Ω, rated power 1500W @ 8Ω
  • System Impedance: 8Ω
  • LF transducer: 18 in (460 mm), 4 in (101.6 mm) voice coil
  • Coverage: Omni-directional or cardioid radiation modes selectable in Q-SYS; cardioid setup requires minimum two (2) units
  • System Bandwidth (-3dB με EQ): 38Hz - 82Hz
  • System Bandwidth (-6dB με EQ): 35Hz - 90Hz
  • System Bandwidth (-10dB με EQ): 32Hz - 101Hz
  • System sensitivity: 97dB 1W/1m
  • Max SPL (continuous): 126dB
  • Maximum SPL (peak): 138dB
  • Maximum SPL (calculated): 132dB
  • Connectors: 1 x Euroblock locking 4 poles (parallel to Speakon): 8 AWG (10 mm²) / 2 x Speakon NL4 up to 10 AWG (6 mm²).
  • Enclosure material: Exterior plywood
  • Grille thickness: 16 Ga, 1.5mm
  • Weatherization: IP-54
  • Dimensions (HxWxD): 532 x 620 x 741mm
  • Weight: 46.3kg
  • Color: Black
  • Recommended amplifiers: CX-Q 8K4 (up to 2 loudspeakers per ch) / CX-Q 4K4 (up to 1 loudspeaker per ch)

Specifications

Category
Passive Subwoofer
Woofer Size (Inches)
18
Sensitivity (dB)
96
Maximum SPL (dB)
140
Impedance (Ohm)
8
Dispersion (°)
Omnidirectional
Enclosure material
Wood
IP Protection
IP54
Width (mm)
620
Height (mm)
531
Depth (mm)
740.6
Weight (kg)
46.3
Colour
Black
EAN13
684284089557
MPN
PL-SUB18
