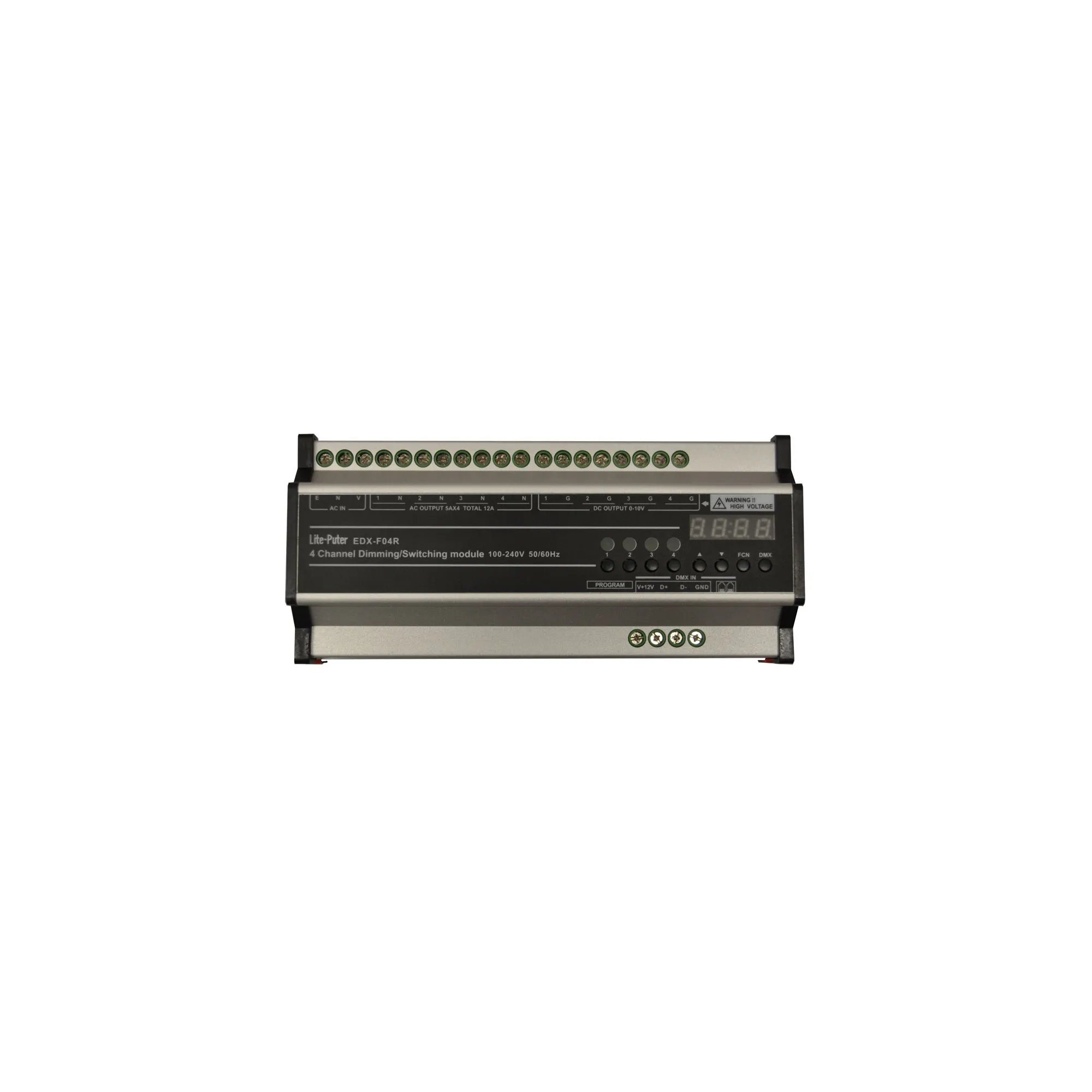

EDX-F04R (B-STOCK)

Χαρακτηριστικά

• 4 channels outputs to dim 0-10V fluorescent lamps or incandescent lamps. Switch mode available to control non-dim lamps.
• DMX-512/EDX
• Din-rail mounting.
• 6 Scenes can be stored and recalled by ECP control panels.
• Up to 99 zones setting.
• Can set the OFF time for AC OUT power from 1 second to 99 seconds.
• Can set the fade time for each scene.
• Power:AC 100-240V
• Protocol:DMX-512/1990, EDX
• Output:4 channels, 5A per channel max. Total 12A max
• DMX Signal Connector:6P6C Phone Jack x2, 4PIN Terminal x1
• Διαστάσεις:190(W)*88(H)*57(D)mm
• Βάρος:500g

Συμβατές Λάμπες:

• ONE Light 7309AGD AR111/GU10
• ONE Light 7513AD AR111/G53
• OSRAM LED SUPERSTAR CLASSIC A60 E27 DIMMABLE, 9W/806lm, 4000k code 4052899149571
• OSRAM Parathom advanced PAR16/GU10, 5.5w
• OSRAM PARATHOM PRO AR111 G53 με driver TCI MW70 (αριστο dimming >10%)
• OSRAM Parathom Pro PAR16/GU10
• PHILIPS Classic led bulb,(Filament) E27 (γλομπος) 7,5w/806lm , 2700k, dimmable, code 8718696575178
• PHILIPS CorePro bulb E27 ES, 11w/1055lm, 2200k-2700k. dimmable, code 8718696762745
• PHILIPS Master LEDspot MV PAR16/GU10
• SYLVANIA ES111 AR111/GU10
• TOSHIBA LED E27 (PAR30), 2700k
• VK/05065G/D MR16/GU10, 7w,38*
• VK/05124D/E/CL/W Filament E27 (γλόμπος)
• Eurolamp Marathon Pro, Par 30, E27, 15w, 4000k, dimmable.
