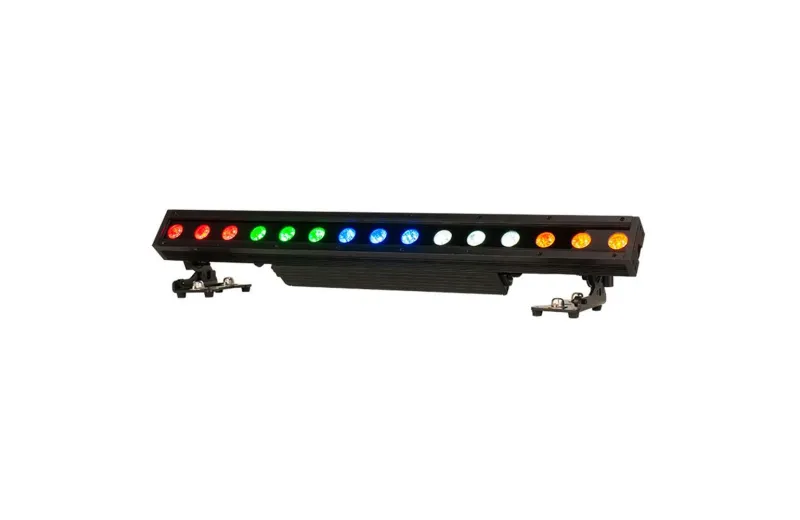

ADJ 15 HEX Bar IP (B-STOCK)

It features 15x 12W HEX LEDs (6-IN-1 – RGBAW+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.

On the rear panel it features IP65 rated 5-pin XLR, DMX In/Out connections and IP65 Locking Power In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.

The 15 HEX BAR IP is flicker free for film and broadcast, and has multiple DMX control & dim modes.

Source

• Light Source: 15 RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV LED)

• Individual LED wattage : 12W

• Average LED lifetime :approximately 50,000 hrs.

Optics

• Beam Angle: 25 degrees

• LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)

• Removable Frost/Diffuser Filter

• Removable Glare shield

Control

• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Color Macro Mode and

DMX Control

• 10 DMX Modes: 6, 9, 12, 14, 17, 30, 33, 38, 41 & 60-channel

• RDM compatible (Remote Device Management)

• 16bit Electronic Dimming: 0 - 100%

• 63 built-in Color Macros

• 13 Built-in programs with speed and fade time adjustments

• 5 individually controlled sections with Zone Control

• 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2)

• 20 Dimmer Delay Time settings : 0.1sec - 10secs

• Gamma control : Manual Gamma setting 2.0 / 2.2 / 2.4 / 2.6 or 2.8

• LED Refresh Rate control : Manual LED refresh rate setting : 900Hz-25khz

• LED pulse and strobe effect

• 4-button, DMX digital display on rear panel

Colors

• RGBAW+UV Color Mixing

Construction

• Metal Housing

• IP Rating : IP65

• Convection cooling

• Sure-lock heavy-duty locking bracket system (securely locks every 10-degrees)

• Optional Omega Quicklock Brackets (order Code 9900007439 OmegaBracket 108mm)

Electrical

• Multivoltage 100-240V 50/60Hz

• Power Consumption: 130 W

• Daisy chain: 6 units (120V); 15 units (240V)

• Operating Temperature: from -15°C to +45°C

Connections

• 5-pin Locking IP65 DMX connectors

• IP65 Locking Power In/Out connections

Dimensions & Weight

• Dimensions (LxWxH):915 x 158 x 167mm

• Weight: 9 kg
