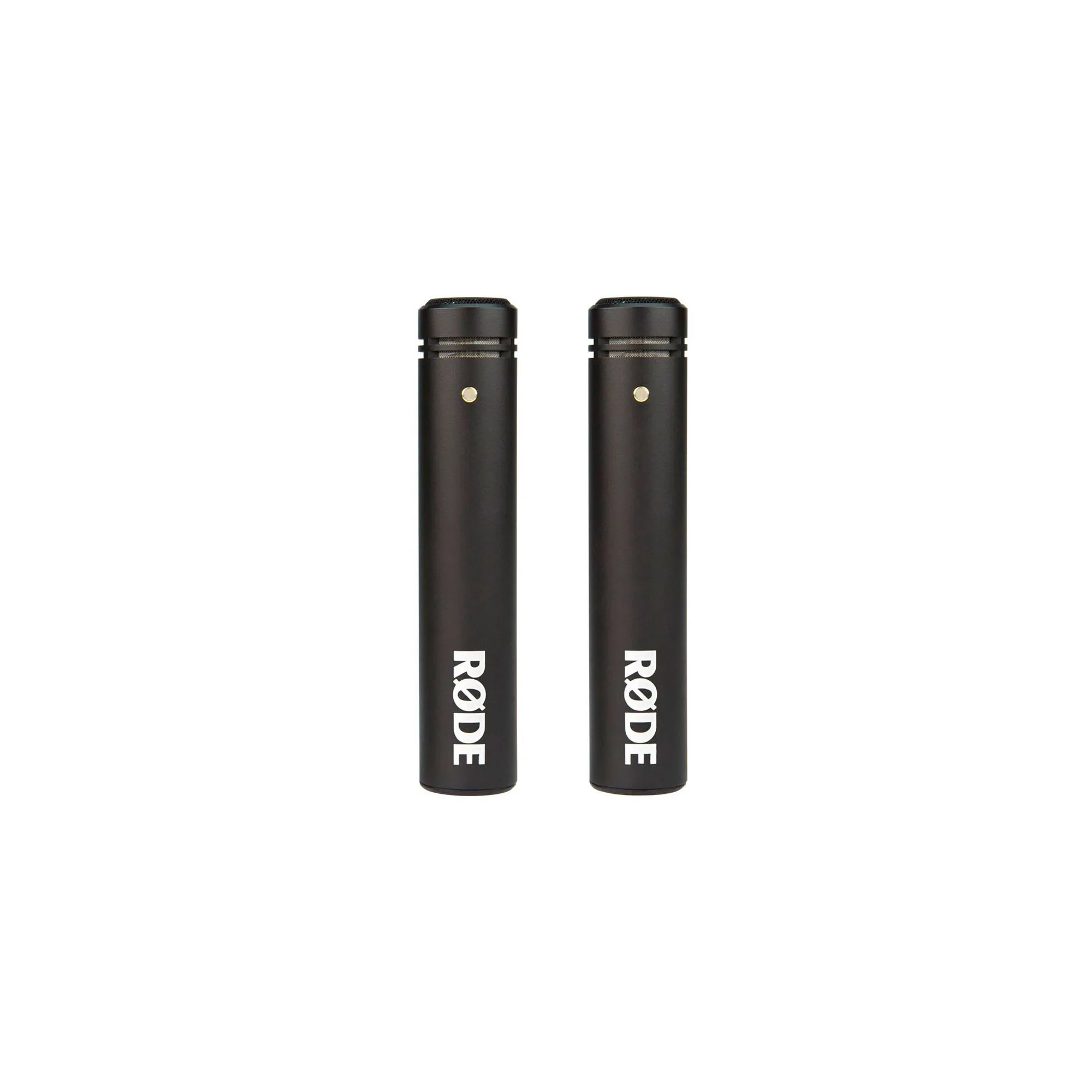

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm (pencil) condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones.
Technical Speicifications:
Acoustic Principle: Pressure Gradient
Active Electronics: JFET impedance converter with bipolar output buffer
Polar Pattern: Cardioid
Frequency Range: 20Hz ~ 20kHz
Output Impedance: 200Ω
Equivalent Noise: 19 dBA SPL (as per IEC651)
Maximum Output Level: +13.5 dBu
Sensitivity: -34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz
Dynamic Range: 121 dB SPL
Maximum SPL: 140 dB SPL
Signal-to-Noise Ratio: 75 dBA SPL (as per IEC651)
Power Requirements: P24 and P48
Output Connection: XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)
Vonyx AV430B, set with mixer and 2 karaoke microphones for amplifiers that do not have a microphone input (Karaoke).Compatible with most home Hifi. Included are 2 wired microphones and the connection cables.
The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage
