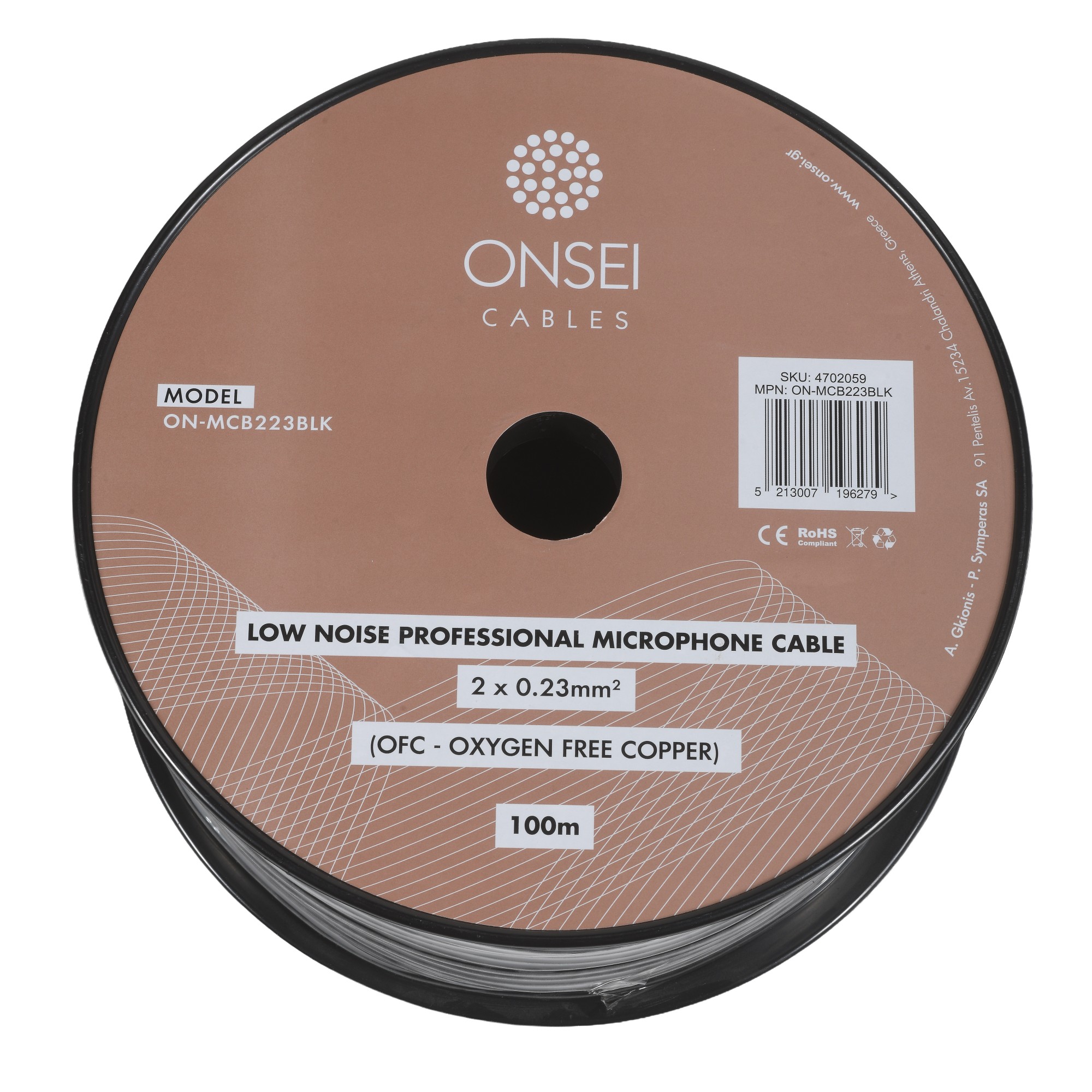

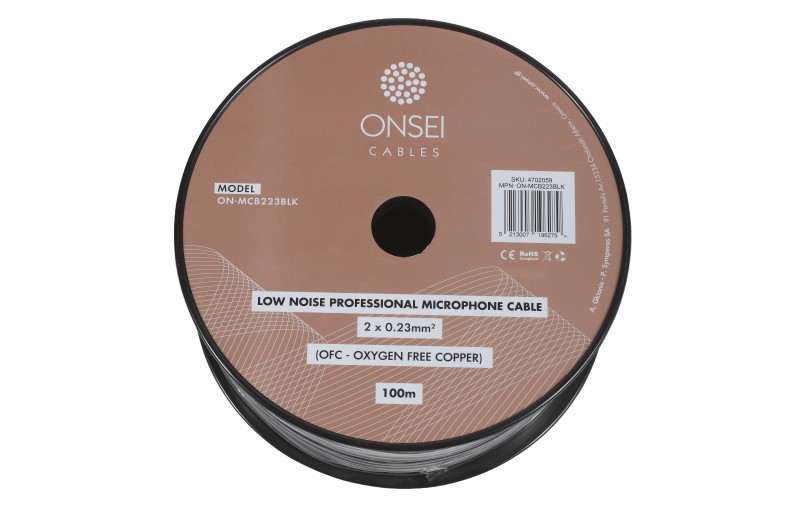

Onsei ON-MCB223BLK Microphone Cable Roll 2 x 0.23mm2 - Black (Price per Meter)

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Onsei ON-MCB223BLK Microphone Cable Roll 2 x 0.23mm2 - Black (Price per Meter)
Onsei ON-MCB223BLK Microphone Cable Roll 2 x 0.23mm2 - Black (Price per Meter)
Onsei ON-MCB223BLK Microphone Cable Roll 2 x 0.23mm2 - Black (Price per Meter)
Onsei ON-MCB223BLK Microphone Cable Roll 2 x 0.23mm2 - Black (Price per Meter)
Code :
4702059
1.45 €
Available for immediate dispatch
Available in store
BOX NOW
Delivery

Add to wishlist
Compare

Description

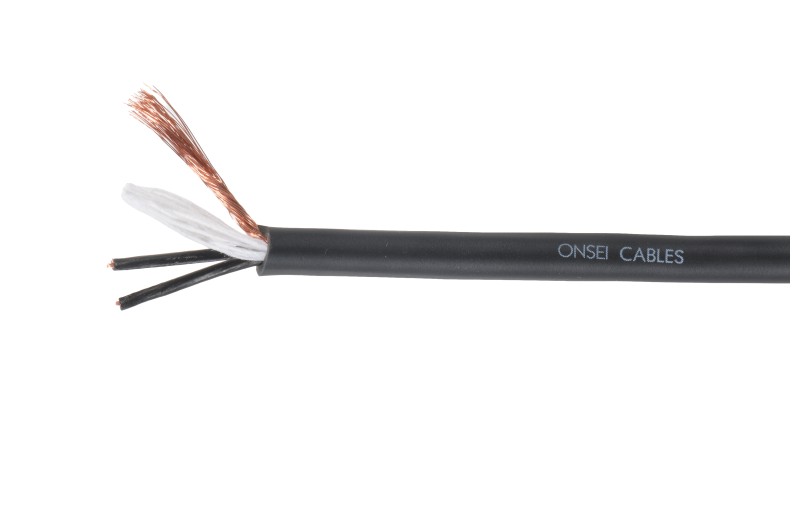

Professional Balanced Microphone cable with Spiral shield and flexible PVC jacket

Conductor Drainsmm: OFC 20x0.12
Conductor Insulation: PE red+white, 1.5mm
Filler Materials: -
Nominal Impedance: 110Ω
1st Shield: 2x Conductive PVC
2nd Shield: OFC Twisted 64x0.12 Spiral
Out Jacket: Black
Conductor Resistance: 90Ω/ km
Shield Resistance: 25Ω/ km
Capacity Inner Conductor: 60pf/m
Working Temperature Min/Max: -20/+70

Specifications

Conductor Drainsmm
OFC 20x0.12
Conductor Insulation
PE red+white, 1.5mm
Nominal Impedance
110Ω
1st Shield
OFC Twisted 64x0.12, Spiral
Conductor Resistance
90Ω/ km
Working Temperature Min/Max
-20/+70 Celsius
Category
Microphone bulk cable
Cable Diameter (mm²)
2 x 0.23
Colour
Black
EAN13
5213007196279
MPN
ON-MCB223BLK
