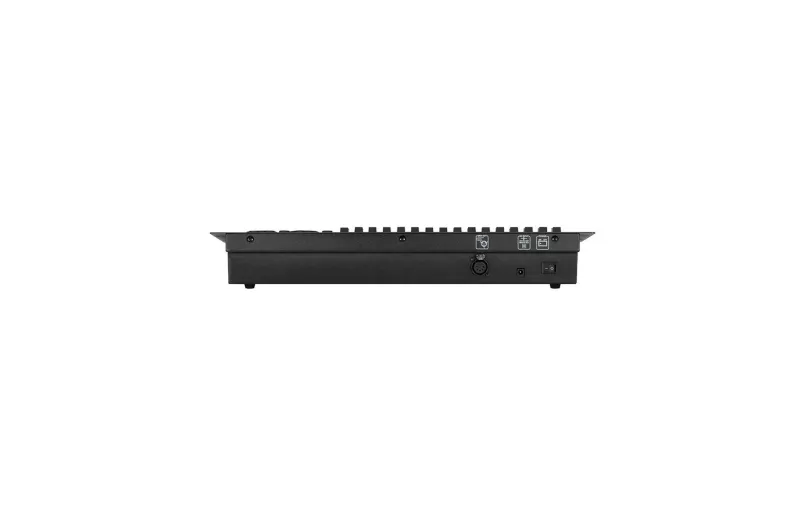

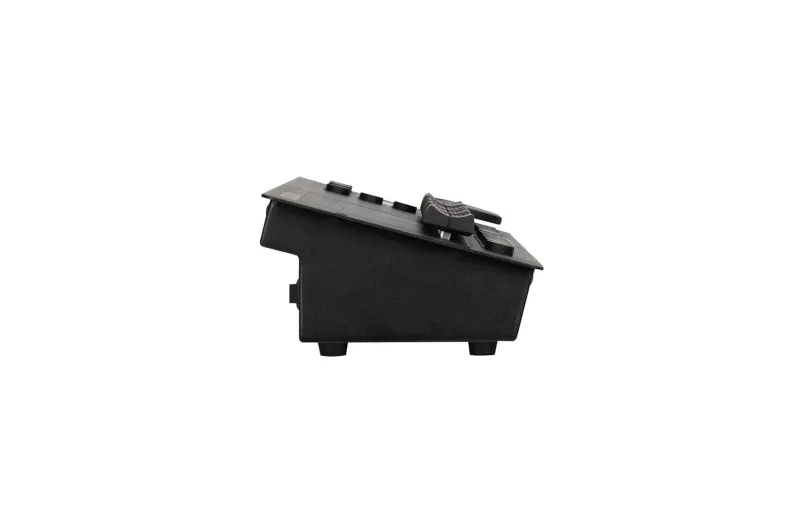

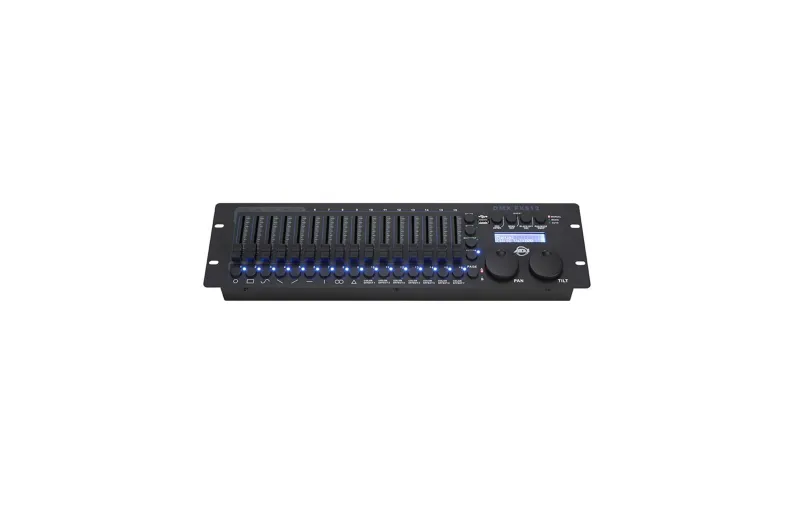

American Dj DMX FX512 Lighting Console

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2 YEAR WARRANTY
Code :
091022
165.00 €
Tax included
Available for immediate dispatch
Available in store
Υπολογισμός δόσεων
Επιβεβαίωσε την επιλογή σου στο checkout
Κάντο τώρα δικό σου από 13.75 € / μήνα μέσω πιστωτικής κάρτας.

Description

ADJ DMX FX512,  a cutting-edge 19-inch rack-mount DMX controller designed for professional lighting applications such as churches, nightclubs, stages, or for event production. With a compact 3-rack space design, this tactile, hands-on controller boasts powerful features, for both moving heads and RGB LED fixtures.

Equipped with DMX-512 and RDM protocols, the DMX FX512 allows precise control of up to 512 DMX channels, managing up to 32 intelligent fixtures with 18 channels each. Create captivating light shows with 32 programmable scenes and 32 chases, each up to 100 steps, running up to 5 chases simultaneously. Soft-patchable faders and control wheels provide flexibility, while 16 built-in effect generators, 9 for moving lights and 7 for RGB LED fixtures

The control interface is intuitive, featuring a digital display, 16 channel control faders, dedicated Pan/Tilt wheels, and 16 Effects/Fixture select buttons. The built-in Mic with digitally adjustable sound sensitivity enhances the interactive experience.

Specifications

Features

  • 19/" Rack-mount DMX Controller
  • DMX 512 & RDM protocol.
  • 512 DMX channels.
  • Control up to 32 intelligent fixtures, up to 18 channels each
  • 32 chases, each up to 100 steps, can run 5 chases simultaneously
  • 32 programmable scenes
  • Soft-patchable faders & control wheels
  • 16 built-in effects generator. 9 for moving light and 7 for RGB LED fixtures
  • USB for data backup and firmware update.

Control

  • DMX512 and RDM
  • RDM to set the DMX addresses and DMX channel mode of the fixtures from controller
  • 16 channel control faders
  • Dedicated Pan/Tilt wheels (User Assignable)
  • 16 Effects / Fixture select buttons
  • Sound sensitivity digitally adjustable (0%-100%), built-in Mic.
  • With Wired Digital Communication Network

Connections

  • 5pin XLR DMX Output
  • Power Supply Input
  • USB A Port

Power

  • Power Supply: DC9V 12V 300mA min. (DC9V 1A PSU Included)
  • Power Consumption: DC9V 165mA 1.5W, DC12V 16mA 2W

Dimensions / Weight

  • Dimensions (WxLxH): 134 x 482 x 68.9mm
  • Weight: 2.13

Specifications

Category
Width (mm)
482
Length (mm)
134
Height (mm)
Weight (kg)
Colour
Black
EAN13
810087372491
MPN
DMX FX512
