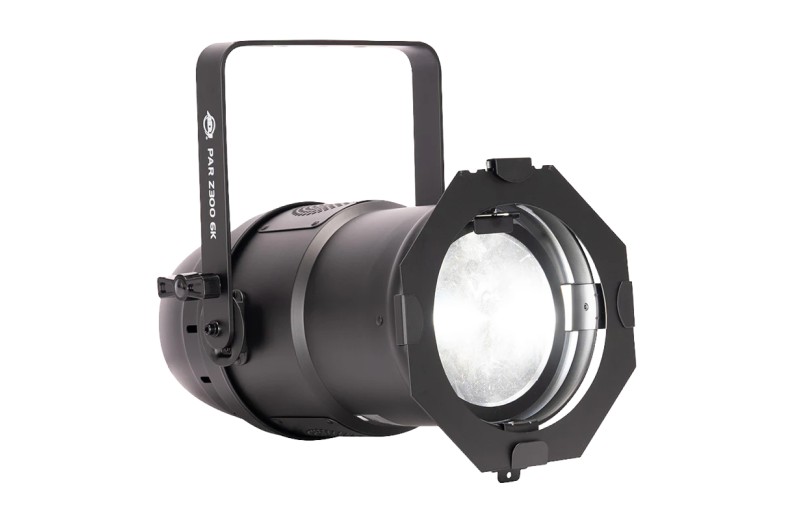

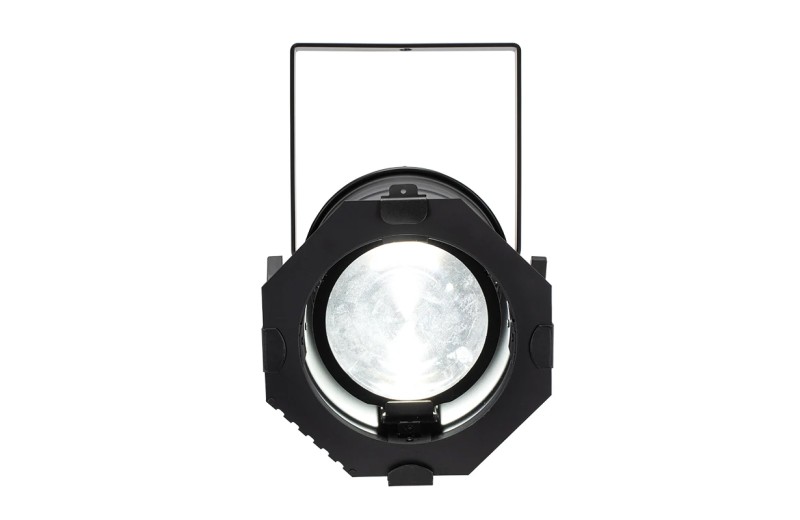

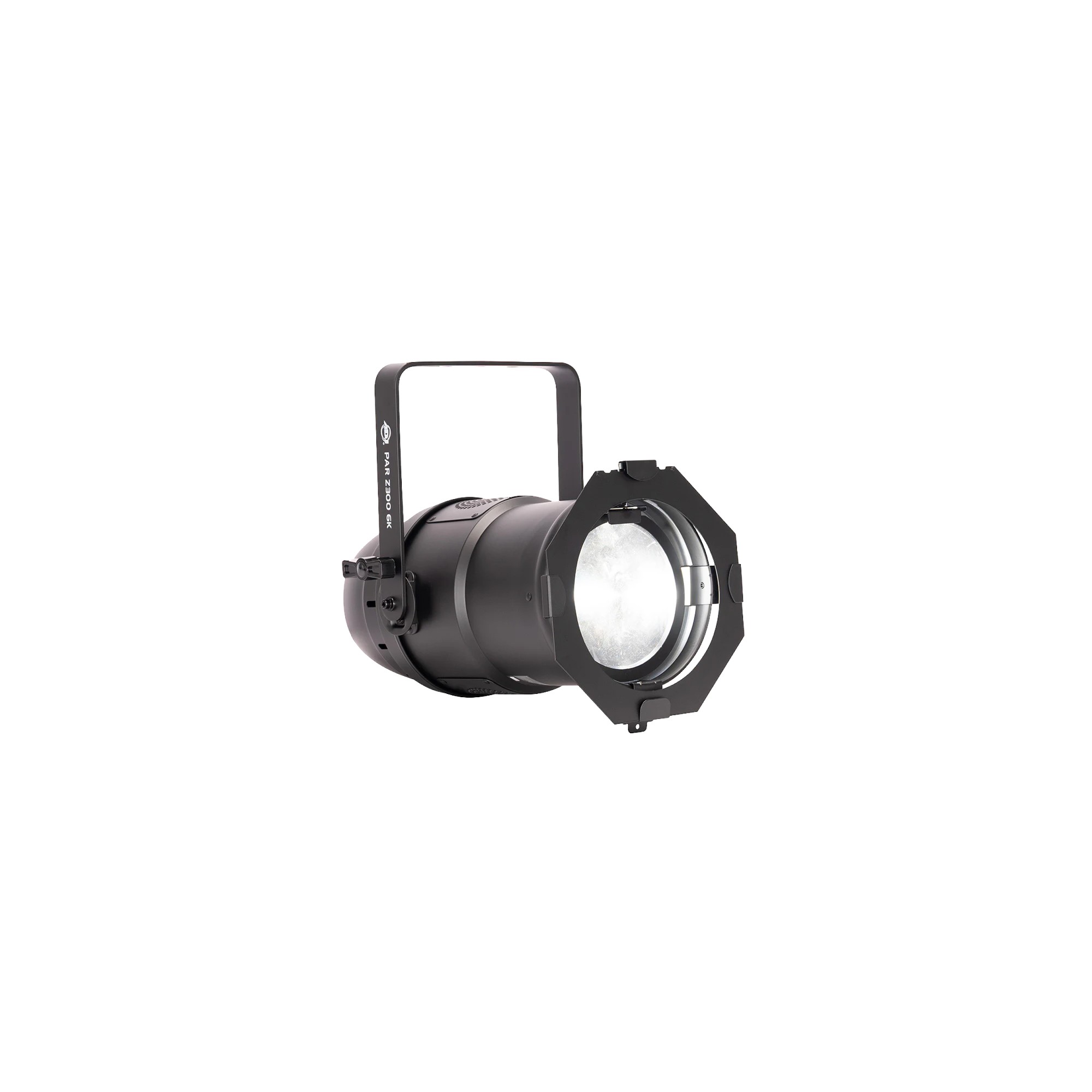

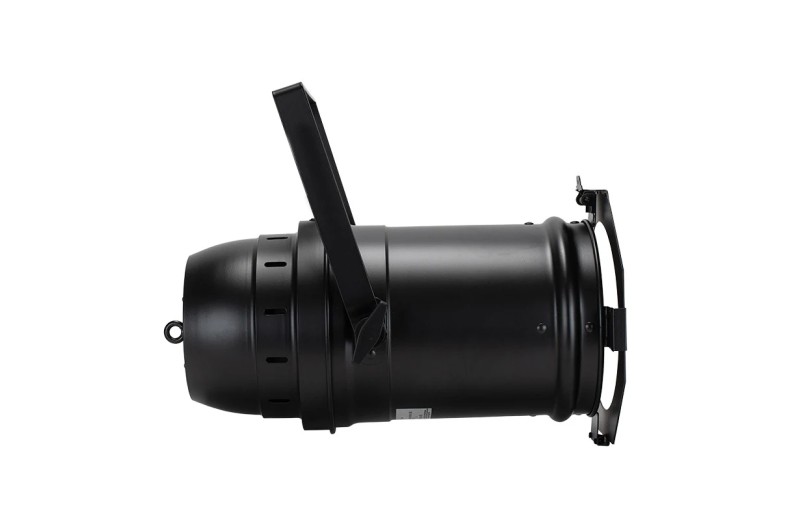

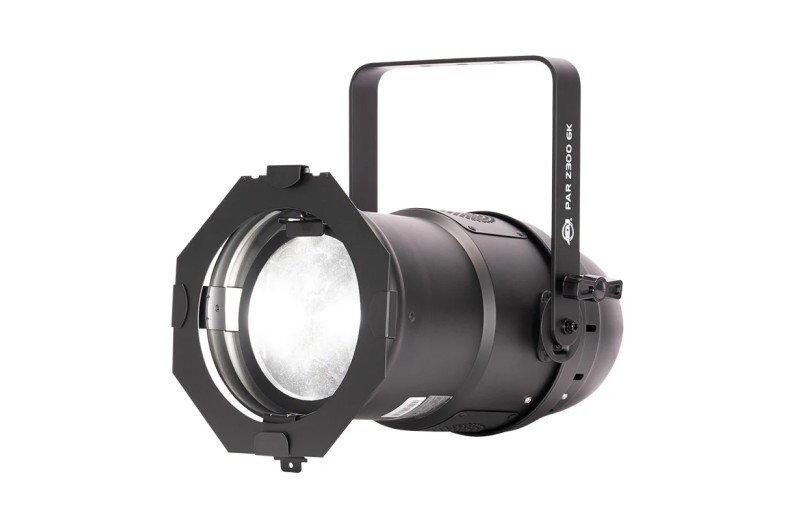

The Par Z300 6K combines the traditional par can aesthetic with the advantages of LED technology. Although it retains the classic black Par Can appearance, inside it features a high-performance LED light source. Delivering brightness comparable to a 1000W sealed beam Par while generating significantly less heat, its perfect for stage lighting that keeps performers comfortable.
The Par Z300 6K is powered by a robust 300-Watt, 6000K cool white COB LED engine with a CRI over 90. The 6000K color temperature closely mimics ‘daylight white.” It offers seven manual zoom beam angles (9°, 15°, 20°, 25°, 30°, 35°, and 40°) and includes a traditional Par Can gel frame.

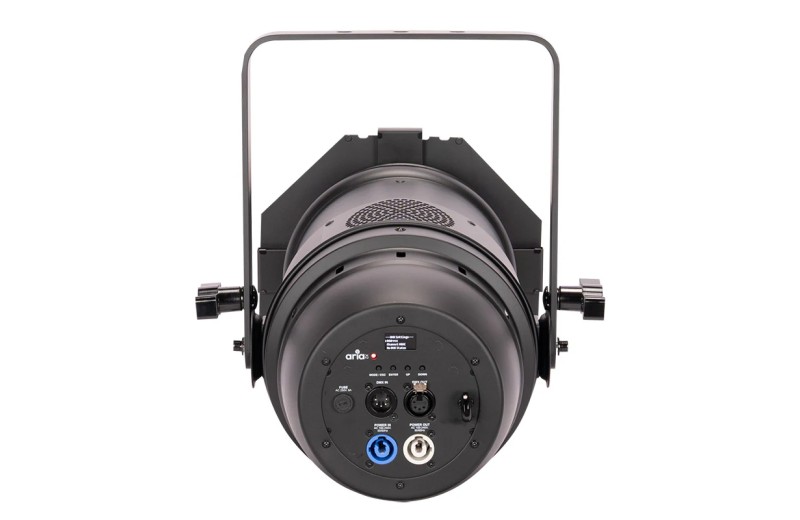

Advanced features include the Aria X2 wireless management system for over the air firmware/software updates for streamlined control, a 4-button DMX OLED display menu, adjustable strobe refresh rates, six dimming modes, and electronic dimming from 1-100%. The fixture is compatible with both RDM and RDM Net protocols. The rear panel has locking power In/Out sockets for daisy-chaining power, as well as 5-pin DMX In/Out connections for data.
Specifications
Optical:
• 300-Watt, 6000K Cool White C.O.B. LED (Chip On Board)
• Life expectancy: rated at 50,000 hrs.
• Manual Zoom: 9° , 15° , 20° , 25° , 30° , 35° and 40°
• Zoom Ratio: 4.4:1
Photometrics:
• 13980 Lux (Zoomed In to 9° @ 5 meters)
• 1828 Lux (Zoomed Out to 25° @ 5 meters)
• CRI: 95
Connection:
• DMX: 5-pin DMX In/Out
• With Wired Digital Communication Network
• Locking IP20 Power In/Out connections
Control:
• DMX-512
• 3 DMX control modes: (1, 3 & 4 Ch. modes)
• RDM and RDM Net Compatible
• Primary/Secondary, stand-alone mode
• On-board manual control mode
Features:
• Aria X2 Wireless Management System
• 4-button DMX menu display on rear panel
• OLED display

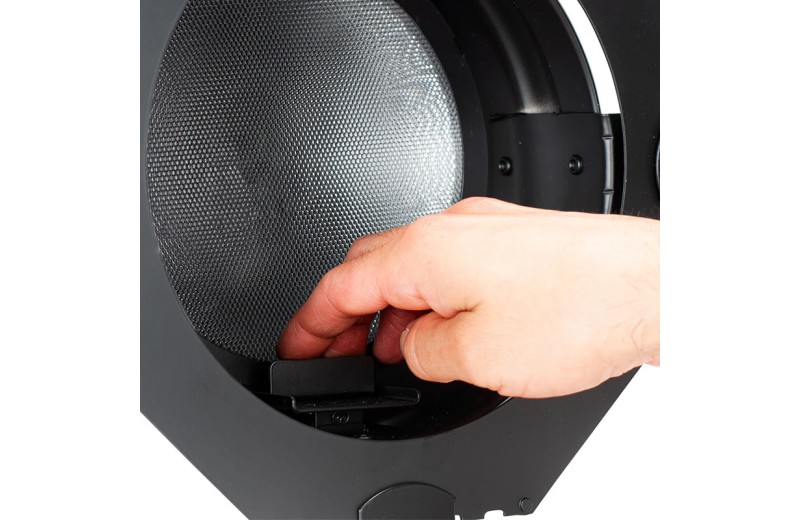

• Adjustable latch to manually change beam angle
• Strobe Rate: 0.6Hz to 7.5Hz
• Selectable Refresh Rates: 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 10KHz, 15KHz, 20KHz, 25KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
Electrical:
• Power Draw Total (@ Full On): 320W
• Power Consumption: 1.5A @ 220V/50Hz
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Daisy chain: 4 fixtures @ 230V
• Fuse protected: 8A/250V
Ambient Temperature Range (For Use):
• -20° C ~ 40° C
Storage Temperature Range:
• -30° C ~ 45° C
Dimensions / Weight:
• Dimensions (LxWxH): 510 x 389.3 x 257.5mm
• Weight: 6kg
IP Rating / Approvals:
• IP20
What s Included:
• Gel Frame
• Power Cord
