Code :
091016
815.00 €
On request

Add to wishlist
Compare
Έως 12 δόσεις των 67.92 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 271.67 € με 0% επιτόκιο με την Klarna
Cut Sheet

Manual

Description

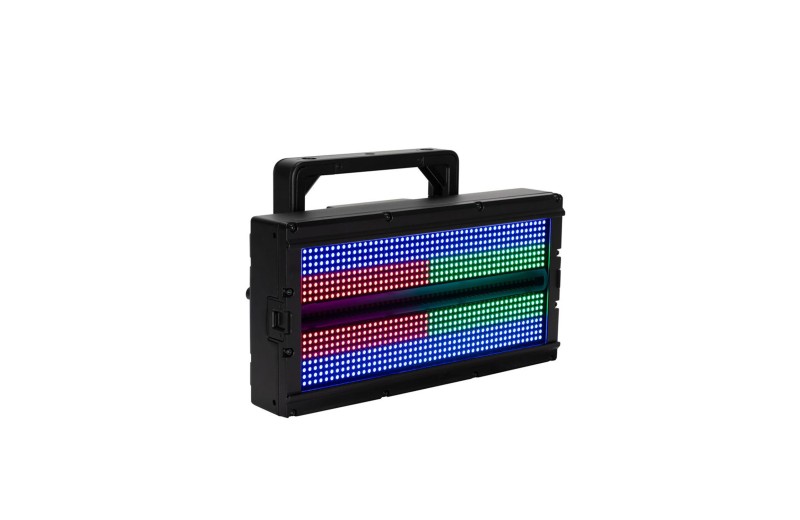

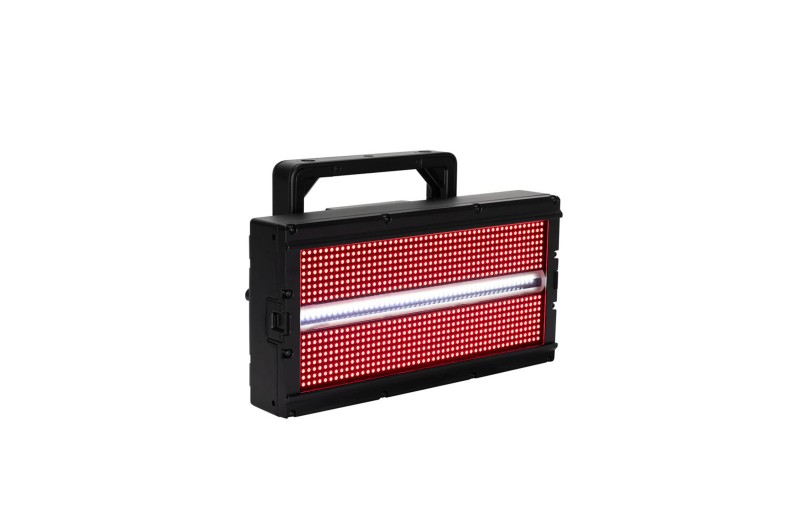

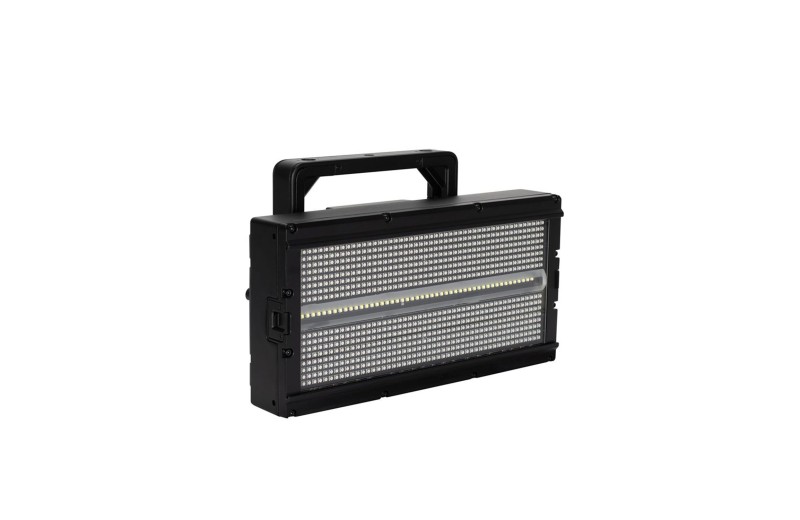

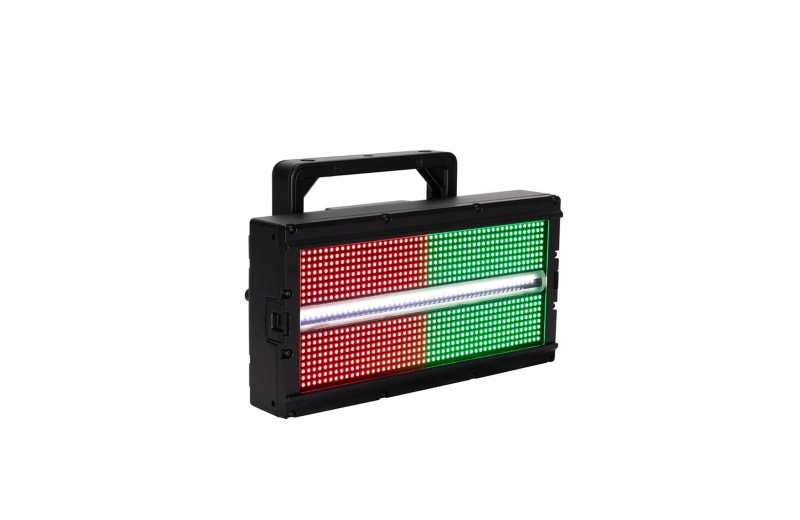

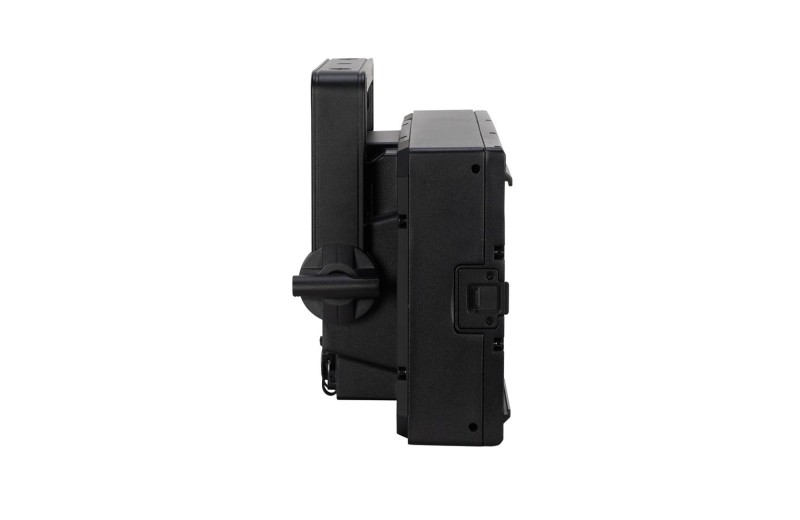

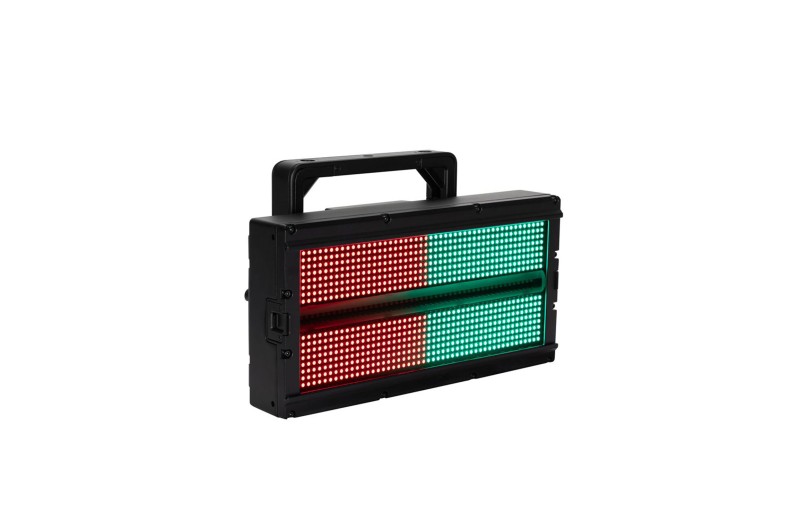

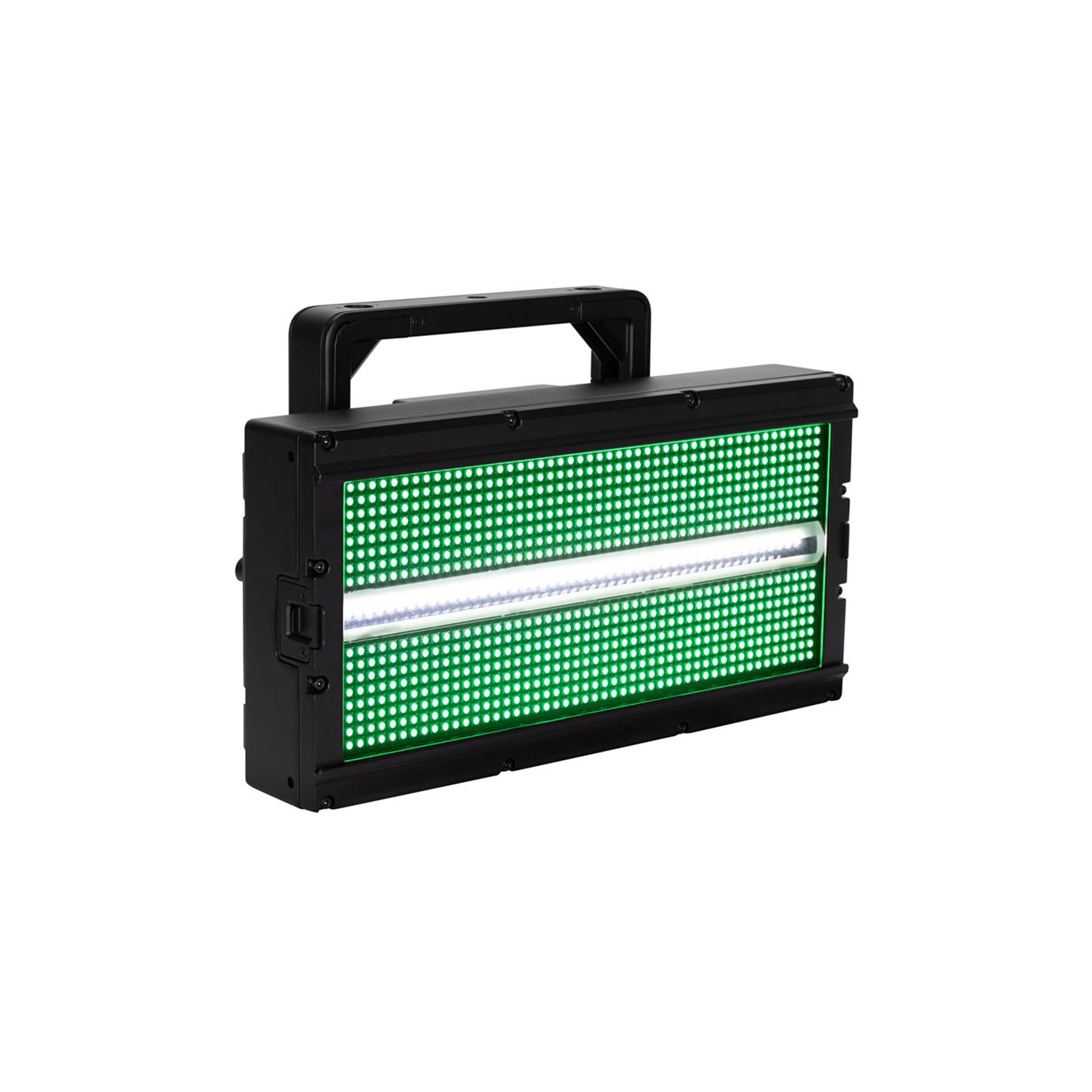

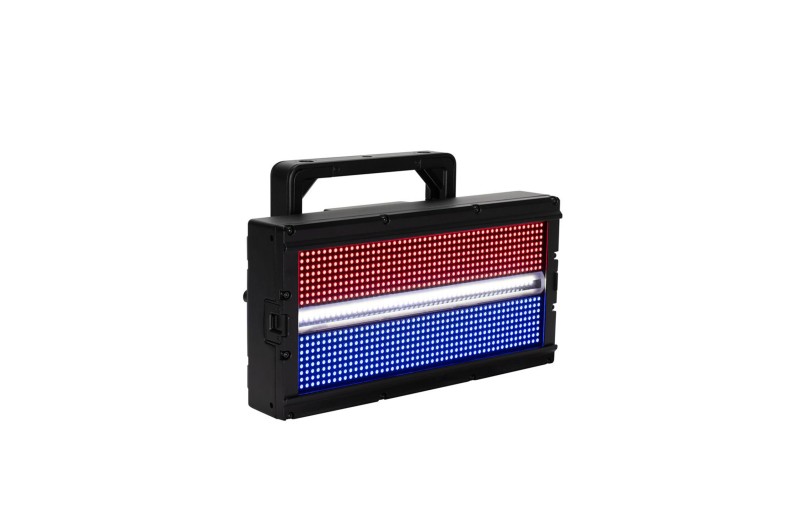

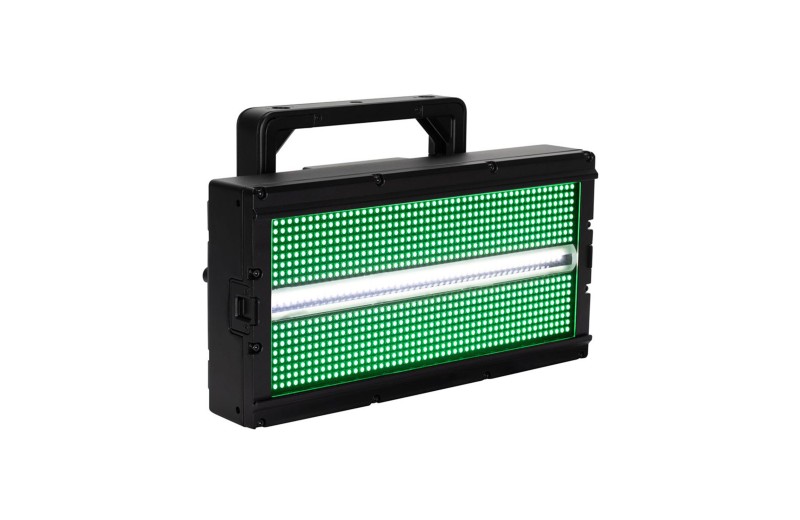

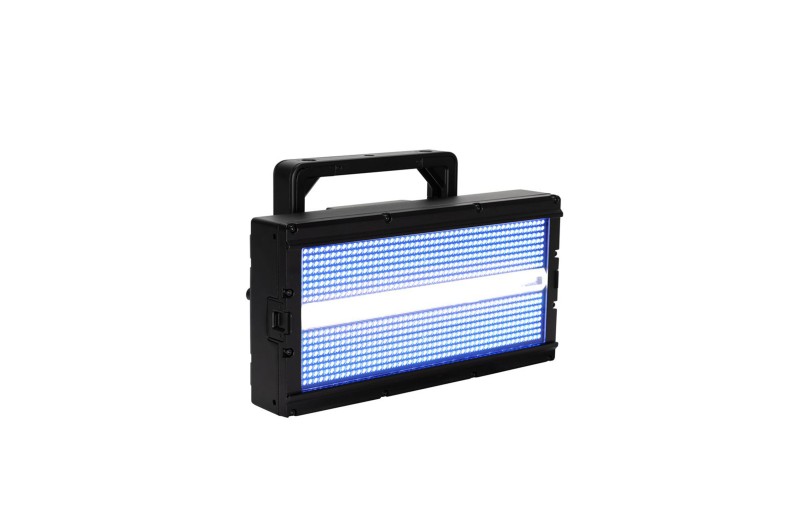

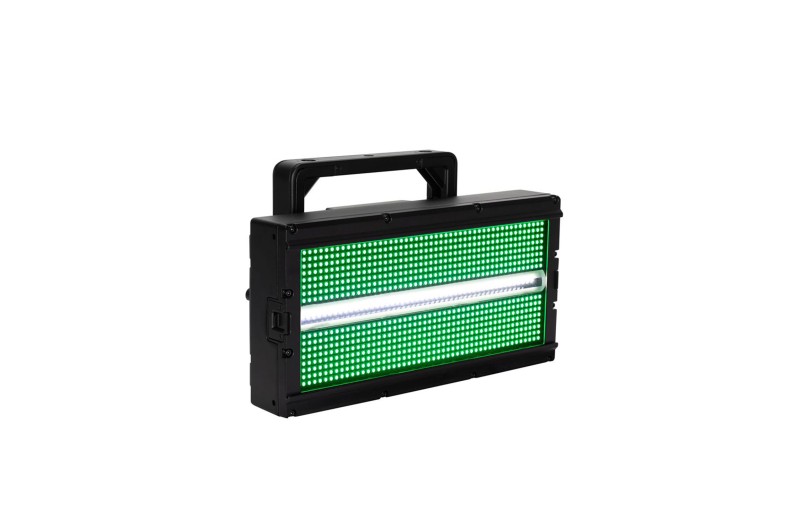

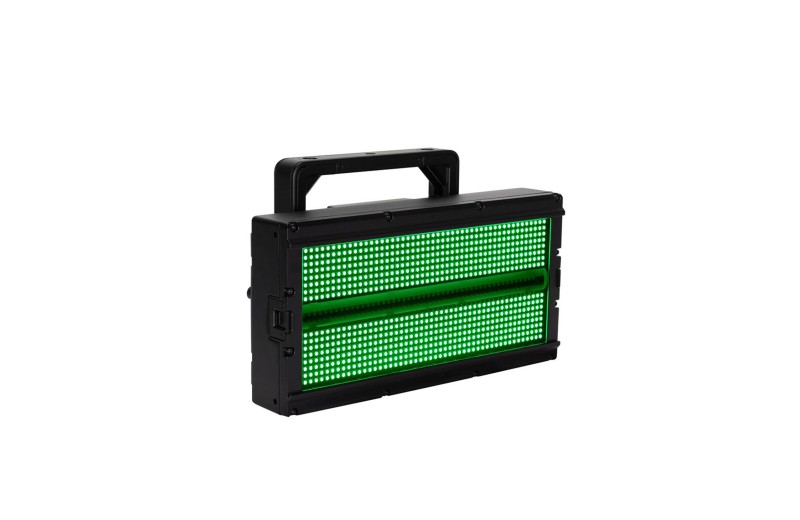

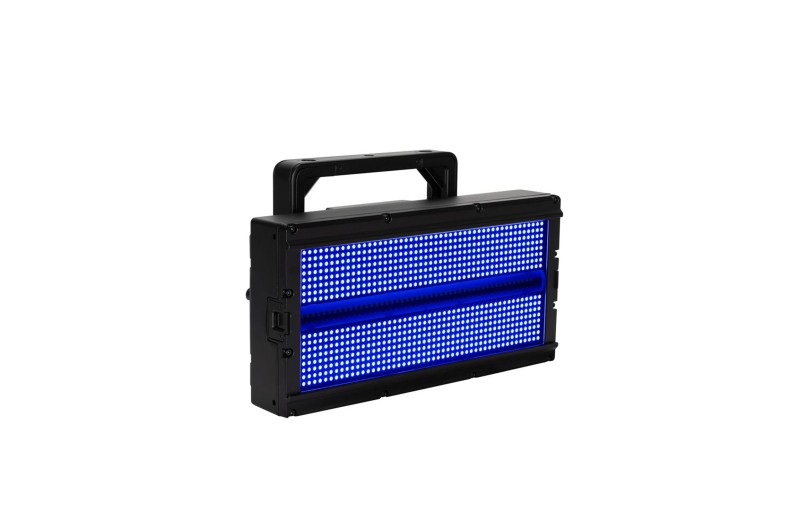

ADJ Jolt Panel FX2, is equipped with 800 x 5-Watt RGB SMD LEDs for color strobe, wash and eye candy effects, as well as 48 x 5-Watt white SMD LEDs located in the center of the fixture to create the traditional look of a strobe. Both types of LED are grouped into independent controllable zones (6 white and 40 color), allowing for the creation of eye-catching animated chase patterns.

The new Jolt Panel FX2 is IP65-rated for temporary outdoor or indoor use and features ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (it is also compatible with ADJ’s WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture. The Jolt Panel FX2 offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system.

Specifications

Light Source

  • 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
  • 73° Beam Angle
  • 111° Field Angle
  • Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
  • CRI: 69.4
  • 50,000 Hour Average LED Life

Features

  • 40 x RGB LED zones
  • 6 x Cool White LED zones
  • 25 built-in RGB LED Program Macros
  • 9 built-in Cool White LED Program Macros
  • IP65-Rated for temporary outdoor and indoor use
  • Aria X2 Wireless DMX Built-in

Control

  • Control Protocol: DMX, Aria X2 and RDM
  • 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
  • 0-100% Smooth Dimming
  • Strobe, shutter & pulse control
  • Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz.
  • Refresh Rate: 900Hz - 25kHz.
  • With Wired Digital Communication Network
  • Display: OLED display with 4-button touch menu

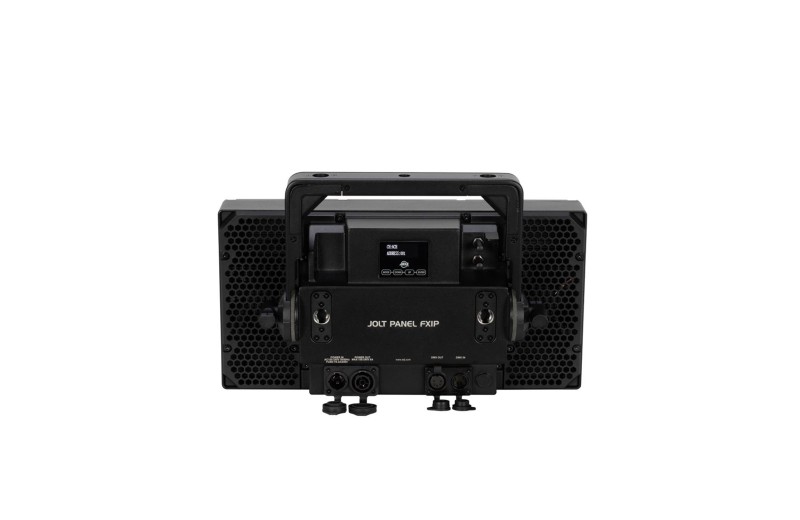

Connections

  • Data: IP65 Indoor locking 5-pin DMX In/Out
  • Power: IP65 Indoor locking power In/Out

Electrical

  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 208W @230V.
  • Max Power Link: 12pcs @230V
  • Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight

  • Dimensions (LxWxH): 153.8 x 417 x 263.5mm
  • Weight: 6.2kg

Specifications

Category
Led Panel
Width (mm)
417
Length (mm)
153.8
Height (mm)
263.5
Weight (kg)
6.2
Protection class
IP65
Colour
Black
EAN13
810087372453
MPN
JOLT PANEL FXIP
