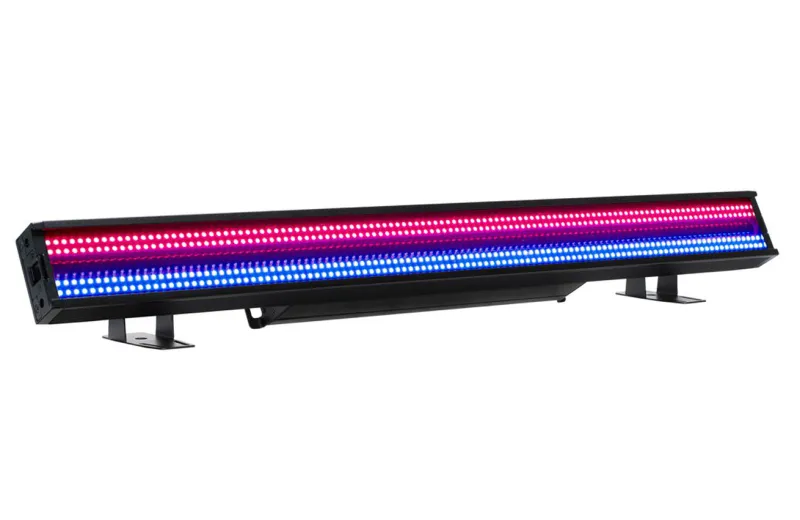

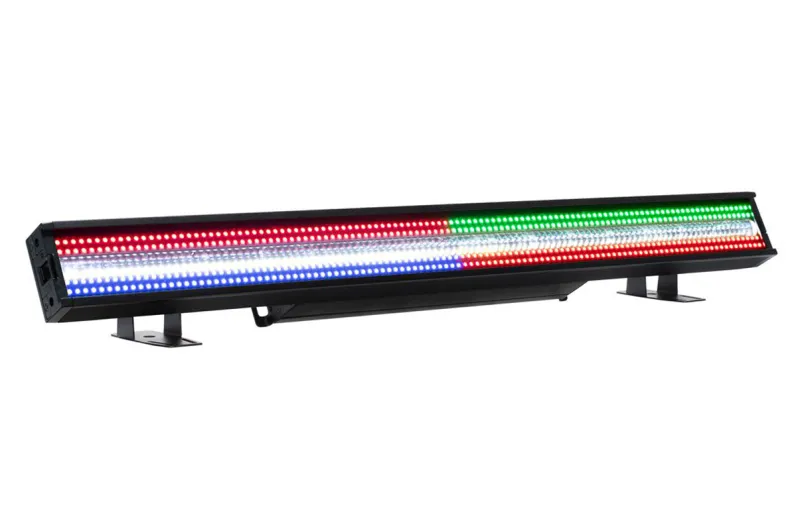

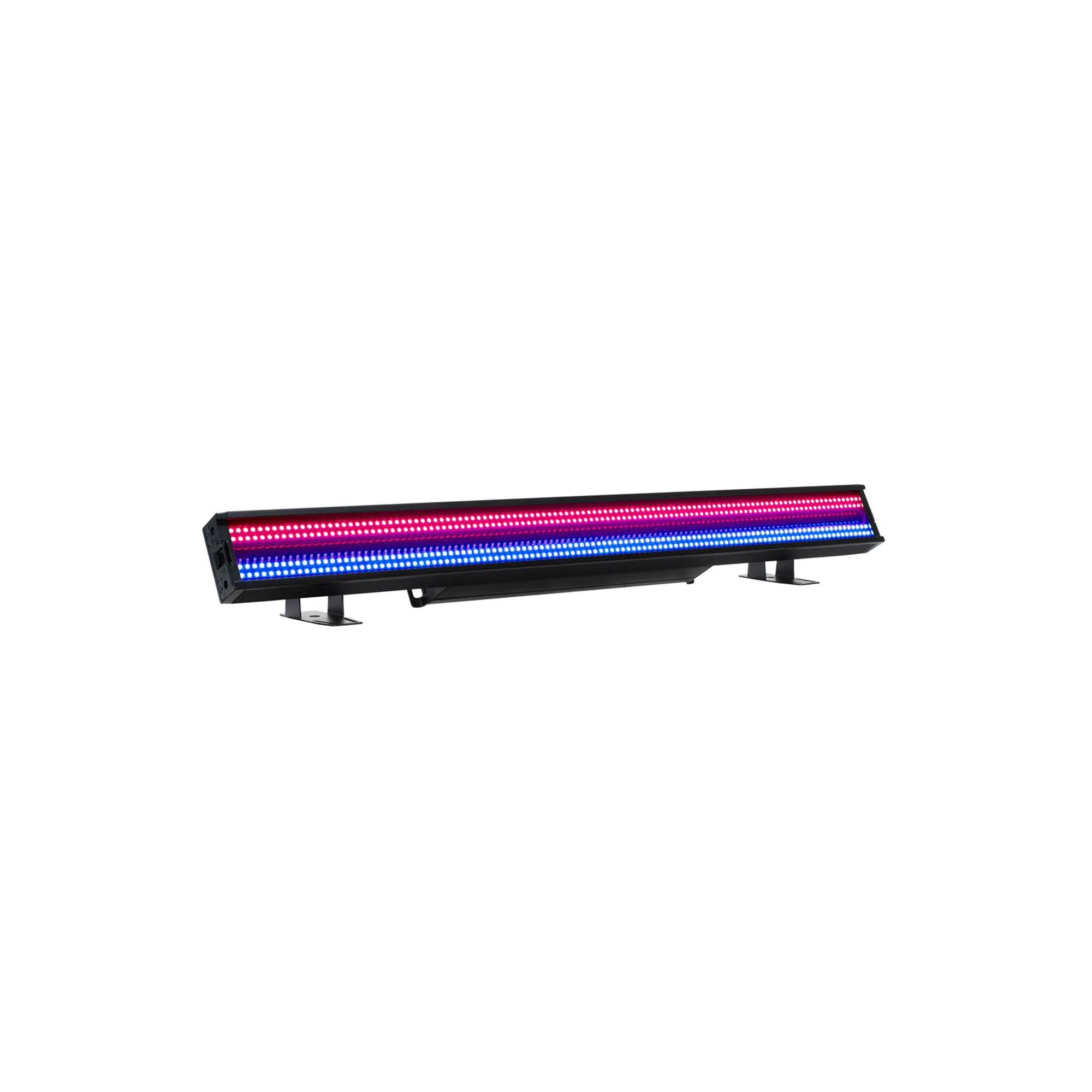

American Dj Jolt Bar FX2 Led Bar
091013
ADJ Jolt Bar FX2, features a central strip of 112 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 448 x .5-Watt RGB color mixing SMD LEDs. This allows the same fixture to generate intense white strobing as well as colored washes and strobe effects. Both types of LED are grouped into independently controllable zones (16 white and 32 color), which means the unit can also be used to generate strobe chases and other ‘eye candy’ effects.
2-YEAR WARRANTY
ADJ Jolt Bar FX2, features a central strip of 112 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 448 x .5-Watt RGB color mixing SMD LEDs. This allows the same fixture to generate intense white strobing as well as colored washes and strobe effects. Both types of LED are grouped into independently controllable zones (16 white and 32 color), which means the unit can also be used to generate strobe chases and other ‘eye candy’ effects. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (also compatible with ADJ’s WiFLY EXR wireless DMX) which allows data distribution to occur wirelessly. The fixture is supplied with a frost lens assembly that easily attaches to the front of the unit to change its look and output. With a wide 117-degree beam angle and immense light output, the Jolt Bar FX2 is ideally suited to large concert and festival stages, as well as dance events and big nightclub installations. It is supplied with a pair of versatile 180-degree variable hanging brackets, which can also be used as floor stands, and is designed such that multiple units can be positioned side by side to create continuous zone chase effects.
Specifications
Light Source
- 448 x 0.5W RGB SMD LEDs + 112 x 5W Cool White SMD LEDs
- 78° Beam Angle
- 117° Field Angle
- Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
- CRI: 89
- 50,000 Hour Average LED Life
Features
- 32 x RGB LED zones
- 16 x Cool White LED zones
- 25 built-in RGB LED Program Macros
- 9 built-in Cool White LED Program Macros
- 180 degree mounting bracket system
Control
- Control Protocol: DMX, Aria X2 and RDM
- 12 DMX Modes: 6, 9, 13, 16, 18, 32, 38, 43, 64,78, 112 and 127 channels
- Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
- 0-100% Smooth Dimming
- Strobe, shutter & pulse control
- Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
- With Wired Digital Communication Network
- Display: OLED display with 4-button touch menu
Connections

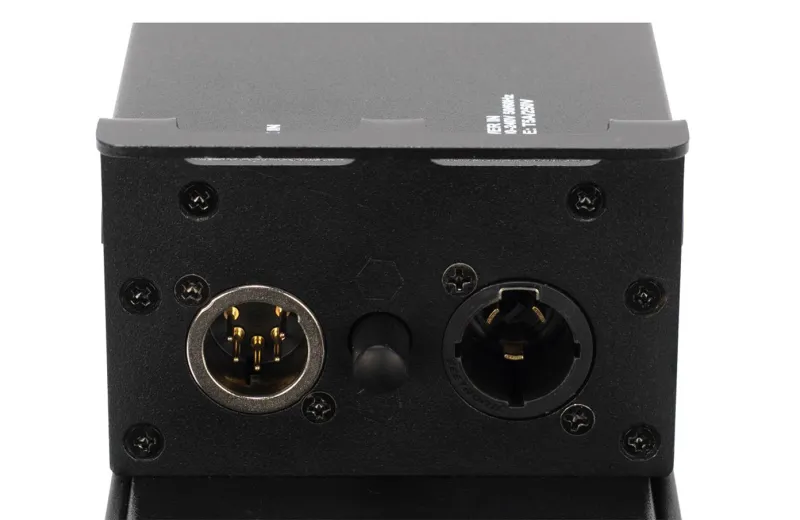

- Data: Indoor locking 5-pin DMX In/Out
- Power: Indoor locking power In/Out
Electrical
- 100-240V 50Hz/60Hz (Auto Sensing)
- Max Power Consumption: 208W @230V
- Max Power Link: 12pcs @230V
- Fuse Protected: T5A/250V Glass Fuse (5*20MM)
Dimensions / Weight
- Dimension (WxDxH): 1000 x 103.5 x 101mm
- Weight: TBA
Whats Included:
- 1 x Indoor, 1.83m Power locking power cable
- 1 x Frost Filter
- 2 x Omega Receiver Brackets (Omega Clamps sold separately)
Approvals and Ratings
- CE
- cETLus (Pending)
- IP20
- Category
- Led Bar
- Colour
- Black
- Width (mm)
- 1000
- Length (mm)
- 103.5
- Height (mm)
- 101
- Protection class
- IP20
New
- EAN13
- 810087372422
- MPN
- JOLT BAR FX2
