Muxlab USB/NDI/IP PTZ Camera 30x Zoom, PoE 500790-NDI

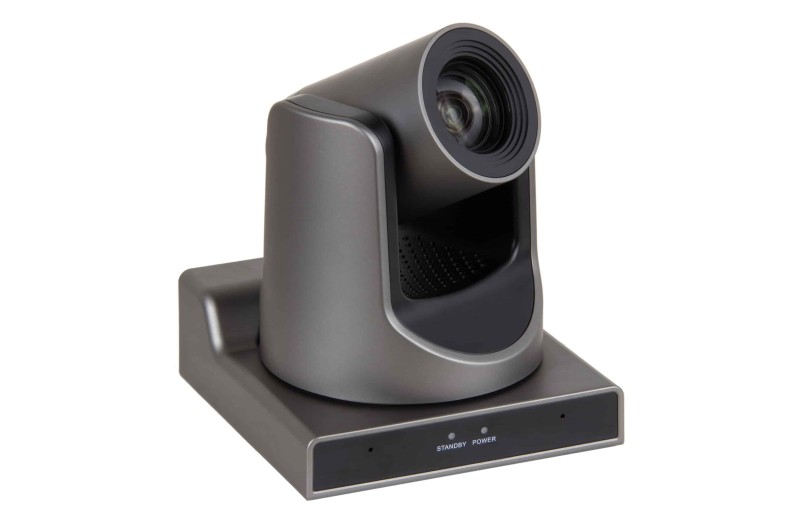

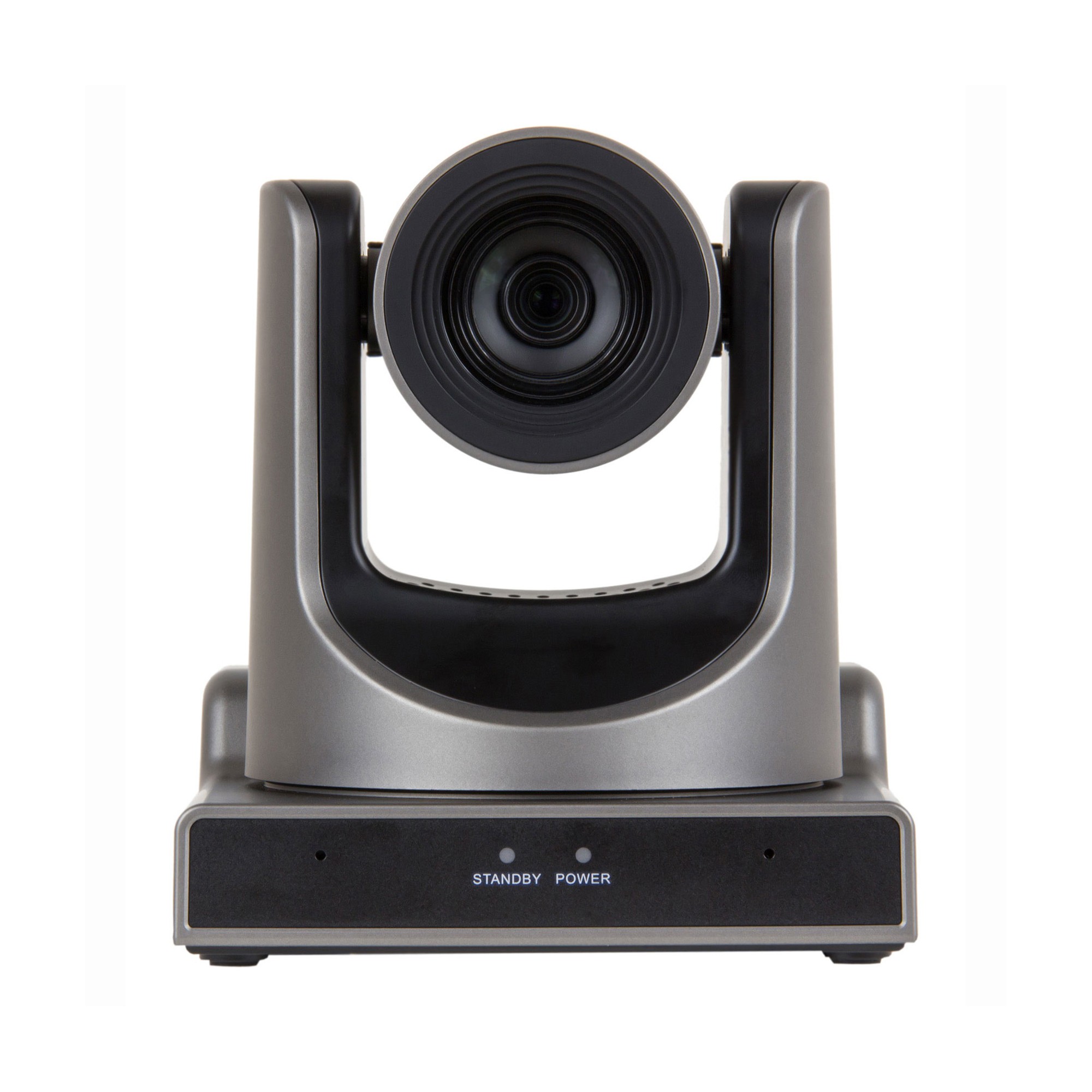

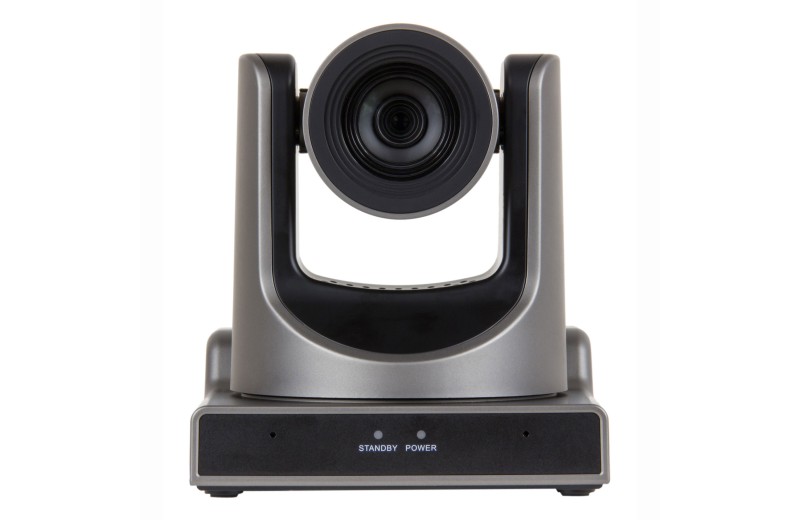

Muxlab USB/NDI/IP PTZ Camera 30x Zoom, PoE, a Full HD 1080p PTZ camera with HDMI, USB, and IP streaming outputs, designed for professional live streaming, conferencing, and AV production environments. It supports Pan, Tilt, and Zoom functionality along with 30x optical zoom, offering excellent flexibility and long-range image capture.

The camera supports uncompressed video via HDMI or USB for local connectivity, while H.264/H.265 compressed video and Full NDI protocol are available for network streaming. It also features an advanced AI algorithm for precise body tracking, making it suitable for automated production and presentation workflows.

It is built around a 1/2.7/" CMOS sensor with 2.07 million effective pixels and supports a 60.7° horizontal field of view, 4.42 mm to 132.6 mm focal length, F1.8 to F2.8 aperture, shutter speed from 1/30s to 1/10000s, and 0.05 Lux minimum illumination for low-light operation. Remote management is available via IP and RS232, while PoE support simplifies power delivery and installation.

Specifications

Maximum resolution: 1920 x 1080 (Full HD) at 60Hz

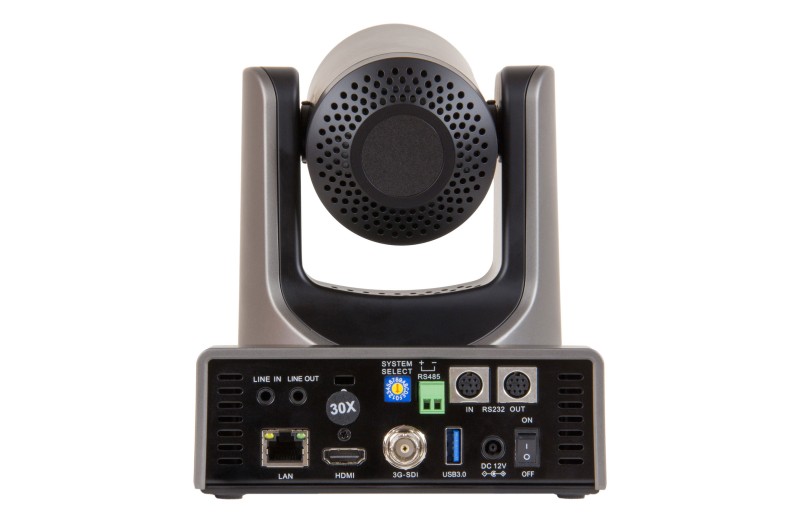

AV outputs: SDI, HDMI, USB 3.0 and network audio-visual output
Streaming support: IP streaming with H.264 / H.265
NDI support: Full NDI protocol
Optical zoom: 30x optical zoom
Horizontal field of view: 60.7°
AI features: Advanced AI algorithm for precise body tracking
Autofocus: Advanced Auto-focusing Technology
Microphones: Built-in dual microphone
Sensor: 1/2.7/" CMOS, 2.07 million effective pixels
Focal length: 4.42 mm to 132.6 mm
Aperture: F1.8 to F2.8
Shutter speed: 1/30s to 1/10000s
Minimum illumination: 0.05 Lux
Remote management: via IP and RS232
Power: PoE
Typical applications: Local AV capture and monitoring, live AV presentation broadcasts over the Internet, streaming to YouTube, Facebook, and Wowza, streaming to OBS and Wirecast, House of Worship, fitness training, cooking classes
Weight: 3.320 kg
Dimensions (HxW): 9.84 ? 9.45cm
