QSC AD-S.SUB Passive Subwoofer - White

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
2+1 YEAR WARRANTY
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
QSC AD-S.SUB Passive Subwoofer - White
Code :
010227
644.80 €
Available for immediate dispatch
Available in store

Add to wishlist
Compare
Installment calculator
Confirm your selection at checkout
Number of interest-free installments
Amount/Month
53.73 €
MANUAL

Description



Χαρακτηριστικά:



  • LF transducer: 6.5/" (165 mm) dual voice-coil weather treated paper cone woofer
  • Effective frequency range 45 Hz – 150 Hz
  • Rated noise power / voltage 100 W / 20 V (rms)
  • Sensitivity [dB]: (rated @ 1 W, 1 m) 86
  • Maximum SPL [dB]: (continuous / peak) 100 / 106
  • Recommended amplifier: 100 W
  • Transformer taps / impedance: 70 V: 100, 50, 25, 12.5 W (mono only), 100 V: 100, 50, 25 W (mono only),  Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo

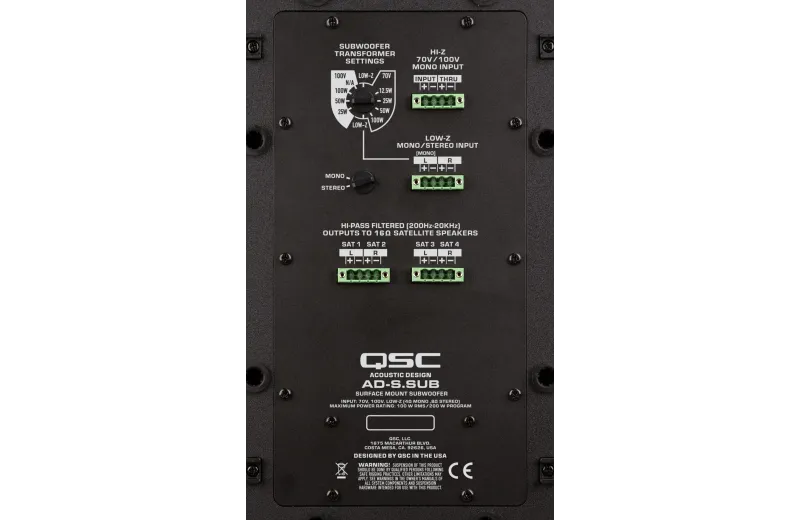

  • Connectors: Mono input: Hi-Z mono input: 4-pole Euroblock with thru output, Low-Z input: 4-pole Euroblock, left (mono) and right, Hi-pass mono output: x2 4-Pole Euroblock for x4 satellites
  • Enclosure material: ABS baffle on powder coated steel back can
  • Operating environment: Designed for indoor use
  • Operating temperature range: -4 to 122° F (-20 to 50° C)
  • Βάρος: 10.7 kg
  • Διαβάσεις: 350 x 209 x 432 mm
  • Λειτουργεί και σε συνδυασμό με το QSC AD S SAT






Specifications

Category
Passive Subwoofer
Woofer Size (Inches)
6
Power W Peak
100
Impedance (Ohm)
4
Frequency Response
45Hz - 150Hz
Sensitivity (dB)
86
Maximum SPL (dB)
106
Horizontal Coverage (°)
Omni
Vertical Coverage (°)
Omni
Transformer (100V)
Yes
Power tappings @ 100V (W)
100 / 50 / 25
Enclosure material
ABS
Width (mm)
209
Height (mm)
350
Depth (mm)
432
Weight (kg)
10.7
Colour
White
EAN13
684284075932
MPN
AD-S.SUB WHT
