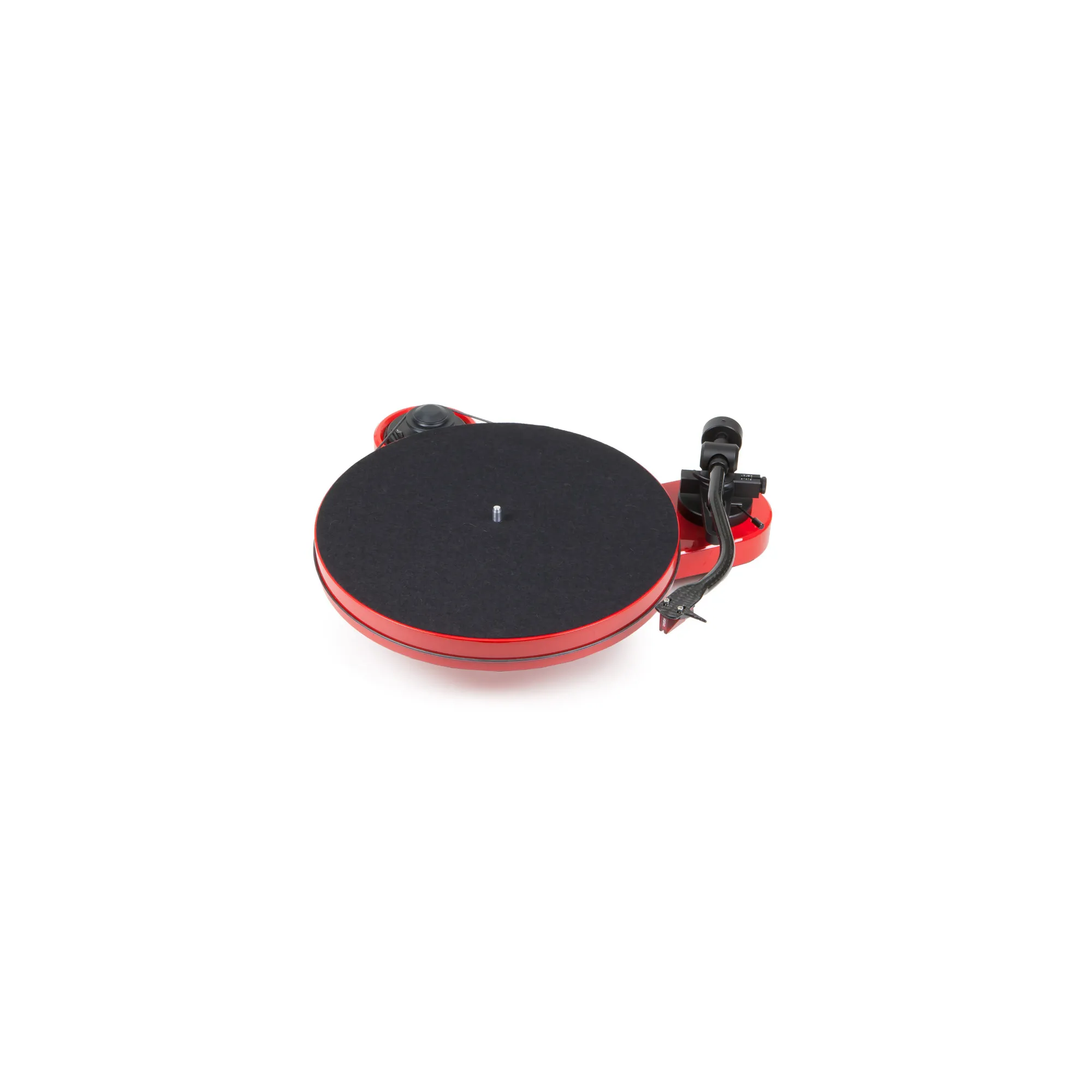

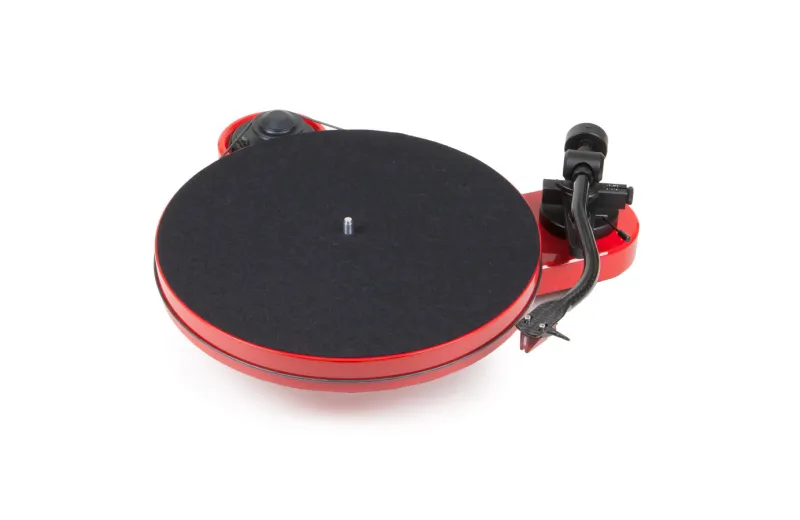

RPM 1 Carbon utilises a lot of innovations and enhancements: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability.
Features
- Precision belt drive using synchronous motor
- Ultra-precision DC-driven AC generator motor power
- Inverted platter bearing with ceramic ball
- Platter made from MDF using felt mat
- 8,6” S-shaped tonearm made from carbon, aluminium, resin utilising special heat and pressure treatments
- Magnetic antiskating
- Counterweight with TPE damping
- Available with or without Ortofon 2M Red cartridge
- 3 high-gloss colours (black, red, white)
Technical Specifications
- Speed 33, 45 (manual speed change)
- Drive principle Belt drive
- Platter 300 mm MDF
- Mains bearing Stainless steel axle with ceramic ball
- Wow & flutter 33: +/- 0.27% I 45: +/- 0.1%
- Speed drift 33: +/- 0.14% I 45: +/- 0.13%
- Signal to noise - 71dB
- Tonearm 8.6” carbon; aluminium and resin
- Effective arm length 218.5 mm
- Effective arm mass 13.5 g
- Overhang 22 mm
- Tracking force 0 - 25mN
- Included accessories 15 volts DC / 500 mA power supply
- Power connection 110/240 Volt - 50 or 60 Hz
- Power consumption 5 watt max / < 0,5 watt standby
- Dimensions 380 x 110 x 350mm (WxHxD)
- Weight 3.8 kg net
In the box:
- RPM 1 Carbon (with or without Ortofon 2M Red)
- Connect it E Phono Cable
- Felt mat
- Adapter for 7“ singles
- Power supply
- Allen key, stylus pressure gauge
New
- MPN
- RPM 1 Carbon red
