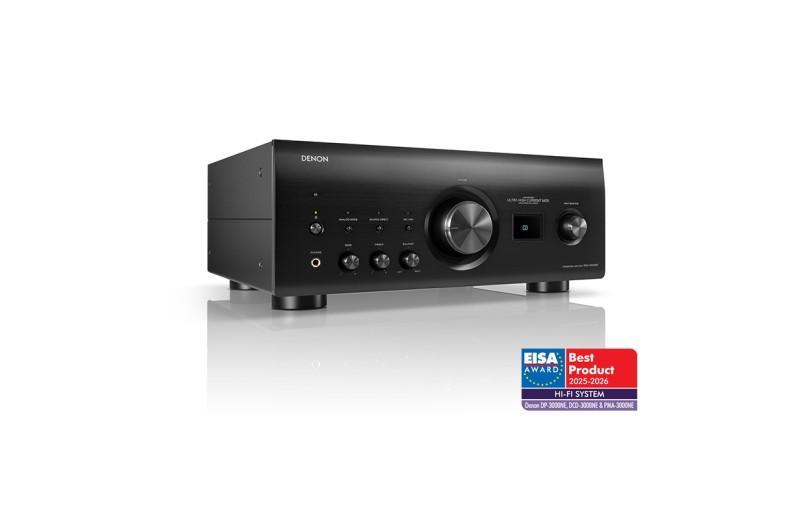

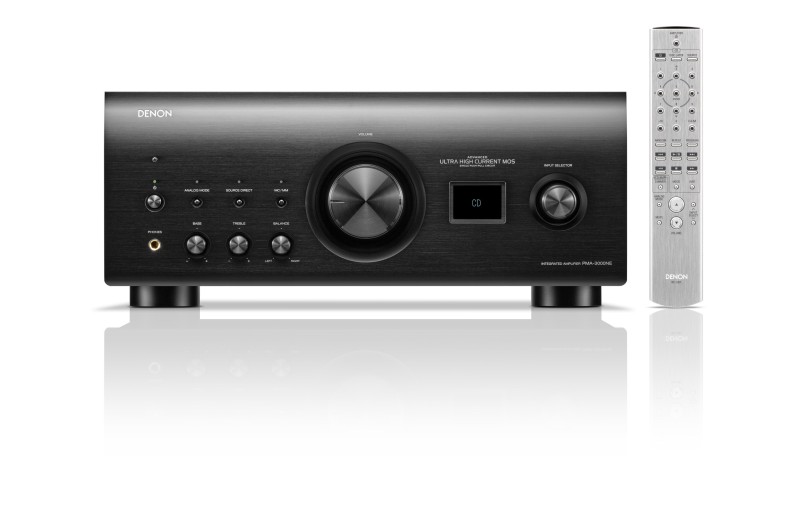

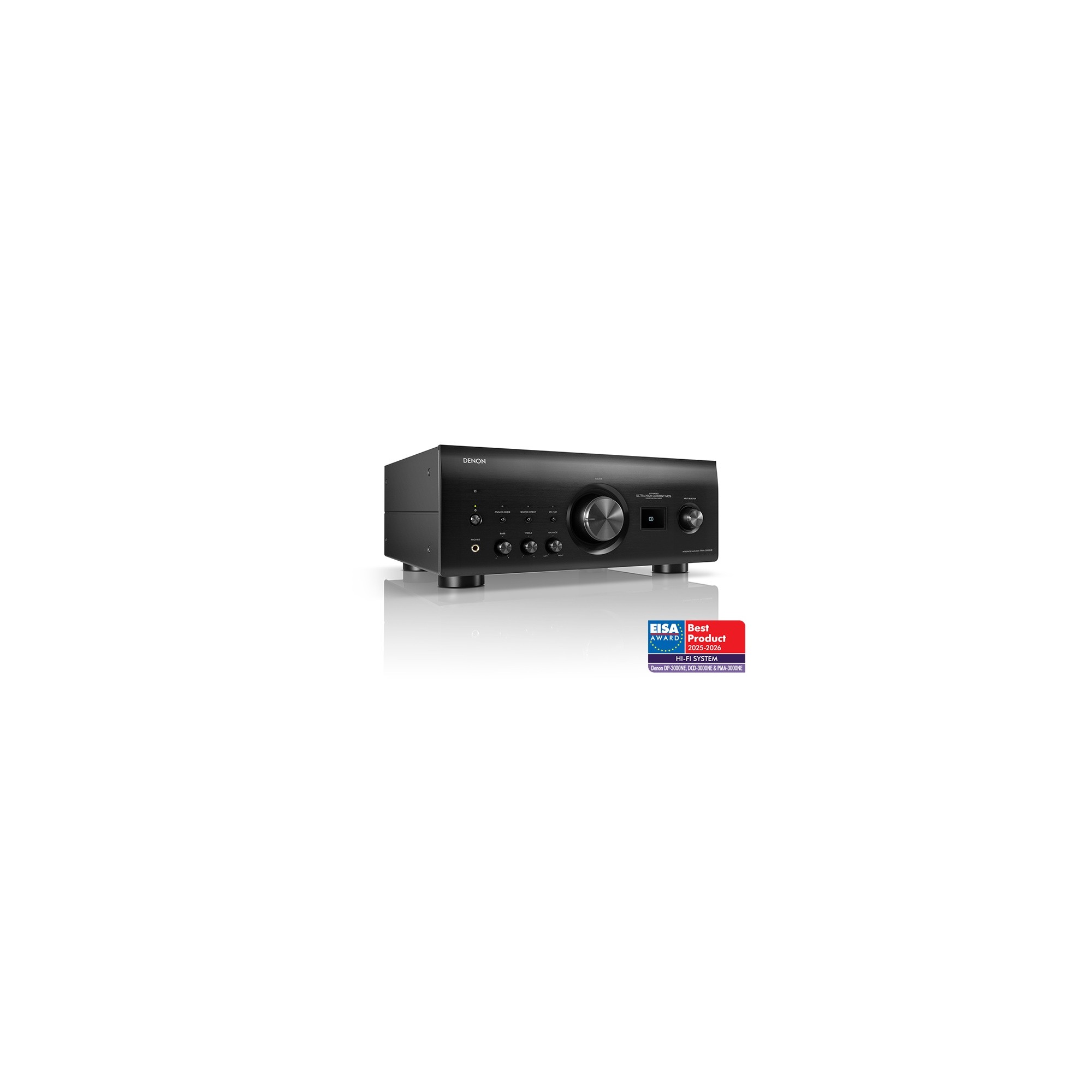

Denon PMA-3000NE Black

The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speakers to deliver premium sound in every situation. Designed and manufactured at Denons facilities in Shirakawa, Japan.

• 2 channels
• 160 Watts per channel
• Phono stage MM/MC
• Ultra AL32 Processing
• Optical, coaxial and USB digital connectivity
• Pure analog operation

Technical Specifications:

• Rated Output Power: 80W + 80W (8 ohm, 20 Hz-20 kHz, THD 0.07%) / 160W + 160W (4 ohm, 1 kHz, THD 0.7%)
• Total Harmonic Distortion: 0.01% (Rated output: –3 dB), 8 ohm, 1 kHz
• Input Sensitivity - Phono: MM: 2.5 mV / 47 kohm / MC: 200 μV / 100 ohm
• Input Sensitivity - CD/LINE/RECORDER: 135 mV / 19 kohm
• Input Sensitivity - Power Amp: 0.9V / 47 kohm (EXT. PRE)
• Signal to Noise Ratio: PHONO (MM): 89 dB / PHONO (MC): 74 dB / CD: 107 dB
• Power Consumption: 400W
• Power Consumption at Standby: 0.2W (TV autoplay off) / 0.4W (TV autoplay on)

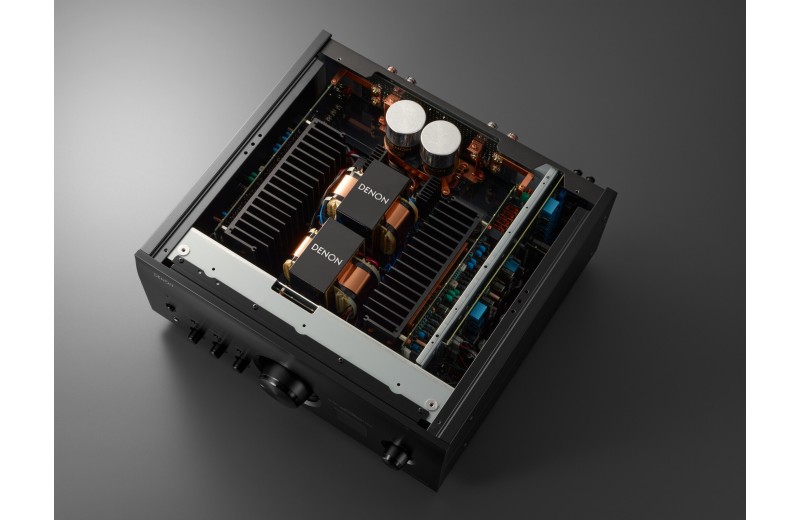

• Power Amplifier Circuit: New UHC-MOS Single Push Pull (7)
• Preamplifier Circuit: Variable Gain Preamplifier (OP AMP)
• Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
• Source Direct: Yes
• Analog Amp Mode: Yes (button on front panel)
• DAC Circuit: ES9018K2M ? 4
• Digital Processing: Ultra AL32 Processing
• DAC Master Clock Design: Yes
• Asynchronous Mode (for USB-B): Yes

• Phono Input: Yes (MM / MC) *default = MM

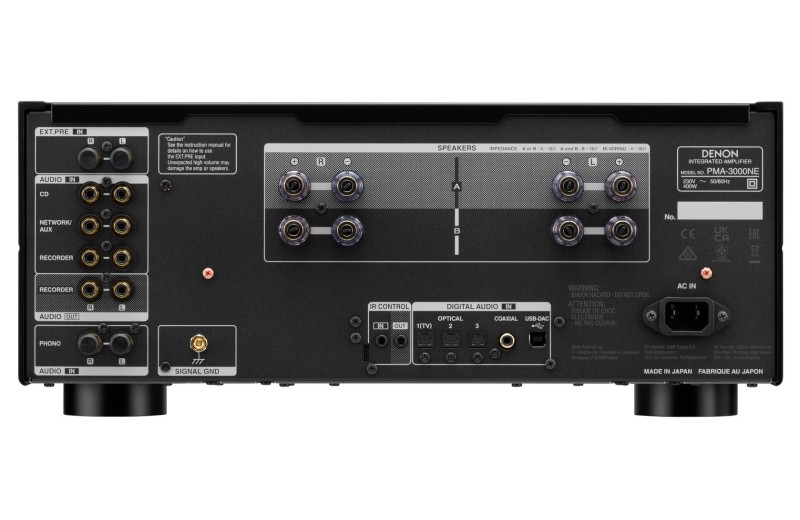

• Analog Input (incl. Phono) / REC Out (RCA): 4/1 (Gold Plated) (Brass Machining type for all CD/PHONO/AUX/RECORDER)
• Optical Input / Output (Maximum Support): 3 / 0 (192 kHz/24-bit)
• Coaxial Input / Output (Maximum Support): 1 / 0 (192 kHz/24-bit)
• Speaker Terminal: AVR-A1H type Gold Plated w/Cover
• Headphone Output: 1 (Turns off speakers automatically when headphones are inserted)
• Remote Control: Yes
• Remote Control Bus Terminal: Yes (mini)
• Wi-Fi: No
• HEOS: No
• USB B (USB DAC): 1 (Rear)
• PCM Sample Rate / Resolution: ~384 kHz/32-bit
• DSD Audio Streaming: ~11.2MHz

EAN: 0747192143183
