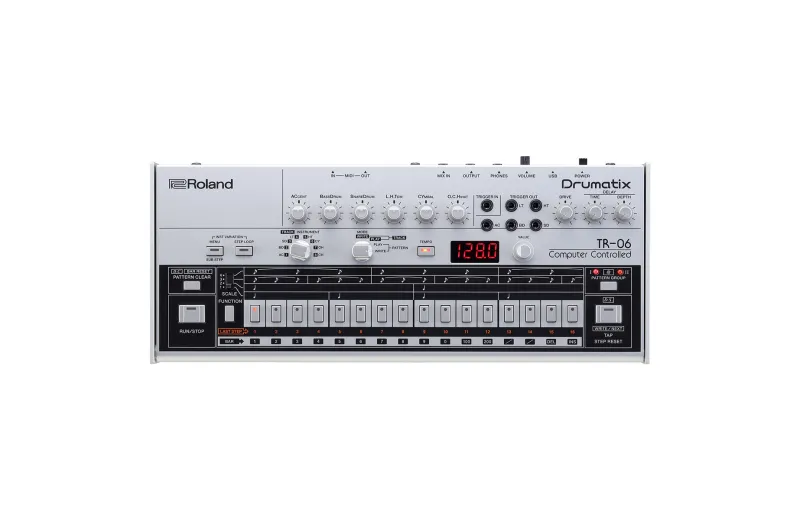

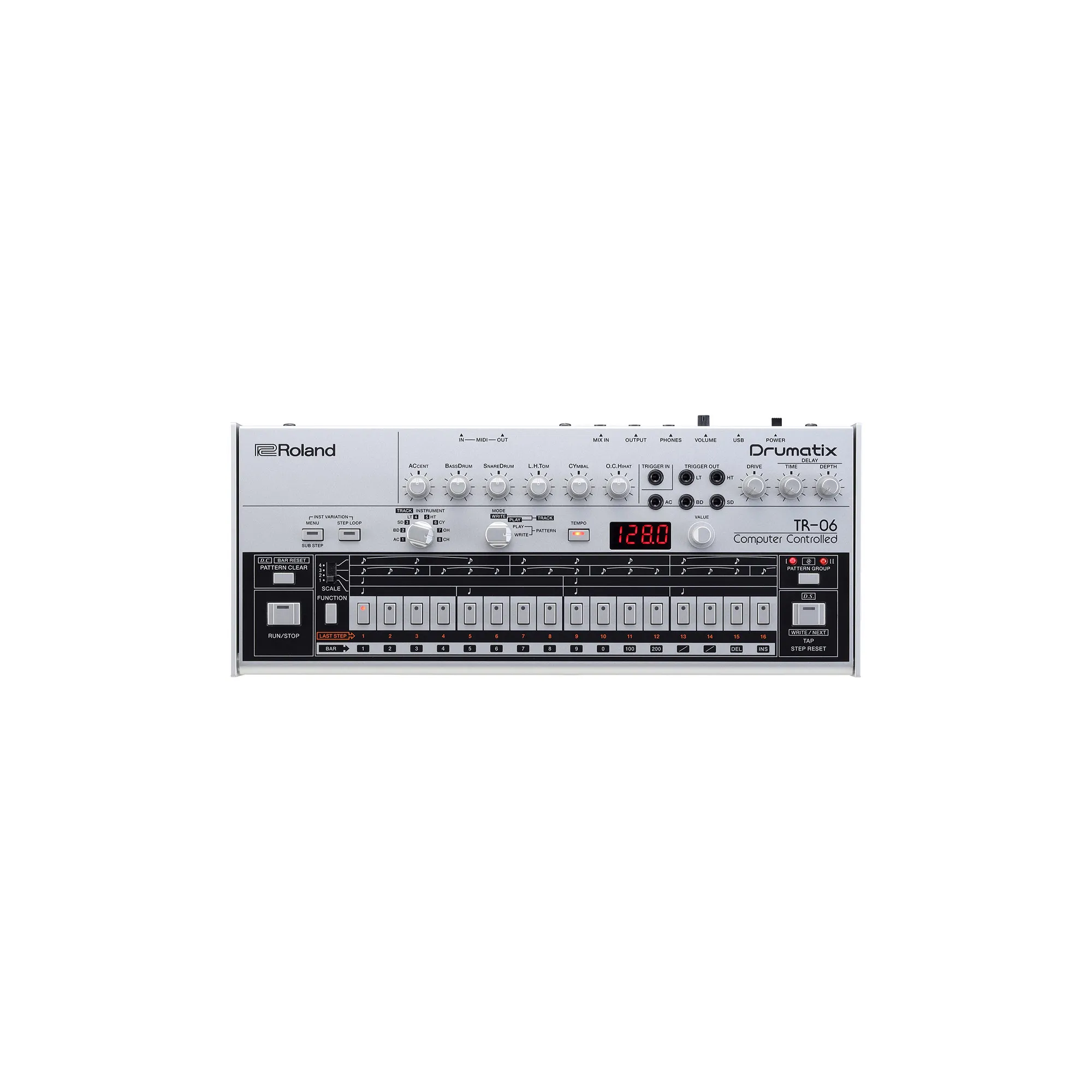

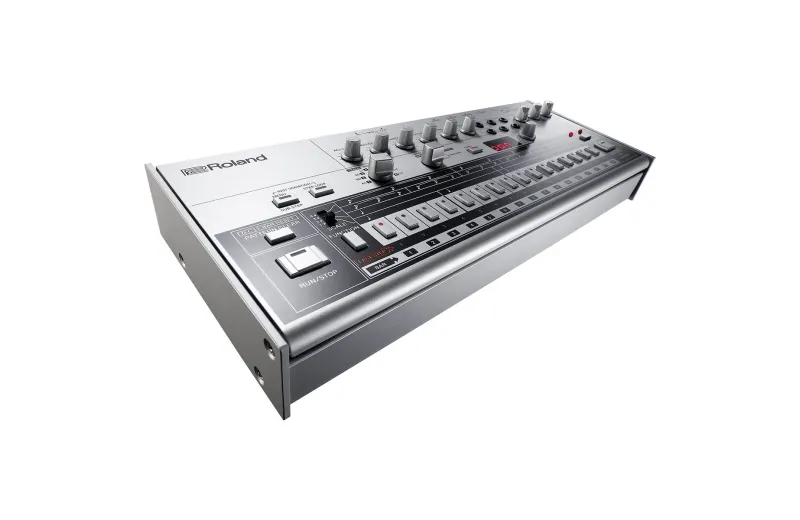

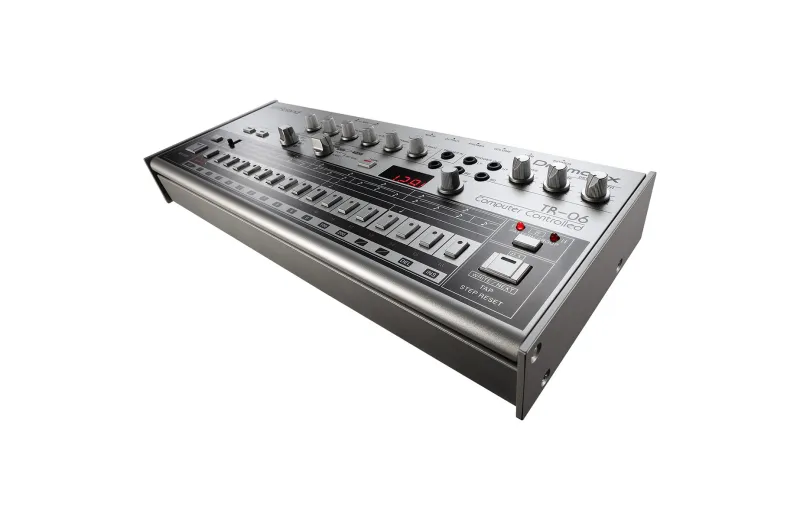

Roland TR-06, is a detailed replica of the classic Roland TR-606—with some major modern upgrades. Our new Roland Boutique version has the distinctive tone and iconic look of the original, with more sound-shaping options, innovative sequencing capabilities, and an array of triggers for driving modular gear.
The TR-06 reimagines the original with new sound-crafting potential and plush onboard effects. Control tuning, decay, and pan for each instrument, or crank up the internal gain, pushing the circuit model into warm overdrive or aggressive distortion. The onboard compressor adds warmth and punch, while the tempo delay creates depth and space from subtle repeats to controlled chaos.
Τhe step sequencer in the TR-06 is familiar and straightforward, so you can bang out any type of beat quickly and easily. And now its been updated with advanced features like adjustable sub-steps for ratcheted parts, step-loop for instant pattern slicing, and per-step probability for beats that never get boring.
The TR-06 has five trigger outs and a trigger in, so its easy to interface with other gear, sparking new ideas and creative possibilities. Sequencing is fast and fluid, and you can mix and layer your external modules with the TR-06s internal sounds for massive rhythmic sequences.
Specifications
User Memory
- Patterns: 128 (16 patterns x 8 banks)
- Tracks: 8
Steps
Sequencer Functions
- STEP LOOP
- SUBSTEP
- FLAM
- INTRO / FILL IN
- PROBABILITY
- SUBSTEP PROBABILITY
- MASTER PROBABILITY
Instruments
- BD: BASS DRUM*
- SD: SNARE DRUM*
- LT: LOW TOM*
- HT: HI TOM*
- CY: CYMBAL*
- OH: OPEN HI HAT
- CH: CLOSED HI HAT
* Variation sounds included
Effects
- Compressor
- Delay Effects: DELAY, PAN DELAY, TAPE-ECHO, REVERB, FLANGER, SIDE BAND FILTER
- Drive Effects: SATURATOR, BIT CRUSHER, DISTORTION, LPF/HPF
Connectors
- TRIGGER IN jack: mono miniature phone type
- TRIGGER OUT jack x 5 (AC, BD, SD, LT, HT): mono miniature phone type
- PHONES jack: stereo miniature phone type
- OUTPUT jack: stereo miniature phone type
- MIX IN jack: stereo miniature phone type
- MIDI (IN, OUT) connectors
- USB port: Micro-B type (Audio, MIDI)
Power Supply
- Rechargeable Ni-MH battery (AA, HR6) x 4
- Alkaline battery (AA, LR6) x 4
- USB bus power
Dimensions / Weight
- Dimensions (WxDxH): 308 x 130 x 52mm
- Weight: 1.2kg
