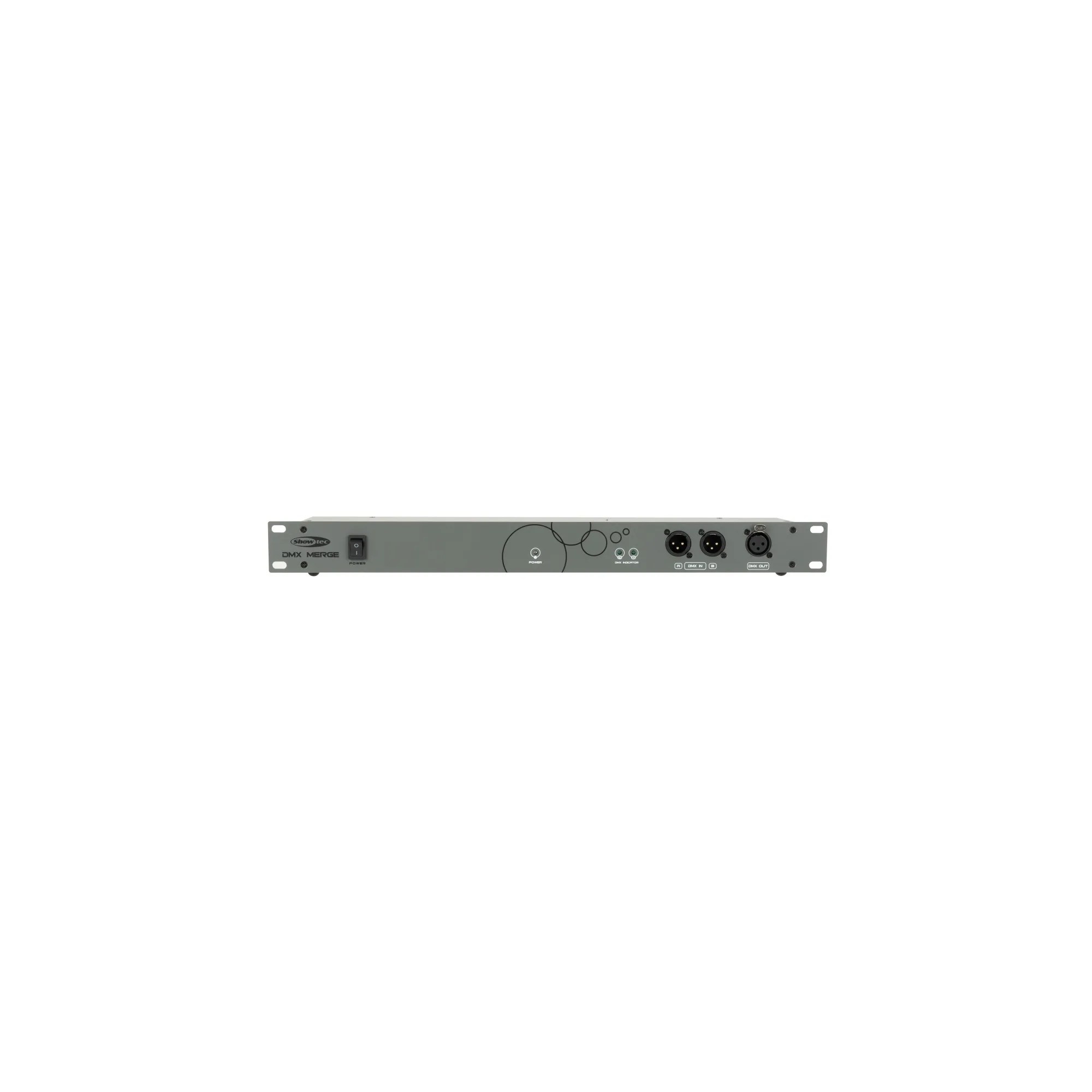

SHOWTEC DMX MERGE
190053
The Showtec DMX Merge allows you to combine two DMX controllers to one DMX line or to use a second desk as back-up desk.
2-YEAR WARRANTY
The unit has 4 modes:
1) HTP (Highest Take Precedence) In this case you can use two similar desks with the same addressing on one line. The DMX channel with the highest value has priority.
2) Back-up mode. The unit is connected to two DMX desks. Channel A has priority. Once channel A fails or has no DMX channel B takes over the show.
3) Merge mode. Two desks can be merged on one line. E.g. you can run a scene setter and DMX operator on one line. The Scene Setter will operate on channel 1-96 and the DMX Operator will have the channels 97 and higher. These positions can be freely addressed by the dip-switches.
4) LTP (Latest Take Precedence) In this case you can use two similar desks with the same addressing on one line. The DMX input with the latest value change has priority.
- Merge 2 DMX controllers to one DMX line
- Select Back up or merge mode
- Protocols: DMX
- DMX Channels: 512
- Power Supply: 9VDC
- Power Consumption: 4,5 W
- Power Connector in: Low Voltage DC plug

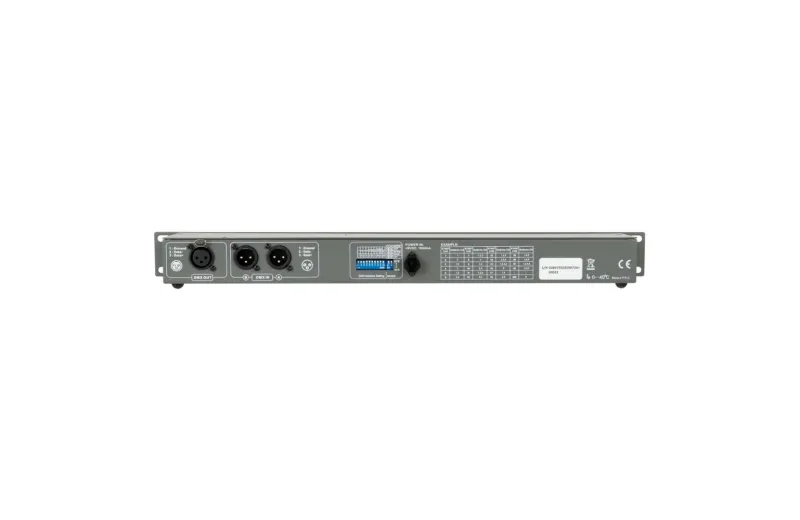

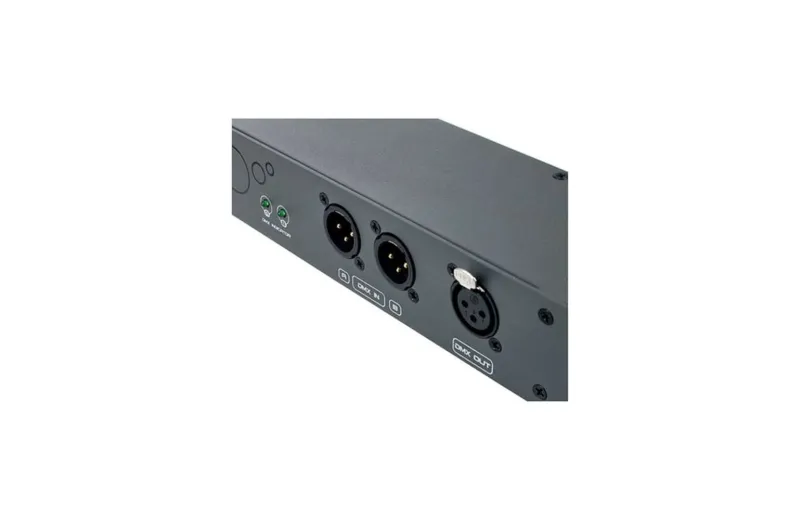

- DMX input: 3-pin XLR (male) 2x on the front and 2x on the back
- DMX output: 3-pin XLR (female) 1x on the front and 1x on the back
- IP Rating: IP20(indoor use only)
- Housing: Aluminum Die-cast
- Rack Units: 1 U
- Dimensions: 482 x 73 x 44 mm (LxWxH)
- Weight: 1.15kg
- Colour: Grey
New
- MPN
- 50359
