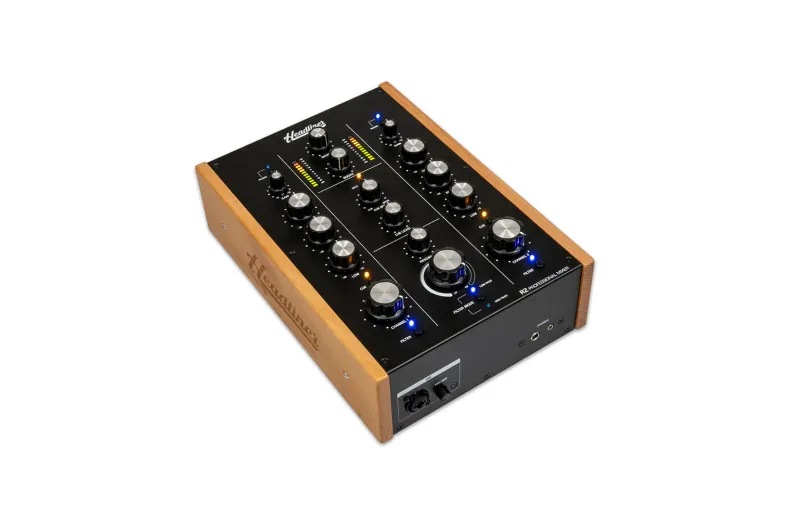

Headliner Rotary R2 Mixer is a a 2-channel rotary DJ mixer that is perfect for DJ’s looking for precise control and a warm sound, without breaking the bank. The R2 is packed with features, like an analog filter and 3-band isolator EQs on each channel, and uses only high-quality components, including genuine ALPS potentiometers.

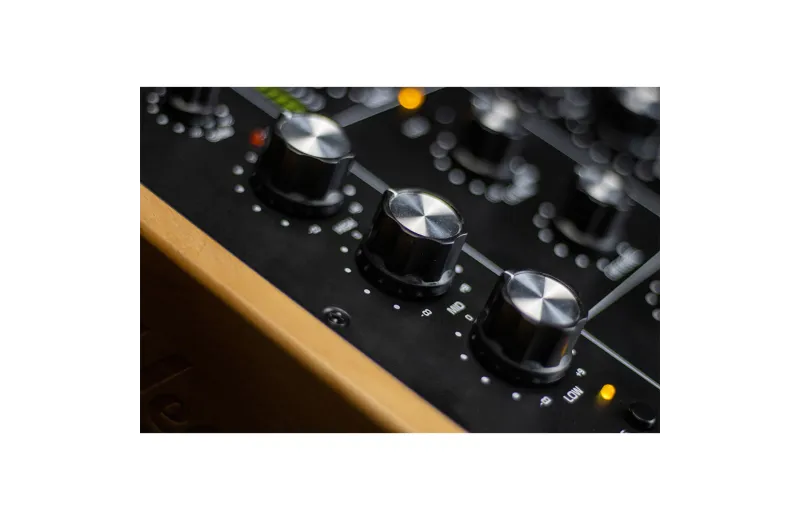

Featuring two stereo channels with selectable Line and Phono RCA inputs, each channel on the Headliner R2 comes equipped with gain control with a peak LED, a 3-band isolator EQ, a headphone cue selector, a large channel volume control knob, and a filter activation switch.

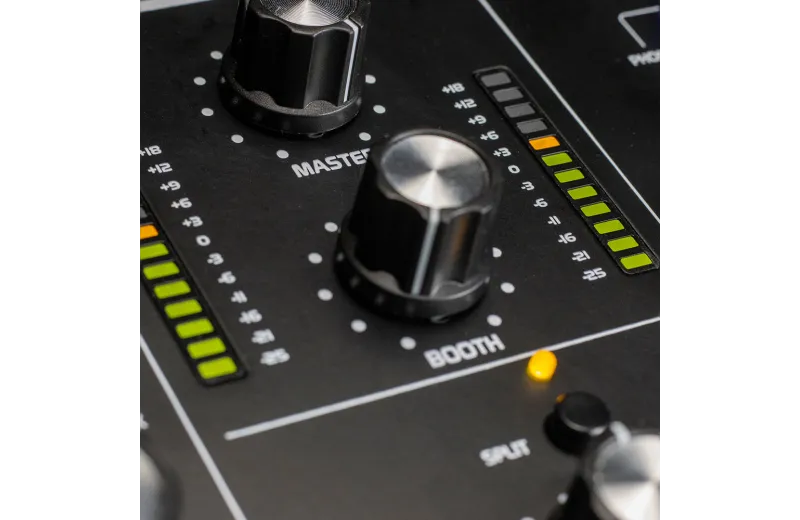

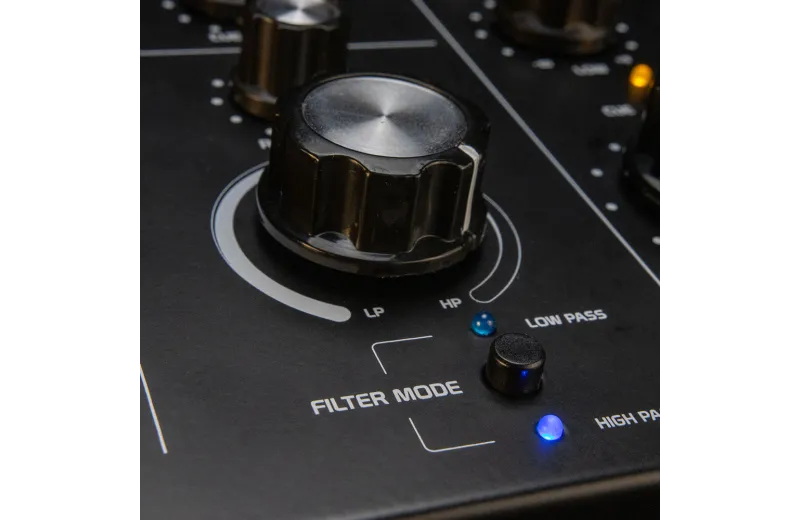

The Master channel boasts an analog filter, headphone monitoring, and output control section. The analog filter features selectable High Pass / Low Pass Filter modes with Frequency and Resonance controls, giving you precise control over your sound. Independent Master and Booth outputs with volume controls, both with balanced XLR and unbalanced RCA connectors, give you the flexibility to connect to any sound system.
The high current headphone amplifier offers, dual 1/4” and 1/8” jacks and also features volume control, headphones mix control (Cue/Master), and split monitor switch. You can easily switch between listening to the master output and the cue output, or blend them together in your headphones, giving you complete control over your mix.
The Headliner R2 features genuine ALPS potentiometers, and a sturdy metal enclosure with stained wood side panels for a classic look that will complement any DJ setup. The modular internal construction, coupled with the external power supply connected via locking Mini XLR ensure superior audio performance.
Specifications:
Microphone Input
- Nominal Input Level: -50dBu
- Frequency Response: 20Hz – 20kHz (+/- 0.1dB)
- THD + N: < 0.1%
- Input Impedance: 1.2 kOhm
Line Inputs
- Nominal Input Level: -10dBV (-7.8dBu)
- Gain Range: -12dB to +12dB
- Frequency Response: 20Hz – 20kHz (+0/- 0.5dB)
- THD + N: < 0.05%
- Input Impedance: 10 kOhm
Phono Inputs
- Nominal Input Level: -40dBu (@1kHz)
- Gain Range: -12dB to +12dB
- Active RIAA equalization
- THD + N: < 0.05%
- Input Impedance: 47 kOhm
- Input capacitance: 100pF
- Single stage Phono Preamp
- Ceramic capacitors
Main Outputs
- Nominal Output Levels, balanced: +4dBu
- Maximum Output Level, balanced: +20dBu
- Nominal Output Levels, unbalanced: -10dBV (-7.8dBu)
- Maximum Output Level, unbalanced: +12dBu
- Frequency Response: 20Hz-20kHz (+0/-1.5dB)
- Residual noise: <-86dBu (Line to Master)(A-Weighted)
- Dynamic Range: > 100dB (A-Weighted)
- Crosstalk: < -65dB
- THD + N: < 0.05%
Headphone Output
- Maximum Output Level: 70mA/channel into 150Ω
- Minimum Load Impedance: 32 Ohms/channel
Power Supply
- Type: External with locking mini-XLR connector
- Input Voltage: 100-240v ~ 50/60Hz
- Output Voltage: +/-15V; 500mA
Dimensions/Weight
- Dimensions (WxLxH): 219 x 320 x 106mm
- Weight: 2.8kg
