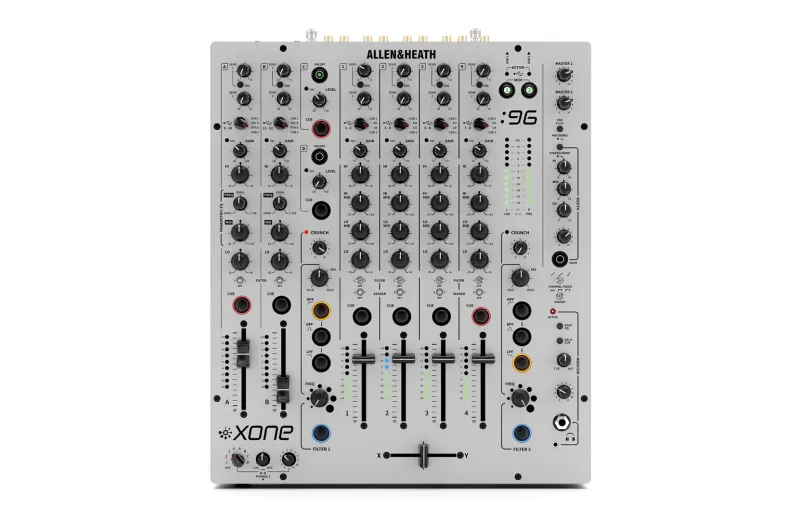

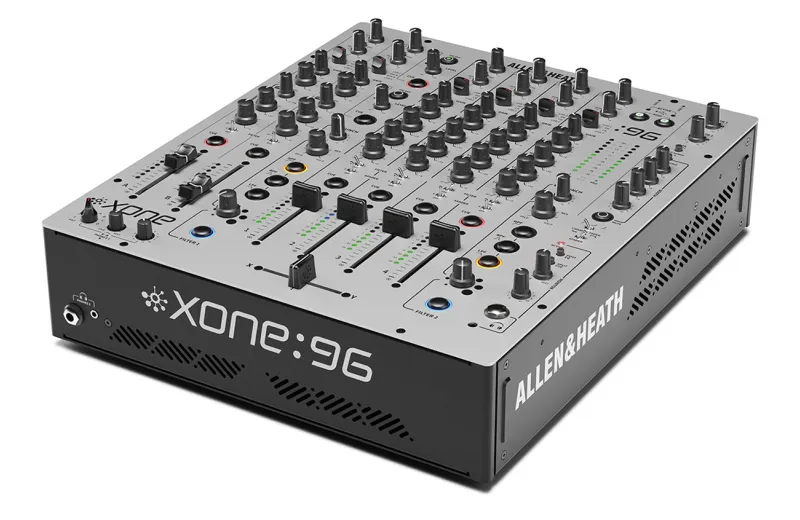

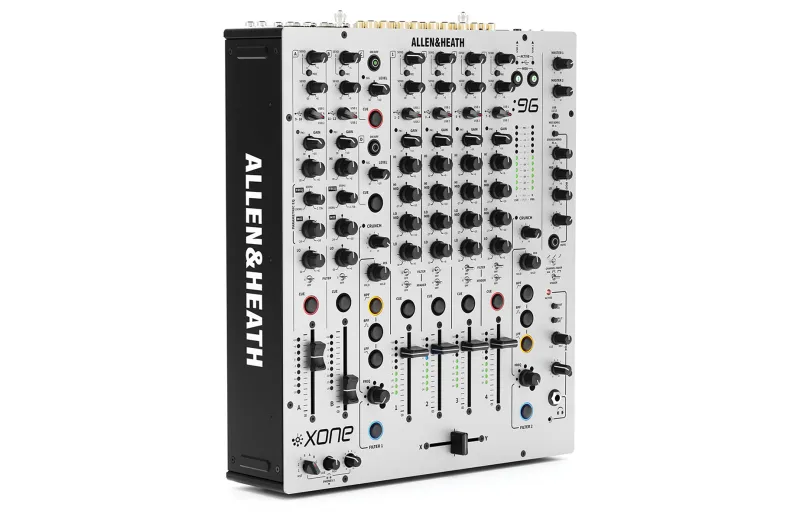

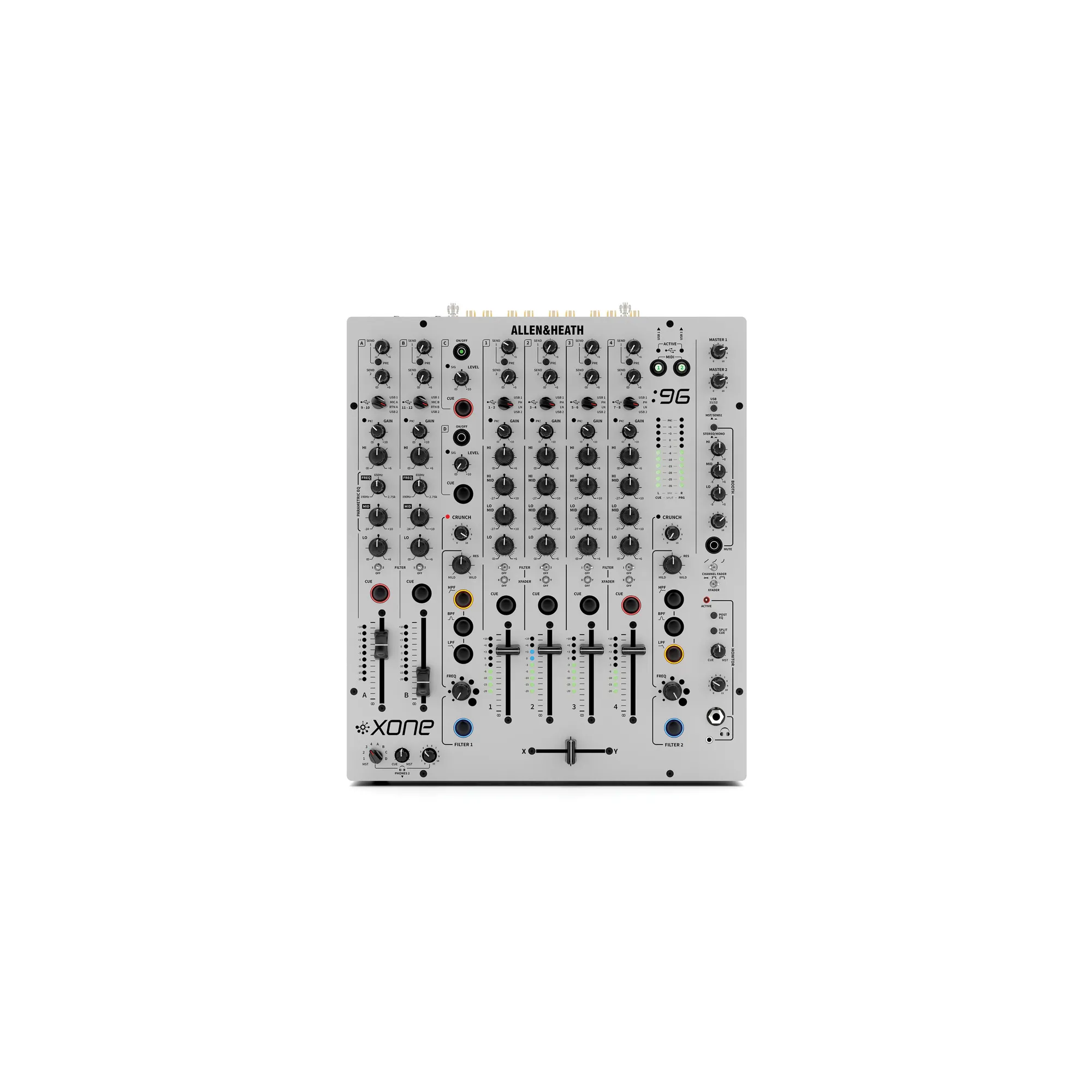

ALLEN & HEATH XONE:96

Dual 24 channel, 32Bit/96kHz, Hi-Speed USB internal soundcards with MIDI Control & X:Link connectivityClassic dual XONE:VCF Voltage Controlled Filters now with added CRUNCHFour stereo input channels with refined XONE 4-BAND EQTwo stereo input channels with new 3-BAND parametric EQ for detailed creative control + two auxiliary stereo return channelsinnoFADER cross-fader and new custom designed 60mm linear VCA performance channel fadersPHONES 2, a second independent Cue system allows two DJ’s to monitor independently.

• Type Analogue

• Channels 6 + 2

• EQ
  Channel 1-4, 4-Band EQ
  Channel A-B, 3-Band Parametric EQ

• USB Soundcards Dual 24 Channel (12 in / 12 out), Hi-Speed USB2.0 / Mac Class Compliant, 32bit / 96kHz, MIDI over USB

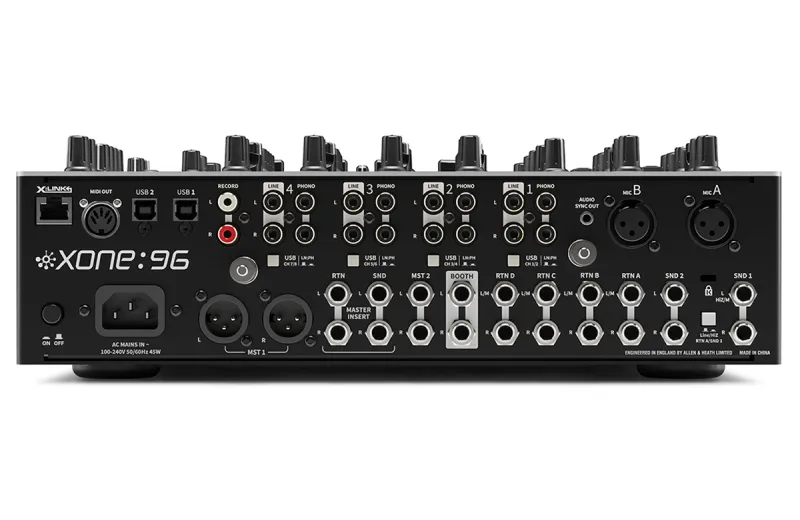

• Line Inputs 4 x RCA (CH 1-4)
  4 x 1/4? TRS (CH A-D) Mono/Stereo

• Phono Inputs 4 x RCA (CH 1-4)
  LN/PH Switch for DVS

• USB Inputs 6 x USB (CH 1-4 + CH A – CH B)

• Mic Input 2 x XLR

• Master Output 1 x XLR (Balanced)

• Master 2 Output 1 x 1/4? TRS (Balanced)

• Booth Output 1 x 1/4? TRS (Balanced)

• Record Output 1 x RCA (Un-balanced)

• Master Insert 1 x 1/4? TRS

• MIDI Out 1 x 5-Pin DIN

• Send/Return I/O
  2 x 1/4? TRS Send
  4 x 1/4? TRS Return
  1 x LN/Hi-Z Switch (SND1/RTNA)

• Filter
  2 x VCF Filter
  HPF / BPF / LPF
  Adjustable Frequency & Resonance
  Assignable CH 1-4 + CH A-B
  CRUNCH (Controlled Harmonic Signal Distortion)

• X-Link 1 x RJ45

• Headphones
  2 x 1/4?
  2 x 3.5mm
  Split Cue Monitoring

• Channel Faders 60mm VCA / Replaceable

• Chanel Meters 9 Segment LED

• Channel Fader Curve 3 Types

• X-Fader InnoFADER / 45mm VCA / Replaceable

• X-Fader Curve 3 Types

• Earth Ground Terminals x 2

• Headroom 20dB

• AC Mains
  100 to 240V
  AC 50/60Hz
  Consumption 45W max

• Mains Adaptor 3 pin IEC socket

• Height 109mm / 4.3?

• Width 336mm / 13.25?

• Depth 410mm / 16.2?

• Weight 7kg / 15.4 lbs
