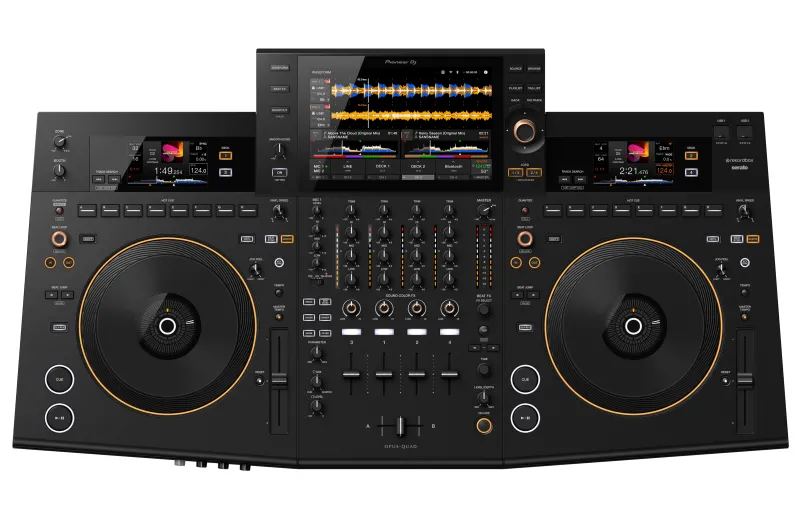

Pioneer OPUS-QUAD is a professional all-in-one DJ system for rekordbox and Serato DJ Pro that introduces a completely fresh approach to DJ equipment that harmonizes design and playability. Raising the level of elegance in musical direction, maintaining the traditional high quality sound including new and evolved features.
The OPUS-QUAD offers standalone 4-deck playback for versatile DJ performances. You can also assign a different color to each deck, which is matched by the jog ring illumination, so you’ll always know which deck you’re playing with.
The OPUS-QUAD supports multiple media sources like USB thumb drives, SSD drives, PC or Mac connectivity thats running dj software, Wi-Fi to wirelessly play tracks from a smartphone using rekordbox or by using rekordbox CloudDirectPlay.
No matter how big your music library is, you can use the 10.1-inch touch screen to quickly search for songs via the keyboard or use Playlist Bank for quick navigation between playlists. With Touch Preview, you can even preview tracks while browsing. The new Smart Rotary Selector offers a joystick-like experience with left/right, up/down, rotation, and push control. And the other browsing controls are neatly arranged around the selector so you can scour your music collection and preview and load tracks without moving your hand.
The new deck arrangement includes a deck display and 8 Hot Cue buttons above each full-size jog wheel. the new Smart Cue feature*, you can automatically overwrite the current cue position with the recalled Hot Cues.
The evolved effects on the OPUS-QUAD make it easy to add texture and tension to the music. The XY-Pad makes it easy to control features such as FX Bank and channel select, as Beat FX parameters and the cut-off frequency of the filter are controlled by movement on the X and Y-axis respectively, so you can blend both effects with a single finger.
Plug-and-play compatibility for rekordbox Performance mode and Serato DJ Pro is included with the OPUS-QUAD. You can simply plug in your PC/Mac running either application to get started – there’s no need for a license or subscription
Specifications
- Channels: 4
- Decks Control: 4 (USB storage device), 4 (DJ Software control)
- AD/Sampling rate: 24 bit/44.1 kHz
- Απόκριση συχνότητας: 20 - 20000 Hz
- Signal-to-Noise Ratio: USB: 114 dB, LINE: 96 dB, PHONO: 85 dB, MIC: 79 dB
- Jog Wheel: 206mm
- USB: 3 θύρeς USB A, 1 θύρα USB C
- WiFi: IEEE 802.11 a / b / g / n / ac, 2.4 GHz / 5 GHz
- Bluetooth: 4.2
- Inputs: 2 Line (RCA), 2 PHONO (RCA), 2 MIC (XLR & 1/4 inch TRS Jack)
- Outputs: 1 MASTER (XLR), 1 MASTER (RCA), 1 ZONE (XLR), 1 BOOTH (1/4 inch TRS Jack), 1 Headphone (1/4 inch Stereo Phone Jack, 1 Headphone 3.5mm Stereo mini-jack)
- Compatible Software: rekordbox (hardware unlock), Serato DJ Pro (hardware unlock)
- Supported music file formats: MP3, AAC, WAV, AIFF, Apple lossless, FLAC
- Supported file systems: FAT16, FAT32, exFAT, HFS+
- Dimensions: (ΠxΒxΥ) 925.7 x 499.7 x 142mm
- Weight: 13.2kg
