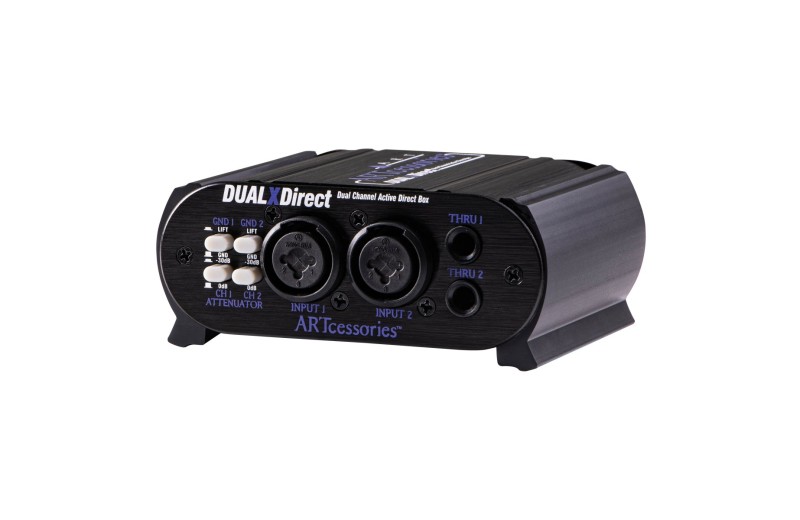

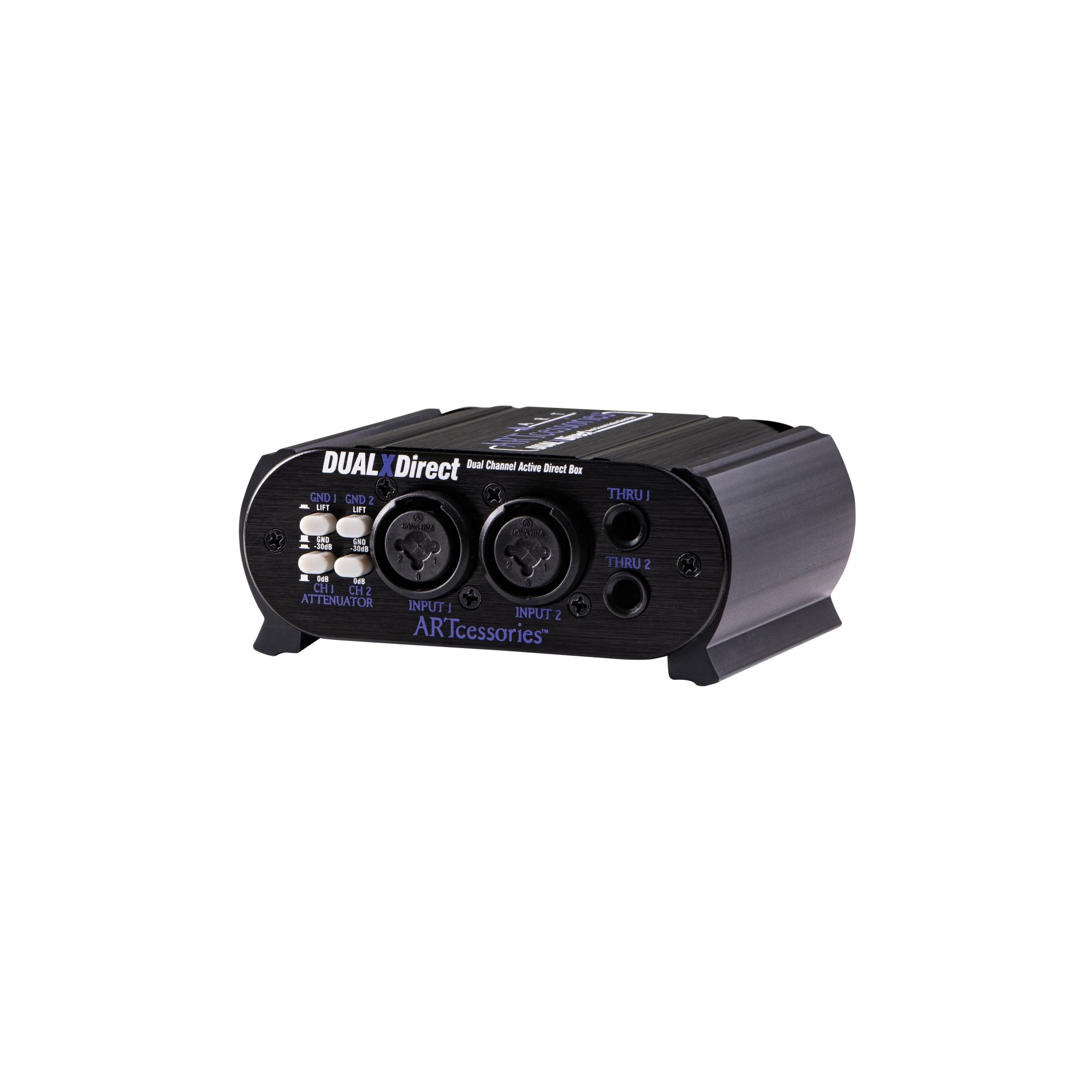

The DualXDirect is a 2-channel active direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.
Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage. Unique among ART DI boxes, XDirect models feature both 1/4 TRS and XLR inputs for expanded connectivity.
Front panel switches engage 30 dB of attenuation to accommodate high-level signals, and a ground lift to reduce hum.
The active circuitry can operate on phantom power or for over 100 hours on a new 9-volt battery. Active DIs are often a great match for sources like guitars and basses with passive pickups, or acoustic guitars with piezo pickups and no preamp.
Simple and durable, the DualXDirect is a compact DI in a rugged aluminum enclosure with two independent channels and a streamlined feature set.
Features 2 Independent Channels 1/4 TRS / XLR Combo Inputs 1/4 Thru Connectors Balanced XLR Outputs Switchable 30dB Attenuation and Ground Lift per Channel Powered by 9-Volt Battery (100+ Hours) or Phantom Power
Το DTI (Dual Transformer/Isolater) είναι ένα υψηλής ποιότητας παθητικό audio interface το οποίο διαθέτει ένα ζεύγος υψηλής απόδοσης μετασχηματιστών ωστε να διαχωρίζει εντελώς τις γειώσεις των σημάτων εισόδων και εξόδων , εξαλείφοντας ανεπιθύμητους θορύβους όπως hum και ground-loop . Οι μετασχηματιστές ήχου του DTI έχουν εξαιρετική απόκριση συχνοτήτων και μπορούν να χειριστούν μεγάλης έντασης σήματα διατηρώντας στο ακέραιο την balanced έξοδο. Αυτό δίνει στο DTI πολύ καθαρό και ουδέτερο ήχο σε πληθώρα σήματα πηγών .
Experience legendary Putnam 610 console tone with this all-tube microphone preamplifier and DI box. Professional audio in a portable, hand-built design.
Mackie MDB-2P, passive DI Box with 2 high-impedance 1/4 inputs with 2 Thru outputs, balanced XLR output connector with Ground Lift, ultra-low noise and distortion and -15dB pads ensures distortion-free performance when connecting to high-output sources
