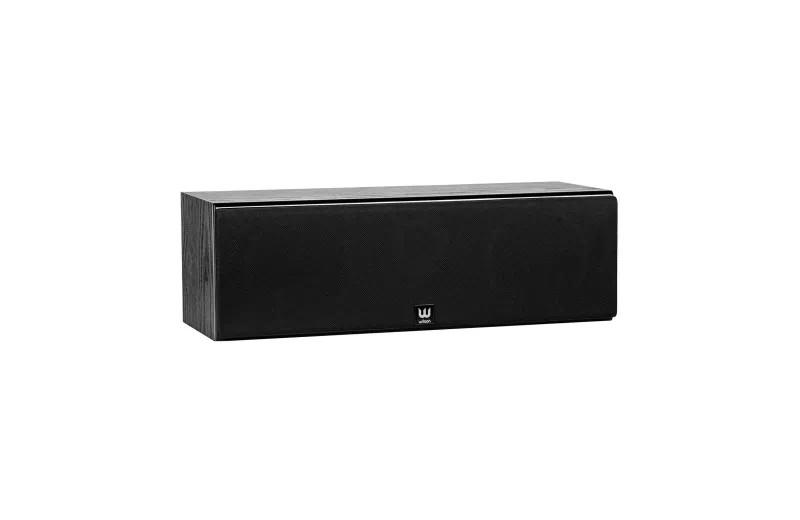

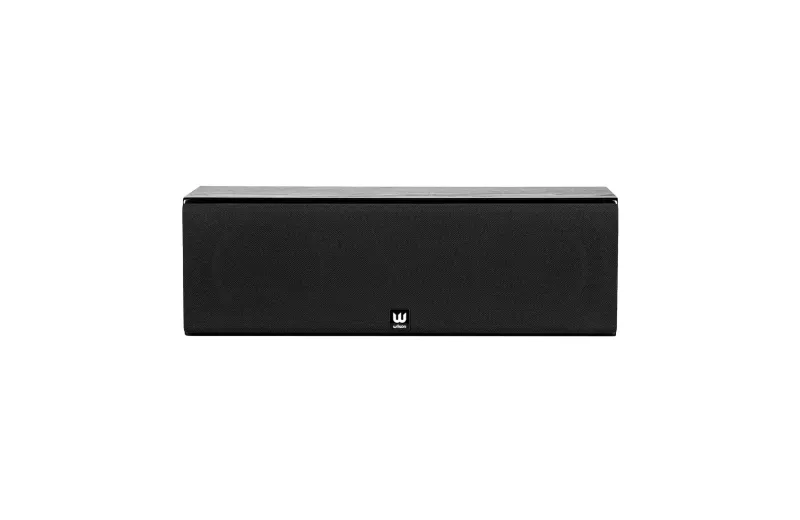

Wilson Raptor Vocal Center Speaker - Black

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
10 YEAR WARRANTY
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Wilson Raptor Vocal Center Speaker - Black
Code :
4700084
119.00 €
Available for immediate dispatch
Available in store

Add to wishlist
Compare
Installment calculator
Confirm your selection at checkout
Number of interest-free installments
Amount/Month
9.92 €
MANUAL

DATASHEET

Description

Wilson  Vocal, center speaker suitable for home cinema systems, recommended for amps 25-125 Watts at 4-8 Ohm, max SPL 108dB, 88dB sensitivity and 50 - 20.000Hz frequency response.

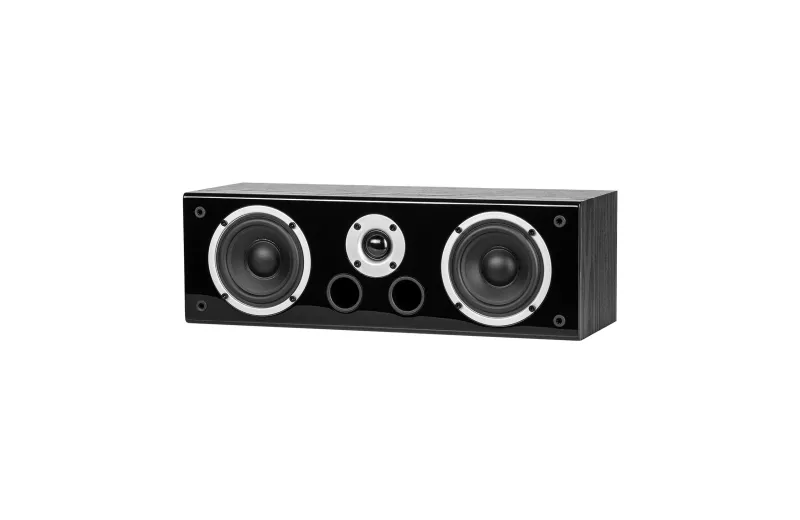

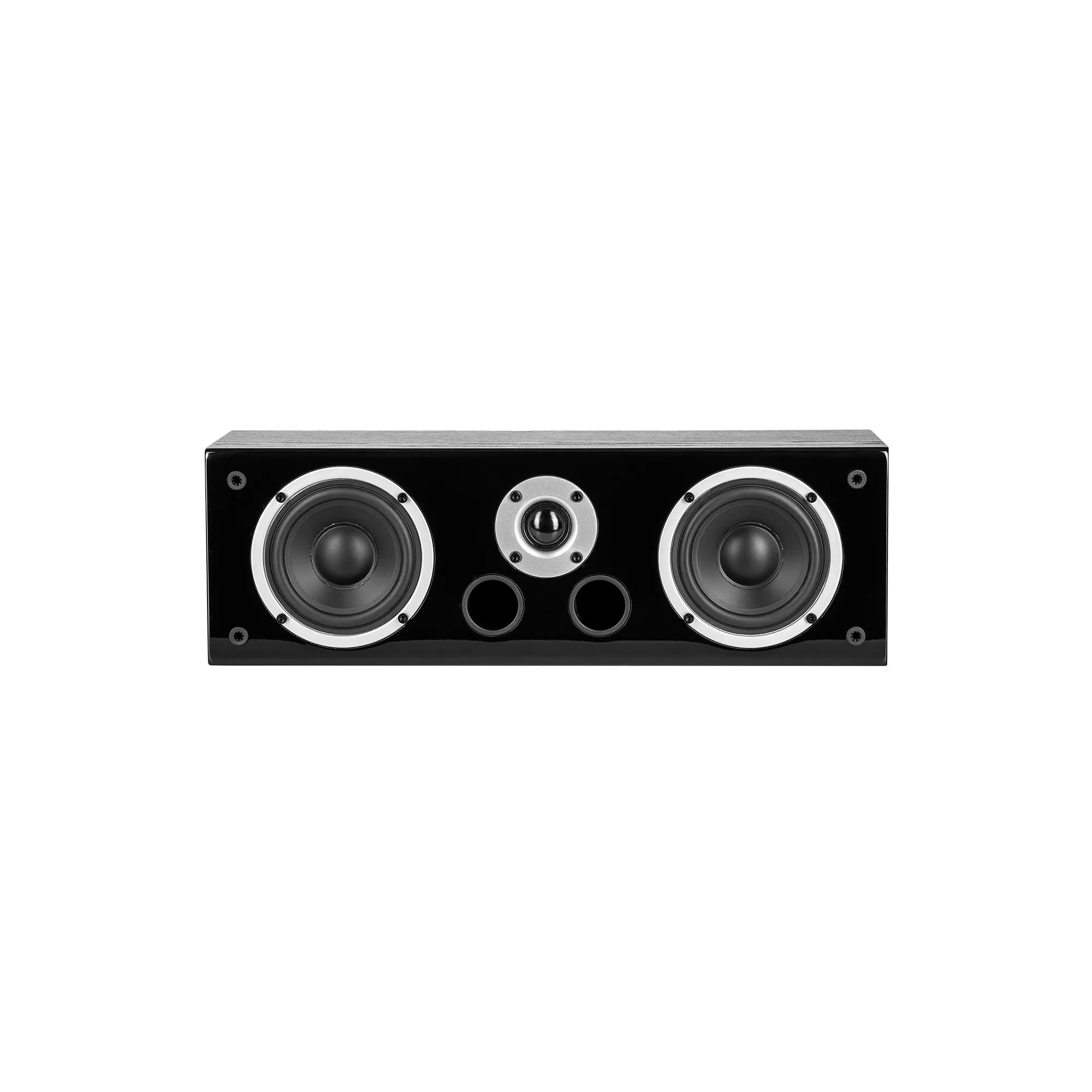

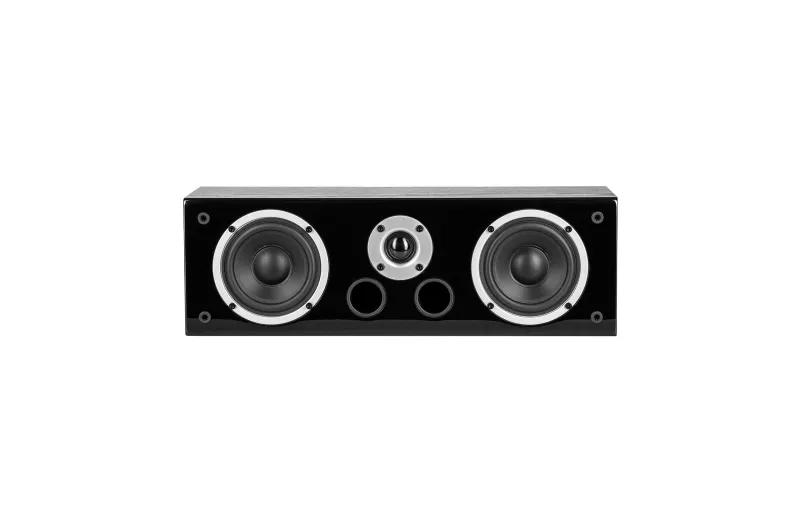

The crossover developed for this design has been integrated to ensure that all the elements in this design are consistent in sound. It includes two lowmidrange drivers 4/" each, and a 1/" tweeter with a fabric dome. High quality enclosure with front firing double Bass Reflex ports allows the speaker to achieve much higher efficiency in the low frequency range.

Specifications

  • Type: center speaker
  • Frequency response[+/- 3] dB [Hz]: 50-20.000 Hz
  • Sensitivity [2.83V/1m] [dB]: 88dB
  • Impedance: 4-8 Ohm
  • Maximum SPL [dB]: 108dB
  • Recommended amplifier: 25-125 Watts
  • Crossover division frequency [Hz]: 2600 Hz
  • Tweeter: 1 inch (25mm) soft dome
  • Low Midrange driver: 2 x 4 inches

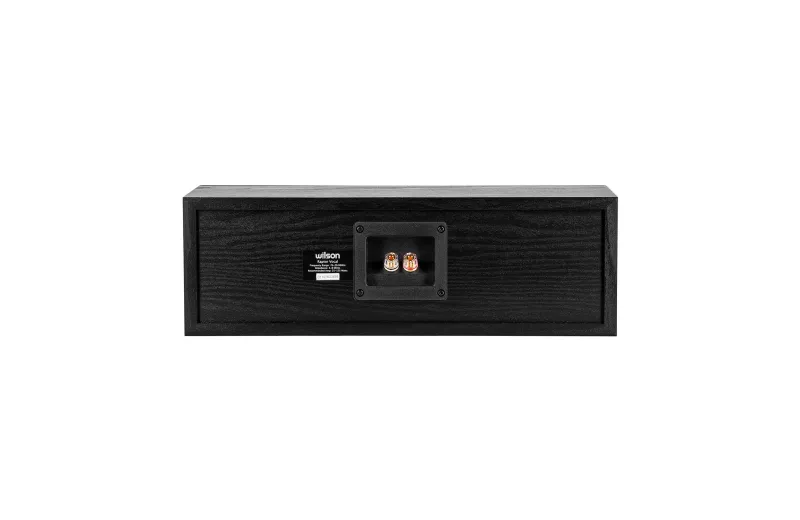

  • Inputs: Single
  • Color: Black
  • Dimensions (WxDxH)): 430 x 165 x 140mm
  • Weight: 15kg

Specifications

Category
Center Speaker
Tweeter Size (Inches)
Woofer Size (Inches)
4
Number of Woofers
2
Power W RMS / Continuous
25 - 125
Impedance (Ohm)
4 / 8
Way
2
Frequency Response
50Hz - 20kHz
Sensitivity (dB)
88
Maximum SPL (dB)
108
Enclosure material
Wood
Crossover Cutoff Frequency (Hz)
2600
Width (mm)
430
Height (mm)
140
Depth (mm)
165
Weight (kg)
15
Warranty
10 years
Colour
Black
EAN13
5903402873911
MPN
RAPTOR-VOCAL-Β
