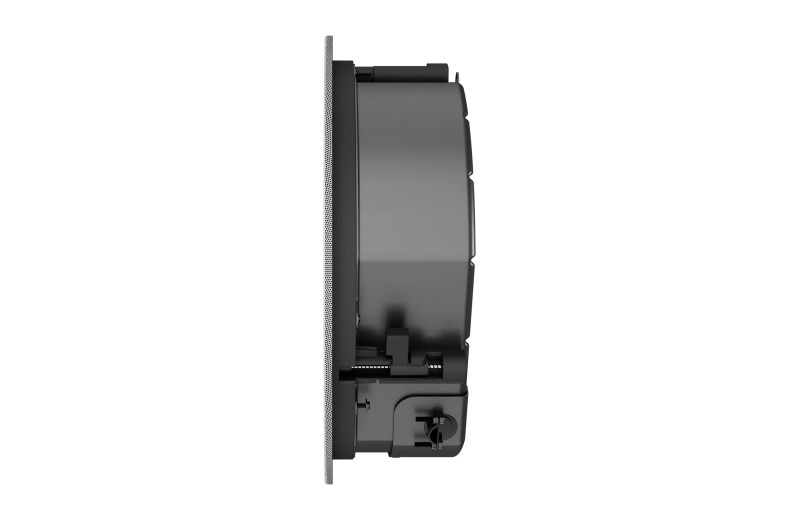

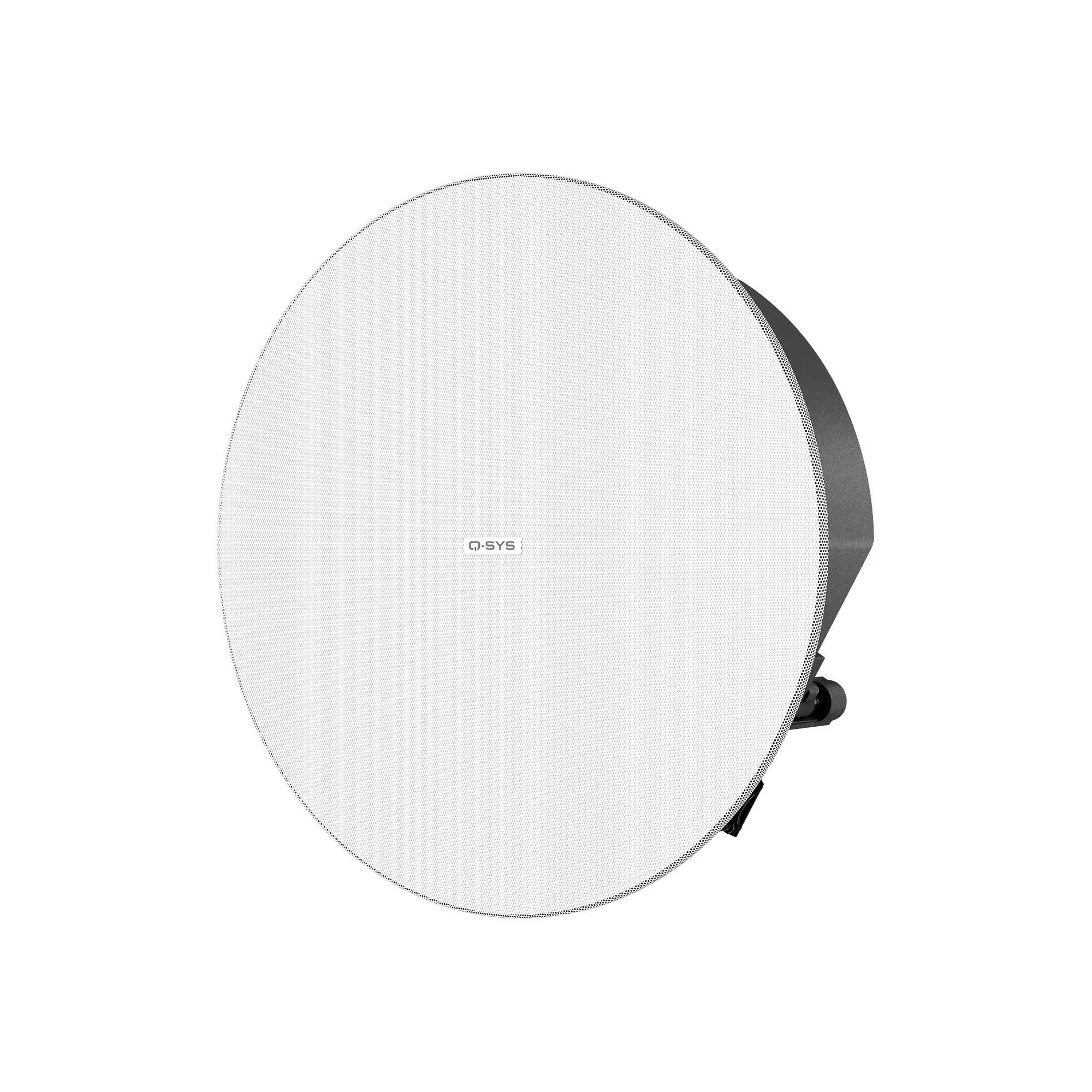

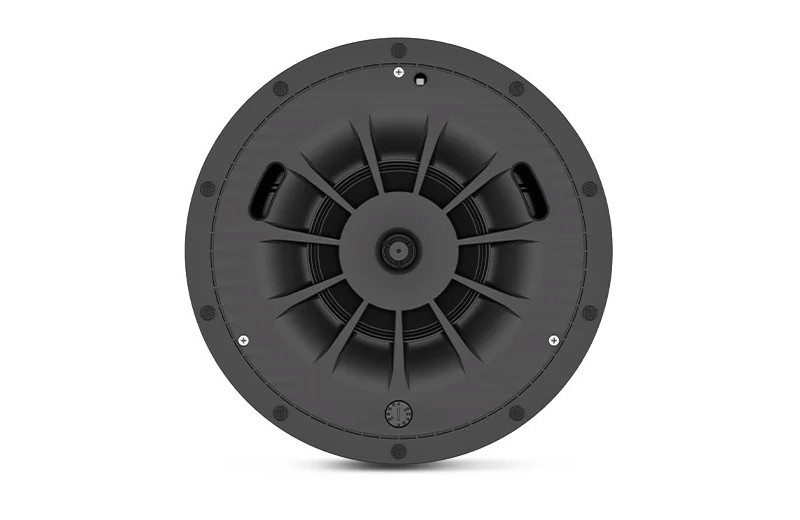

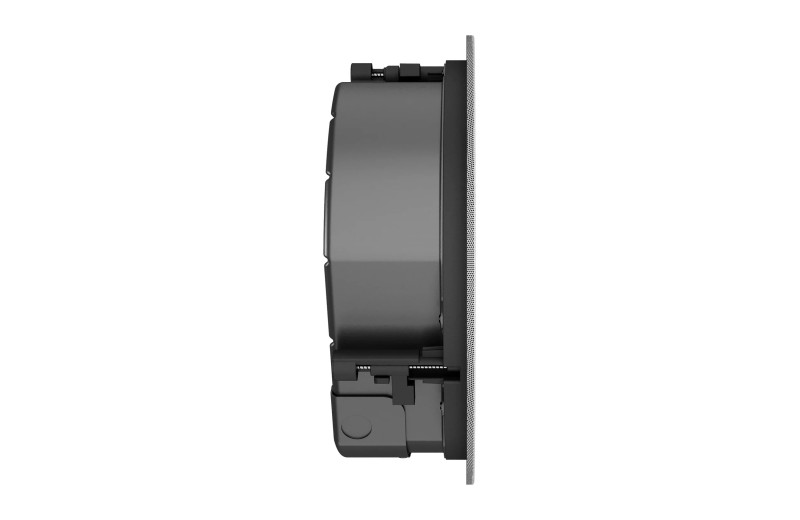

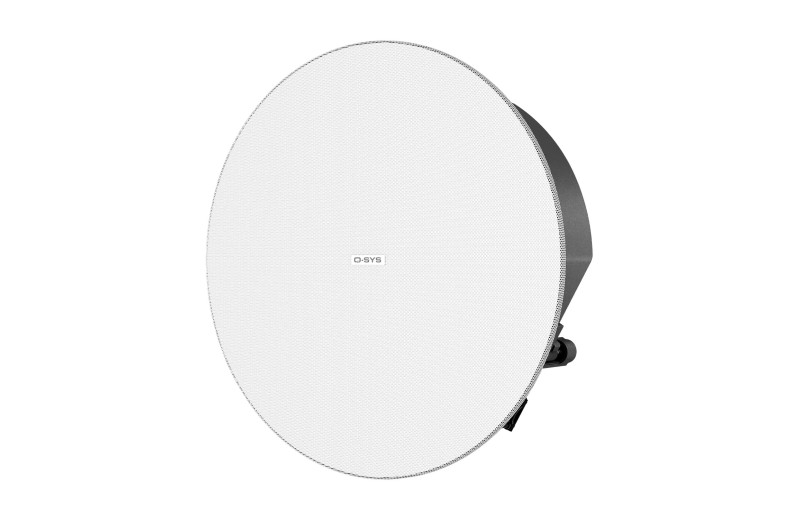

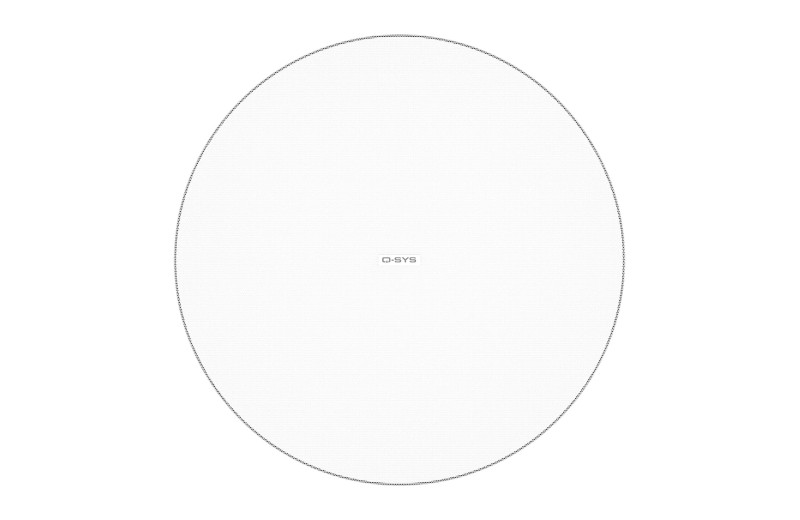

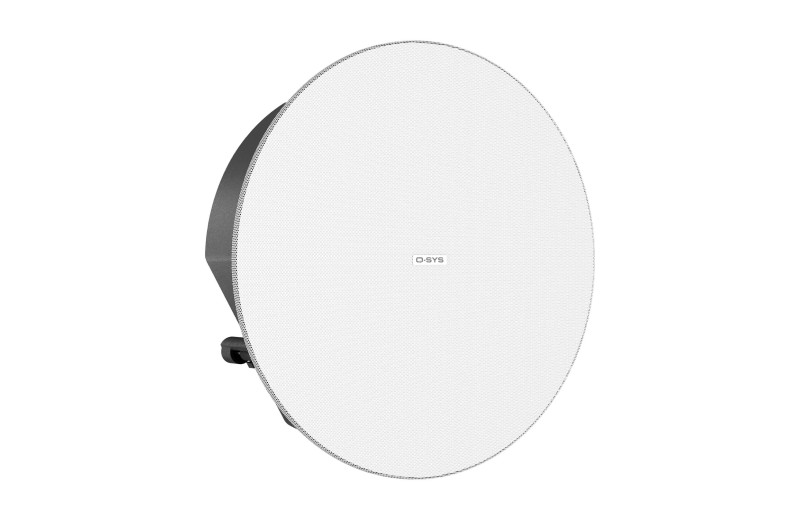

Q-SYS AD-C6T-LPZB-WH Ceiling Speaker

12 ΑΤΟΚΕΣ ΔΟΣΕΙΣ
3 YEAR WARRANTY
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Q-SYS AD-C6T-LPZB-WH Ceiling Speaker
Code :
4700202
334.80 €
On request

Add to wishlist
Compare
Close
Έως 12 δόσεις των 27.90 € με 0% επιτόκιο με πιστωτική κάρτα
Κέρδισε 2% €πιστροφή πληρώνοντας με κάρτες Eurobank
3 δόσεις των 111.60 € με 0% επιτόκιο με την Klarna
4 δόσεις των 84.70 € με 0% επιτόκιο με την tbi bank
SPEC SHEET

MANUAL

Description

Q-SYS AD-C6T-LPZB, a low-profile 2-way passive in-ceiling loudspeaker with a zero-bezel design, featuring a 6.5-inch woofer and a 0.75-inch aluminium tweeter, designed for professional installations where discreet appearance, wide coverage and shallow mounting depth are required. It supports 70V/100V systems and 16Ω bypass operation.

The magnetic grille and frameless design allow the loudspeaker to blend discreetly into the ceiling, while the Directivity Matched Transition® (DMT) waveguide provides smooth and consistent response throughout the coverage area. It offers 135° conical coverage and a frequency response of 65Hz–20kHz, making it suitable for conference rooms, retail spaces, hotels, restaurants, educational facilities and other installed audio applications.

It features an integrated 70V/100V transformer with multiple power taps and a 16Ω bypass option. Rated power is 60W, with a maximum continuous SPL of 106dB and peak SPL of 112dB. Connections are made via Euroblock with a parallel output, making daisy-chain wiring easier in multi-loudspeaker installations.

Its low-profile construction limits the overall height to just 100mm, making installation easier in ceilings with restricted mounting depth. It features an ABS baffle, a powder-coated steel back can, IP34 protection and a blind-mount installation system with three long-travel dog-ear mounting points.

Technical Specifications

Type: Low-profile 2-way passive in-ceiling loudspeaker
Woofer: 6.5” weather-resistant paper cone
Tweeter: 0.75” aluminium dome
Frequency response: 65Hz–20kHz
Rated power: 60W
Sensitivity: 88dB
Maximum continuous SPL: 106dB
Maximum peak SPL: 112dB
Coverage: 135° conical DMT
Nominal impedance: 16Ω
70V taps: 7.5W / 15W / 30W / 60W
100V taps: 15W / 30W / 60W
Connection: Euroblock with parallel output
Enclosure material: ABS baffle with powder-coated steel back can
Grille: Powder-coated steel, magnetic
Protection rating: IP34
Application: Indoor use
Operating temperature: -20°C to 50°C
Cutout diameter: O305mm
Dimensions: O340 x 100mm
Weight: 4.3kg
Included: C-ring, tile rails, rail screws, Euroblock connector, cut-out template, tether grille
Colour: Signal White (RAL 9003)
Certifications: UL1480, UL2043, NFPA90, NFPA70, CE, RoHS

Specifications

Tweeter Size (Inches)
1
Woofer Size (Inches)
6
Power W RMS / Continuous
60
Impedance (Ohm)
16
Way
2
Inputs
Euroblock
Frequency Response
65Hz - 20kHz
Sensitivity (dB)
88
Maximum SPL (dB)
112
Transformer (100V)
Yes
Power tappings @ 100V (W)
60 / 30 / 15
Dispersion (°)
135
Enclosure material
ABS
Outer Diameter (mm)
340
Cut out (mm)
305
IP Protection
IP34
Weight (kg)
4.2
Colour
White
EAN13
684284089298
MPN
AD-C6T-LPZB-WH
