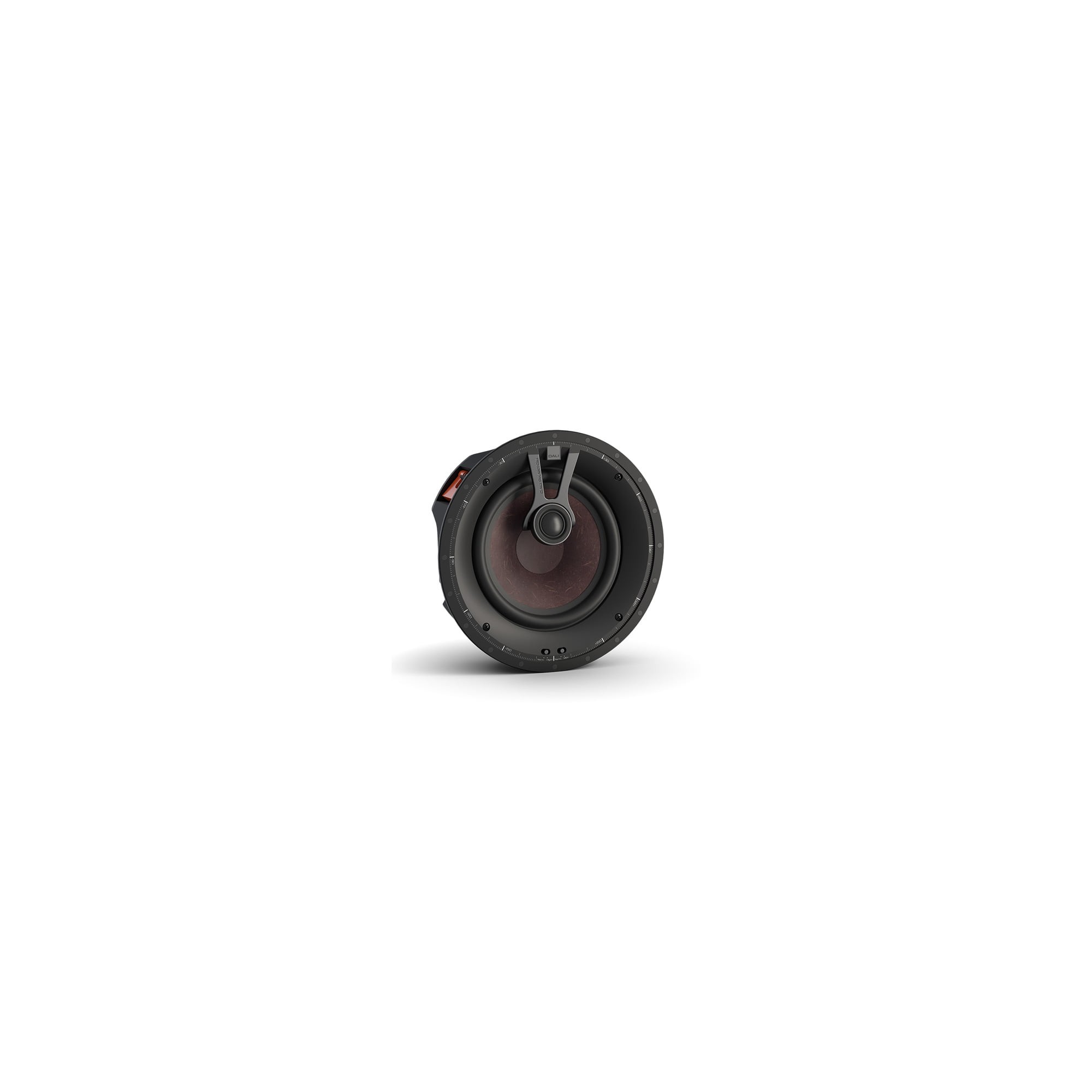

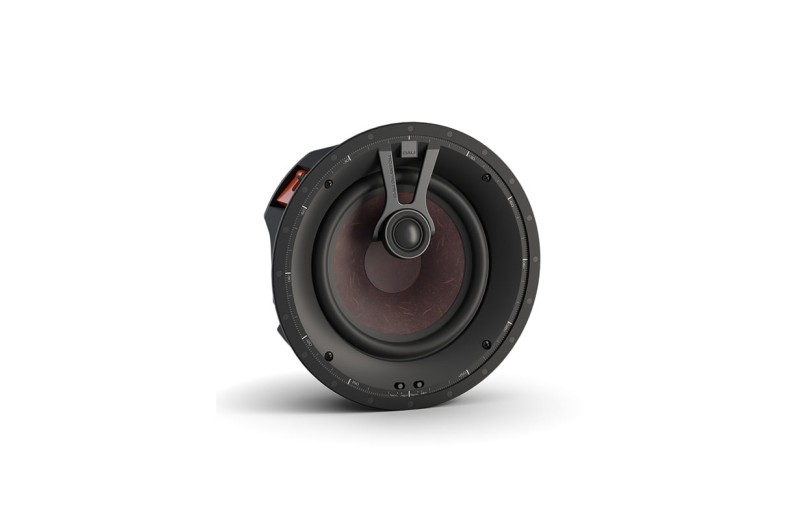

The DALI PHANTOM K-80 ceiling speaker with 8-inch woofer builds on the proven strengths of the acclaimed PHANTOM E series, delivering enhanced sound quality with a directional soft dome tweeter that lets you adjust the sound to any situation.
Easy Installation
The dogleg mounting system enables quick installation: simply turn the screws to rotate the brackets and secure them in place.
Off-Axis Woofer
The wood fiber cone is positioned off-axis to reduce coloration and distortion for more uniform frequency response, while the precisely aligned tweeter improves synchronization and phase alignment.
Discreet Design
The new grille design is thinner, more discreet, and available in true white color. Its also compatible with the PHANTOM E series.
Optional Back Cans Available
PHANTOM Ks easy-to-install back cans deliver more powerful bass - ideal for bathrooms or hallways with typically more reverberation.
Technical Specifications:
Frequency Range [+/- 3] dB [Hz]: 48 - 25,000
Sensitivity [2.83V/1m] [dB]: 87
Nominal Impedance [ohms]: 6
Maximum SPL [dB]: 107
Crossover Frequencies [Hz]: 3.3
Crossover Principle: 2-way
Recommended Amp. Power [Watts]: 50 - 200
High Frequency Driver: 1 x 28 mm soft dome
Low Frequency/Midrange Driver(s): 1 x 8
Focal Littora 200 ICW8, 2-way passive in-ceiling 8 inch outdoor speaker for use in yachting and humid spaces. The recommended amp power is between 25 – 150W at 8Ω with 90dB sensitivity and 48Hz-28kHz frequency response.
The Apart CMX-20T W is a passive, in-ceiling, 2-way, plasti, 6.5" loudspeaker with up to a total of 30W at 8Ω, max SPL 104dB, sensitivity 86dB and it has 60Hz-20kHz frequency response. The installation depth is 80mm and the ceiling cutout diameter is 186mm.
The JBL CSS 8008 is a passive in-ceilling 8" loudspeaker with up to a total of 15W with a built-in 100V / 70V / 25V transformer, sensitivity 96dB and it has 55Hz-16kHz frequency response. The installation depth is 71mm and the ceiling cutout diameter is 216mm.
DALI PHANTOM K-80 ceiling speaker with 8" woofer, directional tweeter and simple installation. Perfect for residential and commercial spaces with comprehensive sound coverage.
