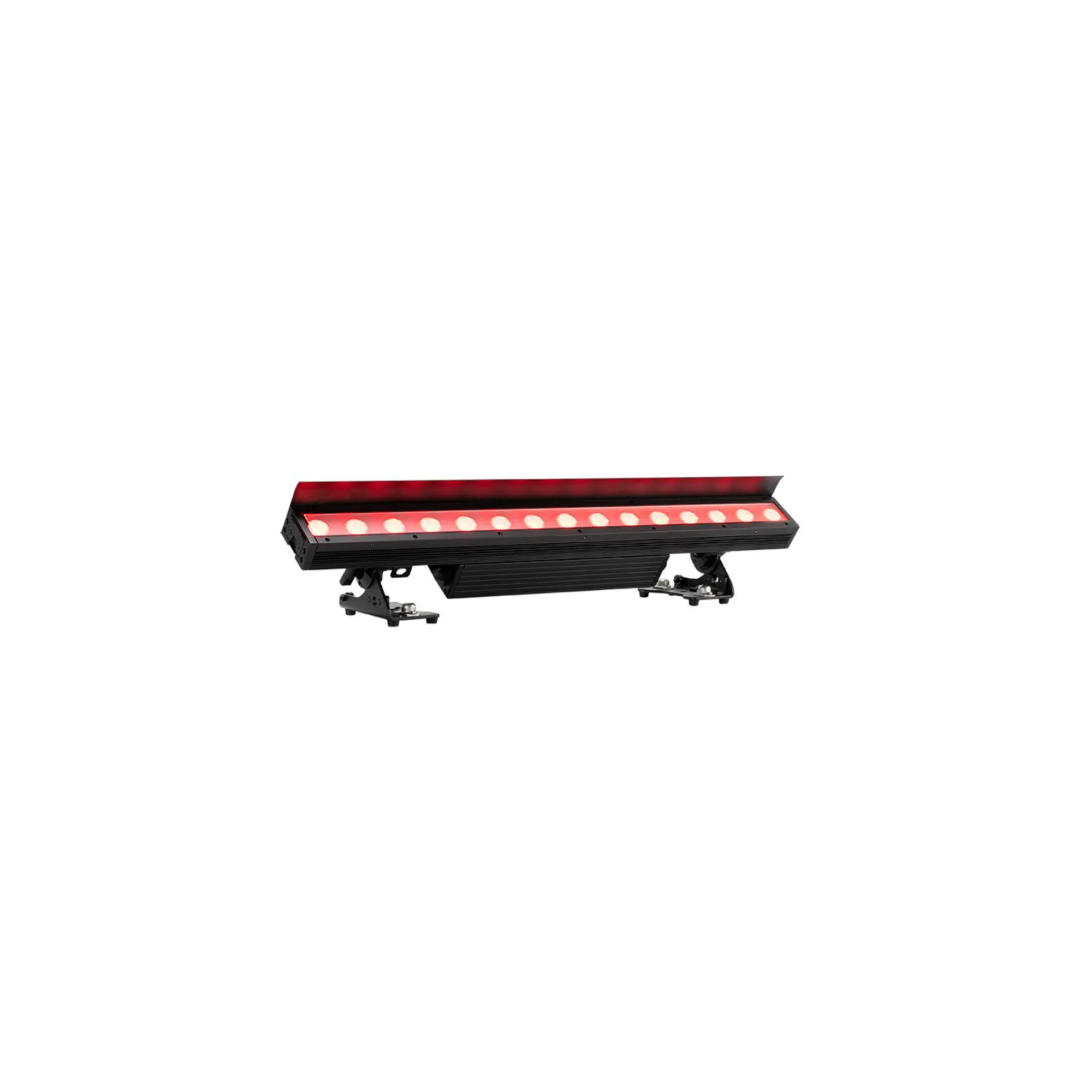

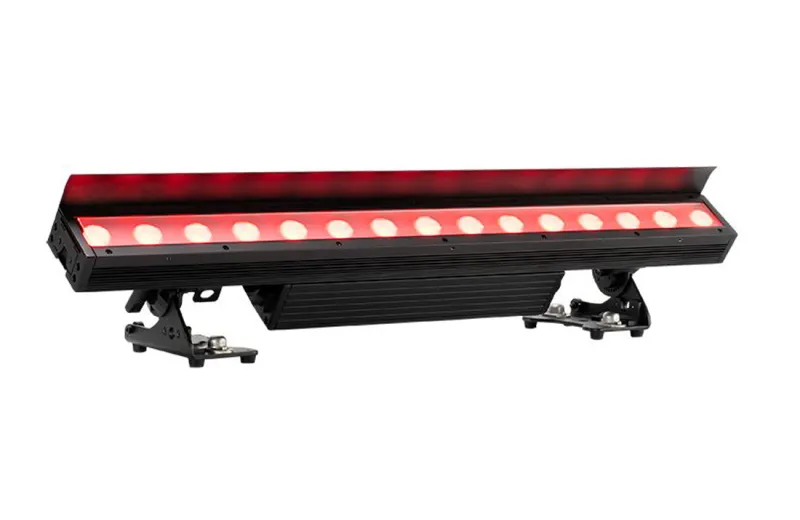

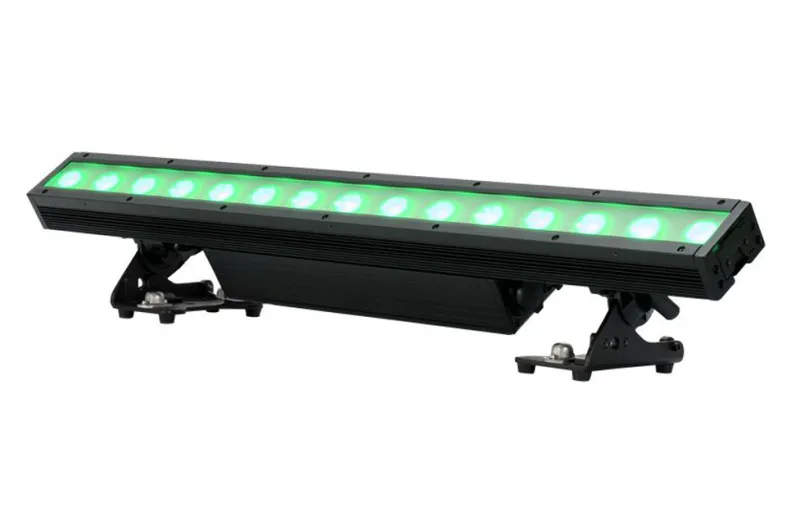

ADJ Encore LB15 IP WASHER OUTDOOR FIXTURE
090718
The LB15 IP is part of ADJ’s Lime Par Series of LED wash fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or one of six preset macros.
2-YEAR WARRANTY
Specifications
Source:
• 15 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
Photometric Data:
• Beam angle: 12.4° (24° with attached diffusion filter)
• CRI: 89.3
• CRI R9: 69
• Lumens: 5982
• Linear Color Temperature Control (2700K to 7000K)
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
Effects:
• Individual Pixel Controllable
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros
Control/Connections:

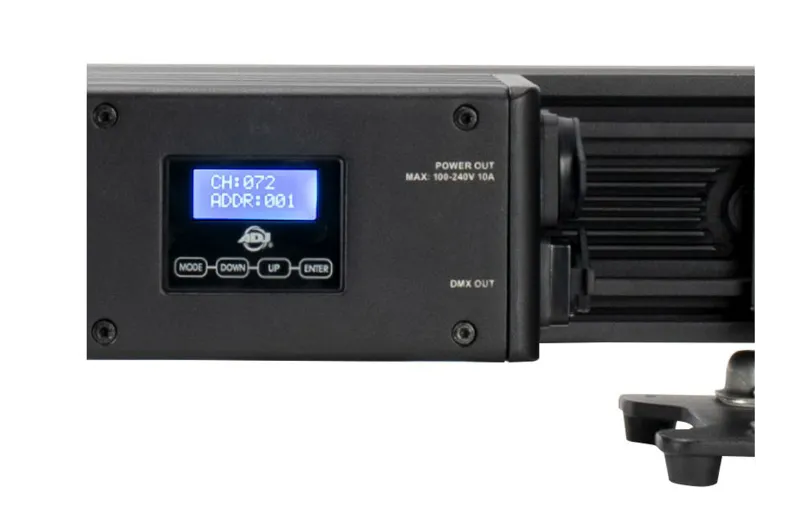

• 4-button, DMX digital display on rear panel
• 5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 72 & 120 channel
• Adjustable fan modes
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
Construction:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction

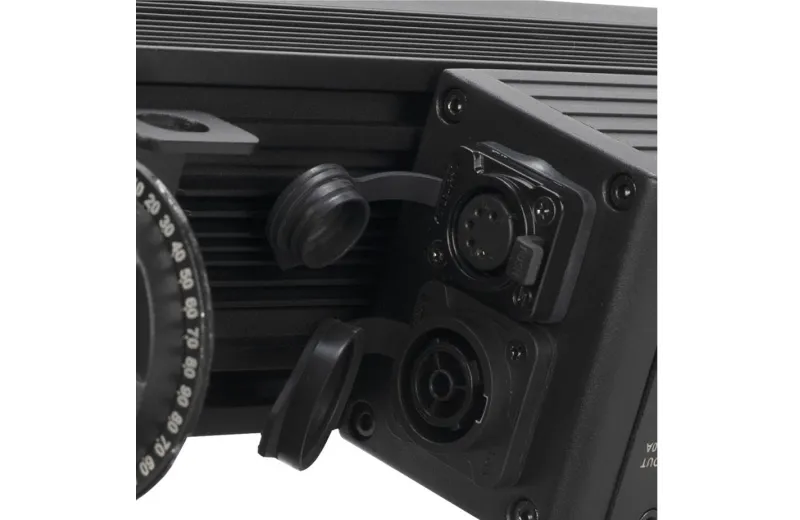

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin DMX connections
• Includes glare shield
Electrical/Thermal:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 5 @ 120V, 10 @ 220V
• Max power: 198W
Dimension/Weight:
• Dimensions (LxWxH) 5.99” x 36.1” x 8.33” / 152x914.9x211.55mm
• Weight: 19.5 lbs. / 8.85 kg.
Approvals/Ratings:
• cETLus Pending
• IP65
• 15 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue & Lime)
Photometric Data:
• Beam angle: 12.4° (24° with attached diffusion filter)
• CRI: 89.3
• CRI R9: 69
• Lumens: 5982
• Linear Color Temperature Control (2700K to 7000K)
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K, 6500K and 7000K)
Effects:
• Individual Pixel Controllable
• 16-Bit Fine Color Control (Red, Green, Blue & Lime)
• 64 built-in Color Macros
Control/Connections:
• 4-button, DMX digital display on rear panel
• 5 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• Supports RDM (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 10 DMX Modes: 4, 7, 8, 13, 16, 60, 63, 72 & 120 channel
• Adjustable fan modes
• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)
Construction:
• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All metal construction
• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor IN/Out Power connectors
• Data linkable via 5-pin DMX connections
• Includes glare shield
Electrical/Thermal:
• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 5 @ 120V, 10 @ 220V
• Max power: 198W
Dimension/Weight:
• Dimensions (LxWxH) 5.99” x 36.1” x 8.33” / 152x914.9x211.55mm
• Weight: 19.5 lbs. / 8.85 kg.
Approvals/Ratings:
• cETLus Pending
• IP65
- Single LED power (W)
- 20
- Number of LEDs
- 15
- Beam angle
- 12.4
- DMX
- Yes
- DMX Channels
- 4, 7, 8, 13, 16, 60, 63, 72 & 120
- Colour
- Black
- Width (mm)
- 914.9
- Length (mm)
- 152
- Height (mm)
- 211.55
- Weight (kg)
- 8.85
- Protection class
- IP65
New
- MPN
- Encore LB15 IP
