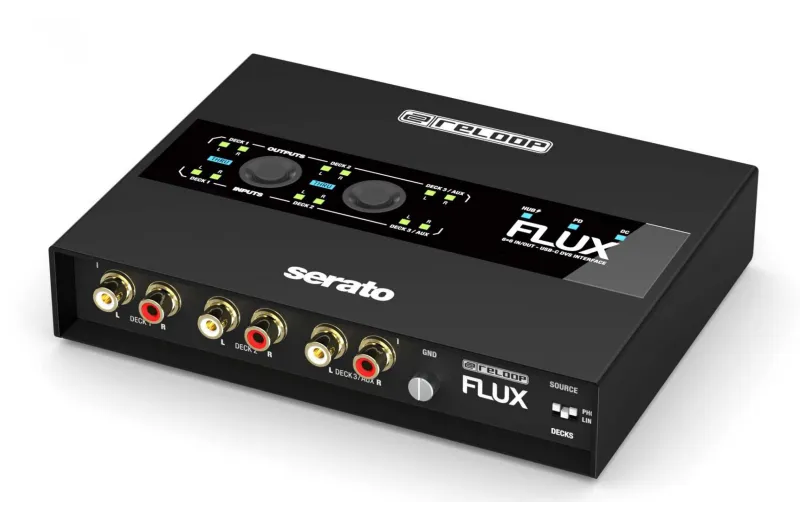

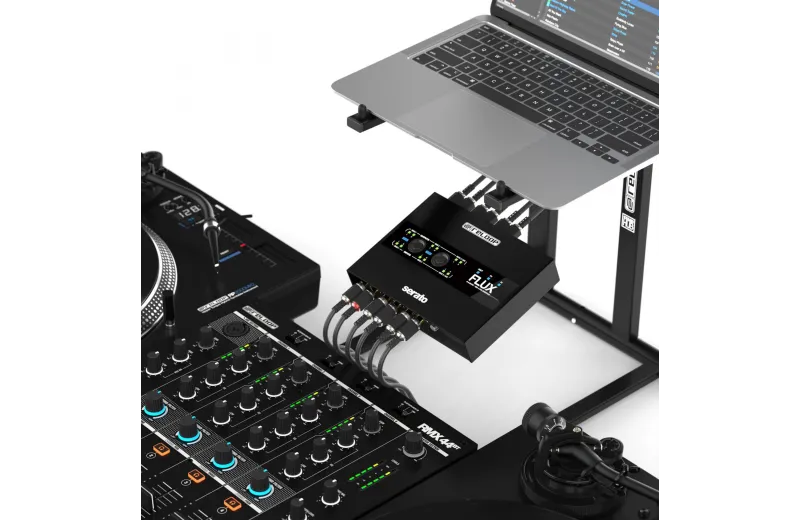

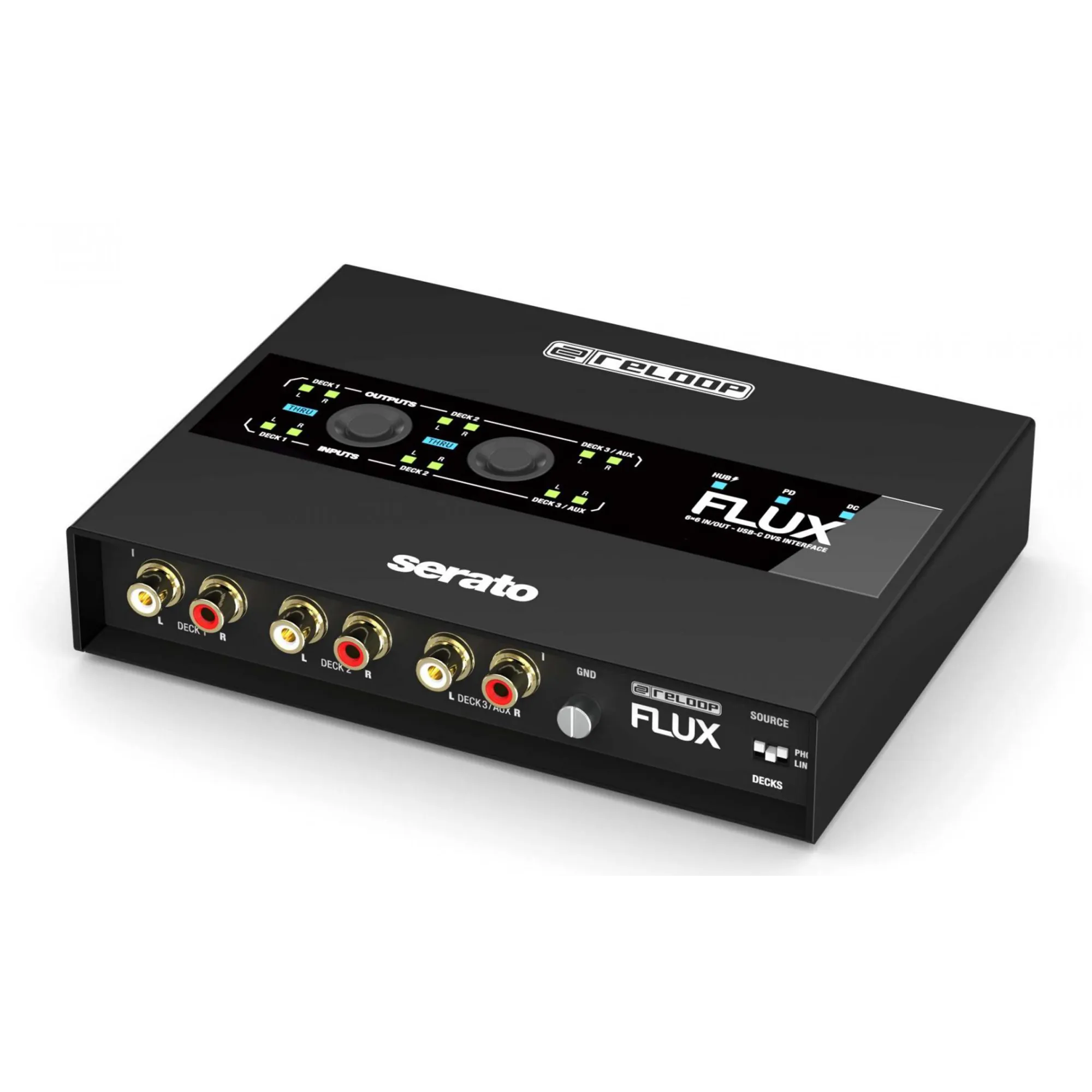

The Reloop Flux is a next-generation USB-C interface for using Serato DJ Pro with turntables, CDJs or other media players. The interface boasts superior audio qualities, a well-designed operating concept and a club-ready design. It can transform any conventional mixer into a professional digital vinyl system.

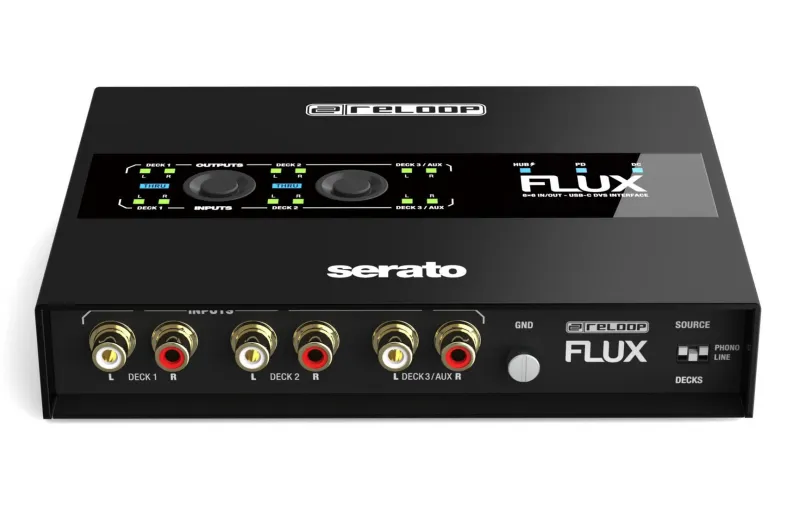

Three stereo inputs provide DJs with maximum flexibility. Turntables, CDJs and similar can be used in any combination. The settings are adjusted using discreet DIP switches, which virtually eliminates any chance of accidental switching in the club. The interface includes three stereo outputs, including an AUX out that can be routed to Serato DJ Pro/s internal sampler
The Flux provides the best possible routing overview thanks to clearly visible signal flow LEDs for all inputs and outputs and a Thru status indicator. Connection status (hub, PD, DC) LED indicators on the top of the interface provide additional control options. The Direct Thru buttons on the top of the interface enable you to quickly and easily activate and disable Thru mode, which allows connected turntables and CDJs to be used conventionally. Navigation through the Serato software is no longer necessary

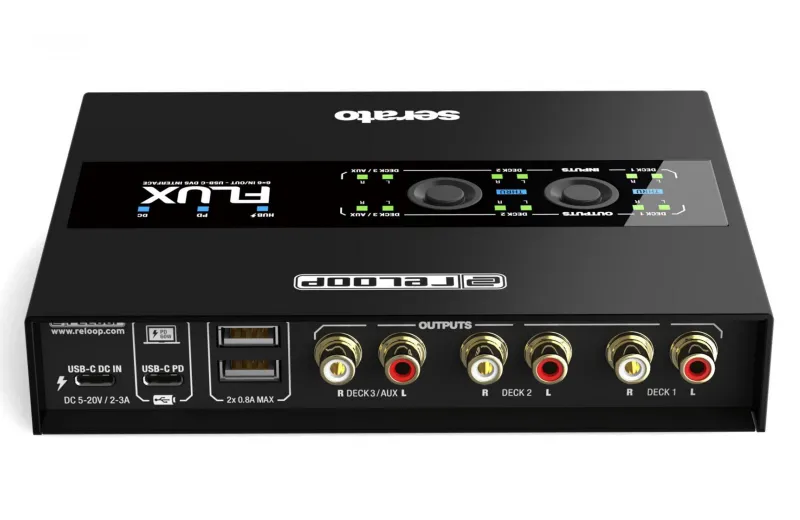

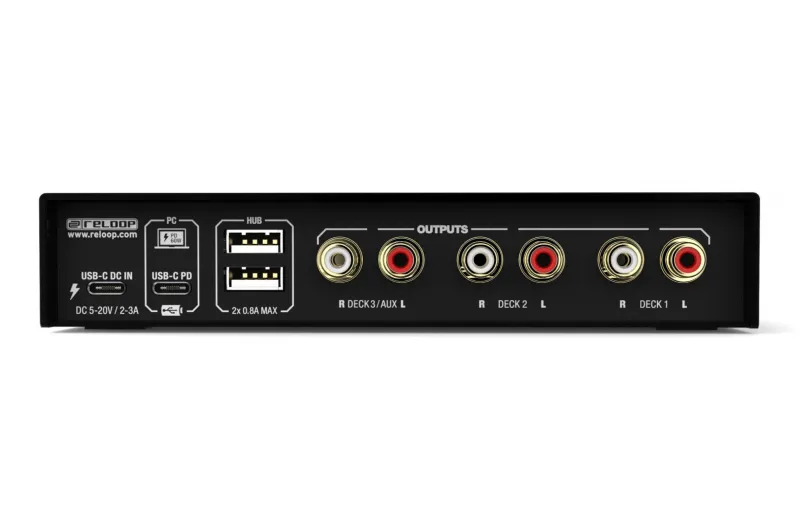

The Flux includes a built-in 2-port USB-A hub for connecting MIDI controllers and other USB accessories. The Flux is bus-powered by a computer, so theres minimal wiring required for audio and power cables. The DVS interface can also be powered by external power sources through the USB-C DC input, allowing turntables and CDJs to be used in Thru mode even without a computer connected. The Fluxs second USB-C port provides Power Delivery support for other USB-C devices (max. 60 W), such as a MacBook. The Flux offers studio quality in the club and wherever its needed with 24-bit/96 kHz, high-quality digital/analogue converters and ultra-low latency.
TECHNICAL DATA
Power
USB bus powered: Yes
Recommended power: 2 A or higher / minimum power: 400 mA
Maximum USB-PD throughput: 60 W
Maximum USB Hub power output: 2 x 0.8 A = 8 W
Supported external USB (type A or C) power supply: 5 V/1 A - 20 V/3 A
Power supply priority: FLUX self-power -> USB Hub -> PD (to PC)
Audio
S/N Ratio (output reference level 1 kHz, +4 dB):
Deck In (LINE signal input: 0 dBV): More than 83 dB
Deck In (PHONO signal input: -32 dBV): More than 73 dB
THD + N:
LINE signal input: -4 dBV @1K / Less than 0.03% (1 kHz,+0 dB)
PHONO signal input: -36 dBV @1K / Less than 0.05% (1 kHz,+0 dB, Inverse RIAA)
Maximum Gain:
Deck In (LINE): +4 dB ± 2 dB
Deck In (PHONO): +36 dB ± 2 dB
Maximum Input (1 kHz, THD=1%):
Deck In (LINE): More than +7 dBV
Deck In (PHONO): More than -25 dBV
Maximum Output (1 kHz, THD=1%):
Deck Output: More than +11 dBV
USB
USB audio interface with 24 bit/44.1 kHz, 48 kHz, 96 kHz
USB 2.0 high-speed (480 Mbit/s)
Class-compliant on macOS
USB Power Delivery Protocol 3.0
General
Dimensions (WxDxH): 160 x 120 x 34 mm
Weight: 0.85 kg
Accessories:
User Manual
1x USB type C/C cable
1x USB type C/A cable
2x RCA cables
